Provides a cost-effective, 1-gang mountable interface for an HD or 4K display device as part of a complete DigitalMedia™ System. Connects to the DM 8G+® output of a DM® Switcher or Transmitter via a single CATx cable. Includes IR and RS-232 control ports. Available in white or black. Faceplate not included.
Overview
The DM-RMC-4K-100-C-1G provides a simple, cost-effective interface solution for a single display device as part of a complete Crestron® DigitalMedia™ system. It functions as a DM 8G+® receiver and control interface, providing a single HDMI® output along with RS-232 and IR control ports.[1] In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to an HDBaseT certified source.
Its 1-gang mountable design allows the DM-RMC-4K-100-C-1G to be flush mounted behind a flat panel display or above a ceiling mounted projector. It can also be mounted beneath a table or attached to a suitable flat surface using the mounting bracket provided. It connects to the head end or source location using a single CAT type twisted pair cable.[2] Standard gang-box mounting (3-1/2" deep) allows for installation adjacent to an Ethernet jack (Crestron MP-WP183 or equivalent) for a total connectivity solution.[3]
4K Ultra HD
Crestron DigitalMedia continues to advance the standard for digital AV signal distribution, delivering the world’s first end-to-end 4K system solution. The DM-RMC-4K-100-C-1G features the latest DM 8G+ technology, providing support for the transport of 4K and Ultra HD video signals. Support for 4K video also ensures support for the latest generation of computers and monitors with native resolutions beyond 1080p and WUXGA.
DigitalMedia 8G+®
As the leader in HDMI and control system technologies, Crestron developed DigitalMedia (DM®) to deliver the first complete HD AV distribution system to take HDMI to a higher level. DigitalMedia allows virtually any mix of HDMI and other AV sources to be distributed throughout a home, office, school, or virtually any other facility. The latest generation of DM is called DigitalMedia 8G™ (DM 8G®). Engineered for ultra high-bandwidth and ultimate scalability, DM 8G provides a true one-wire lossless transport for moving high-definition video, audio, and control signals over a choice of twisted-pair or fiber optic cable.
DM 8G over twisted-pair copper wire is called DigitalMedia 8G+ (DM 8G+). DM 8G+ handles uncompressed Full HD 1080p, Ultra HD, 2K, and 4K video signals with support for 3D, Deep Color, and HDCP 2.2. Audio capabilities include support for high-bitrate 7.1 audio formats like Dolby® TrueHD, Dolby Atmos®, and DTS-HD® as well as uncompressed linear PCM. All signals are transported over a single CAT type wire, supporting 1080p, WUXGA, and 2K signals at distances up to 330 feet (100 m) using Crestron DM Ultra Cable, Crestron DM 8G Cable, or third-party CAT5e. Higher resolutions up to UHD and 4K are supported at distances up to 330 feet (100 m) using DM Ultra Cable, 230 feet (70 m) using DM 8G Cable, or 165 feet (50 m) using CAT5e.[2]
HDBaseT® Certified
Crestron DigitalMedia 8G+ technology is designed using HDBaseT Alliance specifications, ensuring interoperability with other HDBaseT certified products. Via its DM 8G+ input, the DM-RMC-4K-100-C-1G can be connected directly to an HDBaseT compliant source without requiring a DM transmitter.
Multimedia Display Interface
A single HDMI digital AV output port is provided on the DM-RMC-4K-100-C-1G for connection to a display or other device. The HDMI output can also handle DVI signals using an appropriate adapter or interface cable.[4]
A single CAT type cable connects the DM-RMC-4K-100-C-1G to a DM switcher or transmitter, or to an HDBaseT source, transporting video, audio, control, and power signals all through one simple RJ45 connection.[2,5,6] Multiple DM-RMC-4K-100-C-1Gs may be installed to handle each display in a multiroom distribution system, all fed from a central DM-MD series switcher. Or, a single DM-RMC-4K-100-C-1G can be fed straight from a DM 8G+ or HDBaseT transmitter, affording a simple solution for extending a computer or AV signal to a single display.
Embedded Device Control
The DM-RMC-4K-100-C-1G includes built-in RS-232 and IR control ports to allow for programmable control of the connected display device (via a control system).[1] Additional control capability is afforded by harnessing the CEC (Consumer Electronics Control) signal embedded in HDMI. Through its connection to the control system, the DM-RMC-4K-100-C-1G provides a gateway for controlling the source right through its HDMI connection, potentially eliminating the need for a dedicated serial cable or IR emitter.[7]
Versatile Mounting Options
The DM-RMC-4K-100-C-1G is designed to be installed using a 3-1/2” deep 1-gang electrical box or plaster ring (not included). It can also be mounted beneath a table or attached to a suitable flat surface using the mounting bracket provided, or it can be fastened to a single rack rail in an equipment cabinet. The DM cable connects to the rear of the receiver via a shielded RJ45 DM port. The unit can be powered using PoDM (Power over DigitalMedia) or the optional PW-2407WUL wall mount power pack (sold separately).[5,6] An array of indicators is provided for easy setup and troubleshooting.
Please refer to the DigitalMedia Resources Webpage at http://www.crestron.com/dmresources/ for additional design tools and reference documents.
Features
Key Features
- Cost-effective DigitalMedia 8G+® receiver and display controller
- Connects to a DM® switcher or transmitter over a single CAT type twisted pair cable [1,2]
- HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
- Provides one HDMI® or DVI display output [4]
- Handles video resolutions up to 4K and Ultra HD
- Handles 3D video and Deep Color
- Handles Dolby® TrueHD, Dolby Atmos®, DTS-HD®, and uncompressed 7.1 linear PCM audio
- HDCP 2.2 compliant
- Supports cable lengths up to 330 ft (100 m) for all resolutions up to UHD and 4K using DM Ultra cable [2]
- Supports cable lengths up to 330 ft (100 m) for 1080p, WUXGA, and 2K using DM 8G® cable or CAT5e [2]
- Supports cable lengths up to 230 ft (70 m) for UHD and 4K using DM 8G cable, or 165 ft (50 m) using CAT5e [2]
- Enables device control via CEC, IR, and RS-232 [1,7]
- Powered via the DM connection or optional power pack (sold separately)[5,6]
- 1-gang wall box mount design (3-1/2" deep)
- Surface mount bracket included
- Available in white or black finish
Specifications
| Maximum Cable Lengths | |||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||
| Input Signal Types | DM 8G+ & HDBaseT w/Deep Color, 3D, & 4K | ||||||||||||||||||||||||||||||||
| Output Signal Types | HDMI w/Deep Color, 3D, & 4K (DVI compatible [4]) | ||||||||||||||||||||||||||||||||
Maximum Resolutions
|
|||||||||||||||||||||||||||||||||
| NOTE: Common resolutions are shown; other custom resolutions are supported at pixel clock rates up to 300 MHz | |||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||
| Input Signal Types | DM 8G+, HDBaseT | ||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI | ||||||||||||||||||||||||||||||||
| Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio™, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||
| Communications | |||||||||||||||||||||||||||||||||
| RS-232 | 2-way device control and monitoring up to 115.2k baud with software handshaking (via control system) [1] | ||||||||||||||||||||||||||||||||
| IR/Serial | 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 Volts) up to 19.2k baud (via control system) [1] | ||||||||||||||||||||||||||||||||
| DigitalMedia | DM 8G+, HDCP 2.2, EDID, CEC [7], PoDM | ||||||||||||||||||||||||||||||||
| HDBaseT | HDCP 2.2, EDID, CEC [7], PoE | ||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.2, EDID, CEC [7] | ||||||||||||||||||||||||||||||||

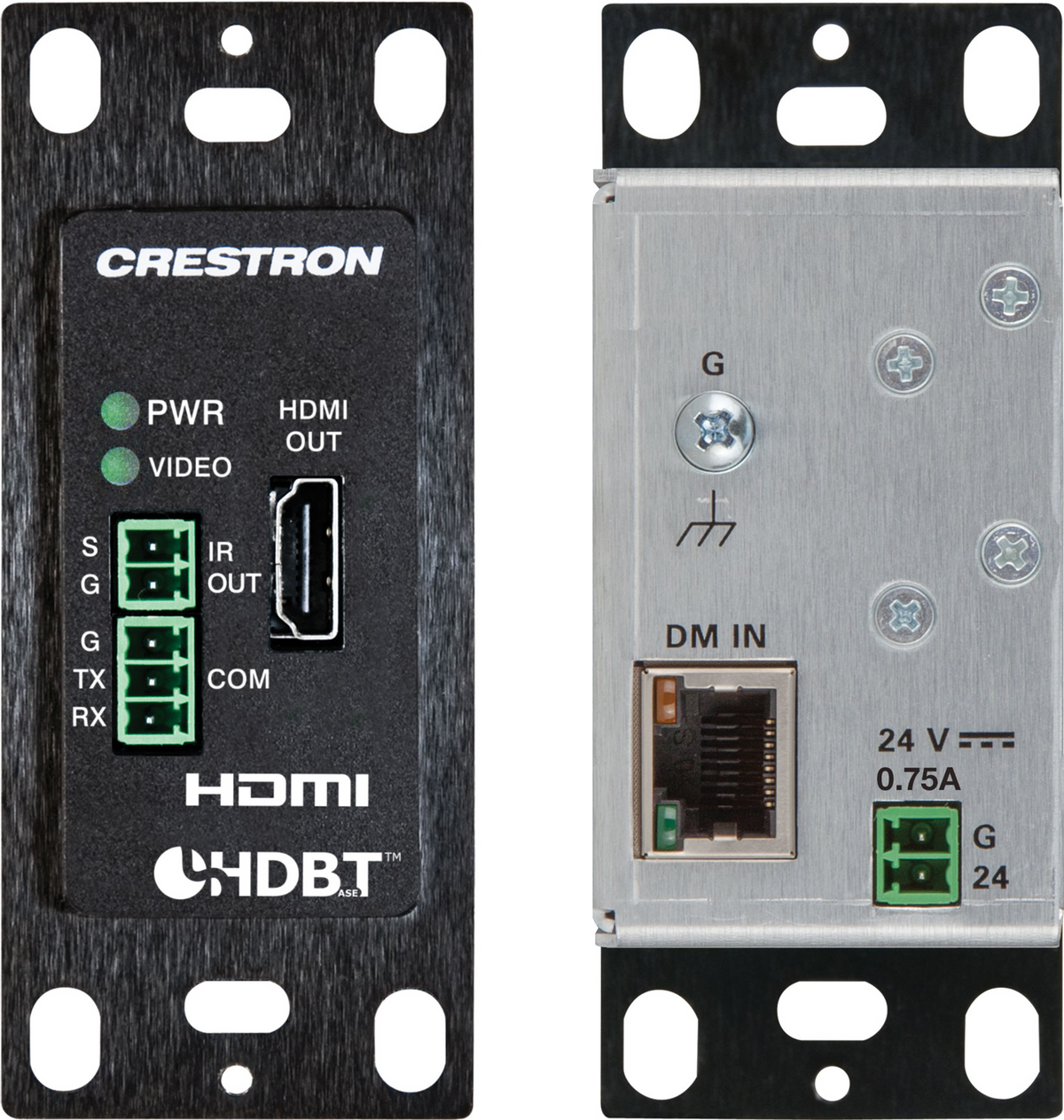

| Connectors – Front | |||||||||||||||||||||||||||||||||
| HDMI OUT | (1) 19-pin Type A HDMI female; HDMI digital video/audio output (DVI compatible [4]) |
||||||||||||||||||||||||||||||||
| IR OUT | (1) 2-pin 3.5 mm detachable terminal block; IR/Serial port [1]; IR output up to 1.1 MHz; 1-way serial TTL/RS-232 (0-5 Volts) up to 19200 baud |
||||||||||||||||||||||||||||||||
| COM | (1) 3-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port [1]; Up to 115.2k baud, software handshaking support |
||||||||||||||||||||||||||||||||
| Connectors – Rear | |||||||||||||||||||||||||||||||||
| G | (1) 6-32 screw; Chassis ground lug |
||||||||||||||||||||||||||||||||
| DM IN | (1) 8-pin RJ45 female, shielded; DM 8G+ input, HDBaseT compliant; PoDM PD port (HDBaseT PoE compatible) [5,6]; Connects to the DM 8G+ output of a DM switcher, transmitter, or other DM device, or to an HDBaseT device, via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable [2] |
||||||||||||||||||||||||||||||||
| 24VDC 0.75A | (1) 2-pin 3.5 mm detachable terminal block; 24 Volt DC power input; PW-2407WUL power pack (sold separately) |
||||||||||||||||||||||||||||||||
| Indicators | |||||||||||||||||||||||||||||||||
| PWR | (1) Green LED, indicates operating power supplied via PoDM, HDBaseT PoE, or optional power pack | ||||||||||||||||||||||||||||||||
| VIDEO | (1) Green LED, indicates video signal presence at the HDMI output | ||||||||||||||||||||||||||||||||
| DM IN (rear) | (2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence | ||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||
| Power over DM (PoDM) | IEEE 802.3at Type 1 Class 3 (12.95 W) compliant PoDM PD (Powered Device), capable of being powered by a PoDM PSE (Power Sourcing Equipment) [5] | ||||||||||||||||||||||||||||||||
| Power over HDBaseT | IEEE 802.3at Type 1 Class 3 (12.95 W) compliant HDBaseT PoE PD (Powered Device), capable of being powered by an HDBaseT PoE PSE (Power Sourcing Equipment) [6] | ||||||||||||||||||||||||||||||||
| Power Pack (Optional) | Input: 100-240 Volts AC, 50/60 Hz; Output: 0.75 Amps @ 24 Volts DC; Model: PW-2407WUL (sold separately) |
||||||||||||||||||||||||||||||||
| Power Consumption | 5.8 Watts typical; 2.5 Watts idle |
||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||
| Temperature | 32° to 95° F (0° to 35° C) | ||||||||||||||||||||||||||||||||
| Humidity | 10% to 90% RH (non-condensing) | ||||||||||||||||||||||||||||||||
| Heat Dissipation | 19.8 BTU/hr | ||||||||||||||||||||||||||||||||
| Enclosure | |||||||||||||||||||||||||||||||||
| Construction | Metal, black finish with white or black polycarbonate label overlay | ||||||||||||||||||||||||||||||||

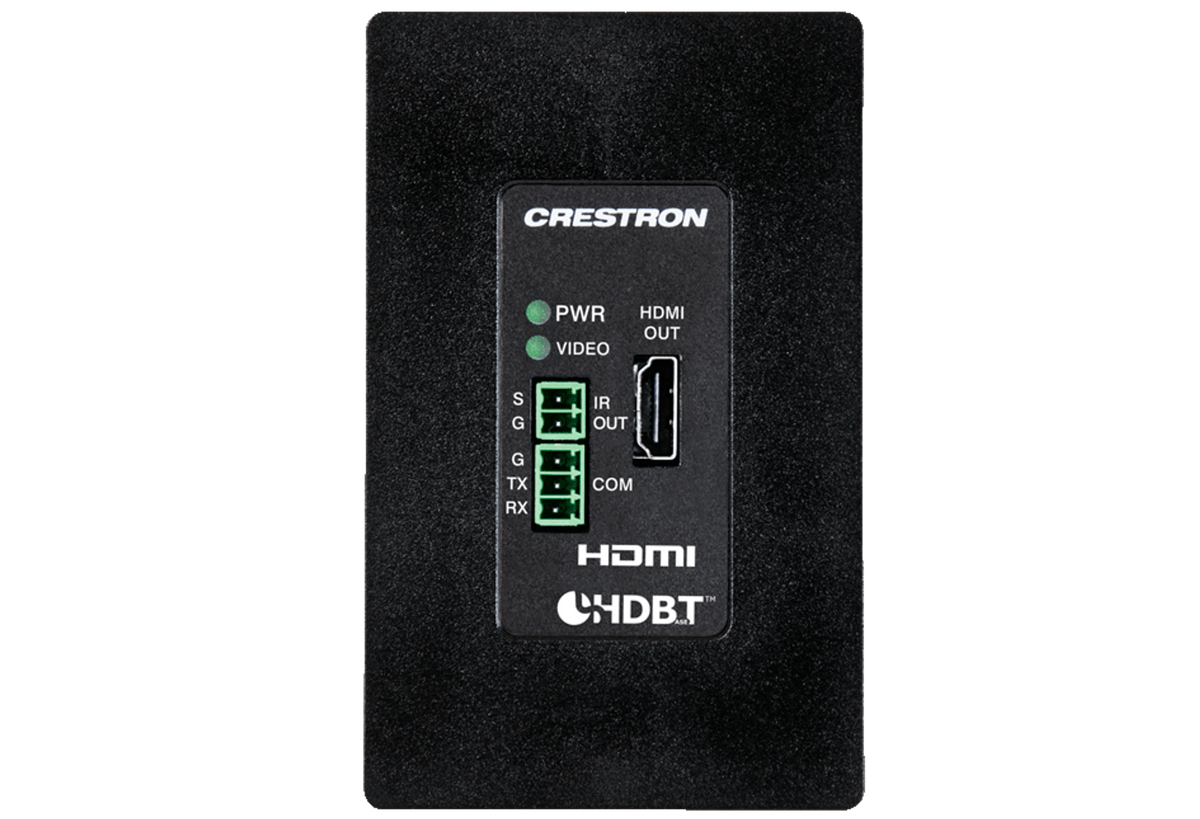

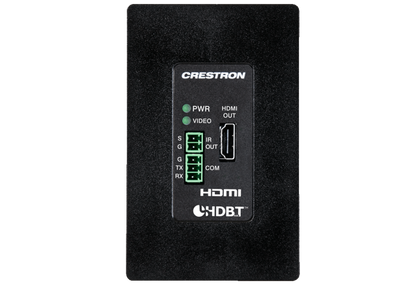

| Flush Wall Mount | Mounts in a 1-gang 3-1/2" deep electrical box or plaster ring, requires a decorator style faceplate (not included) | ||||||||||||||||||||||||||||||||

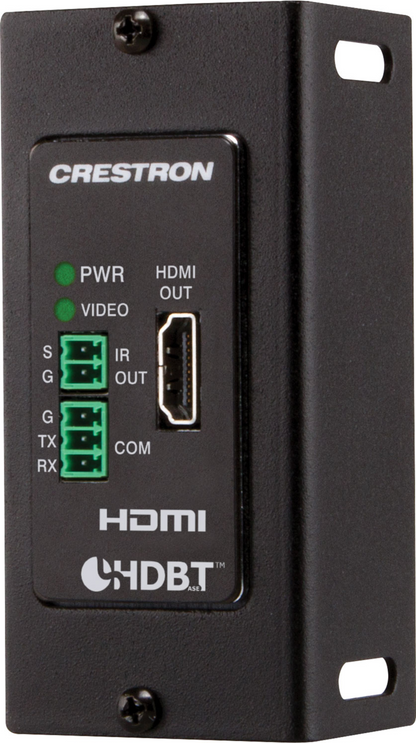

| Surface Mount | Surface mount bracket included | ||||||||||||||||||||||||||||||||

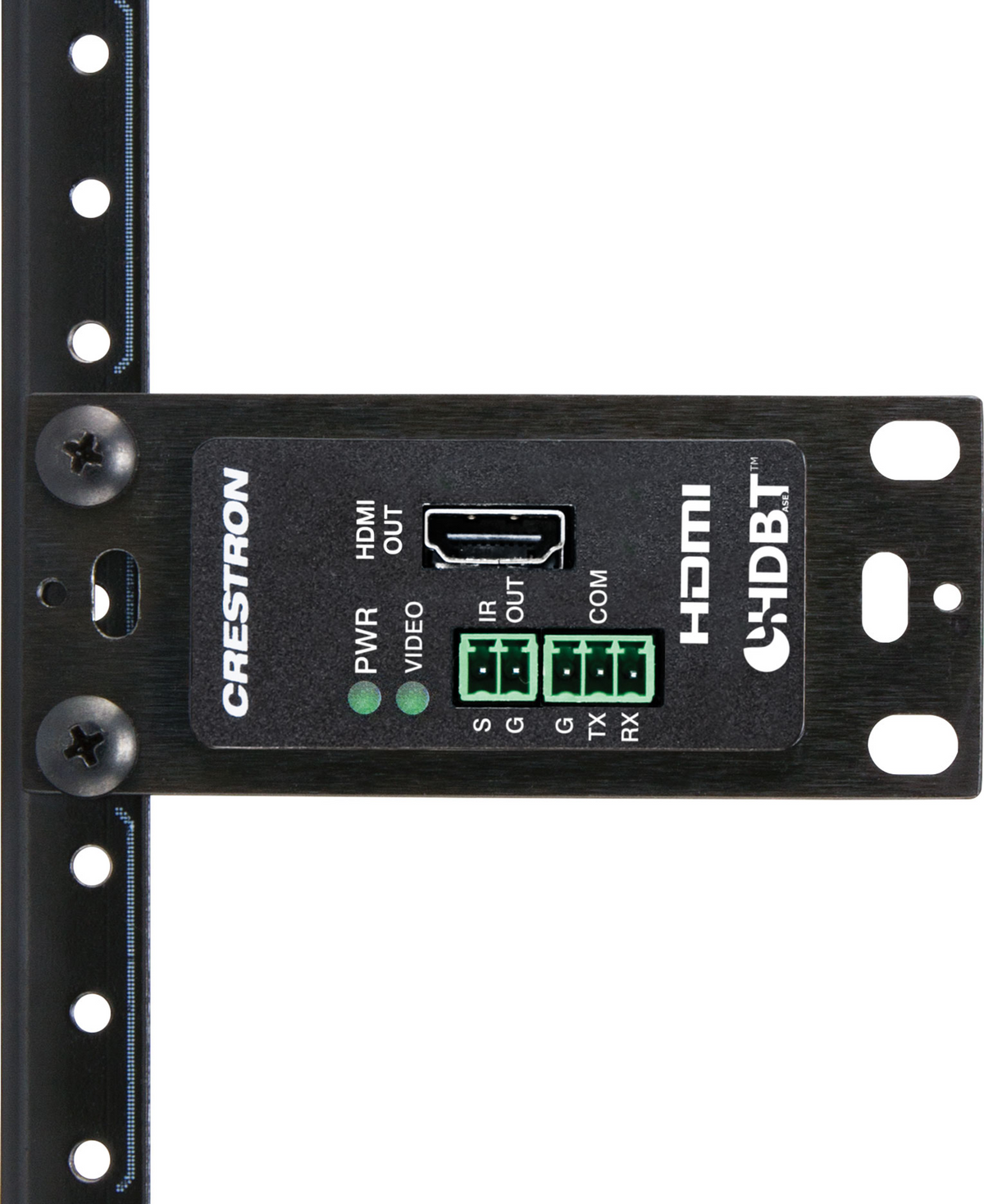

| Rack Mount | Attachable to a single 19-inch EIA rack rail | ||||||||||||||||||||||||||||||||
| Dimensions | |||||||||||||||||||||||||||||||||
| Height | 4.12 in (105 mm) | ||||||||||||||||||||||||||||||||
| Width | 1.72 in (44 mm) | ||||||||||||||||||||||||||||||||
| Depth | 2.35 in (60 mm) | ||||||||||||||||||||||||||||||||
| Weight | |||||||||||||||||||||||||||||||||
| 6.3 oz (179 g) | |||||||||||||||||||||||||||||||||
