Product Information
Provides a rack-mounted solution for extending 4K video signals over fiber optic cable, and adding 4K fiber inputs and outputs to a DigitalMedia™ switcher.
Overview

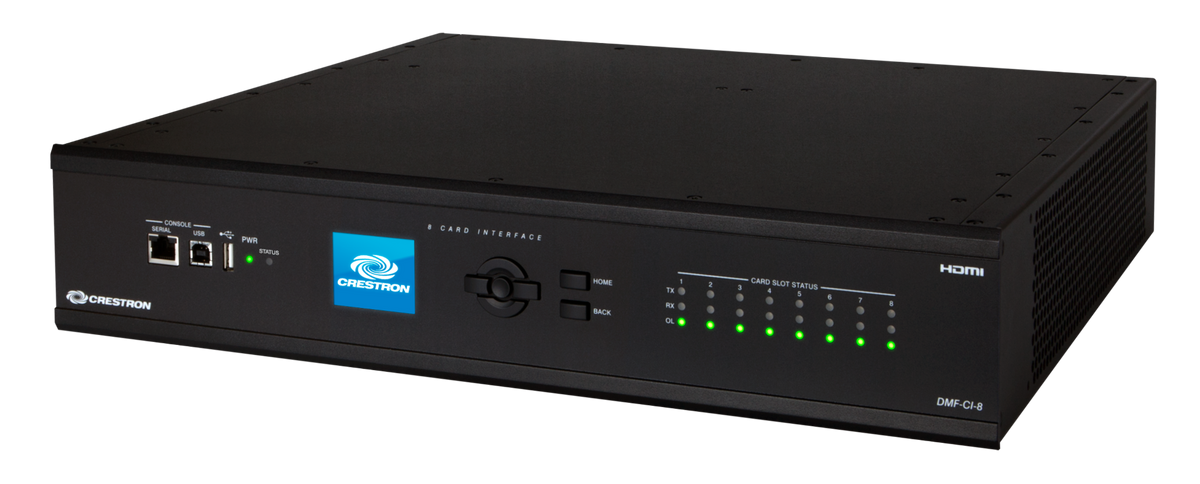

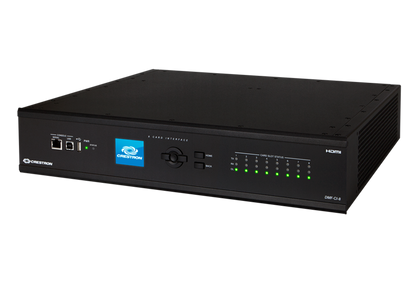

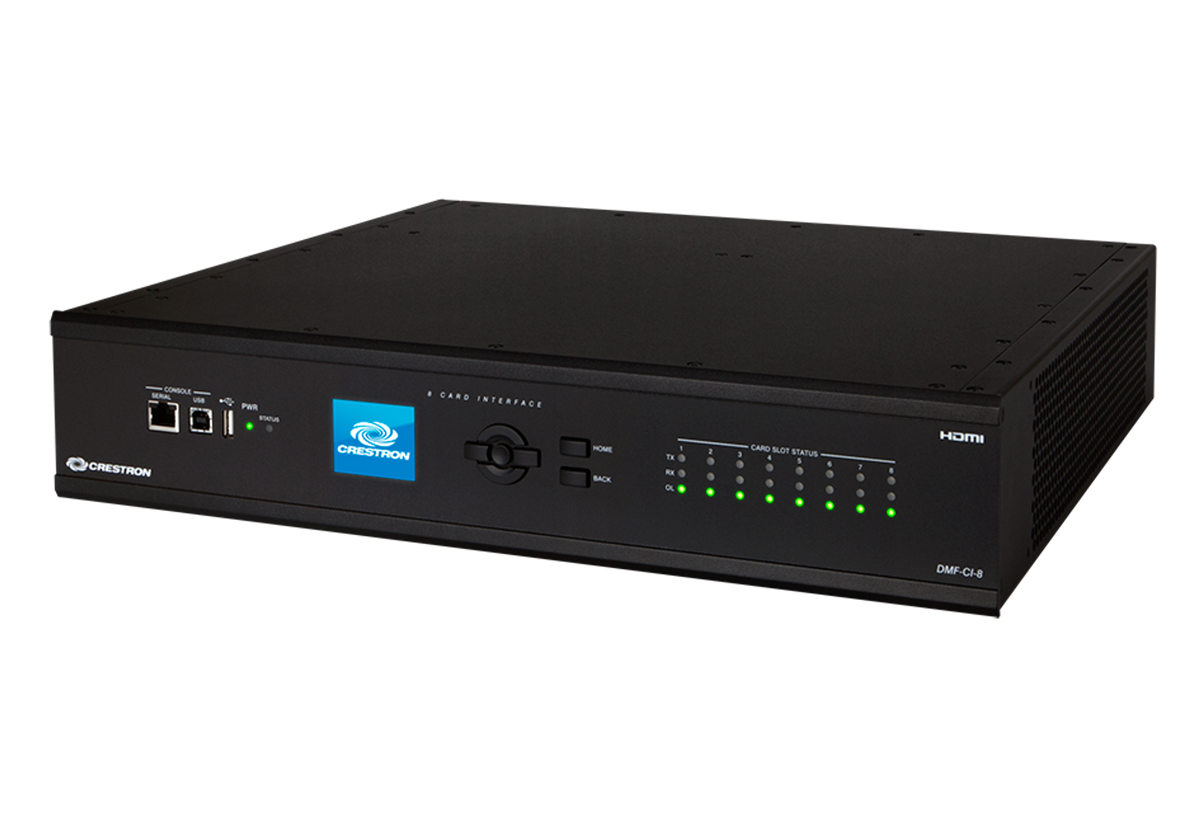

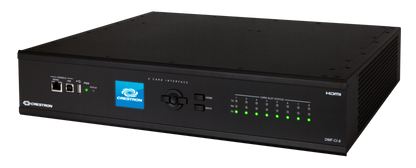

The DMF-CI-8 is a 2-space rack-mountable chassis designed to house up to eight Crestron® DM-NVX-C or DMCF series cards. Any of these cards may be installed in any slot.
Please refer to the DigitalMedia Resources Webpage at http://www.crestron.com/dmresources/ for additional design tools and reference documents.
DM NVX Switch Configuration Guides
To ease deployment, Crestron has created a series of guides to aid in switch configuration for DM NVX. By design, DM NVX uses standard network protocols and should be compatible with any switch that meets our minimum requirements.View Guides
Features
Key Features
- Eight-slot card frame for Crestron® DM-NVX-C and DMCF series cards
- Provides a high-density, multi-endpoint 4K video solution
- Hot-swappable card serviceability
- Front panel 2 inch color LCD display and status indicators
- Network setup for each card through front panel
- Variable-speed fan cooling
- Universal 100-240V internal power supply
- 2-space 19-inch rack-mountable
Specifications
| Communications | ||
| USB Host | For loading of firmware via a USB mass storage device | |
| USB Device | Computer console for setup | |
| RS-232 | Computer console for setup | |
| Card Slots | ||

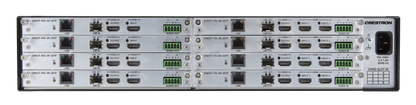

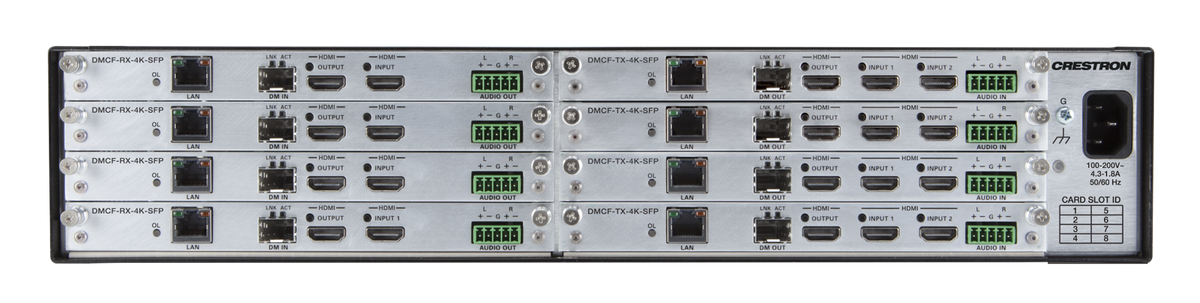

| CARD SLOT ID 1 – 8 | (8) Card slots; Each slot accepts (1) DM-NVX-C series encoder/decoder card or (1) DMCF series transmitter or receiver card |
|
| Connectors | ||
| G | (1) 6-32 screw; Chassis ground lug |
|
| 100-240V~4.3-1.8A 50/60Hz | (1) IEC 60320 C14 main power inlet; Mates with removable power cord, included |
|

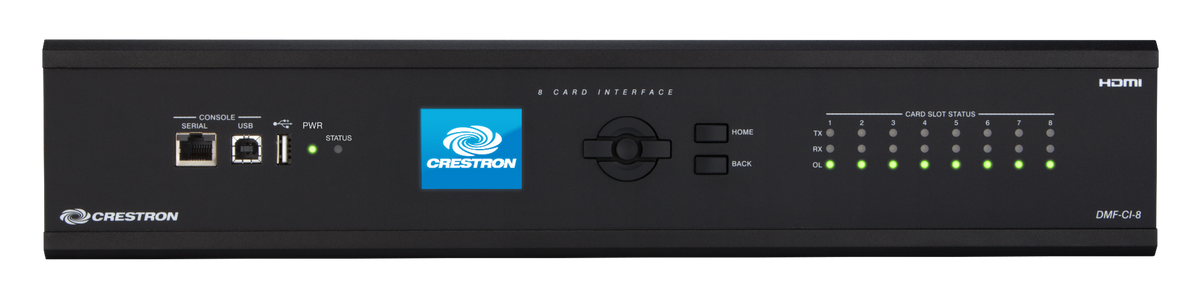

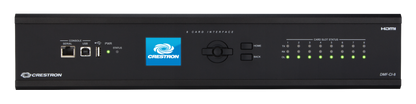

| CONSOLE, SERIAL (front) | (1) 8-pin RJ45 female; RS-232 computer console port |
|
| CONSOLE, USB (front) | (1) USB Type-B female; USB computer console port |
|
| USB (front) | (1) USB Type A female; Supports USB mass storage devices for firmware update |
|
| Controls & Indicators | ||
| PWR | (1) Bi-color green/amber LED, indicates operating power supplied from AC line, turns amber while booting and green when operating | |
| STATUS | (1) Bi-color green/red LED, indicates a normal (green) or critical error (red) condition | |
| Display | (1) 2 inch (52 mm) diagonal, 220 x 176 pixels, 16-bit TFT active matrix color LCD, displays IP address settings for each installed card | |
| Nav Pad | (1) 5-way navigation pad for menu navigation and adjustment of settings | |
| HOME | (1) Pushbutton, enters or returns to the home menu | |
| BACK | (1) Pushbutton, steps menu back one level | |
| CARD SLOT STATUS, TX 1 – 8 | (8) Green LEDs, each indicates the corresponding card is in transmitter mode | |
| CARD SLOT STATUS, RX 1 – 8 | (8) Green LEDs, each indicates the corresponding card is in receiver mode | |
| CARD SLOT STATUS, OL 1 – 8 | (8) Green LEDs, each indicates the corresponding card is online | |
| Power | ||
| Main Power | 4.3-1.8 Amps @ 100-240 Volts AC, 50/60 Hz | |
| Power Consumption | 350 Watts fully loaded | |
| Environmental | ||
| Temperature | 32° to 104° F (0° to 40° C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Heat Dissipation | 1195 BTU/hr fully loaded | |
| Acoustic Noise | 43 dBA typical @ 70°F (21°C) ambient temperature | |
| Enclosure | ||
| Chassis | Metal with black finish, vented sides, fan-cooled | |
| Front Panel | Metal, black finish with polycarbonate label overlay | |
| Mounting | Freestanding or 2 RU 19-inch rack-mountable (rack ears included) | |
| Dimensions | ||
| Height | 3.47 in (89 mm) | |
| Width | 17.40 in (442 mm); 19.00 in (483 mm) with rack ears |
|
| Depth | 15.43 in (392 mm) | |
| Weight | ||
| 9.9 lb (4.5 kg) without cards | ||
