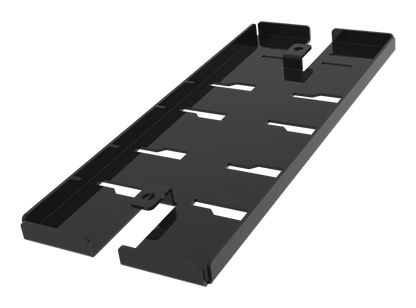

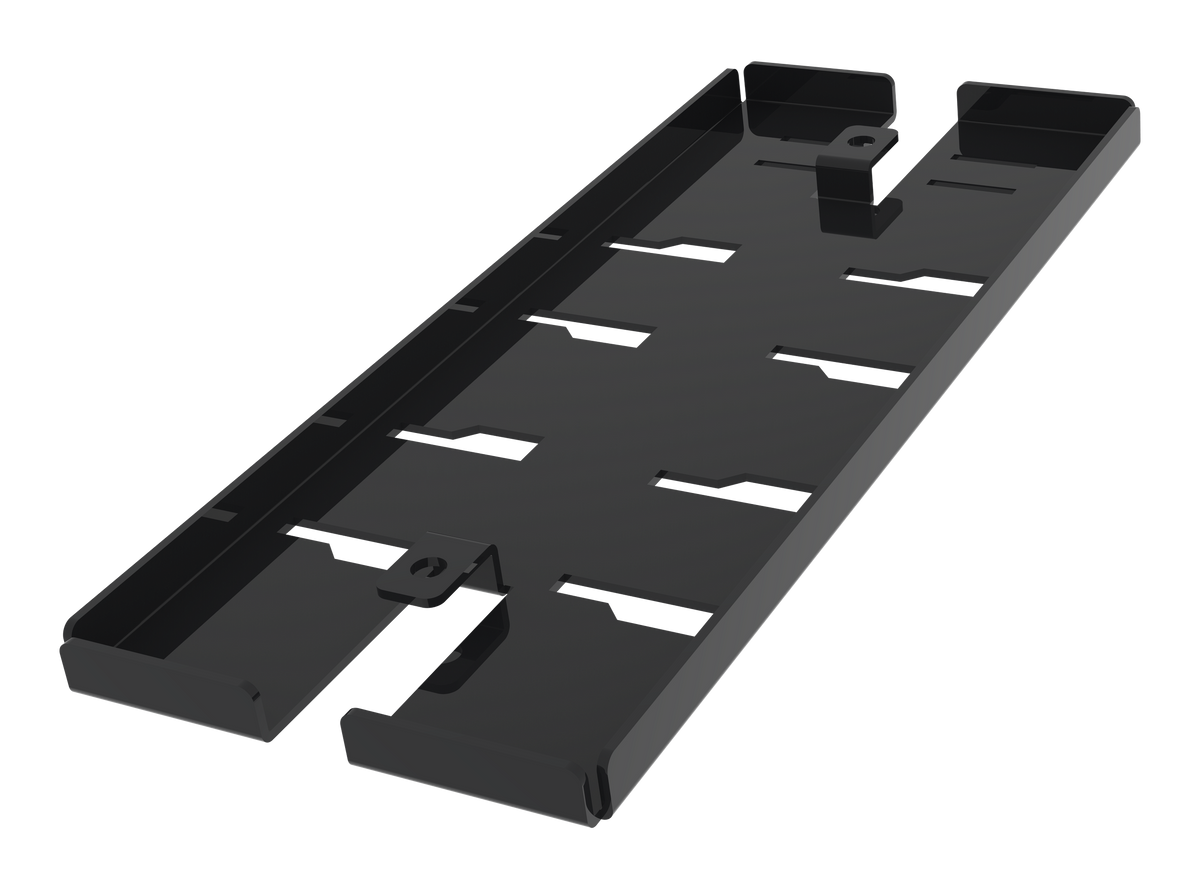

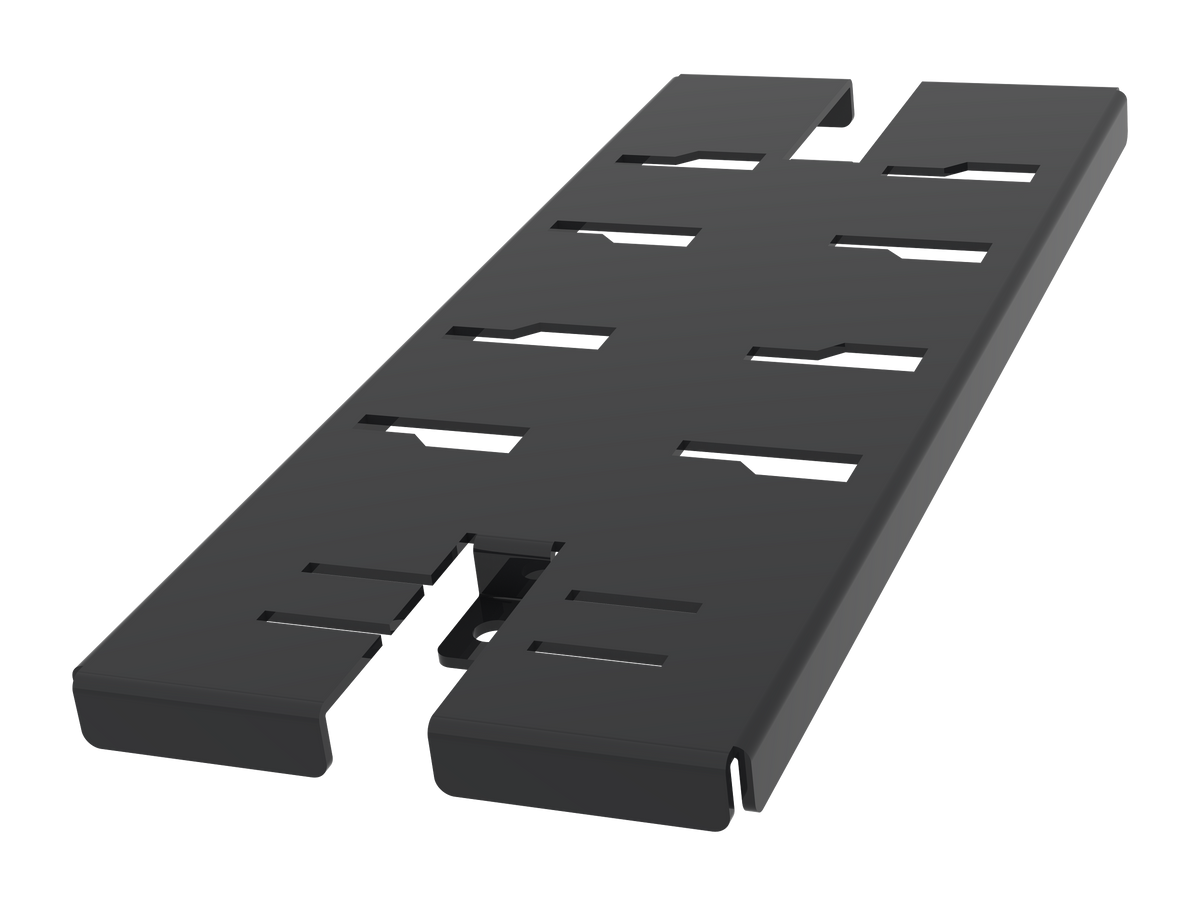

CTN FT2A-CBLR-BRKT-1200 Mid-Row Cable Retractor Adapter Bracket for FT2-1200 Series

The FT2A-CBLR-BRKT-1200 is an adapter bracket for a Crestron® FT2‑1200 Series FlipTop™ that enables the installation of two cable retractors in the middle positions within the FlipTop. It attaches to the front or rear of the FlipTop chassis beneath the table, and provides mounting slots for two retractors and one power supply.

FT2‑1200 Series FlipTops normally support the installation of cable retractors at the left and right ends of the module row. Adding the FT2A-CBLR-BRKT-1200 bracket allows retractors to be installed in the middle of the row, allowing for a total of up to four retractors across the entire row. One mid‑row retractor occupies the third and fourth module slots, while the other occupies the sixth and seventh slots. A single module space remains at the center of the row (fifth slot) to accommodate any single‑space module or blank plate.

When installing mid‑row retractors, the bracket and retractors can attach to either the front or rear of the FlipTop chassis below the table. When installed, the mid‑row retractor enclosures project from the front or rear of the chassis perpendicular to the end‑mounted retractors. The cable connectors nest within the retractor modules above the table at a 90° rotation relative to other connectors within the FlipTop.

Note: Using the bracket, an FT2A‑CBLR‑GR Series Gravity Retractor requires 2‑3/4 inches (70 mm) horizontal clearance, and an FT2A‑CBLR‑1T Series One‑Touch Retractor requires 9 inches (228 mm) horizontal clearance, measured from the front or rear of the FlipTop chassis beneath the table. Refer to each product's spec sheet for additional dimensions and clearances.

When used with an FT2‑1200‑ELEC Series "Electrical" FlipTop, the FT2A-CBLR-BRKT-1200 bracket retains the ability to mount a single FT2A‑UTK‑PWS power supply on the same side as the cable retractor.
