Single-slot module that adds USB charging capability to an FlipTop™ cable management system. Provides two USB Type-A charging ports. Includes external 100-240V power pack. Rapid charging allows two devices to draw up to 12 W at 2.4 A simultaneously.
Overview

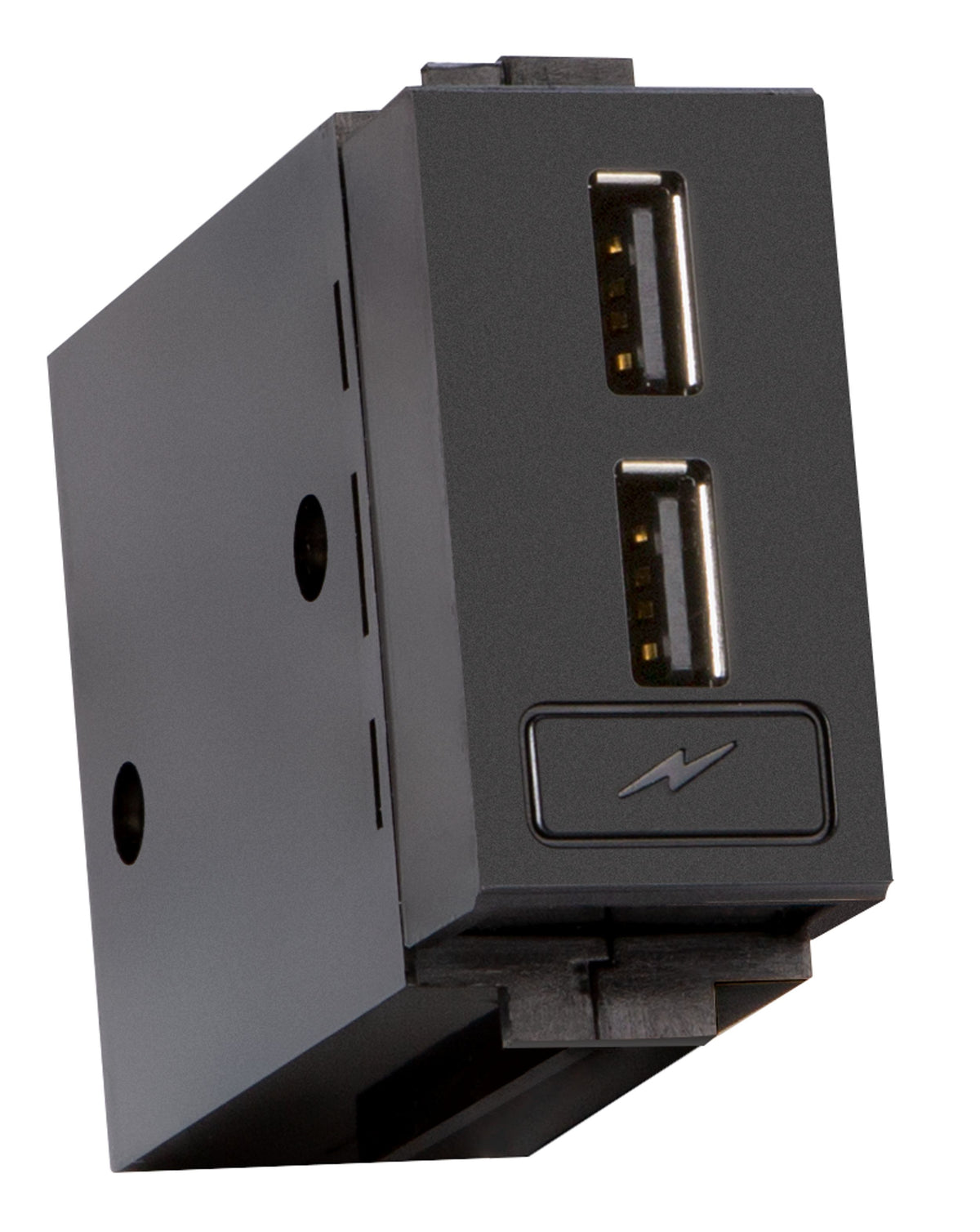

The USB Rapid Charging Module (FT2A-CHGR-USBA-BASIC) is a single-slot module designed for installation in a Crestron® FT2 Series FlipTop™ cable management systems. It provides two USB Type-A charging ports, which may be used simultaneously to quickly charge two mobile phones, laptops, or tablet devices at the table. The module is engraved with the icon depicting the international symbol for a high-powered USB charging port.
An included power pack provides 5 A (maximum) to the module for simultaneous charging of two standard USB loads. Each USB Type-A port supplies up to a maximum of 2.4 A charging current with short circuit and overload protection. The power pack has a 6 ft (1.83 m) cord and five detachable plugs (UK, AU, EU, CCC, and UL) to accommodate international standards.
Note: The rapidity of the charge depends on the connected device and how much power it draws.
Features
Key Features
- Adds USB rapid charging capability to an FlipTop™ cable management system
- Provides two USB Type-A charging ports
- Supplies up to 12 W at 2.4 A for two USB Type-A devices charging simultaneously
- Engraved icon for the high-powered USB charging symbol
- Simple drop-in modular design
- Powered by the included power pack
- Occupies a single module slot within the FlipTop
- USB cables not included
Specifications
| USB Charging | |
| USB Type-A | Provides up to 12 W at 2.4 A for each charging device simultaneously |
| Connectors | |
| USB-A | USB Type-A charging port, female |
| Indicator | |
| Symbol Icon | Engraved icon with international high-powered USB charging port symbol (not backlit) |
| Power | |
| Powered by the included power pack | |
| Environmental | |
| Temperature | 32° to 113° F (0° to 45° C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Construction | |
| Precision fit plastic drop-in module, black, requires one module slot within the FlipTop chassis | |
| Dimensions | |
| Height | 2.86 in. (73 mm) |
| Width | .98 in. (25 mm) |
| Depth | 2.31 in. (59 mm) |
| Weight | |
| 0.106 lb (0.048 kg) | |
| Compliance | |
| UL® Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device | |
