Product Information
A point-to-point signal extender for HDMI®, USB 2.0, RS-232, IR, and Ethernet signals.
Overview

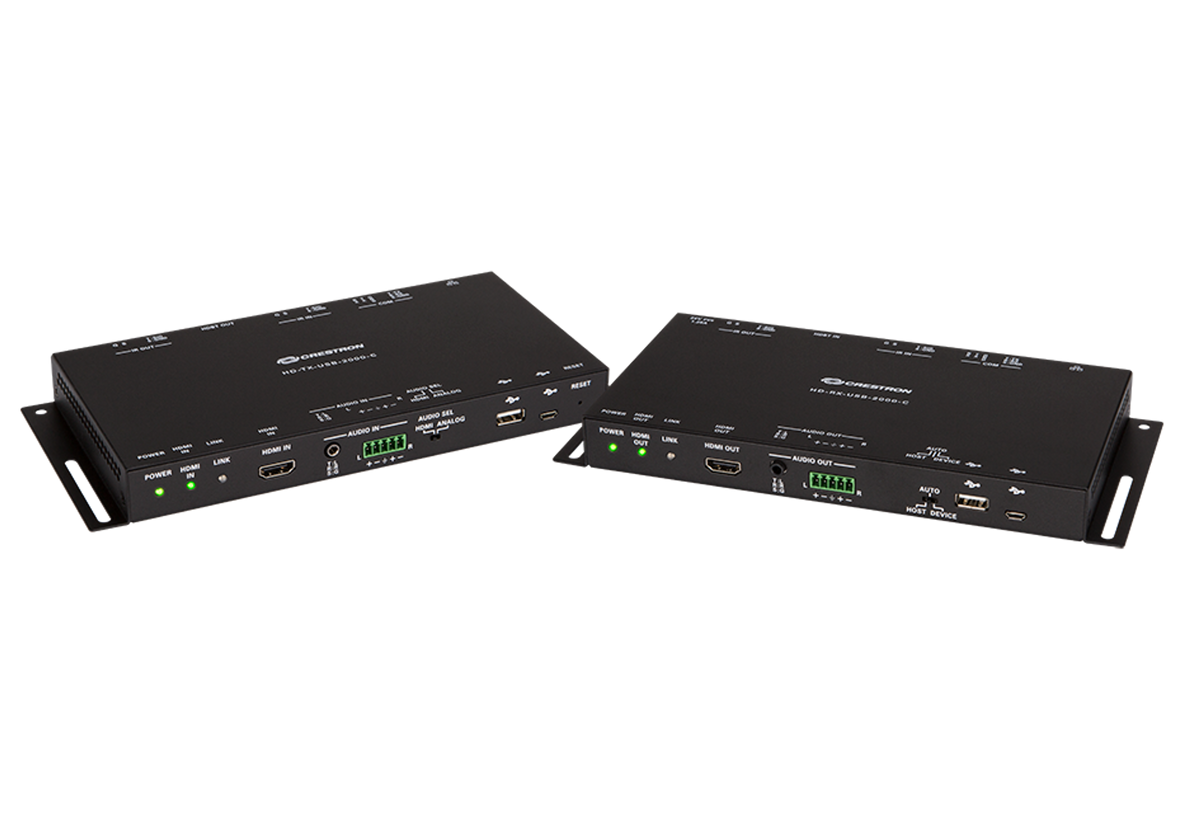

The HD-EXT-USB-2000-C is a point-to-point signal extender for HDMI®, USB 2.0, RS-232, IR, and Ethernet signals. Analog audio input and/or output signals are also supported in combination with HDMI video. The HD-EXT-USB-2000-C is ideal for use with a single HD or UHD display device and USB camera to extend the signal wiring from an AV media source, computer, central equipment cabinet, or Crestron Mercury™ Tabletop Conference System.
The extender is composed of a compact transmitter and receiver pair, which may be installed up to 330 feet (100 meters) apart (depending on the video resolution and wire type). Video, audio, control, and LAN signals are all transported through a single CAT type cable (not included) using HDBaseT® technology.[1]
Note: This product is not addressable from a control system and offers no programmable functionality. Ethernet, USB, CEC, IR, and RS-232 signals are simply passed through. The transmitter and receiver are intended to be used together and are not intended to be interfaced with other HDBaseT equipment.
Features
Key Features
- HDBaseT® Certified 4K Ultra HD signal extender
- Extends uncompressed digital video, audio, control, and LAN signals over a single CAT type twisted pair cable [1]
- Supports cable lengths up to 330 ft (100 m) depending on the video resolution and wire type [1]
- Handles video resolutions up to 4K60 4:2:0 and 4K30 4:4:4
- Handles 3D video and Deep Color
- Supports Dolby® TrueHD, Dolby Atmos®, DTS-HD®, and uncompressed 7.1 linear PCM audio
- Compatible with HDMI®, DVI, and DisplayPort Multimode sources [2]
- Compatible with HDMI and DVI display devices [2]
- Includes balanced and unbalanced stereo analog audio input and output [3,4]
- Supports stereo analog audio embedding and de-embedding
- HDCP 2.2 compliant
- Passes CEC and EDID signals
- Extends 10/100 Ethernet, RS-232, and IR control signals
- Extends USB 2.0 signals in either direction (mode selectable) [5]
- Low-profile surface mount design
- Universal 100-240V power pack included
- Ideal for use with Crestron Mercury™ systems
Specifications
| Video | |||||||||||||||||||||||||||||||||||
| Input Signal Types (@TX) | HDMI w/Deep Color, 3D, & 4K (DVI & Dual-Mode DisplayPort compatible [2]) | ||||||||||||||||||||||||||||||||||
| Output Signal Types (@RX) | HDMI w/Deep Color, 3D, & 4K (DVI compatible [2]) | ||||||||||||||||||||||||||||||||||
| Maximum Resolutions |
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
| NOTE: Common resolutions are shown; other custom resolutions are supported at pixel clock rates up to 300 MHz | |||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||
| Input Signal Types (@TX) | HDMI (Dual-Mode DisplayPort compatible), analog stereo [3] | ||||||||||||||||||||||||||||||||||
| Output Signal Types (@RX) | HDMI, analog stereo [4] | ||||||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||||
| Analog Formats | Stereo 2-channel | ||||||||||||||||||||||||||||||||||
| Analog-To-Digital Conversion | 24-bit 48 kHz | ||||||||||||||||||||||||||||||||||
| Digital-To-Analog Conversion | 24-bit 48 kHz | ||||||||||||||||||||||||||||||||||
| Analog Performance | Frequency Response: 20 Hz to 20 kHz ±0.5 dB; S/N Ratio: >95 dB, 20 Hz to 20 kHz A-weighted; THD+N: <0.005% @ 1 kHz; Stereo Separation: >80 dB, 20 Hz to 20 kHz |
||||||||||||||||||||||||||||||||||
| Communications | |||||||||||||||||||||||||||||||||||
| Ethernet | 10/100 Mbps pass-through | ||||||||||||||||||||||||||||||||||
| USB | USB 2.0 pass-through (also supports firmware update via USB mass storage device at TX) | ||||||||||||||||||||||||||||||||||
| RS-232 | 2-way serial pass-through up to 115.2k baud (TD/RD only) | ||||||||||||||||||||||||||||||||||
| IR | Bidirectional IR signal pass-through up to 60 kHz | ||||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.2, EDID, CEC pass-through | ||||||||||||||||||||||||||||||||||
| HDBaseT | HDCP 2.2, EDID, PoE+, Ethernet, IR/RS-232 (intended for signal extension between TX & RX only) | ||||||||||||||||||||||||||||||||||
| Connectors – Transmitter (HD-TX-USB-2000-C) | |||||||||||||||||||||||||||||||||||
| HDMI IN | (1) HDMI Type A connector, female; HDMI digital video/audio input; (DVI & Dual-Mode DisplayPort compatible [2]) |
||||||||||||||||||||||||||||||||||
| AUDIO IN | (1) 3.5 mm TRS mini phone jack & (1) 5-pin 3.5 mm detachable terminal block; Balanced or unbalanced stereo line-level audio input [3]; Maximum Input Level: 4 Vrms balanced, 2 Vrms unbalanced; Input Impedance: 10k Ohms balanced, 5k Ohms unbalanced; Note: The TRS jack is unbalanced stereo and paralleled with the L+ (tip), R+ (ring), and ground (sleeve) terminals; only one audio input connection should be used; this input signal supplants the HDMI audio input signal when selected |
||||||||||||||||||||||||||||||||||
| USB (host) | (1) USB Type A connector, female; USB 2.0 host port for connection of a mouse, keyboard, or any other USB 2.0 peripheral device [5]; Passes USB data to/from the USB device port on the RX when in DEVICE mode; Available Power: 1 Amp at 5 Volts DC |
||||||||||||||||||||||||||||||||||
| USB (device) | (1) USB Type Micro-B connector, female; USB 2.0 device port for connection to a computer or any other USB 2.0 host [5]; Passes USB data to/from the USB host port on the RX when in HOST mode |
||||||||||||||||||||||||||||||||||
| LAN | (1) 8-pin RJ45 connector, female; 10Base-T/100Base-TX Ethernet port; Passes Ethernet data to/from the LAN port on the RX |
||||||||||||||||||||||||||||||||||
| COM | (1) 3.5 mm TRS mini phone jack & (1) 3-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Passes RS-232 TD/RD data to/from the COM port on the RX; Supports up to 115.2k baud Note: The TRS jack and terminal block are paralleled; only one should be used |
||||||||||||||||||||||||||||||||||
| IR IN | (1) 3.5 mm TS mini phone jack & (1) 2-pin 3.5 mm detachable terminal block; IR input port for connection from a Crestron IR control port or other IR signal source; Passes IR signal to the IR OUT port on the RX; Supports IR up to 60 kHz; Note: The TS jack and terminal block are paralleled; only one should be used |
||||||||||||||||||||||||||||||||||
| HDBT OUT | (1) 8-pin RJ45 connector, female, shielded; HDBaseT and PoE Class 3 PD port for connection to the HDBT IN port on the RX [1] |
||||||||||||||||||||||||||||||||||
| IR OUT | (1) 3.5 mm TS mini phone jack & (1) 2-pin 3.5 mm detachable terminal block; IR output port for connection to an IR emitter; Passes IR signal from the IR IN port on the RX; Supports IR up to 60 kHz; Note: The TS jack and terminal block are paralleled; only one should be used |
||||||||||||||||||||||||||||||||||
| Connectors – Receiver (HD-RX-USB-2000-C) | |||||||||||||||||||||||||||||||||||
| HDMI OUT | (1) HDMI Type A connector, female; HDMI digital video/audio output (DVI compatible [2]) |
||||||||||||||||||||||||||||||||||
| AUDIO OUT | (1) 3.5 mm TRS mini phone jack & (1) 5-pin 3.5 mm detachable terminal block; Balanced or unbalanced stereo line-level audio output [4]; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced; Output Impedance: 499 Ohms balanced or unbalanced; Note: The TRS jack is unbalanced stereo and paralleled with the L+ (tip), R+ (ring), and ground (sleeve) terminals |
||||||||||||||||||||||||||||||||||
| USB (host) | (1) USB Type A connector, female; USB 2.0 host port for connection of a mouse, keyboard, or any other USB 2.0 peripheral device [5]; Passes USB data to/from the USB device port on the TX when in HOST mode; Available Power: 1 Amp at 5 Volts DC |
||||||||||||||||||||||||||||||||||
| USB (device) | (1) USB Type Micro-B connector, female; USB 2.0 device port for connection to a computer or any other USB 2.0 host [5]; Passes USB data to/from the USB host port on the TX when in DEVICE mode |
||||||||||||||||||||||||||||||||||
| LAN | (1) 8-pin RJ45 connector, female; 10Base-T/100Base-TX Ethernet port; Passes Ethernet data to/from the LAN port on the TX |
||||||||||||||||||||||||||||||||||
| COM | (1) 3.5 mm TRS mini phone jack & (1) 3-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Passes RS-232 TD/RD data to/from the COM port on the TX; Supports up to 115.2k baud; Note: The TRS jack and terminal block are paralleled; only one should be used |
||||||||||||||||||||||||||||||||||
| IR IN | (1) 3.5 mm TS mini phone jack & (1) 2-pin 3.5 mm detachable terminal block; IR input port for connection from a Crestron IR control port or other IR signal source; Passes IR signal to the IR OUT port on the TX; Supports IR up to 60 kHz; Note: The TS jack and terminal block are paralleled; only one should be used |
||||||||||||||||||||||||||||||||||
| HDBT IN | (1) 8-pin RJ45 connector, female, shielded; HDBaseT and PoE+ PSE port for connection to the HDBT OUT port on the TX [1] |
||||||||||||||||||||||||||||||||||
| IR OUT | (1) 3.5 mm TS mini phone jack & (1) 2-pin 3.5 mm detachable terminal block; IR output port for connection to an IR emitter; Passes IR signal from the IR IN port on the TX; Supports IR up to 60 kHz; Note: The TS jack and terminal block are paralleled; only one should be used |
||||||||||||||||||||||||||||||||||
| 24VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24 Volt DC power input; PW-2412WU power pack included; Note: This connection powers both the receiver and transmitter |
||||||||||||||||||||||||||||||||||
| Controls & Indicators – Transmitter (HD-TX-USB-2000-C) | |||||||||||||||||||||||||||||||||||
| POWER | (1) Bi-color green/amber LED, indicates operating power is supplied via the HDBaseT link to the companion receiver, turns amber while booting and green when operating | ||||||||||||||||||||||||||||||||||
| HDMI IN | (1) Green LED, indicates HDMI input signal presence | ||||||||||||||||||||||||||||||||||
| LINK | (1) Bi-color green/amber LED, green indicates an HDBaseT link with video, amber indicates a link without video | ||||||||||||||||||||||||||||||||||
| AUDIO SEL HDMI/ANALOG | (1) 2-position slide switch, selects the audio input [3] | ||||||||||||||||||||||||||||||||||
| RESET | (1) Recessed pushbutton, initiates hardware reset of both the transmitter and receiver | ||||||||||||||||||||||||||||||||||
| LAN | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity | ||||||||||||||||||||||||||||||||||
| HDBT OUT | (2) LEDs, amber LED indicates HDBaseT link status, green LED indicates PoE | ||||||||||||||||||||||||||||||||||
| Controls & Indicators – Receiver (HD-RX-USB-2000-C) | |||||||||||||||||||||||||||||||||||
| POWER | (1) Bi-color green/amber LED, indicates operating power is supplied from the power pack via the 24VDC input, turns amber while booting and green when operating | ||||||||||||||||||||||||||||||||||
| HDMI OUT | (1) Green LED, indicates HDMI output signal presence | ||||||||||||||||||||||||||||||||||
| LINK | (1) Bi-color green/amber LED, green indicates an HDBaseT link with video, amber indicates a link without video | ||||||||||||||||||||||||||||||||||
| HOST/AUTO/DEVICE | (1) 3-position slide switch, selects the USB mode [5] | ||||||||||||||||||||||||||||||||||
| LAN | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity | ||||||||||||||||||||||||||||||||||
| HDBT IN | (2) LEDs, amber LED indicates HDBaseT link status, green LED indicates PoE | ||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||
| Power Pack (included) | Input: 0.8 Amps (maximum) @ 100-240 Volts AC, 50/60 Hz; Output: 1.25 Amps @ 24 Volts DC; Model: PW-2412WU |
||||||||||||||||||||||||||||||||||
| Power Consumption | 18.7 Watts typical | ||||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||||
| Temperature | 32° to 104° F (0° to 40° C) | ||||||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | ||||||||||||||||||||||||||||||||||
| Heat Dissipation | 63.8 BTU/hr | ||||||||||||||||||||||||||||||||||
| Construction – Typical of Transmitter & Receiver | |||||||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, with (2) integral mounting flanges, vented sides | ||||||||||||||||||||||||||||||||||
| Mounting | Freestanding, surface mount, or attach to a single rack rail | ||||||||||||||||||||||||||||||||||
| Dimensions | |||||||||||||||||||||||||||||||||||
| Transmitter (HD-TX-USB-2000-C) |
Height: 4.47 in (114 mm); Width: 9.61 in (244 mm); Depth: 0.99 in (25 mm) |
||||||||||||||||||||||||||||||||||
| Receiver (HD-RX-USB-2000-C) |
Height: 4.47 in (114 mm); Width: 9.61 in (244 mm); Depth: 0.99 in (25 mm) |
||||||||||||||||||||||||||||||||||
| Weight | |||||||||||||||||||||||||||||||||||
| Transmitter (HD-TX-USB-2000-C) |
1.71 lb (776 g) | ||||||||||||||||||||||||||||||||||
| Receiver (HD-RX-USB-2000-C) |
1.71 lb (776 g) | ||||||||||||||||||||||||||||||||||
| Maximum HDBaseT Cable Lengths | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
