Interoperability with a DM® Essentials transmitter or DMPS Essentials switcher to provide point-to-point extension of HDMI®, RS-232, IR, and analog audio signals over a CATx cable. Supports 4K60 4:4:4 video, HDR10+, and HDCP 2.3.
Overview

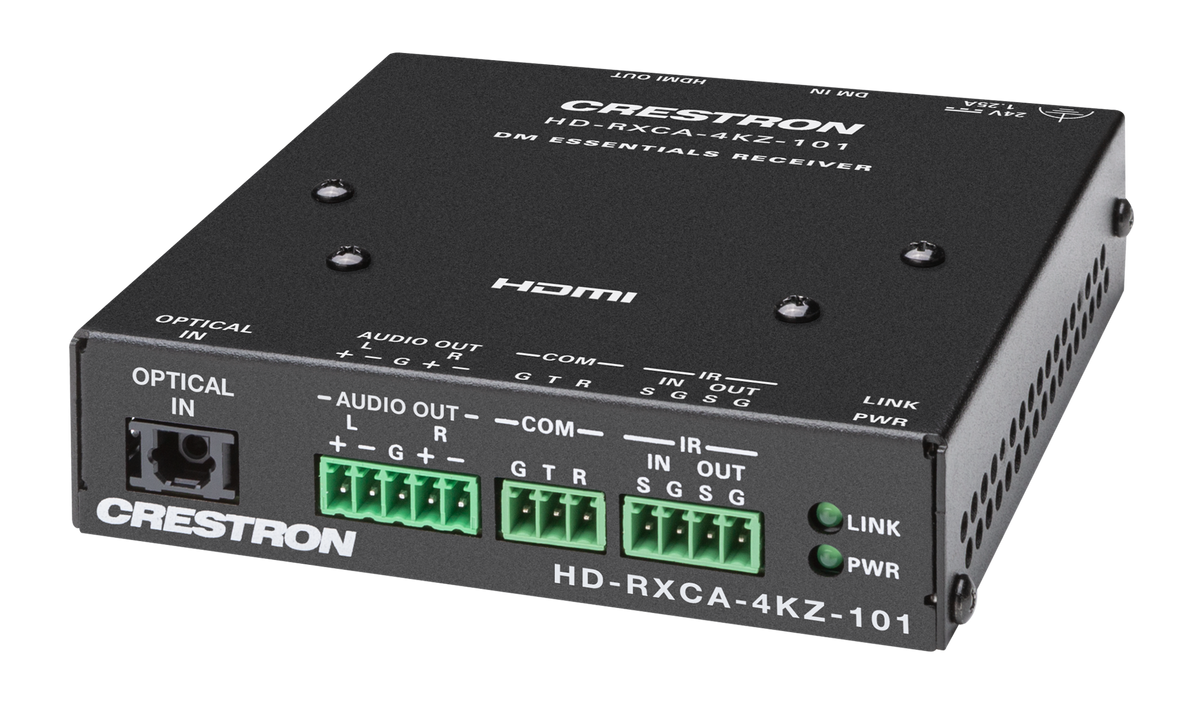

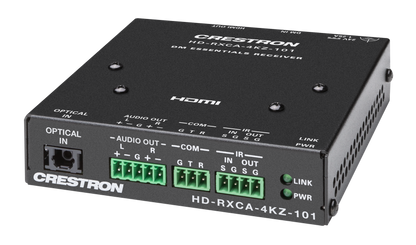

The HD‑RXCA‑4KZ‑101 is a DM® Essentials 4K60 4:4:4 receiver designed to interoperate with a DM® Essentials transmitter or DMPS Essentials switcher for the transmission of HDMI®, RS-232, IR, and analog audio signals. A CAT5e or higher twisted pair cable (Crestron DM‑CBL‑8G or DM‑CBL‑ULTRA sold separately) is needed to connect the HD‑RXCA‑4KZ‑101 to the DM Essentials transmitter or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1
Interoperability with a DM Essentials Transmitter or DMPS Essentials Switcher
The DM Essentials input port of the HD‑RXCA‑4KZ‑101 must be connected to a DM Essentials output port of a DM Essentials transmitter or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 transmitters are the HD‑TXC‑4KZ‑101 and HD‑TXCA‑4KZ‑101. Supported DMPS Essentials switchers are the HD‑PS622, HD‑PS621, HD‑PS402, and HD‑PS401.
The HD‑RXCA‑4KZ‑101 can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD‑RXCA‑4KZ‑101. In addition, control system programming and .AV Framework™ software support of the HD‑RXCA‑4KZ‑101 is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD‑RXCA‑4KZ‑101 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
Analog Audio De-Embedding
The analog audio output port of the HD‑RXCA‑4KZ‑101 enables 2 channel LPCM audio to be extracted from the AV signal.
S/PDIF Optical Digital Audio Return
The S/PDIF optical digital audio input of the HD‑RXCA‑4KZ‑101 receives S/PDIF optical digital audio from a device (for example, a display). The S/PDIF optical digital audio output of the HD-TXCA-4KZ-101 then transmits the audio to an AV receiver. Supported S/PDIF digital audio formats are Dolby Digital®, Dolby Digital EX, DTS®, DTS ES, and LPCM up to 6 channels.
Compact, Surface-Mountable Design

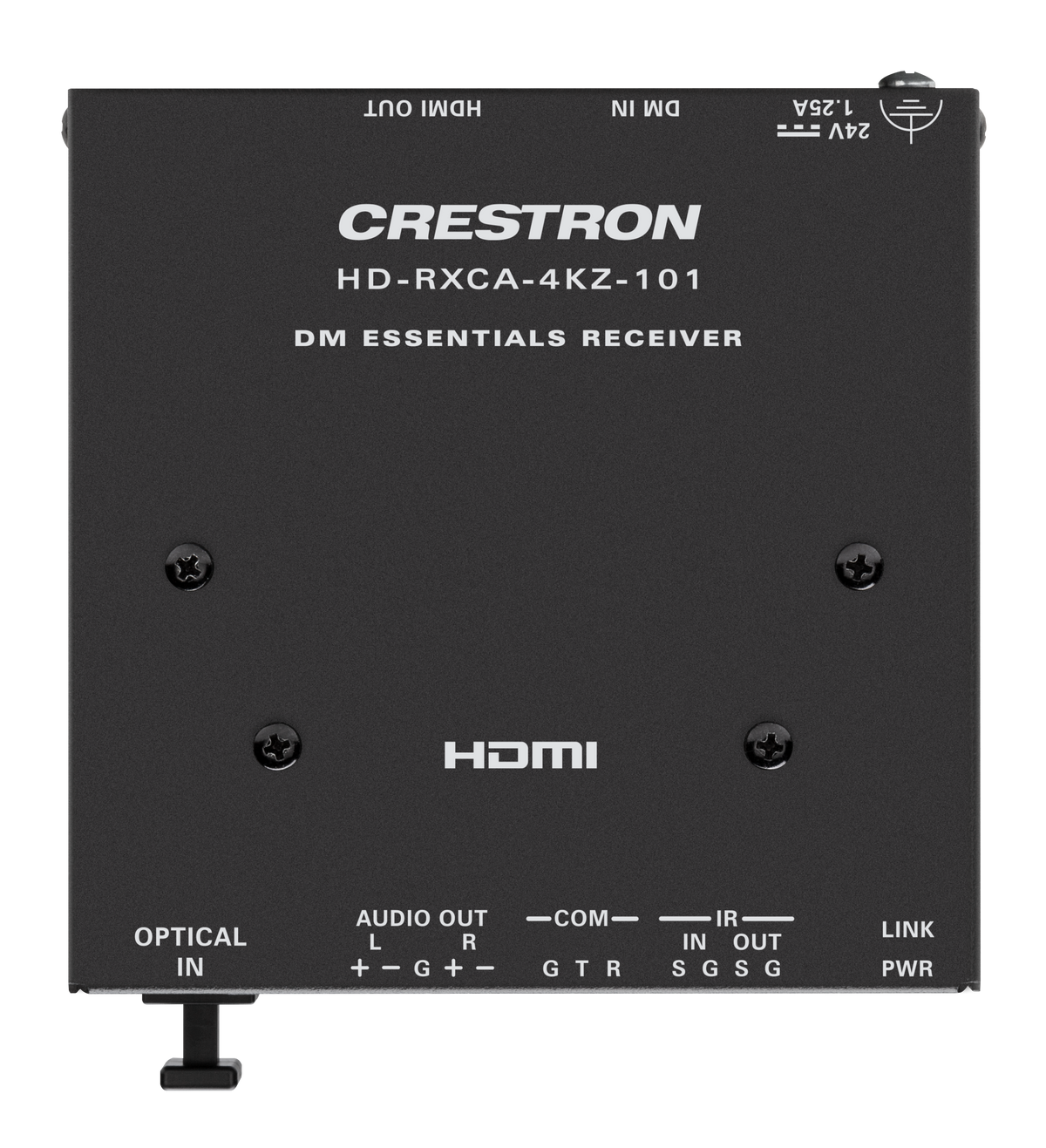

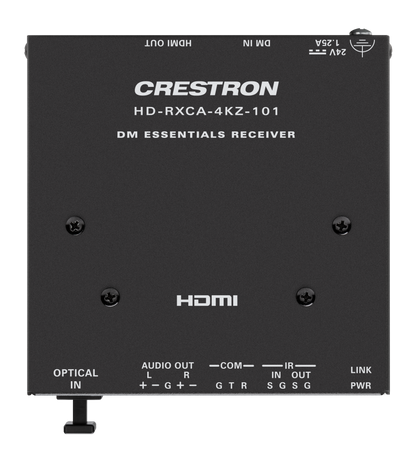

Compact in design, the HD‑RXCA‑4KZ‑101 can be mounted onto a flat surface such as a wall behind a flat-panel display or the ceiling above a projector. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD‑RXCA‑4KZ‑101 can receive power from the included power pack or from the remote DM Essentials transmitter or DMPS Essentials switcher.3
Features
Key Features
- Interoperability with a DM® Essentials transmitter or DMPS Essentials switcher
- Point-to-point extension of HDMI®, RS-232, IR, and analog audio signals over a CAT5e or higher cable
- DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- Analog audio de-embedding
- S/PDIF optical digital audio input for audio return to the HD‑TXCA‑4KZ‑101
- CEC (Consumer Electronics Control) pass-through capability
- Bidirectional RS-232 and IR pass-through capability
- EDID pass-through capability
- Compact, surface-mountable design
- Power from 24VDC power pack (included) or from remote DM Essentials transmitter or DMPS Essentials switcher
Specifications
| Video | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Signal Type | DM® Essentials with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI® with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support (DVI compatible)4 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolutions | Common resolutions are listed in the following table. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Signal Type | DM Essentials, digital S/PDIF optical (TOSLINK® connector) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI, analog stereo | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Digital Formats, HDMI | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Digital Formats, S/PDIF | Dolby Digital, Dolby Digital EX, DTS, DTS‑ES, LPCM up to 6 channels | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Analog Format | Stereo 2-channel | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Digital-to-Analog Conversion | 24-bit 48 kHz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Analog Performance | Frequency Response: 20 Hz to 20 kHz ±0.5 dB; S/N Ratio: >95 dB 20 Hz to 20 kHz A‑weighted; THD+N: <0.005% @ 1 kHz; Stereo Separation: ≤80 dB |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communications | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.3, EDID, CEC pass-through | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DM Essentials | HDCP 2.3, EDID pass-through | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS-232 | 2-way serial pass-through up to 115.2k baud (TD/RD only) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR | Bidirectional IR signal pass-through up to 60 kHz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

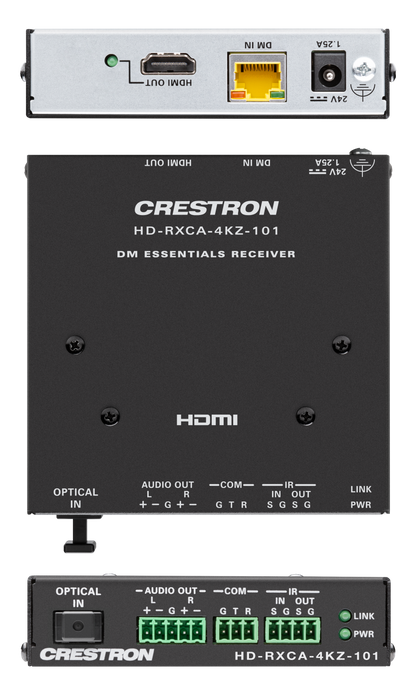

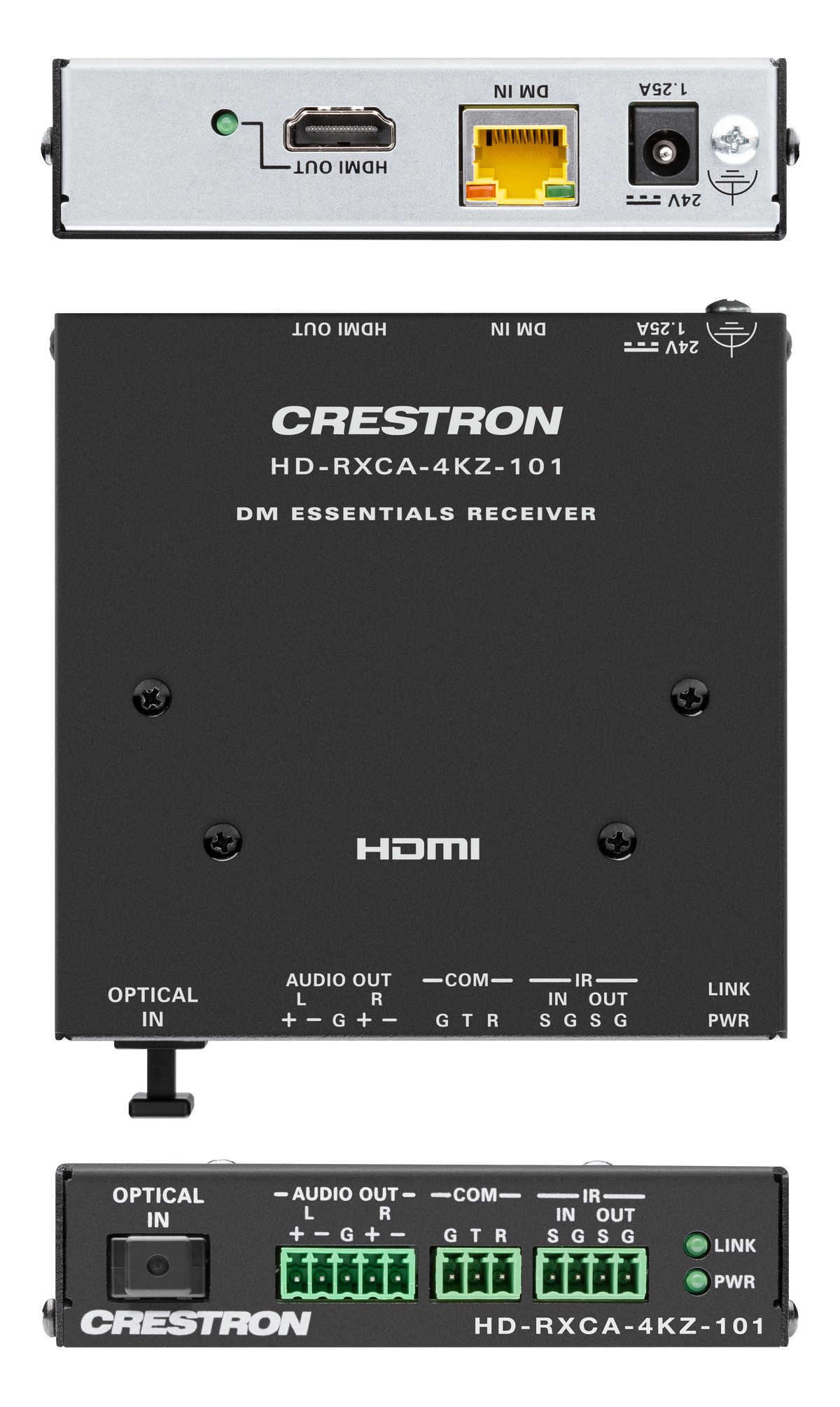

| Connectors | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

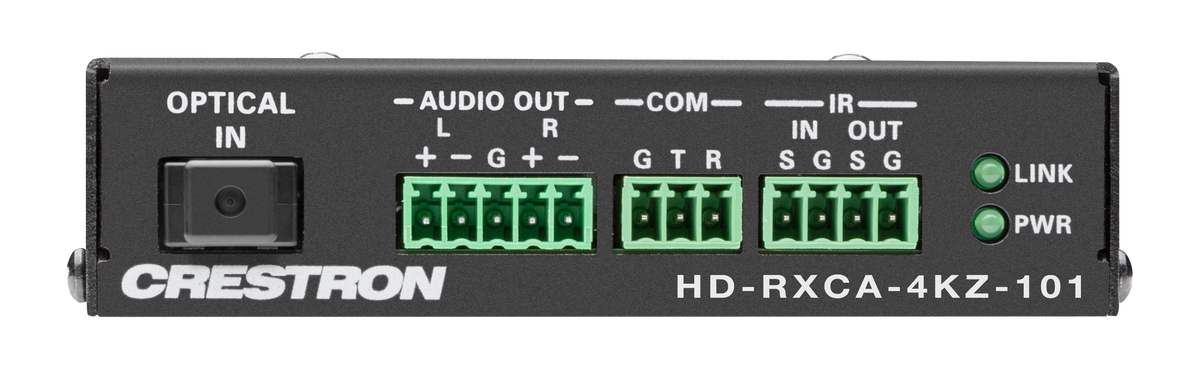

| IR IN/OUT | (1) 4-pin 3.5 mm detachable terminal block; Comprised of (1) IR input port and (1) IR output port; IR IN is for connection from a Crestron IR control port or other IR signal source and passes the IR input signal to the IR OUT port on the DM Essentials transmitter; IR OUT is for connection to an IR emitter (IRP2, sold separately) and transmits the IR signal from the IR IN port on the DM Essentials transmitter; Supports IR up to 60 kHz |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| COM | (1) 3-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Passes RS-232 TD/RD data to/from the COM port on a DM Essentials transmitter; Supports up to 115.2k baud |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI OUT | (1) HDMI Type A connector, female; HDMI digital video/audio output; DVI compatible4 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

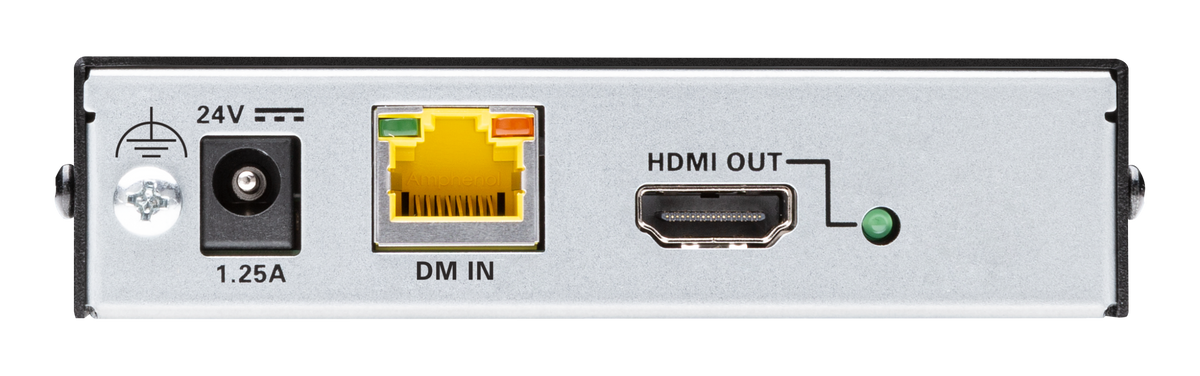

| DM IN | (1) 8‑pin RJ‑45 yellow connector, female, shielded; DM Essentials input port for connection to the DM Essentials output port of a DM Essentials transmitter or DMPS Essentials switcher1 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 24V 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU power pack included3 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OPTICAL IN | (1) JIS F05 female (TOSLINK) optical fiber connector; S/PDIF optical digital audio input |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AUDIO OUT | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output; Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Controls and Indicators | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LINK | (1) Green LED, indicates that a DM Essentials link is established. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PWR |
(1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI OUT | (1) Green LED, indicates that the device is transmitting an HDMI signal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DM IN | (2) LEDs on RJ 45 connector. Green indicates that a DM Essentials link is established. Flashing amber indicates non-HDCP video, and solid amber indicates HDCP video. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Pack (Included) | Input: 100-240VAC Output: 24VDC 2.5A Model: PW-2420RU3 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environmental | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature | 32° to 104°F (0° to 40°C) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Enclosure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, vented sides, 2 mounting brackets included | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mounting | Freestanding, surface mountable, or attachment to a single rack rail | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Height | 4.13 in. (105 mm) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Width | 4.18 in. (106 mm) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Depth | 1.08 in. (27 mm) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 11.92 oz (338 g) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compliance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Regulatory Model: M202047002 Intertek® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum DM Essentials Transmission Distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
