Interoperability with a DM® Essentials HD-TXU-4KZ Series transmitter to provide point-to-point extension of HDMI® and USB 2.0 signals over a CATx cable. Supports 4K60 4:4:4 video, HDR10+, and HDCP 2.3. Mounts into a 2-gang electrical box. Faceplate sold separately.
Overview
The HD‑RXU‑4KZ‑101‑2G-B is a DM® Essentials 4K60 4:4:4 wall plate receiver designed to interoperate with a DM Essentials HD‑TXU‑4KZ Series transmitter for the extension of HDMI® and USB 2.0 signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable (Crestron DM‑CBL‑8G or DM‑CBL‑ULTRA sold separately) must be used to connect the HD‑RXU‑4KZ‑101‑2G-B to the DM Essentials transmitter.1
The HD-RXU-4KZ-101-2G is available in black (model HD-RXU-4KZ-101-2G-B).
Interoperability with a DM Essentials HD-TXU-4KZ Series Transmitter
For interoperability between the HD‑RXU‑4KZ‑101‑2G-B and an HD‑TXU‑4KZ Series transmitter, the DM Essentials input port of the HD‑RXU‑4KZ‑101‑2G-B must be connected to the DM Essentials output port of the HD‑TXU‑4KZ Series transmitter.
NOTE: USB 2.0 data extension is not supported if the HD-RXU-4KZ-101-2G is paired with a DM Essentials transmitter other than an HD-TXU-4KZ Series transmitter or paired with a DMPS Essentials HD-PS Series switcher.
4K60 4:4:4 and HDR Support
The HD-RXU-4KZ-101-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
USB 2.0 Data Extension
Two USB 2.0 host ports are provided on the HD-RXU-4KZ-101-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices.3

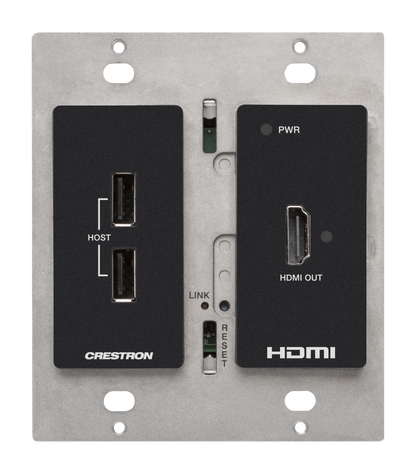

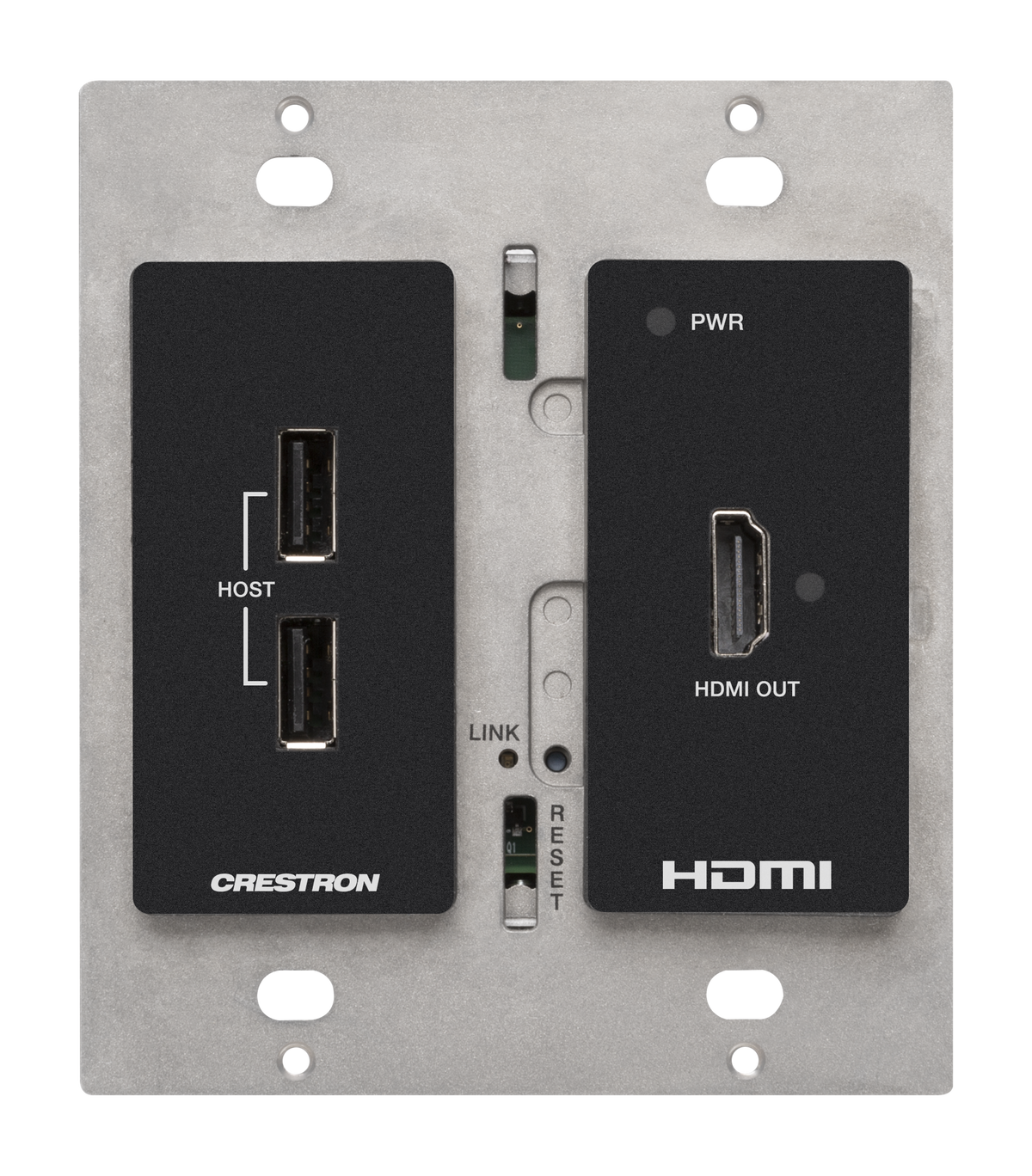

Two-Gang Wall Plate Design
The HD-RXU-4KZ-101-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-RXU-4KZ-101-2G can receive power from the remote DM Essentials transmitter (surface mountable only).4
Features
Key Features
- DM® Essentials receiver functionality designed to interoperate with a DM Essentials HD-TXU-4KZ Series transmitter
- Point-to-point extension of an HDMI® AV signal and USB 2.0 data signals over a CAT5e or higher cable
- DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- EDID pass-through capability
- Two-gang wall plate design with black finish

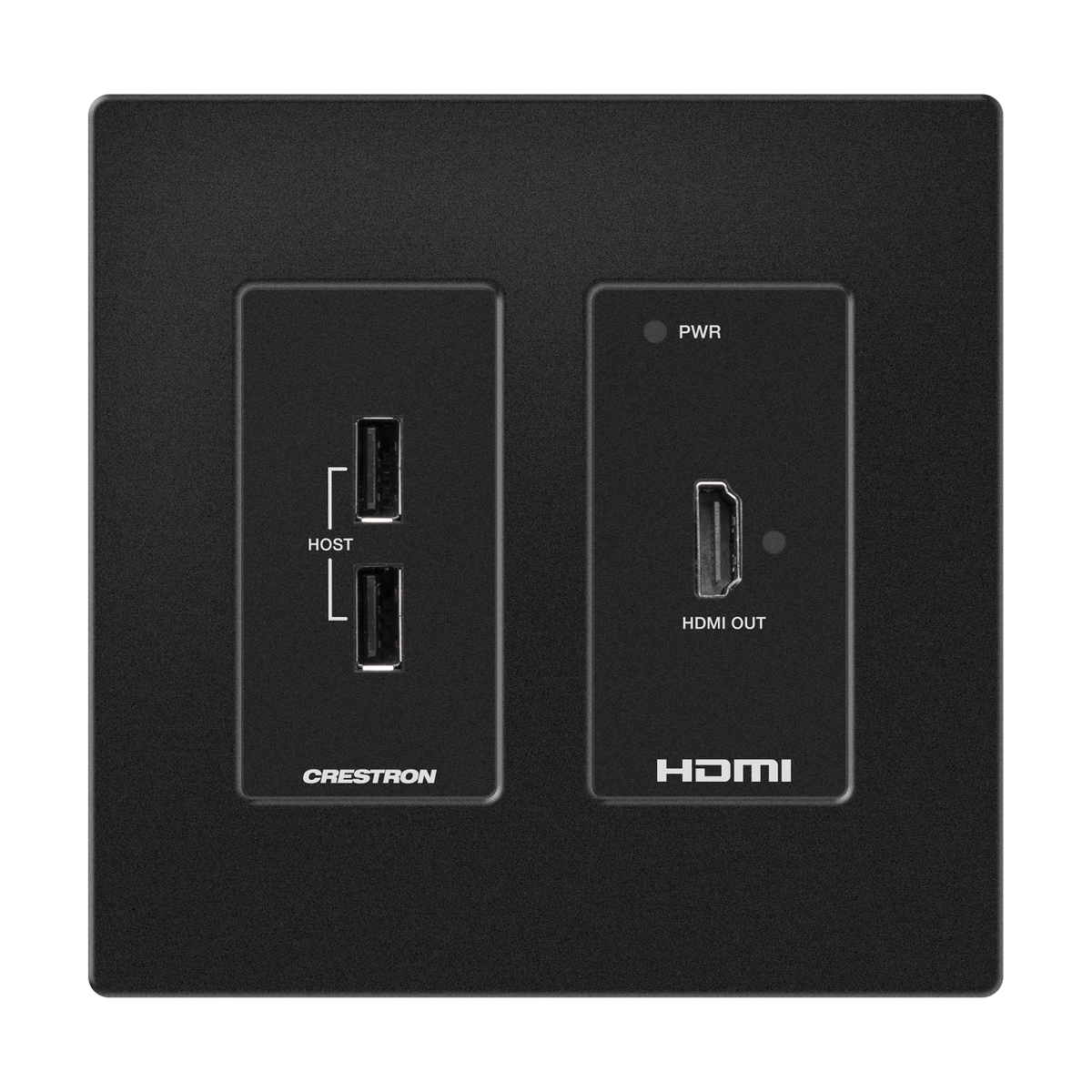

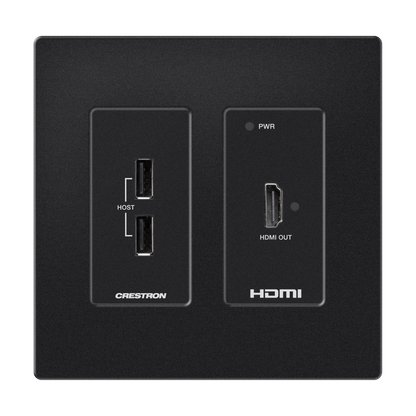

- Decorator style faceplate required (FP-G2-DM Series sold separately)
- Power from the remote DM Essentials transmitter (surface mountable only)
Specifications
| Video | ||||||||||||||||||||||||||||||||||||||
| Input Signal Type | DM® Essentials with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2 | |||||||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI® with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2 (DVI compatible)5 | |||||||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.3 | |||||||||||||||||||||||||||||||||||||
| Resolutions | Common resolutions are listed in the following table. | |||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
| Audio | ||||||||||||||||||||||||||||||||||||||
| Input Signal Type | DM Essentials | |||||||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI | |||||||||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | |||||||||||||||||||||||||||||||||||||
| Communications | ||||||||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.3, EDID, CEC pass-through | |||||||||||||||||||||||||||||||||||||
| DM Essentials | HDCP 2.3, EDID pass-through; USB 2.0 up to 300 Mbps |
|||||||||||||||||||||||||||||||||||||
| USB | USB signal extension via USB 2.0 host ports | |||||||||||||||||||||||||||||||||||||
| Connectors | ||||||||||||||||||||||||||||||||||||||
| HDMI OUT | (1) HDMI Type A connector, female; HDMI digital video/audio output; DVI compatible5 |
|||||||||||||||||||||||||||||||||||||
| HOST | (2) USB Type-A connectors, female; USB 2.0 host ports; USB signal extender ports for connection to USB mice, keyboards, or other USB 2.0 peripheral devices;3 Available Power: 500 mA @ 5VDC per port |
|||||||||||||||||||||||||||||||||||||

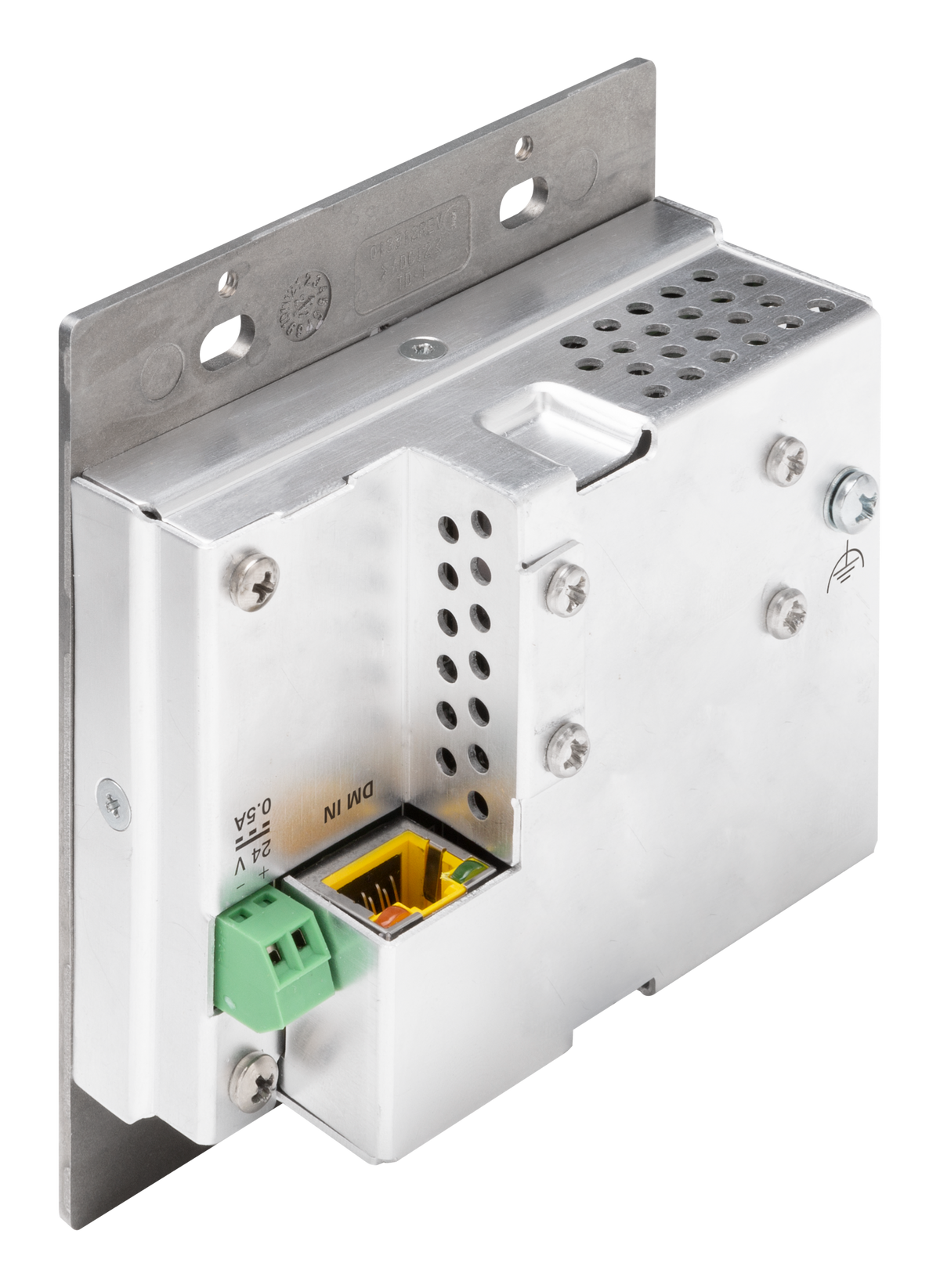

| DM IN | (1) 8‑pin RJ‑45 yellow connector, female, shielded; DM Essentials input port for connection to a DM Essentials output port of a DM Essentials transmitter1 |
|||||||||||||||||||||||||||||||||||||
| 24V 0.5A | (1) 2-pin 3.5 mm detachable terminal block; 24VDC power input; Power pack sold separately, required only if the HD-RXU-4KZ-101-2G is used with a wall plate transmitter4 |
|||||||||||||||||||||||||||||||||||||
| Ground | (1) Chassis ground lug | |||||||||||||||||||||||||||||||||||||
| Controls and Indicators | ||||||||||||||||||||||||||||||||||||||
| PWR | (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational. | |||||||||||||||||||||||||||||||||||||
| HDMI OUT | (1) Green LED, indicates that the device is transmitting an HDMI signal | |||||||||||||||||||||||||||||||||||||
| LINK | (1) Green LED, indicates that a DM Essentials link is established | |||||||||||||||||||||||||||||||||||||
| RESET | (1) Push button, restores factory default settings | |||||||||||||||||||||||||||||||||||||
| DM IN | (2) LEDs on RJ‑45 connector. Green indicates that a DM Essentials link is established. Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video. |
|||||||||||||||||||||||||||||||||||||
| Power | ||||||||||||||||||||||||||||||||||||||
| Power Pack | Input: 100-240VAC Output: 24VDC 0.75A Model: PW-2407WUL (sold separately, required only if the HD-RXU-4KZ-101-2G is used with a wall plate transmitter)4 |
|||||||||||||||||||||||||||||||||||||
| Environmental | ||||||||||||||||||||||||||||||||||||||
| Temperature | 32° to 104°F (0° to 40°C) | |||||||||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | |||||||||||||||||||||||||||||||||||||
| Construction | ||||||||||||||||||||||||||||||||||||||
| Composition | Metal housing and bracket with black polycarbonate front label overlay | |||||||||||||||||||||||||||||||||||||
| Mounting | Mounts in a 2-gang (or larger) 2-inch (51 mm) deep U.S. electrical box or plaster ring (not included) | |||||||||||||||||||||||||||||||||||||
| Faceplate | Requires a decorator style faceplate (FP-G2-DM series, sold separately) | |||||||||||||||||||||||||||||||||||||
| Dimensions | ||||||||||||||||||||||||||||||||||||||
| Height | 4.12 in. (105 mm) | |||||||||||||||||||||||||||||||||||||
| Width | 3.57 in. (91 mm) | |||||||||||||||||||||||||||||||||||||
| Depth | 1.70 in. (43 mm) | |||||||||||||||||||||||||||||||||||||
| Weight | ||||||||||||||||||||||||||||||||||||||
| 6.87 oz (195 g) | ||||||||||||||||||||||||||||||||||||||
| Compliance | ||||||||||||||||||||||||||||||||||||||
|
Regulatory Model: M202047004 Intertek® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device |
||||||||||||||||||||||||||||||||||||||
| Maximum DM Essentials Transmission Distance | ||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
