Interoperability with a DM® Essentials HD-TXU-4KZ Series transmitter to provide point-to-point extension of HDMI®, USB 2.0, and Ethernet signals over a CATx cable. Supports 4K60 4:4:4 video, HDR10+, and HDCP 2.3.
Overview

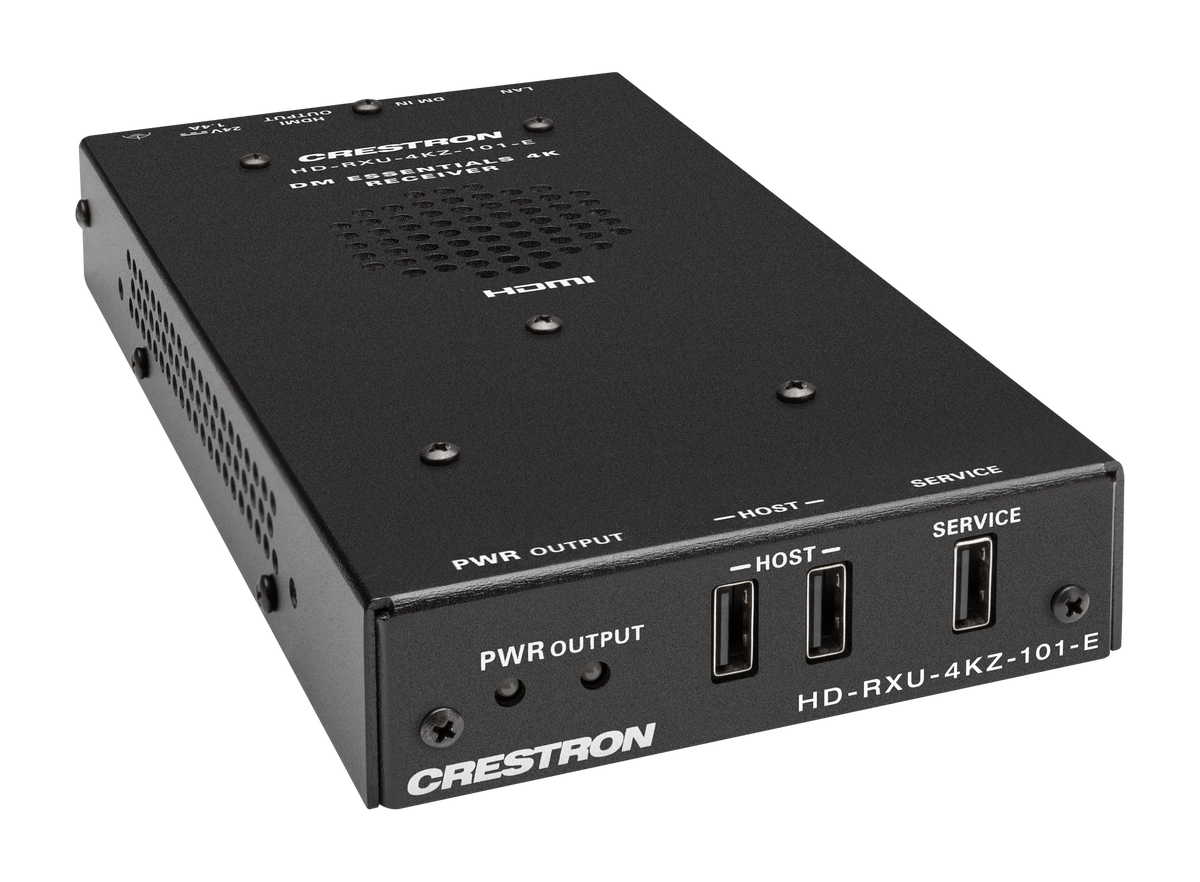

The HD‑RXU‑4KZ‑101‑E is a DM® Essentials 4K60 4:4:4 receiver designed to interoperate with a DM Essentials HD‑TXU‑4KZ Series transmitter for the extension of HDMI® and USB 2.0 signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable (Crestron DM‑CBL‑8G or DM‑CBL‑ULTRA sold separately) must be used to connect the HD‑RXU‑4KZ‑101‑E to the DM Essentials transmitter.1
Interoperability with a DM Essentials HD-TXU-4KZ Series Transmitter
For interoperability between the HD‑RXU‑4KZ‑101‑E and an HD‑TXU‑4KZ Series transmitter, the DM Essentials input port of the HD‑RXU‑4KZ‑101‑E must be connected to the DM Essentials output port of the HD‑TXU‑4KZ Series transmitter.
NOTE: USB 2.0 data extension is not supported if the HD-RXU-4KZ-101-E is paired with a DM Essentials transmitter other than an HD-TXU-4KZ Series transmitter or paired with a DMPS Essentials HD-PS Series switcher.
4K60 4:4:4 and HDR Support
The HD-RXU-4KZ-101-E supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
USB 2.0 Data Extension
Two USB 2.0 host ports are provided on the HD-RXU-4KZ-101-E, enabling connection to a wide variety of supported USB 2.0 peripheral devices.3
Ethernet Pass-Through Capability
The HD‑RXU‑4KZ‑101-E is equipped with a 100/1000 Mbps LAN port that receives an Ethernet signal transmitted over the DM Essentials connection from the transmitting endpoint. The LAN port of one endpoint can be connected to an Ethernet network, while the LAN port of the other endpoint can be connected directly to an Ethernet-enabled device such as a PC.
Compact, Surface-Mountable Design

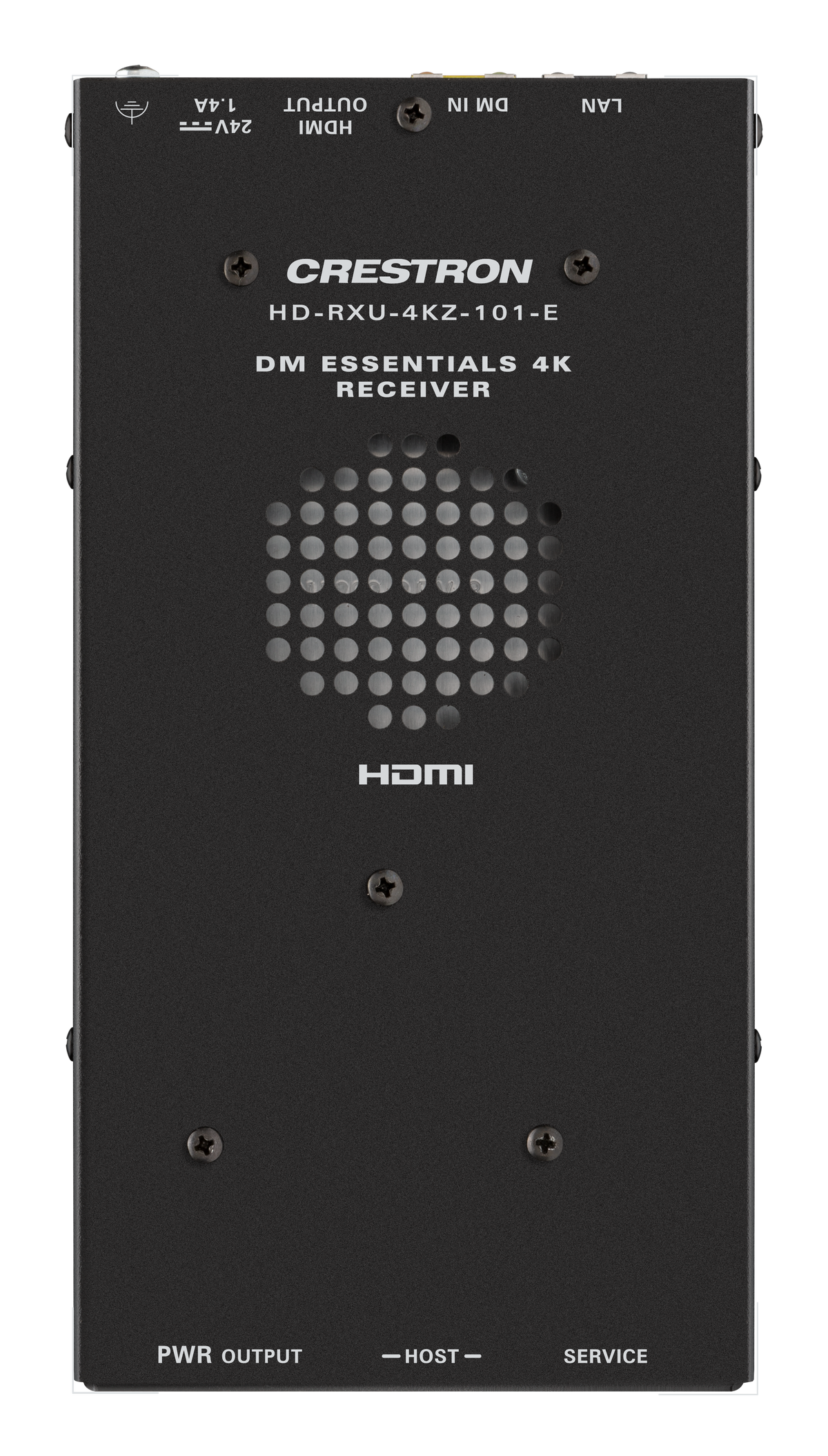

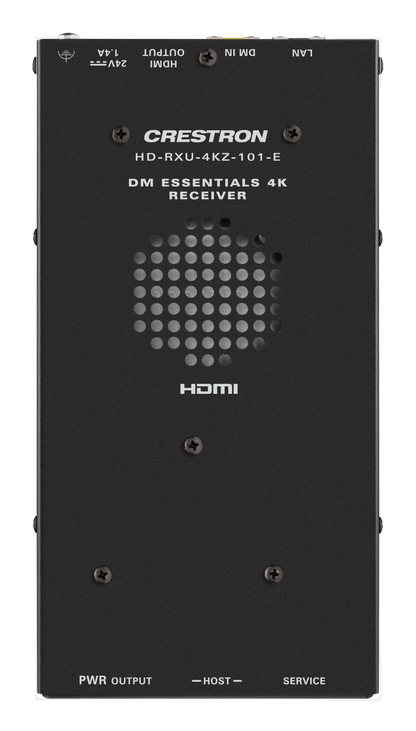

Compact in design, the HD-RXU-4KZ-101-E can be mounted onto a flat surface such as a wall behind a flat-panel display or a ceiling above a projector. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-RXU-4KZ-101-E can receive power from the included power pack or from the remote DM Essentials transmitter.4
Features
Key Features
- DM® Essentials receiver functionality designed to interoperate with a DM Essentials HD-TXU-4KZ Series transmitter
- Point-to-point extension of an HDMI® AV signal, USB 2.0 data signals, and Ethernet signal over a CAT5e or higher cable
- DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Ethernet pass-through capability
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- EDID pass-through capability
- Compact, surface-mountable design
- Power from 24VDC power pack (included) or from remote DM Essentials transmitter
Specifications
| Video | ||||||||||||||||||||||||||||||||||||||
| Input Signal Type | DM® Essentials with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2 | |||||||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI® with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2 | |||||||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.3 | |||||||||||||||||||||||||||||||||||||
| Resolutions | Common resolutions are listed in the following table. | |||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
| Audio | ||||||||||||||||||||||||||||||||||||||
| Input Signal Type | DM Essentials | |||||||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI | |||||||||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | |||||||||||||||||||||||||||||||||||||
| Communications | ||||||||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.3, EDID, CEC pass-through | |||||||||||||||||||||||||||||||||||||
| DM Essentials | HDCP 2.3, EDID pass-through; USB 2.0 up to 300 Mbps |
|||||||||||||||||||||||||||||||||||||
| USB | USB signal extension via USB 2.0 host ports; USB host for one TT-100 series cable caddy (sold separately) via SERVICE port |
|||||||||||||||||||||||||||||||||||||
| Ethernet | 100/1000 Mbps pass-through | |||||||||||||||||||||||||||||||||||||
| Connectors | ||||||||||||||||||||||||||||||||||||||

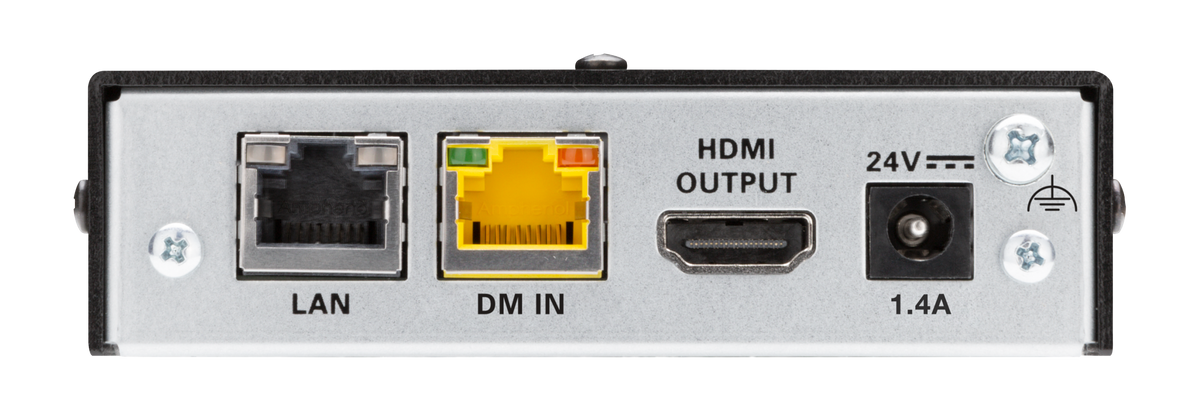

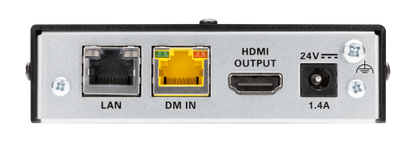

| HDMI OUTPUT | (1) HDMI Type A connector, female; HDMI digital video/audio output; DVI compatible5 |
|||||||||||||||||||||||||||||||||||||
| DM IN | (1) 8‑pin RJ‑45 yellow connector, female, shielded; DM Essentials input port for connection to the DM Essentials output port of a DM Essentials transmitter1 |
|||||||||||||||||||||||||||||||||||||
| LAN | (1) 8-pin RJ‑45 connector, female; 100BASE-TX/1000BASE-T Ethernet port; Receives Ethernet signal from an HD-TX-4KZ-111-E transmitter over the DM Essentials connection |
|||||||||||||||||||||||||||||||||||||
| 24V 1.4A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU power pack included4 |
|||||||||||||||||||||||||||||||||||||

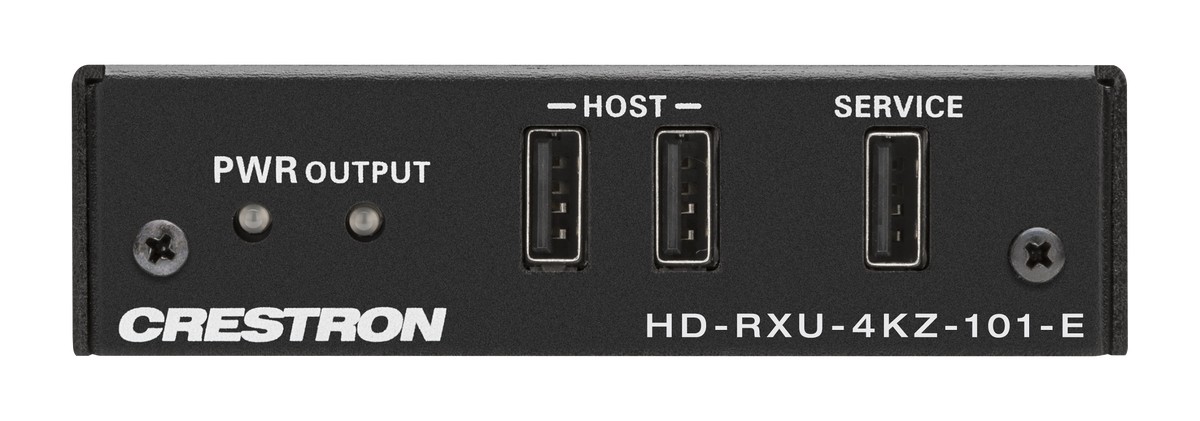

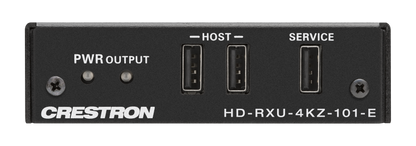

| HOST | (2) USB Type-A connectors, female; USB 2.0 host ports; USB signal extender ports for connection to USB mice, keyboards, or other USB 2.0 peripheral devices;3 Available Power: 500 mA @ 5VDC per port |
|||||||||||||||||||||||||||||||||||||
| SERVICE | (1) USB 2.0 Type‑A connector, female; Used for firmware loading, configuration management, or as a USB host port for one TT-100 series cable caddy (sold separately); Can also provide up to 5V 500 mA power to a USB powered device |
|||||||||||||||||||||||||||||||||||||
| Ground | (1) Chassis ground lug | |||||||||||||||||||||||||||||||||||||
| Controls and Indicators | ||||||||||||||||||||||||||||||||||||||
| PWR | (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational. | |||||||||||||||||||||||||||||||||||||
| OUTPUT | (1) Green LED, indicates that the device is transmitting an HDMI signal | |||||||||||||||||||||||||||||||||||||
| DM IN | (2) LEDs on RJ 45 connector. Green indicates that a DM Essentials link is established. Flashing amber indicates non-HDCP video, and solid amber indicates HDCP video. |
|||||||||||||||||||||||||||||||||||||
| LAN | (2) LEDs on RJ‑45 connector. Green indicates that a 100 Mbps link is established. Solid amber indicates that a 1000 Mbps link is established. Flashing amber indicates 1000 Mbps Ethernet activity. |
|||||||||||||||||||||||||||||||||||||
| Power | ||||||||||||||||||||||||||||||||||||||
| Power Pack (Included) | Input: 100-240VAC Output: 24VDC 2.5A Model: PW-2420RU4 |
|||||||||||||||||||||||||||||||||||||
| Environmental | ||||||||||||||||||||||||||||||||||||||
| Temperature | 32° to 104°F (0° to 40°C) | |||||||||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | |||||||||||||||||||||||||||||||||||||
| Enclosure | ||||||||||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, vented top and sides, 2 mounting brackets included | |||||||||||||||||||||||||||||||||||||
| Mounting | Freestanding, surface mountable, or attachment to a single rack rail | |||||||||||||||||||||||||||||||||||||
| Dimensions | ||||||||||||||||||||||||||||||||||||||
| Height | 1.20 in. (30 mm) | |||||||||||||||||||||||||||||||||||||
| Width | 4.19 in. (106 mm) | |||||||||||||||||||||||||||||||||||||
| Depth | 7.94 in. (202 mm) | |||||||||||||||||||||||||||||||||||||
| Weight | ||||||||||||||||||||||||||||||||||||||
| 1.19 lb (0.54 kg) | ||||||||||||||||||||||||||||||||||||||
| Compliance | ||||||||||||||||||||||||||||||||||||||
|
Regulatory Model: M202047006 Intertek® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device |
||||||||||||||||||||||||||||||||||||||
| Maximum DM Essentials Transmission Distance | ||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
