Interoperability with a DM® Essentials receiver or DMPS Essentials switcher to provide point-to-point extension of a USB-C® DisplayPort™ signal over a CATx cable. Supports 4K60 4:4:4 video, HDR10+, and HDCP 2.3. Mounts into a 1-gang electrical box.
Overview
The HD-TX-4KZ-111-1G is a DM Lite® 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher. The HD‑TX‑4KZ‑111-1G includes a USB-C® input with DisplayPort™ Alt Mode capability, enabling the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-111-1G to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1
The HD-TX-4KZ-111-1G is available in two models: HD-TX-4KZ-111-1G-B (black) and HD-TX-4KZ-111-1G-W (white).
Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD-TX-4KZ-111-1G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD‑RX‑4KZ‑101, HD‑RXA‑4KZ‑101, HD‑RXC‑4KZ‑101, and HD‑RXCA‑4KZ‑101. Supported DMPS Lite switchers are the HD‑PS621, HD‑PS622, HD‑PS401, HD‑PS402, and HD‑RX‑4K‑210‑C‑E(‑POE).
Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.
The HD-TX-4KZ-111-1G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-111-1G. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-111-1G is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-TX-4KZ-111-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
One-Gang Wall Plate Design

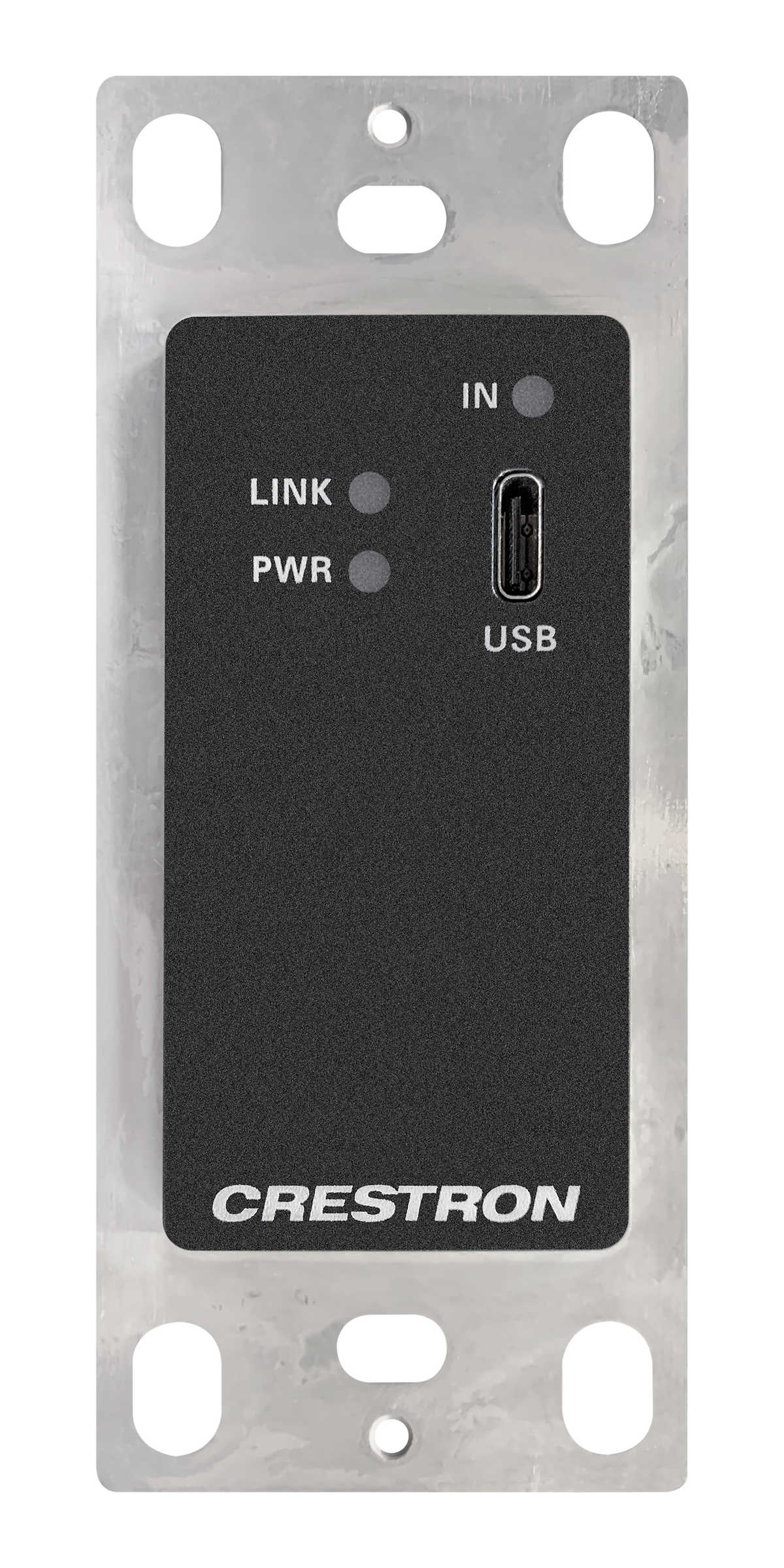

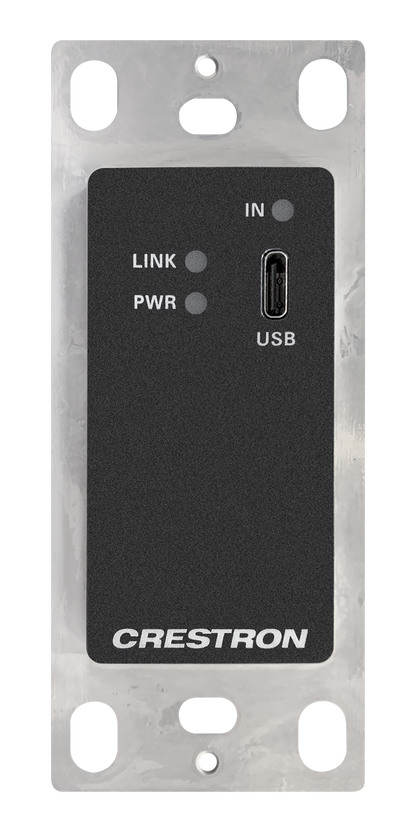

The HD‑TX‑4KZ‑111‑1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-TX-4KZ-111-1G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.3
Features
Key Features
- Interoperability with a DM Lite® receiver or DMPS Lite™ switcher
- USB-C® input with DisplayPort™ Alt Mode capability for the point-to-point extension of a DisplayPort AV signal over a CAT5e or higher cable
- DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- EDID pass-through capability
- One-gang wall plate design with black finish

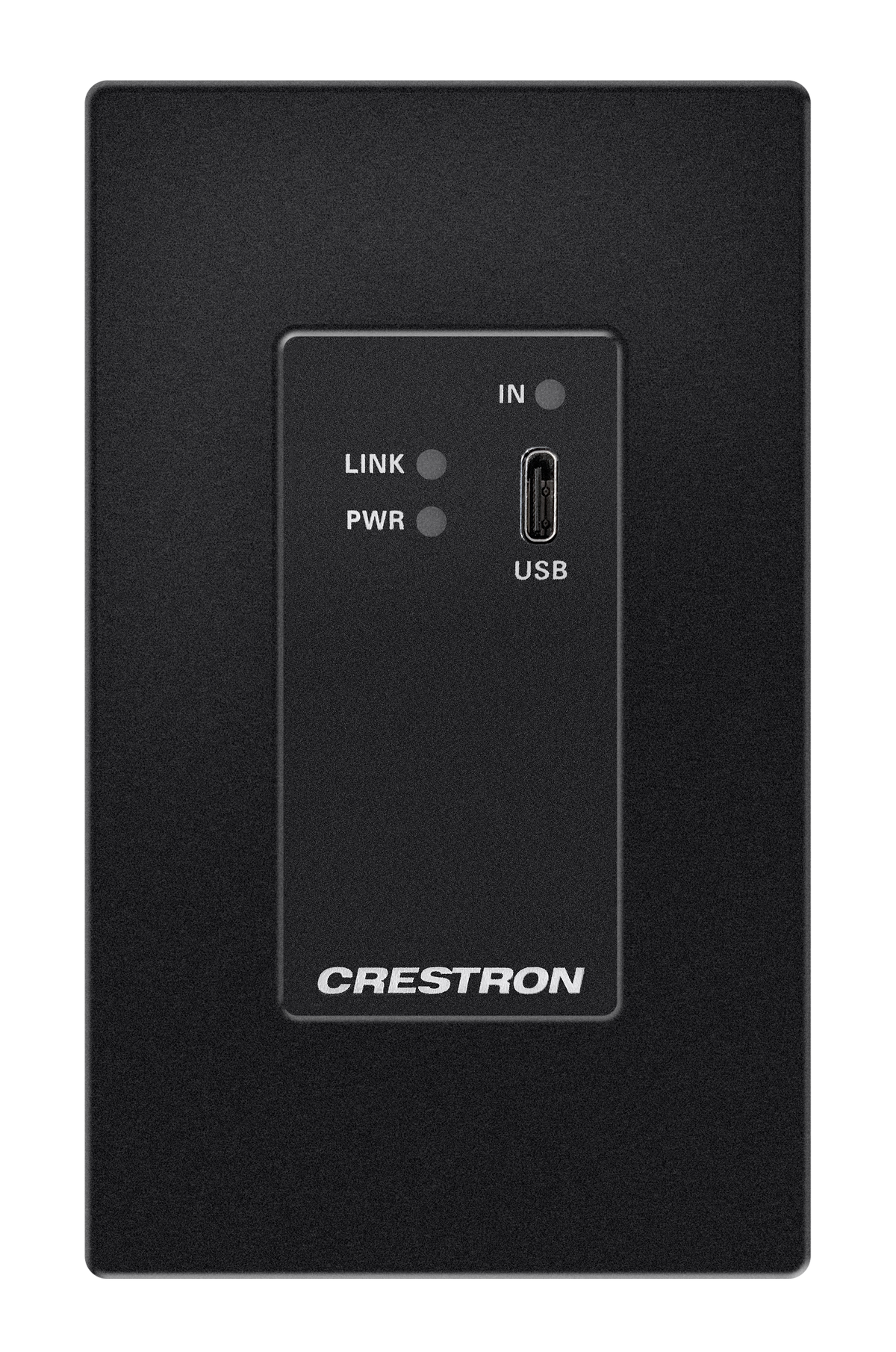

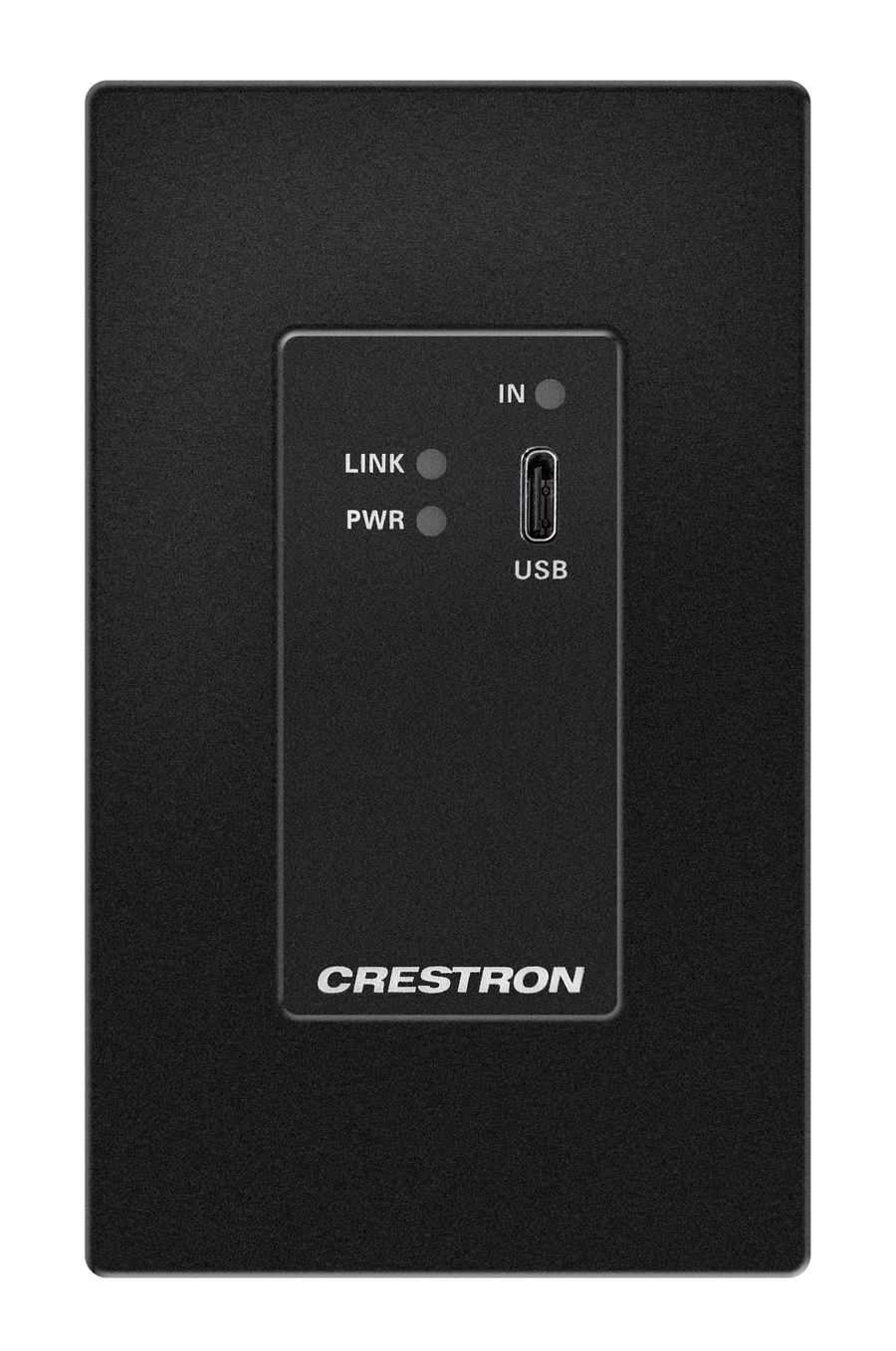

- Decorator style faceplate required (FP-G Series sold separately)
- Power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher
Specifications
| Video | |||||||||||||||||||||||||||||||||||||||||||||||
| Input Signal Type | DisplayPort™ over USB-C® (DisplayPort Alt Mode) with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2 | ||||||||||||||||||||||||||||||||||||||||||||||
| Output Signal Type | DM Lite® with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2 | ||||||||||||||||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.3 | ||||||||||||||||||||||||||||||||||||||||||||||
| Resolutions | Common resolutions are listed in the following table. | ||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||
| Input Signal Type | DisplayPort over USB-C (DisplayPort Alt Mode) | ||||||||||||||||||||||||||||||||||||||||||||||
| Output Signal Type | DM Lite | ||||||||||||||||||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||||||||||||||||
| Communications | |||||||||||||||||||||||||||||||||||||||||||||||
| USB-C | HDCP 2.3, EDID, CEC pass-through | ||||||||||||||||||||||||||||||||||||||||||||||
| DM Lite | HDCP 2.3, EDID pass-through | ||||||||||||||||||||||||||||||||||||||||||||||
| Connectors | |||||||||||||||||||||||||||||||||||||||||||||||
| USB IN | (1) USB Type‑C® connector, female; Digital video/audio input using DisplayPort Alt Mode4 |
||||||||||||||||||||||||||||||||||||||||||||||
| DM LITE OUT | (1) 8‑pin RJ‑45 yellow connector, female, shielded; DM Lite output port for connection to a DM Lite receiver or DMPS Lite™ switcher1, 5 |
||||||||||||||||||||||||||||||||||||||||||||||
| 24V 0.75A | (1) 2-pin 3.5 mm detachable terminal block; 24VDC power input; Power pack sold separately, required only if the HD-TX-4KZ-111-1G is used with a wall plate receiver3 |
||||||||||||||||||||||||||||||||||||||||||||||
| Ground | (1) Chassis ground lug | ||||||||||||||||||||||||||||||||||||||||||||||
| Controls and Indicators | |||||||||||||||||||||||||||||||||||||||||||||||
| LINK | (1) Green LED, indicates that a DM Lite link is established. | ||||||||||||||||||||||||||||||||||||||||||||||
|
PWR |
(1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational. | ||||||||||||||||||||||||||||||||||||||||||||||
| USB IN | (1) Green LED, indicates that the device is receiving a DisplayPort over USB‑C (DisplayPort Alt Mode) input signal | ||||||||||||||||||||||||||||||||||||||||||||||
| DM LITE OUT | (2) LEDs on RJ‑45 connector. Green indicates that a DM Lite link is established. Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video. |
||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||
| Power Pack | Input: 100-240VAC Output: 24VDC 0.75A Model: PW-2407WUL (sold separately, required only if the HD-TX-4KZ-111-1G is used with a wall plate receiver)3 |
||||||||||||||||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||||||||||||||||
| Temperature | 32° to 104°F (0° to 40°C) | ||||||||||||||||||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||
| Construction | |||||||||||||||||||||||||||||||||||||||||||||||
| Composition | Metal housing and bracket with black polycarbonate front label overlay | ||||||||||||||||||||||||||||||||||||||||||||||
| Mounting | Mounts in a 1-gang (or larger) 2-1/4 inch (57 mm) deep U.S. electrical box or plaster ring (not included) | ||||||||||||||||||||||||||||||||||||||||||||||
| Faceplate | Requires a decorator style faceplate (FP-G series, sold separately) |
||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | |||||||||||||||||||||||||||||||||||||||||||||||
| Height | 4.12 in. (105 mm) | ||||||||||||||||||||||||||||||||||||||||||||||
| Width | 1.72 in. (44 mm) | ||||||||||||||||||||||||||||||||||||||||||||||
| Depth | 2.19 in. (56 mm) | ||||||||||||||||||||||||||||||||||||||||||||||
| Weight | |||||||||||||||||||||||||||||||||||||||||||||||
| 5.33 oz (152 g) | |||||||||||||||||||||||||||||||||||||||||||||||
| Compliance | |||||||||||||||||||||||||||||||||||||||||||||||
|
Regulatory Model: M202045001 |
|||||||||||||||||||||||||||||||||||||||||||||||
| Maximum DM Lite Transmission Distance | |||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
