Interoperability with a DM® Essentials receiver or DMPS Essentials switcher to provide point-to-point extension of an HDMI® or USB-C® DisplayPort™ signal over a CATx cable. Supports 4K60 4:4:4 video, HDR10+, and HDCP 2.3. Provides one HDMI input and one USB-C DisplayPort input with automatic switching capability. Mounts into a 2-gang electrical box.
Overview

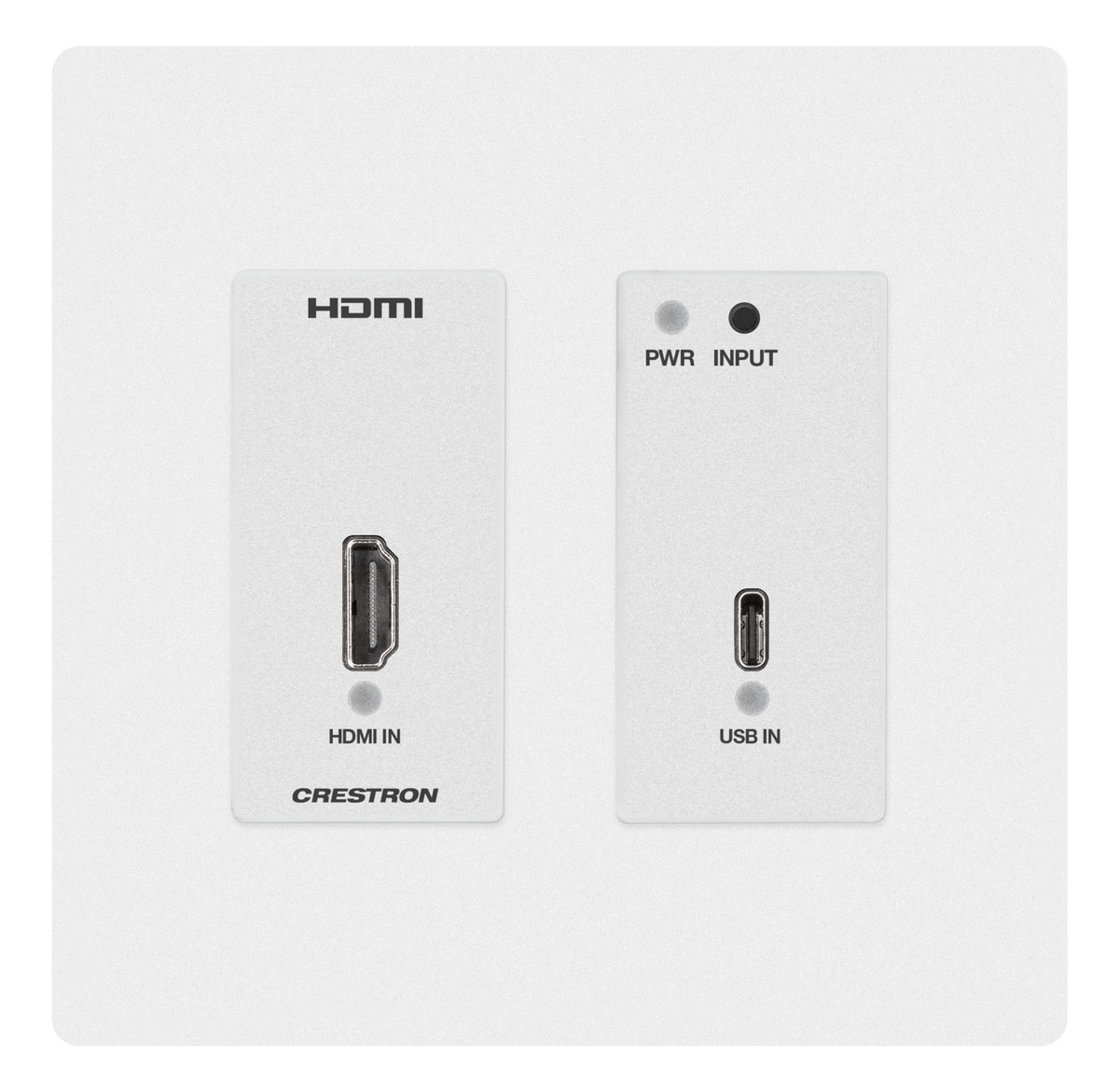

The HD-TX-4KZ-211-2G is a DM® Essentials 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM® Essentials receiver or DMPS Essentials switcher. The paired transmitter and receiver enable extension of HDMI® or USB-C® DisplayPort™ AV signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-TX-4KZ-211-2G to the DM Essentials receiver or DMPS Essentials switcher.1
The HD‑TX‑4KZ‑211‑2G is available in two models: HD‑TX‑4KZ‑211‑2G-B (black) and HD‑TX‑4KZ‑211‑2G-W (white).
Interoperability with a DM Essentials Receiver or DMPS Essentials Switcher
The DM Essentials output port of the HD-TX-4KZ-211-2G must be connected to a DM Essentials input port of a DM Essentials 4K60 4:4:4 receiver, DM Essentials 4K60 4:2:0 receiver, or DMPS Essentials switcher.
The HD-TX-4KZ-211-2G can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-211-2G. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-211-2G is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-TX-4KZ-211-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
Automatic Switching of Inputs
When the HD-TX-4KZ-211-2G is used with a DMPS Essentials switcher, the web interface of the switcher or control system programming hosted by the switcher can be used to configure AV switching behavior. Switching between the HDMI and USB-C DisplayPort inputs occurs based on the last connected input or on the routing priority assigned to each input. In addition, the input selection push button on the front of the HD-TX-4KZ-211-2G enables the desired input to be selected manually.
Two-Gang Wall Plate Design
The HD‑TX‑4KZ-211-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD‑TX‑4KZ‑211‑2G can receive power from the remote DM Essentials receiver (surface mountable only) or DMPS Essentials switcher.3
Features
Key Features
- Interoperability with a DM® Essentials receiver or DMPS Essentials switcher
- Point-to-point extension of an HDMI® or USB-C® DisplayPort™ signal over a CAT5e or higher cable
- USB-C input with DisplayPort Alt Mode capability
- DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- Automatic switching of HDMI and USB-C DisplayPort inputs
- CEC (Consumer Electronics Control) pass-through capability
- Two-gang wall plate design with white finish
- Decorator style faceplate required (FP-G2-DM Series sold separately)
- Power from the remote DM Essentials receiver (surface mountable only) or DMPS Essentials switcher
Specifications
| Video | |||||||||||||||||||||||||||||||||||||||
| Input Signal Types | HDMI® (DVI and Dual-Mode DisplayPort™ interface compatible4) and DisplayPort over USB-C® (DisplayPort Alt Mode) with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2 | ||||||||||||||||||||||||||||||||||||||
| Output Signal Type | DM® Essentials with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2 | ||||||||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.3 | ||||||||||||||||||||||||||||||||||||||
| Resolutions | Common resolutions are listed in the following table. | ||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||
| Input Signal Types | HDMI, DisplayPort over USB-C (DisplayPort Alt Mode) | ||||||||||||||||||||||||||||||||||||||
| Output Signal Type | DM Essentials | ||||||||||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||||||||
| Communications | |||||||||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.3, CEC pass-through5 | ||||||||||||||||||||||||||||||||||||||
| USB‑C | HDCP 2.3, CEC pass-through5 | ||||||||||||||||||||||||||||||||||||||
| DM Essentials | HDCP 2.3 | ||||||||||||||||||||||||||||||||||||||
| Connectors | |||||||||||||||||||||||||||||||||||||||
| HDMI IN | (1) HDMI Type A connector, female; HDMI digital video/audio input; DVI and Dual-Mode DisplayPort interface compatible4 |
||||||||||||||||||||||||||||||||||||||
| USB IN | (1) USB Type‑C® connector, female; Digital video/audio input using DisplayPort Alt Mode6 |
||||||||||||||||||||||||||||||||||||||
| DM OUT | (1) 8‑pin RJ‑45 yellow connector, female, shielded; DM Essentials output port for connection to a DM Essentials receiver or DMPS Essentials switcher1 |
||||||||||||||||||||||||||||||||||||||
| 24V 0.7A | (1) 2-pin 3.5 mm detachable terminal block; 24VDC power input; Power pack sold separately, required only if the HD-TX-4KZ-211-2G is used with a wall plate receiver3 |
||||||||||||||||||||||||||||||||||||||
| Ground | (1) Chassis ground lug | ||||||||||||||||||||||||||||||||||||||
| Controls and Indicators | |||||||||||||||||||||||||||||||||||||||
| PWR | (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational. | ||||||||||||||||||||||||||||||||||||||
| AUTO | (1) Push button for enabling or disabling automatic switching of inputs; (1) LED, green indicates that automatic switching of inputs is enabled |
||||||||||||||||||||||||||||||||||||||
| SETUP | (1) Push button for Ethernet setup (applicable only when used with a DMPS Lite switcher); (1) LED, red indicates that the SETUP push button is pressed |
||||||||||||||||||||||||||||||||||||||
| LINK | (1) LED, green indicates that a DM Essentials link is established | ||||||||||||||||||||||||||||||||||||||
| INPUT | (1) Push button for manual input selection | ||||||||||||||||||||||||||||||||||||||
| HDMI IN | (1) LED, green indicates that the HDMI input is routed to an output, and amber indicates that a source is detected but is not routed to an output | ||||||||||||||||||||||||||||||||||||||
| USB IN | (1) LED, green indicates that the USB-C DisplayPort input is routed to an output, and amber indicates that a source is detected but is not routed to an output | ||||||||||||||||||||||||||||||||||||||
| RESET | (1) Push button for restoring the device to factory default settings | ||||||||||||||||||||||||||||||||||||||
| DM OUT | (2) LEDs on RJ‑45 connector. Green indicates that a DM Essentials link is established; Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video. |
||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||
| Power Pack | Input: 100-240VAC Output: 24VDC 0.75A Model: PW-2407WUL (sold separately, required only if the HD-TX-4KZ-211-2G is used with a wall plate receiver)3 |
||||||||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||||||||
| Temperature | 32° to 104°F (0° to 40°C) | ||||||||||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | ||||||||||||||||||||||||||||||||||||||
| Construction | |||||||||||||||||||||||||||||||||||||||
| Composition | Metal housing and bracket with white polycarbonate front label overlay | ||||||||||||||||||||||||||||||||||||||
| Mounting | Mounts in a 2-gang (or larger) 2-inch (51 mm) deep U.S. electrical box or plaster ring (not included) | ||||||||||||||||||||||||||||||||||||||
| Faceplate | Requires a decorator style faceplate (FP-G2-DM Series, sold separately) | ||||||||||||||||||||||||||||||||||||||
| Dimensions | |||||||||||||||||||||||||||||||||||||||
| Height | 4.12 in. (105 mm) | ||||||||||||||||||||||||||||||||||||||
| Width | 3.57 in. (91 mm) | ||||||||||||||||||||||||||||||||||||||
| Depth | 1.66 in. (42 mm) | ||||||||||||||||||||||||||||||||||||||
| Weight | |||||||||||||||||||||||||||||||||||||||
| 7.33 oz (208 g) | |||||||||||||||||||||||||||||||||||||||
| Compliance | |||||||||||||||||||||||||||||||||||||||
|
Regulatory Model: M202046004 |
|||||||||||||||||||||||||||||||||||||||
| Maximum DM Essentials Transmission Distance | |||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
