Crestron

CTN HD-TXU-4KZ-111-2G-B DM® Essentials 4K60 4:4:4 Transmitter for USB‑C® DisplayPort™ and USB 2.0 Signal Extension over CATx Cable, Wall Plate, Black

CTN HD-TXU-4KZ-111-2G-B DM® Essentials 4K60 4:4:4 Transmitter for USB‑C® DisplayPort™ and USB 2.0 Signal Extension over CATx Cable, Wall Plate, Black

MFR: Crestron MPN : HD-TXU-4KZ-111-2G-B
SKU: HD-TXU-4KZ-111-2G-B
$587.50 USD
$587.50 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

Interoperability with a DM® Essentials HD-RXU-4KZ Series receiver to provide point-to-point extension of USB-C® DisplayPort™ and USB 2.0 signals over a CATx cable. Supports 4K60 4:4:4 video, HDR10+, and HDCP 2.3. Mounts into a 2-gang electrical box. Faceplate sold separately.

Overview

The HD‑TXU‑4KZ‑111‑2G is a DM® Essentials 4K60 4:4:4 transmitter designed to interoperate with a DM Essentials HD‑RXU‑4KZ Series receiver. A USB-C® input with DisplayPort™ Alt Mode capability enables signal extension of a DisplayPort AV signal along with USB 2.0 data. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD‑TXU‑4KZ‑111-2G to the DM Essentials receiver.1

The HD‑TXU‑4KZ‑111-2G is available in two models: HD‑TXU‑4KZ‑111-2G-B (black) and HD‑TXU‑4KZ‑111-2G-W (white).

Interoperability with a DM Essentials HD-RXU-4KZ Series Receiver
For interoperability between the HD‑TXU‑4KZ‑111‑2G and an HD‑RXU‑4KZ Series receiver, the DM Essentials output port of the HD‑TXU‑4KZ‑111‑2G must be connected to the DM Essentials input port of the HD‑RXU‑4KZ Series receiver.

NOTE: USB 2.0 data extension is not supported if the HD-TXU-4KZ-111-2G is paired with a DM Essentials receiver other than an HD-RXU-4KZ Series receiver or paired with a DMPS Essentials switcher (HD-PS Series or HD‑RX‑4K‑210‑C‑E[‑POE]).

4K60 4:4:4 and HDR Support
The HD‑TXU‑4KZ‑111-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2

USB 2.0 Data Extension
Two USB 2.0 host ports are provided on the HD‑TXU‑4KZ‑111-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices.3

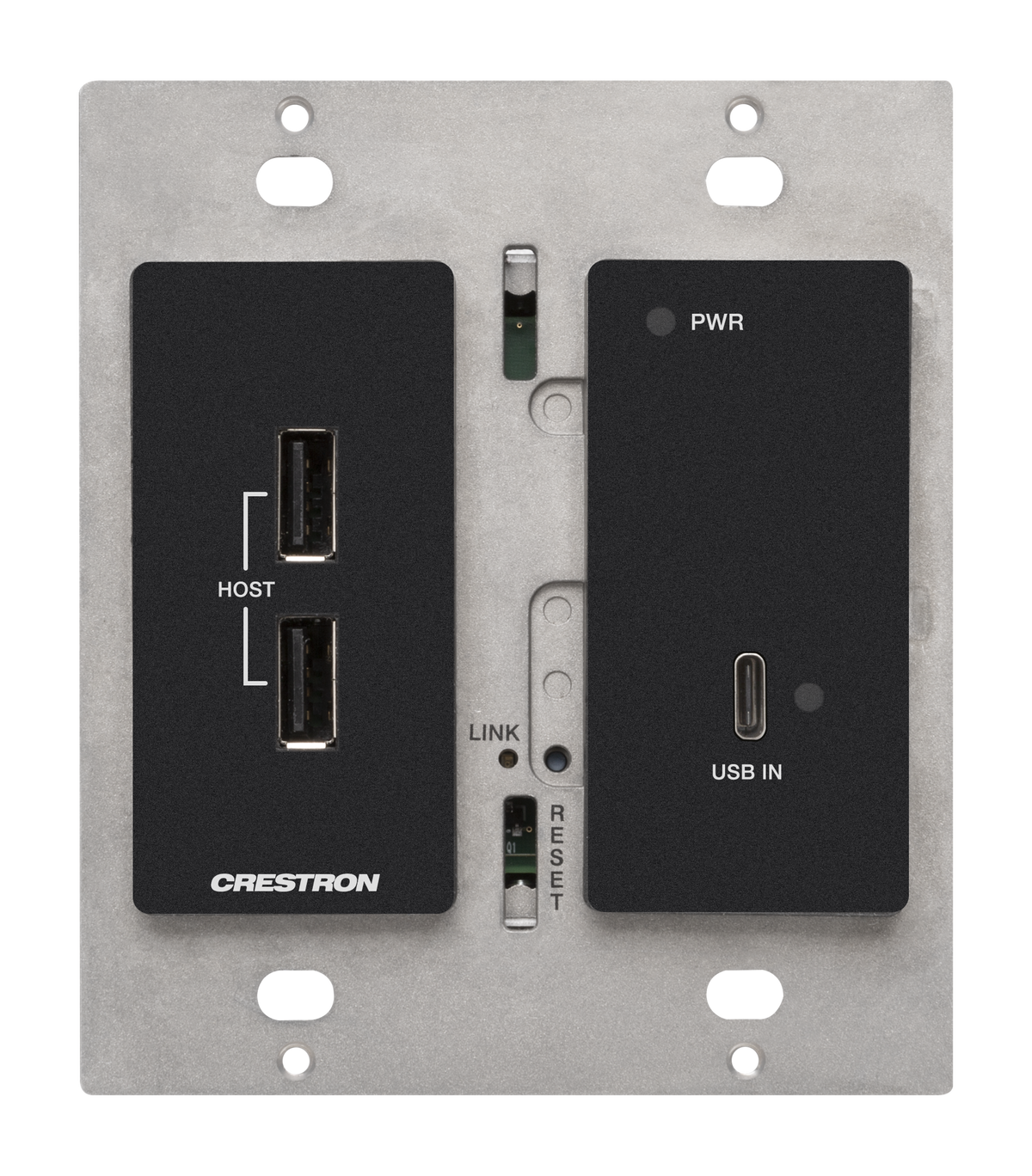

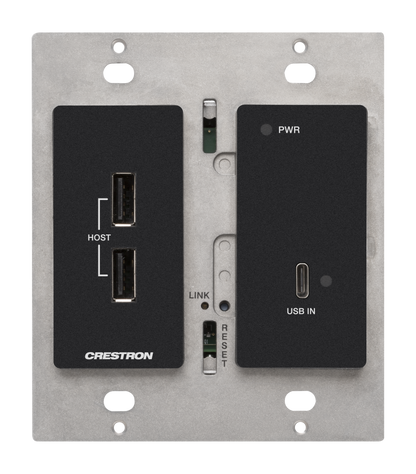

Two-Gang Wall Plate Design
The HD‑TXU‑4KZ-111-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD‑TXU‑4KZ‑111-2G can receive power from the remote DM Essentials receiver (surface mountable only).4

4K CrestronHome (2) HDCP 2.3 TAA Compliant (2)

Features

Key Features
  • DM® Essentials transmitter functionality designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver
  • Point-to-point extension of a USB-C® DisplayPort™ AV signal and USB 2.0 data signals over a CAT5e or higher cable
  • USB-C input with DisplayPort Alt Mode capability and USB 2.0 support
  • DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
  • 4K60 4:4:4 capability
  • HDR10, HDR10+, and Dolby Vision® video formats
  • Compliance with HDCP 2.3
  • CEC (Consumer Electronics Control) pass-through capability
  • EDID pass-through capability
  • Two-gang-wall plate design with black finish

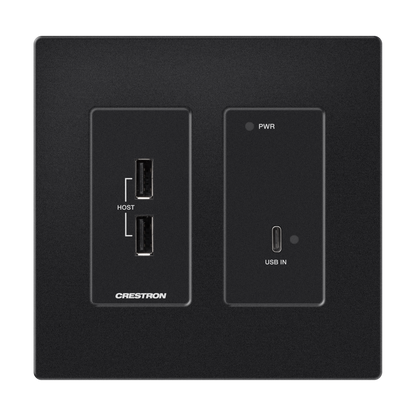

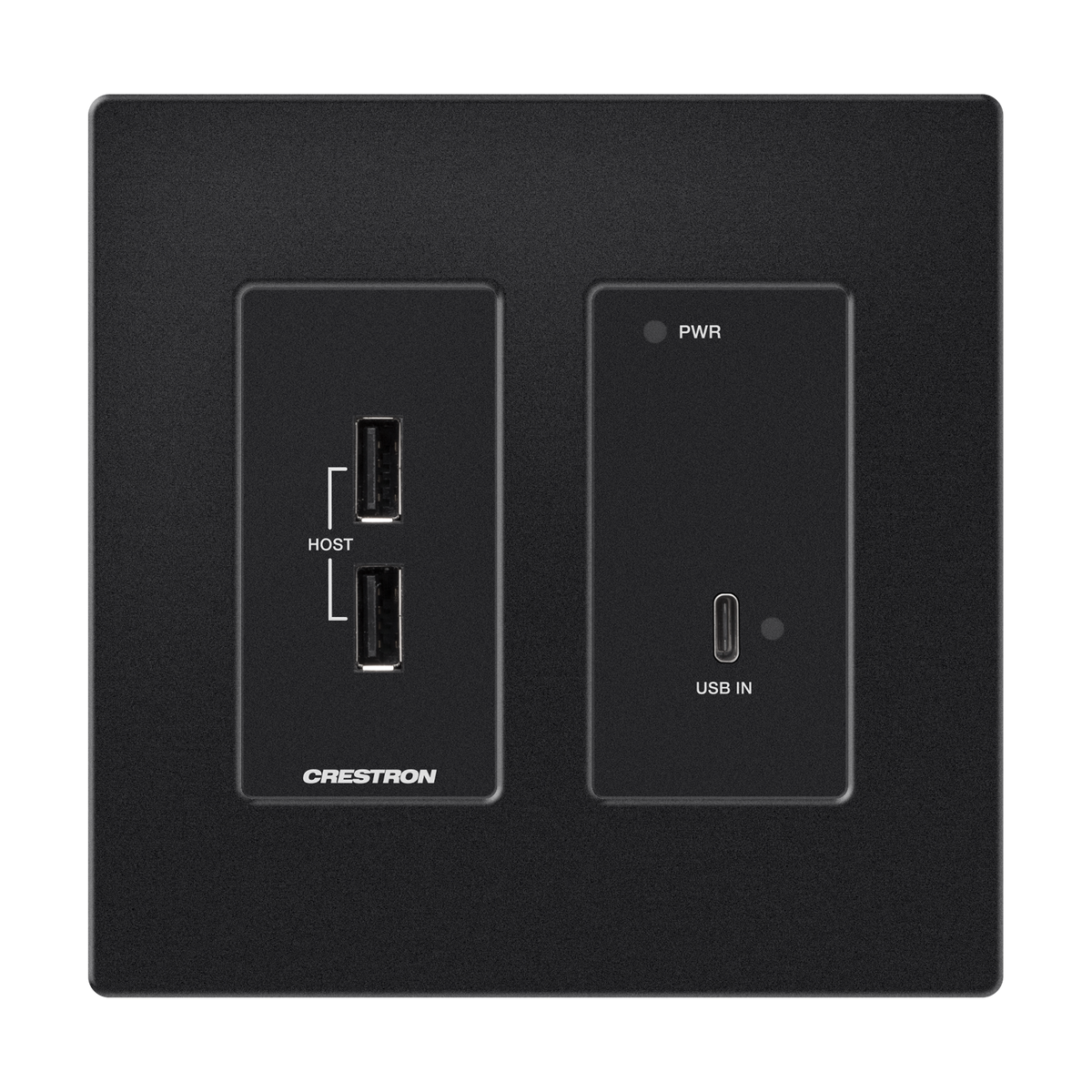

  • Decorator style faceplate required (FP-G2-DM Series sold separately)
  • Power from the remote DM Essentials receiver (surface mountable only)

Specifications

Video
Input Signal Type DisplayPort™ over USB-C® (DisplayPort Alt Mode) with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2
Output Signal Type DM® Essentials with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2
Copy Protection HDCP 2.3
Resolutions Common resolutions are listed in the following table.
Scan Type Resolution Frame Rate Color Sampling Color Depth
Progressive 4096x2160 DCI 4K & 3840x2160 4K UHD 24 Hz 4:4:4 12 bit
30 Hz 4:4:4 12 bit
60 Hz 4:2:2 12 bit
60 Hz 4:4:4 8 bit
2560x1600 WQXGA 60 Hz 4:4:4 8 bit
1920x1080 FHD 1080p 60 Hz 4:4:4 12 bit
Notes: The maximum supported resolution is 4K60 with 4:4:4 color sampling. Custom resolutions are supported at pixel clock rates up to 600 MHz.

The HD-TX-4KZ-111-2G does not support interlaced video.
Audio
Input Signal Type DisplayPort over USB-C (DisplayPort Alt Mode)
Output Signal Type DM Essentials
Digital Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels
Communications
USB‑C HDCP 2.3, EDID, CEC pass-through;
USB 2.0 up to 300 Mbps
USB USB signal extension via USB 2.0 host ports;
USB host for one TT-100 series cable caddy (sold separately) via SERVICE port
DM Essentials HDCP 2.3, EDID pass-through;
USB 2.0 up to 300 Mbps
Connectors
USB IN (1) USB Type‑C® connector, female;
Digital video/audio input using DisplayPort Alt Mode;5
USB 2.0 data support
HOST (2) USB Type-A connectors, female;
USB 2.0 host ports;
USB signal extender ports for connection to USB mice, keyboards, or other USB 2.0 peripheral devices;3
Available Power: 500 mA @ 5VDC per port

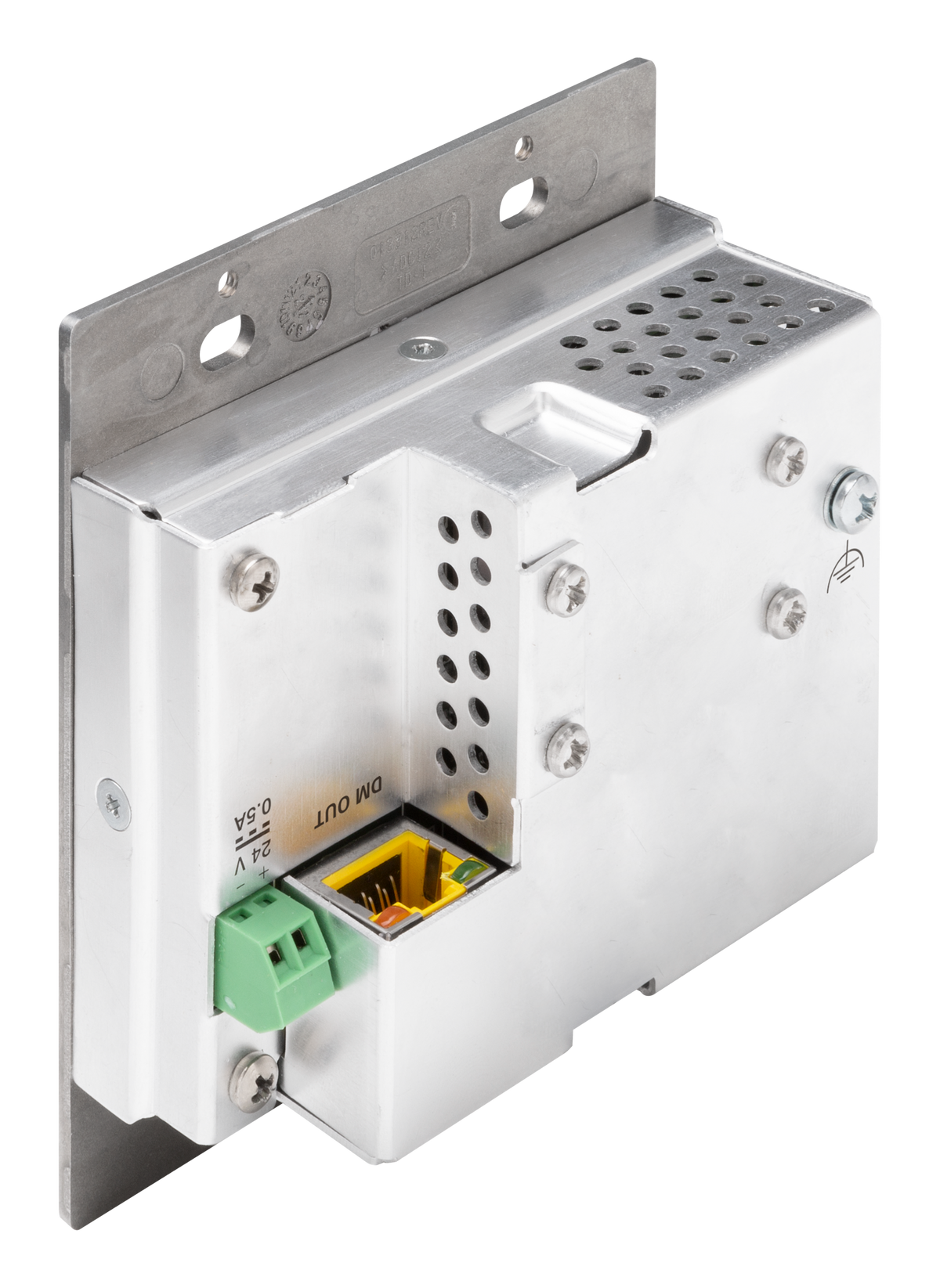

DM OUT (1) 8‑pin RJ‑45 yellow connector, female, shielded;
DM Essentials output port for connection to a DM Essentials receiver1
24V 0.5A (1) 2-pin 3.5 mm detachable terminal block;
24VDC power input;
Power pack sold separately, required only if the HD-TXU-4KZ-111-2G is used with a wall plate transmitter4
Ground (1) Chassis ground lug
Controls and Indicators
PWR (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational.
USB IN (1) Green LED, indicates that the device is receiving a DisplayPort over USB‑C (DisplayPort Alt Mode) input signal
LINK (1) Green LED, indicates that a DM Essentials link is established
RESET (1) Push button, restores factory default settings
DM OUT (2) LEDs on RJ‑45 connector.
Green indicates that a DM Essentials link is established.
Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video.
Power
Power Pack Input: 100-240VAC
Output: 24VDC 0.75A
Model: PW-2407WUL (sold separately, required only if the HD-TXU-4KZ-111-2G is used with a wall plate receiver)4
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 20% to 90% RH (non-condensing)
Construction
Composition Metal housing and bracket with black polycarbonate front label overlay
Mounting Mounts in a 2-gang (or larger) 2-inch (51 mm) deep U.S. electrical box or plaster ring (not included)
Faceplate Requires a decorator style faceplate (FP-G2-DM series, sold separately)
Dimensions
Height 4.12 in. (105 mm)
Width 3.57 in. (91 mm)
Depth 1.70 in. (43 mm)
Weight
7.25 oz (206 g)
Compliance
Regulatory Model: M202047004

Intertek® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device
Maximum DM Essentials Transmission Distance
Cable Type1
Resolution Frame Rate (Hz) Color Sampling Color Depth DM-CBL-ULTRA DM® Ultra Cable DM-CBL-8G DM 8G® Cable or CAT5e (UTP) or Higher
1920x1080 FHD 1080p 60 4:4:4 8, 12 bit 230 ft (70 m) 195 ft (60 m)
1600x1200 UXGA 60 4:4:4 8, 12 bit
2048x1080 DCI 2K 60 4:4:4 8, 12 bit
1920x1200 WUXGA 60 4:4:4 8, 12 bit
2048x1152 QWXGA 60 4:4:4 8, 12 bit
2560x1080 UWFHD 60 4:4:4 8 bit
2560x1440 WQHD Reduced Blanking 60 4:4:4
