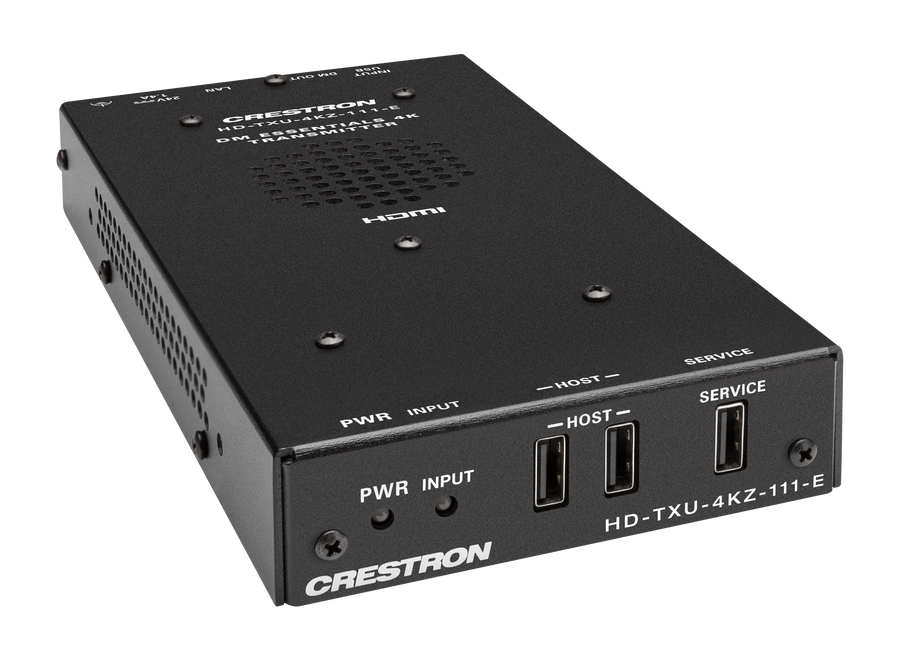

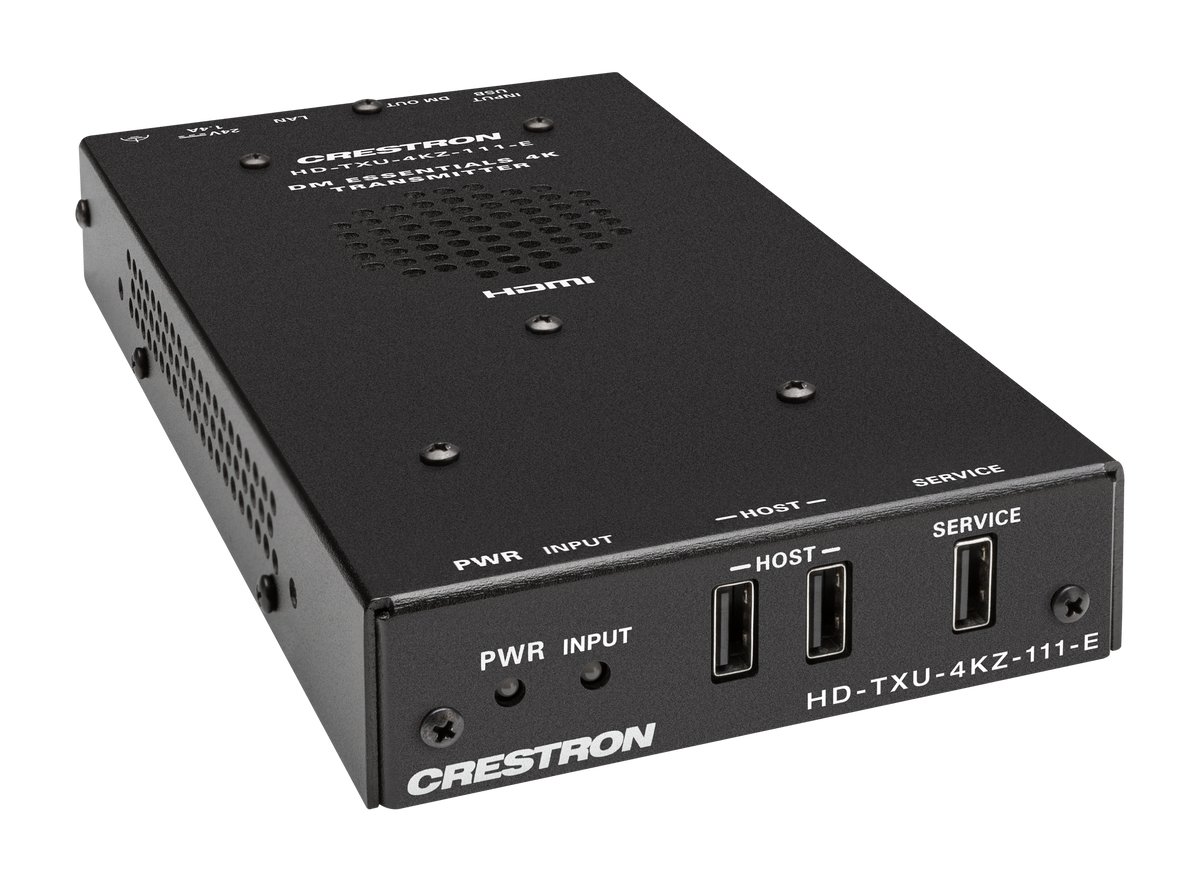

CTN HD-TXU-4KZ-111-E DM® Essentials 4K60 4:4:4 Transmitter for USB‑C® DisplayPort™, USB 2.0, and Ethernet Signal Extension over CATx Cable

CTN HD-TXU-4KZ-111-E DM® Essentials 4K60 4:4:4 Transmitter for USB‑C® DisplayPort™, USB 2.0, and Ethernet Signal Extension over CATx Cable

MFR: Crestron MPN : HD-TXU-4KZ-111-E
SKU: HD-TXU-4KZ-111-E
$587.50 USD
$587.50 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

Interoperability with a DM® Essentials HD-RXU-4KZ Series receiver to provide point-to-point extension of USB-C® DisplayPort™, USB 2.0, and Ethernet signals over a CATx cable. Supports 4K60 4:4:4 video, HDR10+, and HDCP 2.3.

Overview

The HD‑TXU‑4KZ‑111‑E is a DM® Essentials 4K60 4:4:4 transmitter designed to interoperate with a DM Essentials HD‑RXU‑4KZ Series receiver. A USB-C® input with DisplayPort™ Alt Mode capability enables signal extension of a DisplayPort AV signal along with USB 2.0 data. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-TXU-4KZ-111-E to the DM Essentials receiver.1

Interoperability with a DM Lite HD-RXU-4KZ Series Receiver
For interoperability between the HD-TXU-4KZ-111-E and an HD-RXU-4KZ Series receiver, the DM Essentials output port of the HD‑TXU‑4KZ‑111‑E must be connected to the DM Essentials input port of the HD-RXU-4KZ Series receiver.

NOTE: USB 2.0 data extension is not supported if the HD-TXU-4KZ-111-E is paired with a DM Essentials receiver other than an HD-RXU-4KZ Series receiver or paired with a DMPS Essentials switcher (HD-PS Series or HD‑RX‑4K‑210‑C‑E[‑POE]).

4K60 4:4:4 and HDR Support
The HD‑TXU‑4KZ‑111‑E supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2

USB 2.0 Data Extension
Two USB 2.0 host ports are provided on the HD‑TXU‑4KZ‑111-E, enabling connection to a wide variety of supported USB 2.0 peripheral devices.3

Ethernet Pass-Through Capability
The HD-TXU-4KZ-111-E is equipped with a 100/1000 Mbps LAN port that passes an Ethernet signal over the DM Lite connection to the receiving endpoint. The LAN port of one endpoint in the pair can be connected to an Ethernet network while the LAN port of the other endpoint can be connected directly to an Ethernet-enabled device such as a PC.

Compact, Surface‑Mountable Design
Compact in design, the HD‑TXU‑4KZ‑111‑E can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD‑TXU‑4KZ‑111‑E can receive power from the included power pack or from the remote DM Essentials receiver.4

4K AVF Works With (2) CrestronHome (2) HDCP 2.3 TAA Compliant (2)

Features

Key Features
  • DM® Essentials transmitter functionality designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver
  • Point-to-point extension of a USB-C® DisplayPort™ AV signal, USB 2.0 data signals, and Ethernet signal over a CAT5e or higher cable
  • USB-C® input with DisplayPort™ Alt Mode capability and USB 2.0 support
  • DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
  • 4K60 4:4:4 capability
  • HDR10, HDR10+, and Dolby Vision® video formats
  • Ethernet pass-through capability
  • Compliance with HDCP 2.3
  • CEC (Consumer Electronics Control) pass-through capability
  • EDID pass-through capability
  • Compact, surface-mountable design
  • Power from 24VDC power pack (included) or from remote DM Essentials receiver

Specifications

Video
Input Signal Type DisplayPort™ over USB-C® (DisplayPort Alt Mode) with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2
Output Signal Type DM® Essentials with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2
Copy Protection HDCP 2.3
Resolutions Common resolutions are listed in the following table.
Scan Type Resolution Frame Rate Color Sampling Color Depth
Progressive 4096x2160 DCI 4K & 3840x2160 4K UHD 24 Hz 4:4:4 12 bit
30 Hz 4:4:4 12 bit
60 Hz 4:2:2 12 bit
60 Hz 4:4:4 8 bit
2560x1600 WQXGA 60 Hz 4:4:4 8 bit
1920x1080 FHD 1080p 60 Hz 4:4:4 12 bit
Notes: The maximum supported resolution is 4K60 with 4:4:4 color sampling. Custom resolutions are supported at pixel clock rates up to 600 MHz.

The HD-TX-4KZ-111-E does not support interlaced video.
Audio
Input Signal Type DisplayPort over USB-C (DisplayPort Alt Mode)
Output Signal Type DM Essentials
Digital Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels
Communications
USB‑C HDCP 2.3, EDID, CEC pass-through;
USB 2.0 up to 300 Mbps
USB USB signal extension via USB 2.0 host ports;
USB host for one TT-100 series cable caddy (sold separately) via SERVICE port
DM Essentials HDCP 2.3, EDID pass-through;
USB 2.0 up to 300 Mbps
Ethernet 100/1000 Mbps pass-through

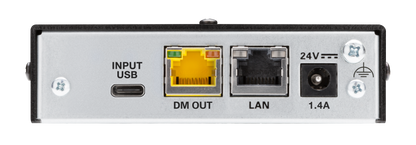

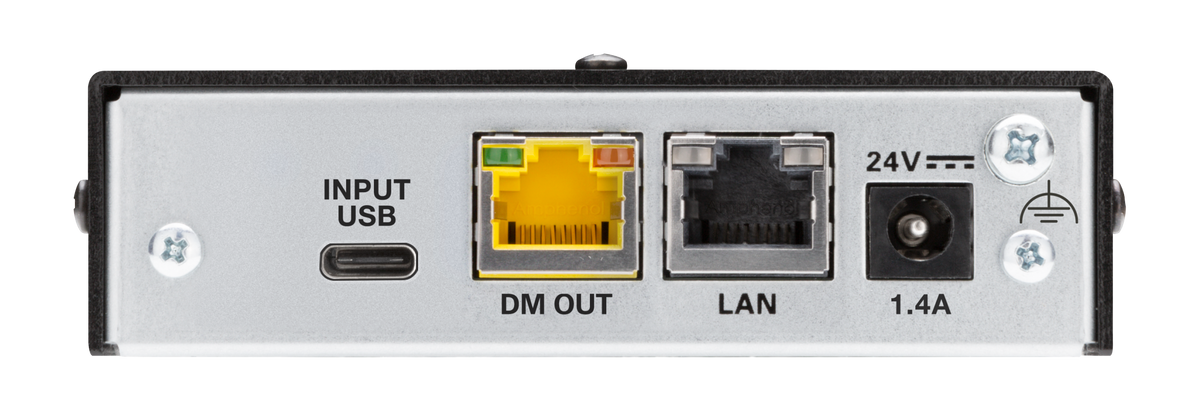

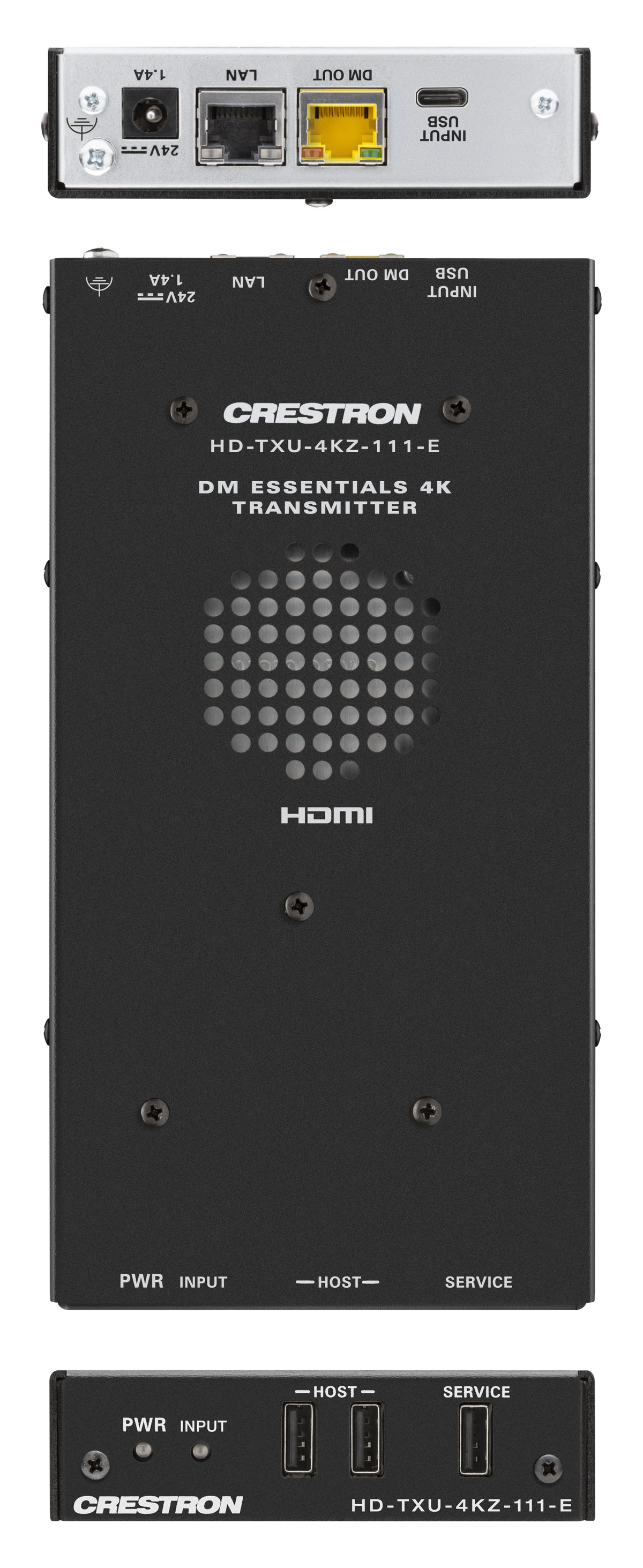

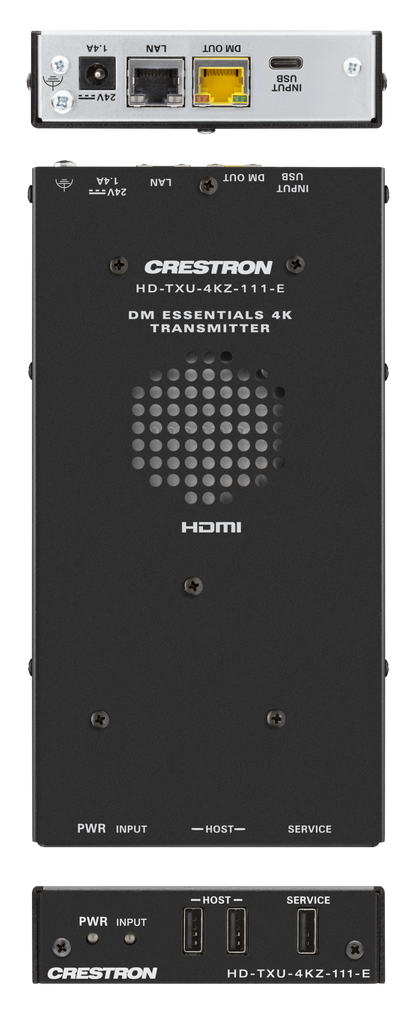

Connectors
USB INPUT (1) USB Type‑C® connector, female;
Digital video/audio input using DisplayPort Alt Mode;5
USB 2.0 data support
DM OUT (1) 8‑pin RJ‑45 yellow connector, female, shielded;
DM Essentials output port for connection to a DM Essentials receiver1
LAN (1) 8-pin RJ‑45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;
Passes Ethernet signal over the DM Essentials connection to an HD-RXU-4KZ-101-E receiver
24V 1.4A (1) 2.1 x 5.5 mm DC power connector;
24VDC power input;
PW-2420RU power pack included4
HOST (2) USB Type-A connectors, female;
USB 2.0 host ports;
USB signal extender ports for connection to USB mice, keyboards, or other USB 2.0 peripheral devices;3
Available Power: 500 mA @ 5VDC per port
SERVICE (1) USB 2.0 Type-A connector, female;
Used for firmware loading, configuration management, or as a USB host port for one TT-100 series cable caddy (sold separately);
Can also provide up to 5V 500 mA power to a USB powered device
Ground (1) Chassis ground lug

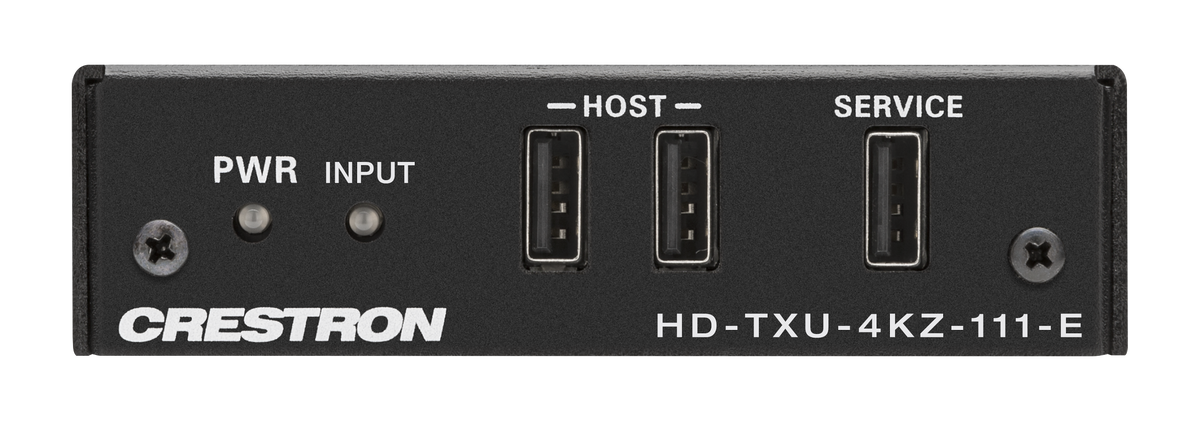

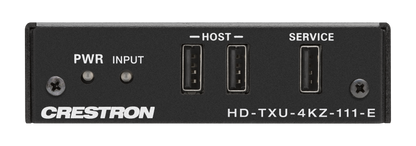

Controls and Indicators
PWR (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational.
INPUT (1) Green LED, indicates that the device is receiving a DisplayPort over USB‑C (DisplayPort Alt Mode) input signal
DM OUT (2) LEDs on RJ‑45 connector.
Green indicates that a DM Essentials link is established.
Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video
LAN (2) LEDs on RJ-45 connector.
Green indicates that a 100 Mbps link is established.
Solid amber indicates that a 1000 Mbps link is established.
Flashing amber indicates 1000 Mbps Ethernet activity.
Power
Power Pack (Included) Input: 100-240VAC
Output: 24VDC 2.5A
Model: PW-2420RU4
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 20% to 90% RH (non-condensing)

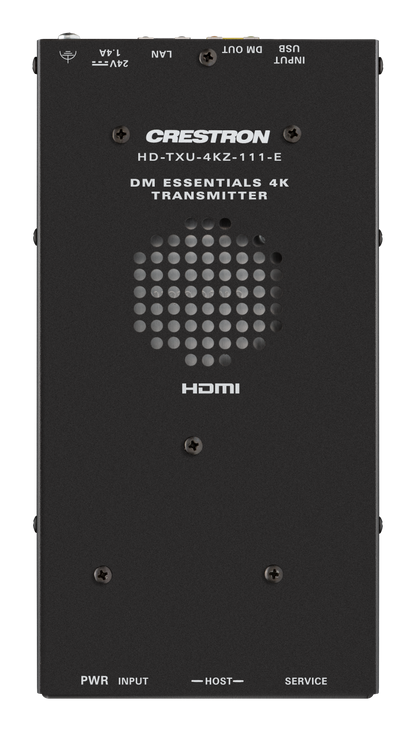

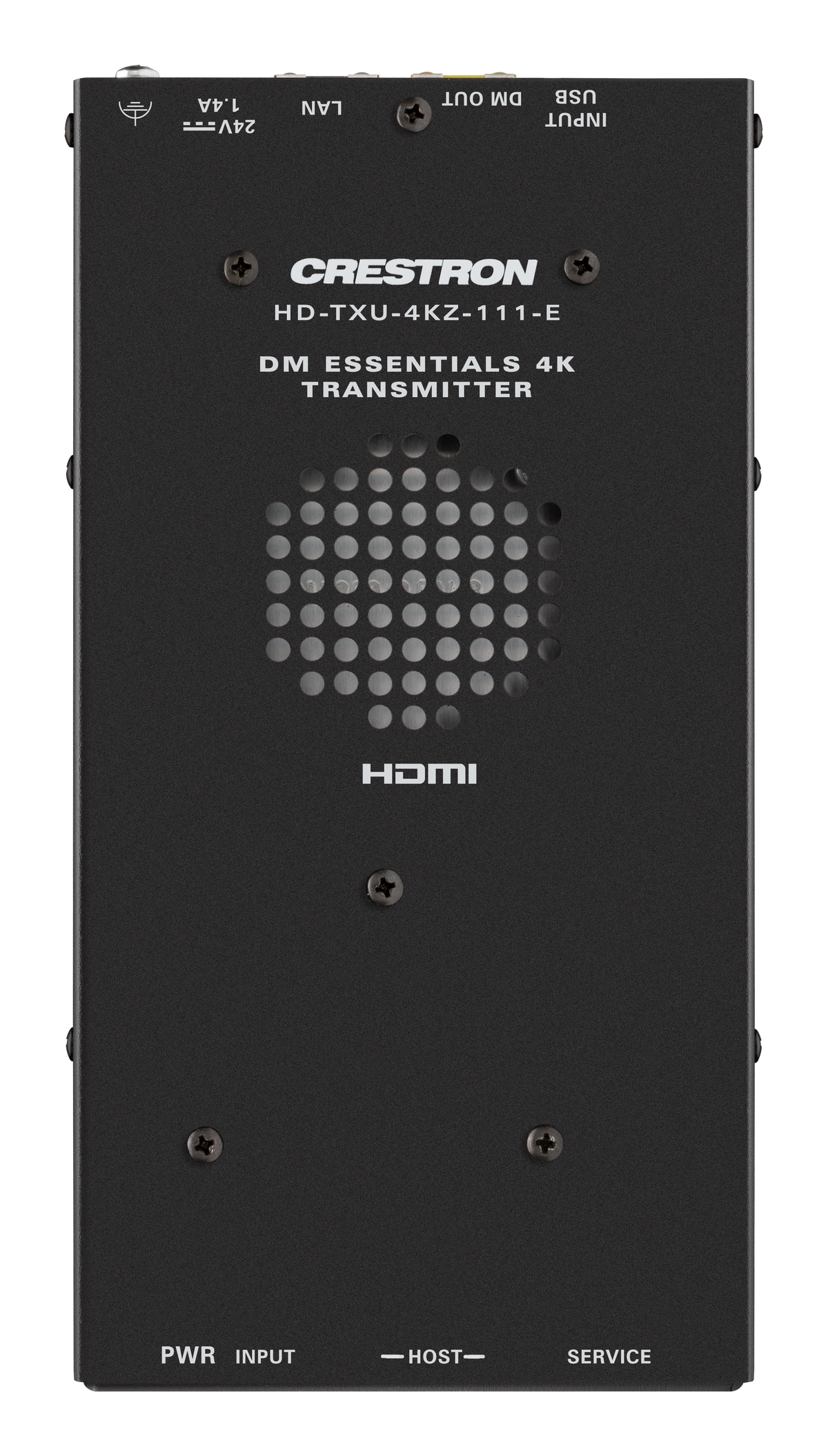

Enclosure
Chassis Metal, black finish, vented top and sides, 2 mounting brackets included
Mounting Freestanding, surface mountable, or attachment to a single rack rail
Dimensions
Height 1.20 in. (30 mm)
Width 4.19 in. (106 mm)
Depth 7.94 in. (202 mm)
Weight
1.2 lb (0.55 kg)
Compliance
Regulatory Model: M202047005
Intertek® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device
Maximum DM Essentials Transmission Distance
Cable Type1
Resolution Frame Rate (Hz) Color Sampling Color Depth DM-CBL-ULTRA DM® Ultra Cable DM-CBL-8G DM 8G® Cable or CAT5e (UTP) or Higher
1920x1080 FHD 1080p 60 4:4:4 8, 12 bit 230 ft (70 m) 195 ft (60 m)
1600x1200 UXGA 60 4:4:4 8, 12 bit
2048x1080 DCI 2K 60 4:4:4 8, 12 bit
1920x1200 WUXGA 60 4:4:4 8, 12 bit
2048x1152 QWXGA 60 4:4:4 8, 12 bit
2560x1080 UWFHD 60 4:4:4 8 bit
2560x1440 WQHD Reduced Blanking
