Interoperability with a DM® Essentials HD-RXU-4KZ Series receiver to provide point-to-point extension of an HDMI® or USB-C® DisplayPort™ signal and USB 2.0 signals over a CATx cable. Supports 4K60 4:4:4 video, HDR10+, and HDCP 2.3. Provides one HDMI input and one USB-C DisplayPort input with automatic switching capability. Charging capability provided by the USB-C DisplayPort input.
Overview
The HD‑TXU‑4KZ‑211‑CHGR is a DM® Essentials 4K60 4:4:4 transmitter designed to interoperate with a DM Essentials HD‑RXU‑4KZ Series receiver. The paired transmitter and receiver enable extension of HDMI® or USB-C® DisplayPort™ AV signals along with USB 2.0 data. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable (Crestron DM‑CBL‑8G or DM‑CBL‑ULTRA sold separately) must be used to connect the HD‑TXU‑4KZ‑211‑CHGR to the DM Essentials receiver.1
Interoperability with a DM Essentials HD-RXU-4KZ Series Receiver
For interoperability between the HD‑TXU‑4KZ‑211‑CHGR and an HD‑RXU‑4KZ Series receiver, the DM Essentials output port of the HD‑TXU‑4KZ‑211‑CHGR must be connected to the DM Essentials input port of the HD‑RXU‑4KZ Series receiver.
NOTE: USB 2.0 data extension is not supported if the HD-TXU-4KZ-211-CHGR is paired with a DM Essentials receiver other than an HD-RXU-4KZ Series receiver, or paired with an HD-PS Series DMPS Essentials switcher. This model is not compatible with the HD‑RX‑4K‑210‑C‑E[‑POE].
Support for 5K Resolutions
The HD-TXU-4KZ-211-CHGR introduces support for 5K Ultra-Wide 5120 × 2160 and 5K Super-Wide 5120 × 1440 video resolutions, expanding the DM Essentials product family's compatibility with the latest generation of computers, monitors, and displays. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
Integrated Web Server
The HD-TXU-4KZ-211-CHGR provides an integrated web server for device configuration and management. The web server also enables device, network, and other types of status information to be viewed.
Automatic Switching of Inputs
The web interface of the HD-TXU-4KZ-211-CHGR or control system programming can be used to configure AV switching behavior. Switching between the HDMI and USB-C DisplayPort inputs occurs based on the last connected input or on the routing priority assigned to each input. In addition, input selection push buttons on the front of the HD-TXU-4KZ-211-CHGR enable the desired input to be selected manually.
USB 2.0 Data Extension
Two USB 2.0 host ports and one USB 2.0 device port are provided on the HD‑TXU‑4KZ‑211-CHGR, enabling connection to a wide variety of supported USB 2.0 peripheral devices.3
USB-C DisplayPort Input with Charging Capability
The USB-C DisplayPort input can charge the connected AV source (for example, a laptop) with up to 60W of power.
Compact, Surface‑Mountable Design

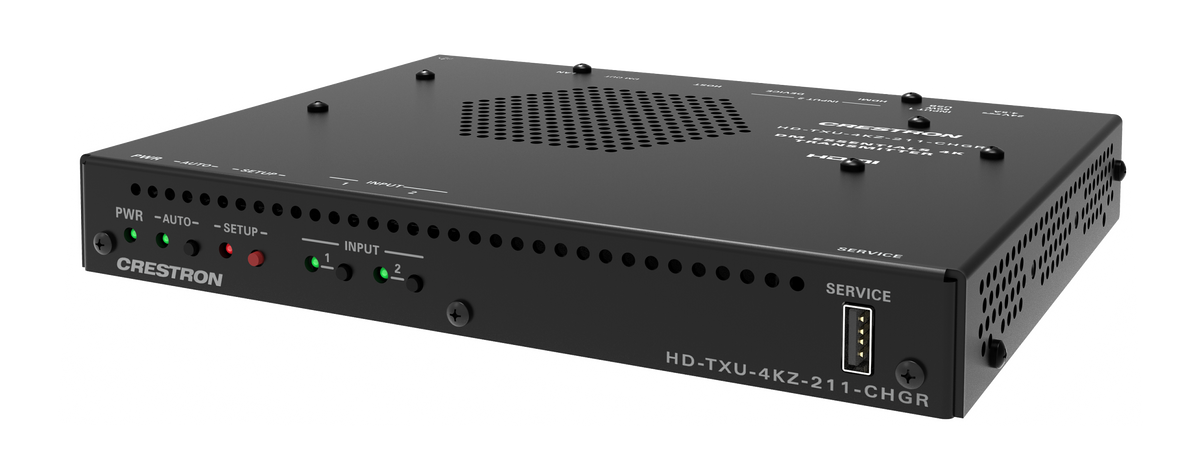

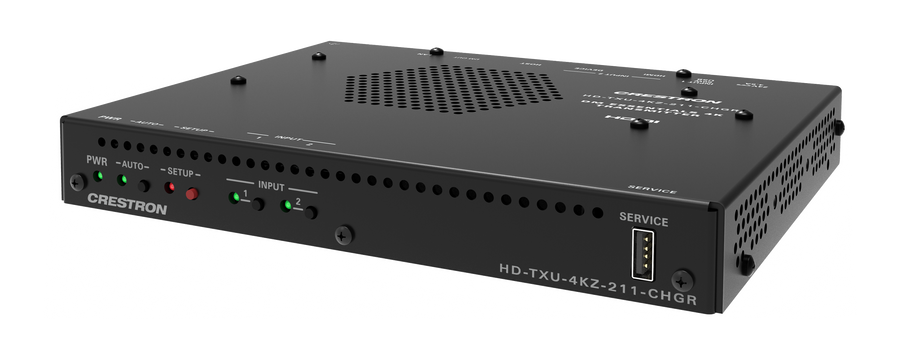

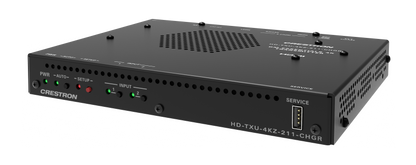

Compact in design, the HD‑TXU‑4KZ‑211-CHGR can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD‑TXU‑4KZ‑211-CHGR receives power from the included power pack.4
Features
Key Features
- DM® Essentials transmitter functionality designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver
- Point-to-point extension of an HDMI® or USB-C® DisplayPort™ signal and USB 2.0 data signals over a CAT5e or higher cable
- Two inputs with automatic switching:
- One HDMI input with associated USB 2.0 USB-C input
- One USB-C input with DisplayPort Alt Mode capability, USB 2.0 support, and charging capability
- DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Enterprise-grade security
- Compliance with HDCP 2.3
- Integrated web server for device configuration and management
- Automatic display control using CEC (Consumer Electronics Control)
- EDID management
- Interoperability with a Crestron 3-Series® or later control system
- XiO Cloud® service support
- .AV Framework™ technology support
- Compact, surface-mountable design
- Power from 24VDC power pack (included)
Specifications
| Video | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Signal Types | HDMI® (DVI and Dual-Mode DisplayPort™ interface compatible4) and DisplayPort over USB-C® (DisplayPort Alt Mode) with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2 | |||||||||||||||||||||||||||||||||||||||||||||||||
| Output Signal Type | DM® Essentials with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2 | |||||||||||||||||||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.3 | |||||||||||||||||||||||||||||||||||||||||||||||||
| Resolutions | Common resolutions are listed in the following table. | |||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Signal Types | HDMI, DisplayPort over USB-C (DisplayPort Alt Mode) | |||||||||||||||||||||||||||||||||||||||||||||||||
| Output Signal Type | DM Essentials | |||||||||||||||||||||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | |||||||||||||||||||||||||||||||||||||||||||||||||
| Communications | ||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.3, EDID, CEC | |||||||||||||||||||||||||||||||||||||||||||||||||
| USB‑C | HDCP 2.3, EDID, CEC; USB 2.0 up to 300 Mbps |
|||||||||||||||||||||||||||||||||||||||||||||||||
| USB | USB signal extension via USB 2.0 host and device ports | |||||||||||||||||||||||||||||||||||||||||||||||||
| DM Essentials | HDCP 2.3, EDID; USB 2.0 up to 300 Mbps |
|||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet | 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, Web browser setup and control, Crestron control system integration, IEEE 802.1X, Secure CIP, Authentication, SSH/SSL, TLS | |||||||||||||||||||||||||||||||||||||||||||||||||
| Connectors | ||||||||||||||||||||||||||||||||||||||||||||||||||
| SERVICE | (1) USB 2.0 Type-A connector, female; Used for firmware loading and configuration management; Can also provide up to 5V 500 mA power to a USB powered device |
|||||||||||||||||||||||||||||||||||||||||||||||||
| 24V 4.5A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2475DU power pack included4 |
|||||||||||||||||||||||||||||||||||||||||||||||||

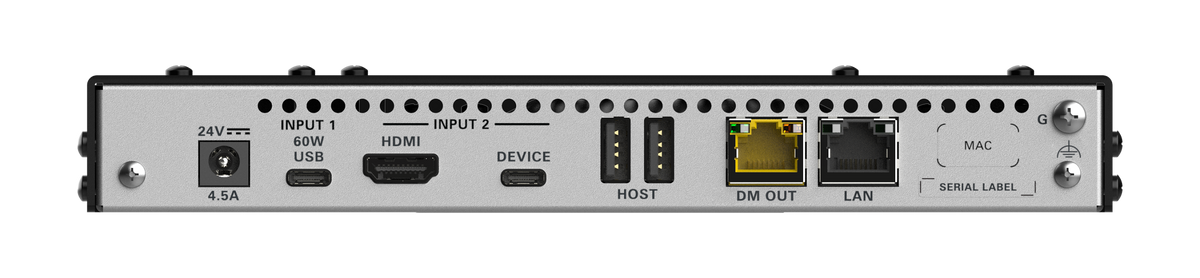

| 60W USB, INPUT 1 | (1) USB Type-C® connector, female; Digital video/audio input using DisplayPort Alt Mode; USB 2.0 data support; Can also charge connected AV source with up to 60W of power5 |
|||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI, INPUT 2 | (1) HDMI Type A connector, female; HDMI digital video/audio input; DVI and Dual-Mode DisplayPort interface compatible6 |
|||||||||||||||||||||||||||||||||||||||||||||||||
| DEVICE, INPUT 2 | (1) USB Type‑C® connector, female; USB 2.0 device port associated with HDMI input for AV sources that require USB 2.0 support; USB signal extender port for connection to a computer or other USB 2.0 host3 |
|||||||||||||||||||||||||||||||||||||||||||||||||
| HOST | (2) USB Type-A connectors, female; USB 2.0 host ports; USB signal extender ports for connection to USB mice, keyboards, or other USB 2.0 devices;3 Available Power: 500 mA @ 5VDC per port |
|||||||||||||||||||||||||||||||||||||||||||||||||
| DM OUT | (1) 8‑pin RJ‑45 yellow connector, female, shielded; DM Essentials output port for connection to a DM Essentials HD-RXU-4KZ Series receiver1 |
|||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port for device configuration and management |
|||||||||||||||||||||||||||||||||||||||||||||||||
| Ground | (1) Chassis ground lug | |||||||||||||||||||||||||||||||||||||||||||||||||
| Controls and Indicators | ||||||||||||||||||||||||||||||||||||||||||||||||||

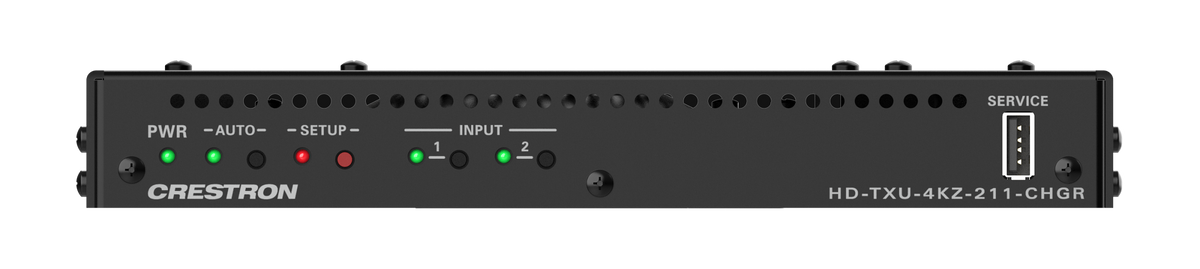

| PWR | (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational. | |||||||||||||||||||||||||||||||||||||||||||||||||
| AUTO | (1) Push button for enabling or disabling automatic switching of inputs; (1) LED, green indicates that automatic switching of inputs is enabled |
|||||||||||||||||||||||||||||||||||||||||||||||||
| SETUP | (1) Push button for Ethernet setup; (1) LED, red indicates that the SETUP push button is pressed |
|||||||||||||||||||||||||||||||||||||||||||||||||
| INPUT 1 | (1) Push button for manual selection of USB-C DisplayPort input; (1) LED, green indicates that the USB-C DisplayPort input is routed to an output, and amber indicates that a source is detected but is not routed to an output |
|||||||||||||||||||||||||||||||||||||||||||||||||
| INPUT 2 | (1) Push button for manual selection of HDMI input; (1) LED, green indicates that the HDMI input is routed to an output, and amber indicates that a source is detected but is not routed to an output |
|||||||||||||||||||||||||||||||||||||||||||||||||
| DM OUT | (2) LEDs on RJ‑45 connector. Green indicates that a DM Essentials link is established; Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video |
|||||||||||||||||||||||||||||||||||||||||||||||||
| LAN |
(2) LEDs on RJ‑45 connector; |
|||||||||||||||||||||||||||||||||||||||||||||||||
| Power | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Pack (Included) |
Input: 100-240VAC Output: 24VDC 7.5A Model: PW-2475DU4 |
|||||||||||||||||||||||||||||||||||||||||||||||||
| Environmental | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature | 32° to 104°F (0° to 40°C) | |||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | |||||||||||||||||||||||||||||||||||||||||||||||||
| Enclosure | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, vented top, front, rear, and sides, 2 mounting brackets included | |||||||||||||||||||||||||||||||||||||||||||||||||
| Mounting | Freestanding, surface mountable, or attachment to a single rack rail | |||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Height | 1.20 in. (30 mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
| Width | 8.52 in. (216 mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
| Depth | 6.48 in. (165 mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 1.96 lb (0.89 kg) | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Compliance | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
Regulatory Model: M202047007 Intertek® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device |
||||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum DM Essentials Transmission Distance | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
