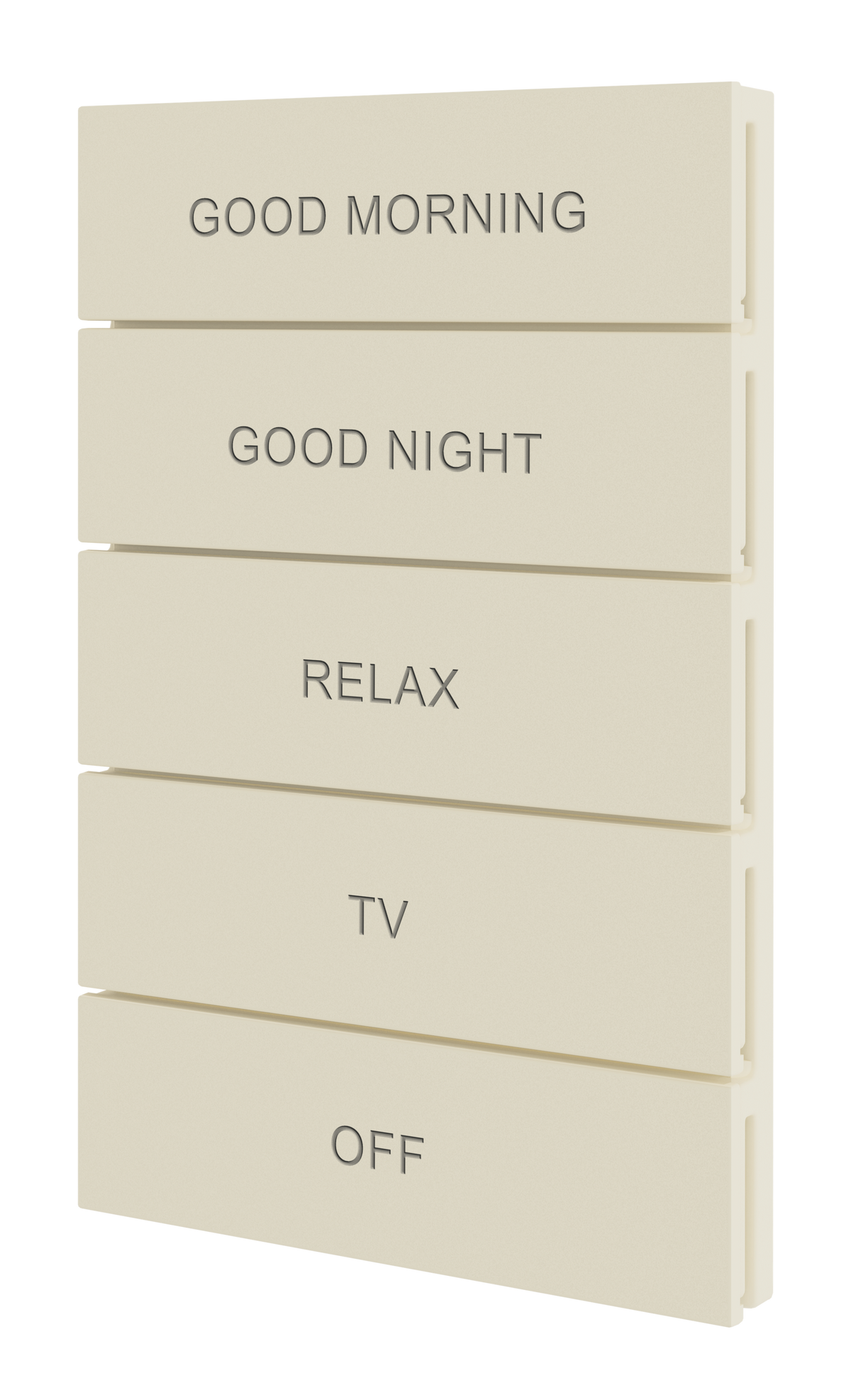

CTN HZ2-BTNS-1-A ENGRAVED Horizon® 2 Button Assembly, Style 1, Custom Engraved, Almond

The HZ2-BTNS is a replacement button assembly for Horizon® 2 dimmers, switches, and keypads. Button assemblies are available in six styles to provide a variety of button configurations and each style is available in the following finishes:

• Textured Finishes
  • White (‑W)
  • Black (‑B)
  • Almond (‑A)
• Glass Finishes
  • White Glass (‑GLASS‑W)
  • Black Glass (‑GLASS‑B)
• Metal Finishes
  • Brushed Black (-BR-BLK)
  • Brushed Brass (-BR-BRASS)
  • Dark Bronze (-DRK-BRZ)
  • Dark Nickel (-DRK-NKL)

Custom Engraving Options
Each button on the assembly can be labeled with a custom laser-etched engraving to indicate its specific function. Engraved buttons can be illuminated using the device's LED backlights. Engraving is included with ENGRAVED models. Textured button assemblies without engraving (BLANK models) are also available and can be used as is or can be custom engraved by a third-party engraver.

Note: Glass and metal buttons can only be engraved by Crestron and are not offered blank.

Create engraving files using Impress Custom Engraving Software, the Crestron Home® Setup app, the Crestron Home Online Configurator, or D3Pro® software. If necessary, custom engraving can be changed until the order is processed by emailing orders@crestron.com with the updated engraving file and order information.

Field-Replaceable Button Assemblies
Button assemblies can be installed on Horizon devices without removing the device from the wall. Button assembly engravings are backlit when installed in devices that provide LED backlighting.

Field-replaceable button assemblies allow for changes in device function or for the customer to use the system before finalizing the engravings. The button assembly can be replaced with any custom engraved or blank HZ2-BTNS button assembly. All Horizon 2 devices can use textured, glass, or metal finishes.

The HZ2-BTNS series button assemblies are available in the following styles:

Style 1: 5 single buttons

Style 2: 4 single buttons and 1 split rocker button;
The split rocker button is located in the lowest button position

Note: The split rocker button does not allow for a center push and shares one backlight.

Style 3: 4 single buttons and 1 split rocker button;
The split rocker button is located in the second lowest button position

Note: The split rocker button does not allow for a center push and shares one backlight.

Style 4: 3 single buttons and 2 split rocker buttons;
The split rocker buttons are located in the two lowest button positions

Note: The split rocker buttons do not allow for a center push and each split rocker shares one backlight.

Style 5: 1 medium rocker button and 2 single buttons;
Single buttons are located in the two lowest button positions

Note: The medium rocker button does not allow for a center push and provides a separate backlight for the top, bottom, and center positions.

Style 6: 1 large rocker button

Note: The large rocker button does not allow for a center push and provides a separate backlight for the top, bottom, and center positions.

Multicolor Backlit Buttons
The engraved buttons are illuminated using the device's RGB LED backlights. Each button can be assigned custom color backlighting. The LED backlight provides feedback by changing the intensity, changing the color, or flashing to show that an action is being performed. Backlighting colors can be adjusted using Crestron Home software or other Crestron programming tools.

Local color theme sets the colors for all buttons on the device. In addition to the local color theme, each button can be assigned an alternate color theme. Thirteen local color themes are available that include Tunable White (default is Warm White), Neutral White, Cool White, and a variety of common colors. The local color theme and alternate color themes can be changed programmatically.
