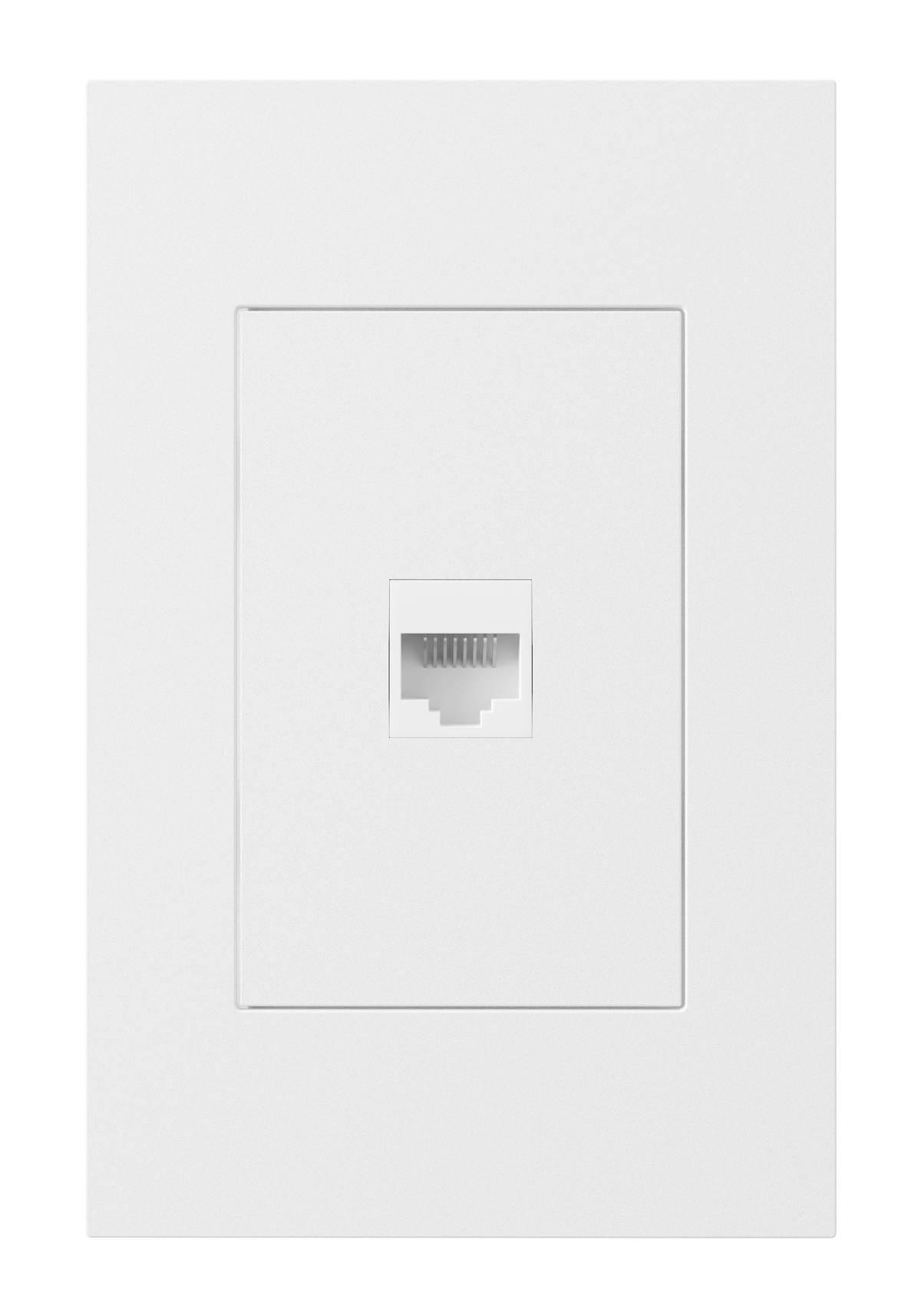

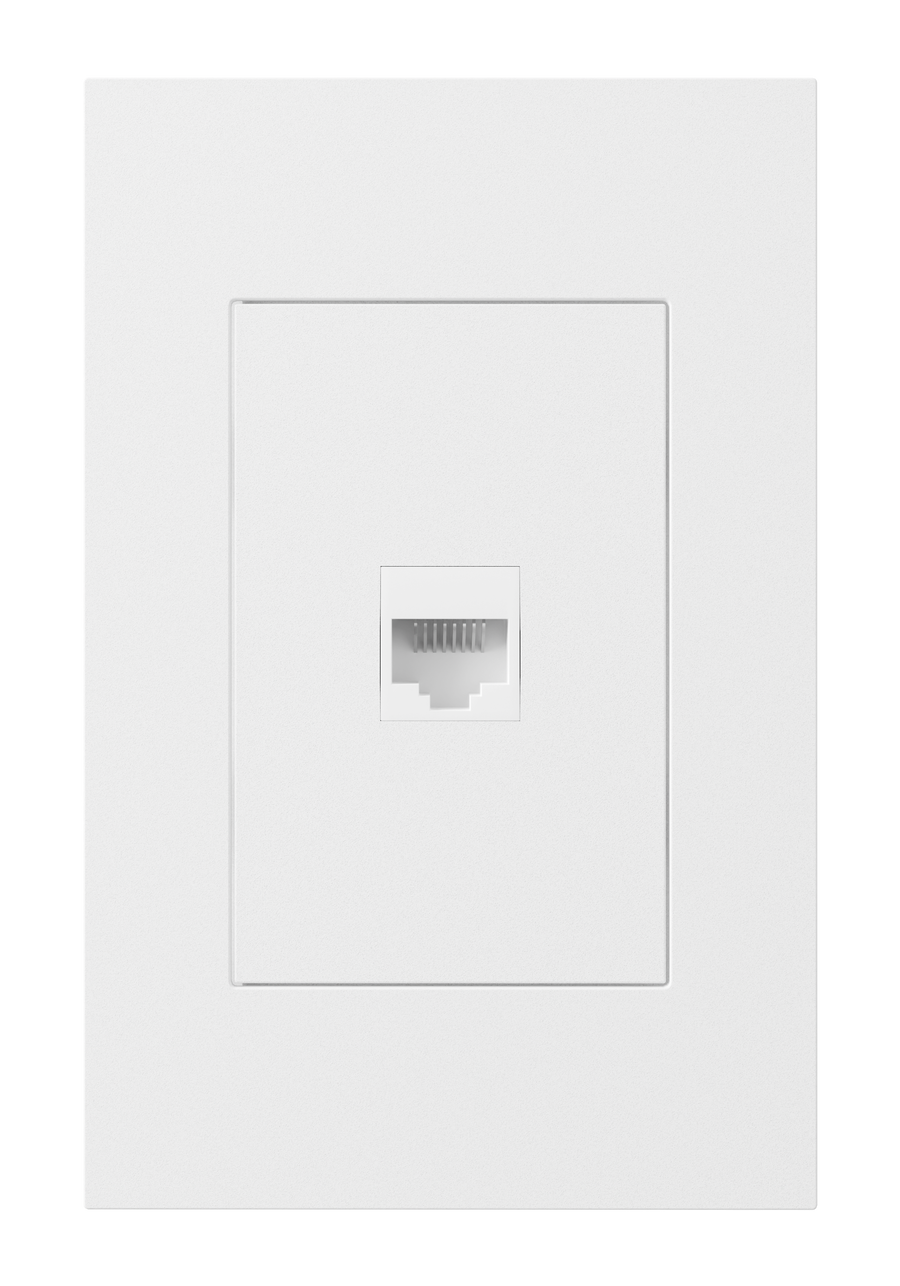

The HZ2A-KEY is a Horizon® 2 keystone plate that accepts 1, 2, or 4 keystone modules. The keystone plate is used in conjunction with keystone modules (sold separately) to fulfill the most complicated installation requirements. The HZ2A-KEY1-W accepts 1 keystone module.
Overview
The HZ2A-KEY is a Horizon® 2 keystone plate that accepts 1, 2, or 4 keystone modules. The keystone plate is used in conjunction with keystone modules (sold separately) to fulfill the most complicated installation requirements.
Styled to match the Horizon® 2 devices, the keystone plate enables the connection of networking and AV equipment while maintaining an elegant look throughout the home while. Compatible with most third-party keystone modules (sold separately) to suit any application.
Multigang Expansion with Horizon 2 Faceplates
Install up to four Horizon® 2 devices side‑by‑side in a US multigang electrical box with a compatible HZ2‑FP‑G series faceplate. When multiple devices are installed in a 2-, 3-, or 4-gang faceplate, the buttons on the devices are aligned to form one continuous control surface.
Standard Wall Mount
Horizon keypads are designed for installation in a standard electrical wall box, making them perfect for installation in a multi-gang box alongside other Horizon devices.
Features
Key Features
- Precision fit and finish
- 1, 2, or 4 keystone module positions
- Contiguous surface when multi-ganged
- Mount up to four Horizon® 2 devices with Horizon 2 multi‑gang faceplates (HZ2‑FP‑G series, sold separately)
- Available in white, almond, and black
Specifications
| Connectors | |
| HZ2A-KEY1: | (1) Keystone module position; Accepts flush-mount keystone connectors; Keystone connector not included |
| HZ2A-KEY2: | (2) Keystone module position; Accepts flush-mount keystone connectors; Keystone connector not included |
| HZ2A-KEY4: | (4) Keystone module position; Accepts flush-mount keystone connectors; Keystone connector not included |
| Mounting | Mounts in a 1‑ to 4-gang U.S. electrical box (not included); Metal mounting ring included; 3.5 in. (26 mm) electrical box depth recommended; Derating required in multigang applications |
| Construction | |
| Keystone Plate | Plastic; White, almond, or black |
| Mounting | Mounts in a 1- to 4-gang U.S. electrical box or plaster ring (not included), gangable up to four units |
| Faceplate | Requires an HZ2‑FP‑G series faceplate (sold separately) |
| Dimensions | |
| Height | 4.13 in. (105 mm) |
| Width | 1.80 in. (46 mm) |
| Depth | 0.56 in. (15 mm) |
|
To search for product certificates, refer to support.crestron.com/app/certificates. |
|
