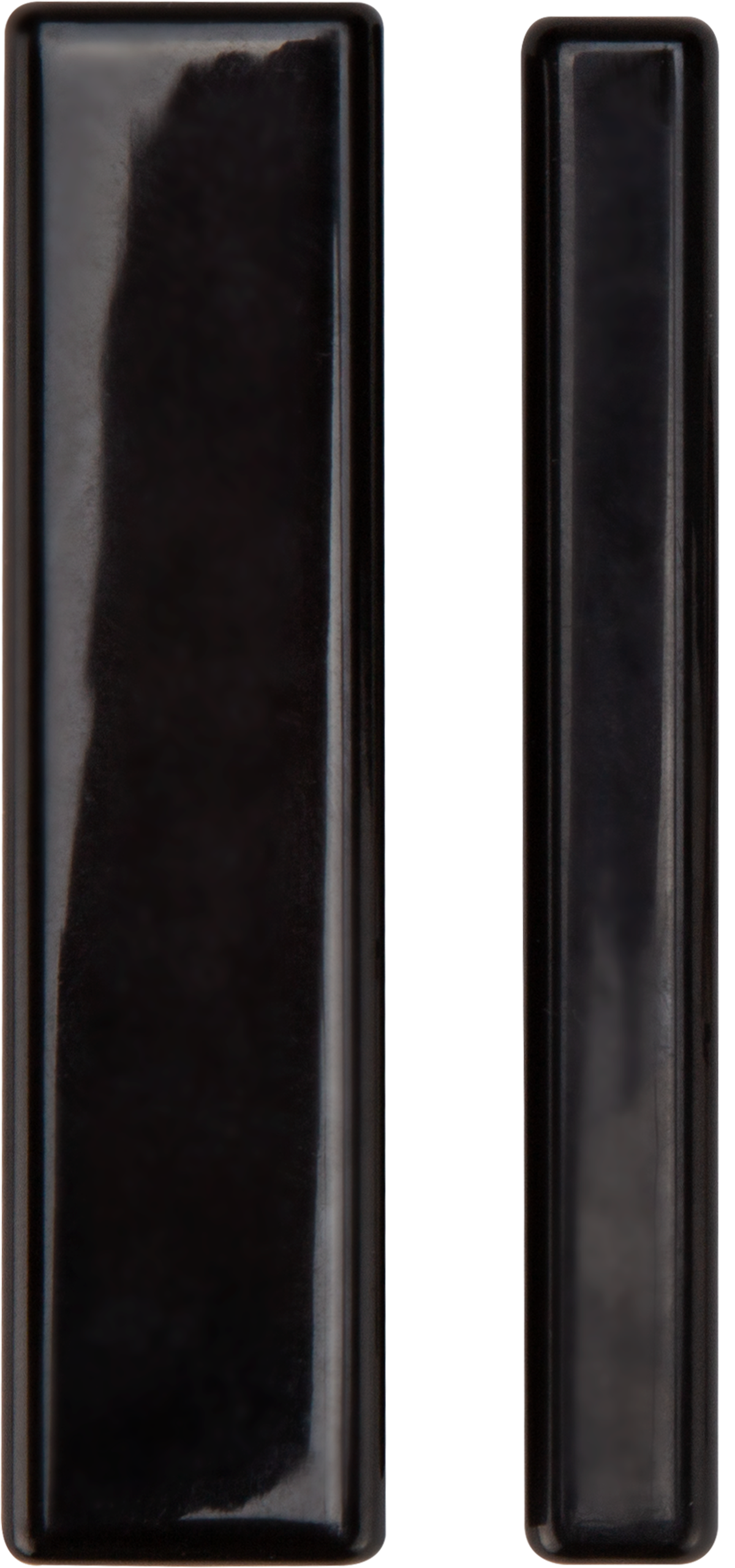

The Crestron® INETS-IOEX-DOOR-BATT detects when a door is opened and closed using a magnetic switch. The open and closed status is sent to a Crestron control system using the ultra-reliable infiNET EX® wireless communications platform.
Overview
The Crestron® INETS-IOEX-DOOR-BATT detects when a door is opened and closed using a magnetic switch. The open and closed status is sent to a Crestron control system using the ultra-reliable infiNET EX® wireless communications platform.
Recess Mount
Recess mounting keeps the sensor out of view.[1] Insert the sensor into a hole drilled into the top of the door to prevent the sensor from being seen easily. A small, low-profile magnet secures opposite the sensor on the door jamb complete the installation.
Surface Mount

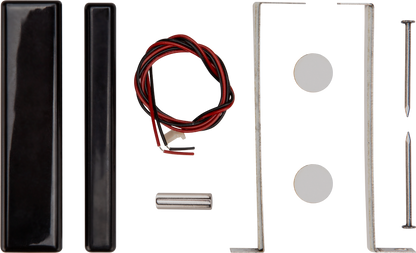

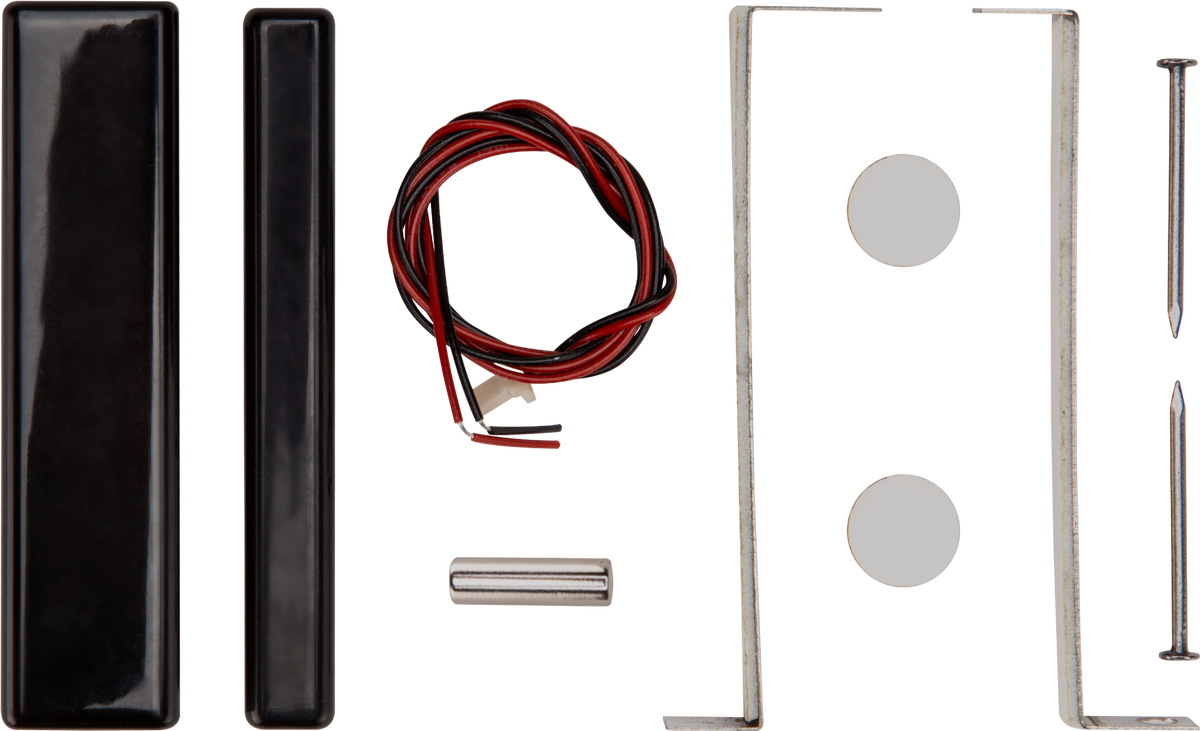

Mount the INETS-IOEX-DOOR-BATT to the door using the supplied double-sided tape for quick and easy installation. An encapsulated magnet secures opposite the sensor on the door jamb to complete the installation.
Dry Contact Sensor (Optional)
Connect the INETS-IOEX-DOOR-BATT to an external dry contact (not supplied) to determine if the door is open or closed instead of a magnet. Attach the supplied dry contact leads to the sensor and then to the external dry contact.
infiNET EX® Wireless
Ultra-reliable infiNET EX wireless technology provides steadfast 2-way RF communications throughout a residential or commercial structure without the need for physical control wiring. Employing a 2.4 GHz mesh network topology, each infiNET EX device functions as an expander, passing command signals through to every other infiNET EX device within range (approximately 150 feet or 46 meters indoors), ensuring that every command reaches its intended destination without disruption. [2]
The INETS-IOEX-DOOR-BATT communicates with a Crestron control system via an infiNET EX Wireless Gateway (model CEN-GWEXER, DIN-AP3MEX, or MC3 [3]). Up to 100 infiNET EX devices may coexist on a single wireless network, and every device that is added to the network effectively increases the range and stability of the entire network by providing multiple redundant signal paths.
Features
Key Features
- Wireless door sensor
- Quick and easy installation
- Installs out of view
- Control system integration via infiNET EX® wireless communications
- Integrates with lighting controls, HVAC systems, and more
- External contact leads for connection to a dry contact sensor (optional)
- Battery powered (3+ year life)
- Low battery notification
- Available in black or white
Specifications
| Power and Battery | |
| 3.6 VDC 1/2 AA lithium battery; 3+ years approximate battery life; The INETS-IOEX-DOOR-BATT beeps when the door is opened or closed to indicate low battery |
|
| Controls | |
| Magnetic Switch (internal) |
Normally Open (NO); Closes when a magnet is within range of the active end of the sensor; Attach the dry-contact connector (supplied) to use the sensor with a dry-contact closure (not supplied) instead of a magnet. |
| Setup button | (1) recessed miniature pushbutton for test, reset, and acquire |
| Wireless Communications | |
| RF Transceiver | infiNET EX 2-way RF, 2.4 GHz ISM; Channels 11-26 (2400 to 2483.5 MHz), default channel 15; IEEE 802.15.4 compliant |
| Range (typical) | 150 ft (46 m) indoors, 250 ft (76 m) outdoors, to nearest mesh network device(s); Subject to site-specific conditions and individual device capabilities [2] |
| Gateway | Requires an infiNET EX gateway [3] |
| Construction | |
| Enclosure | Plastic |
| Mounting | Recess Mount or Surface Mount Recess Mount: Drill a 7/8 in. hole into the door or door frame [1] and slide the switch inside. The magnet mounts opposite the sensor with double-sided tape. Surface Mount: Secure the switch to the door or door frame with double-sided tape. The magnet mounts opposite the sensor with double-sided tape. |
| Environmental | |
| Temperature | 32° to 112° F (0° to 45° C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Dimensions | |
| Height | 0.68 in. (17 mm) |
| Width | 0.68 in. (17 mm) |
| Depth | 2.68 in. (68 mm) |
| Compliance | |
| FCC Part 15, CE | |
