A high quality intelligent PTZ camera that uses visual AI to automatically track or frame meeting participants.Ideal for group framing meeting participants in medium to large conference rooms, and presenter tracking in medium sized training rooms and classrooms. Combine two IV-CAM-I12-W cameras for a multi-camera switching solution.
Overview

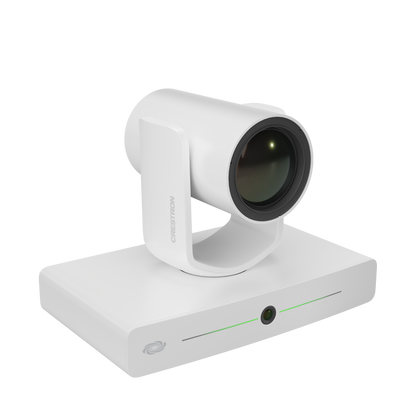

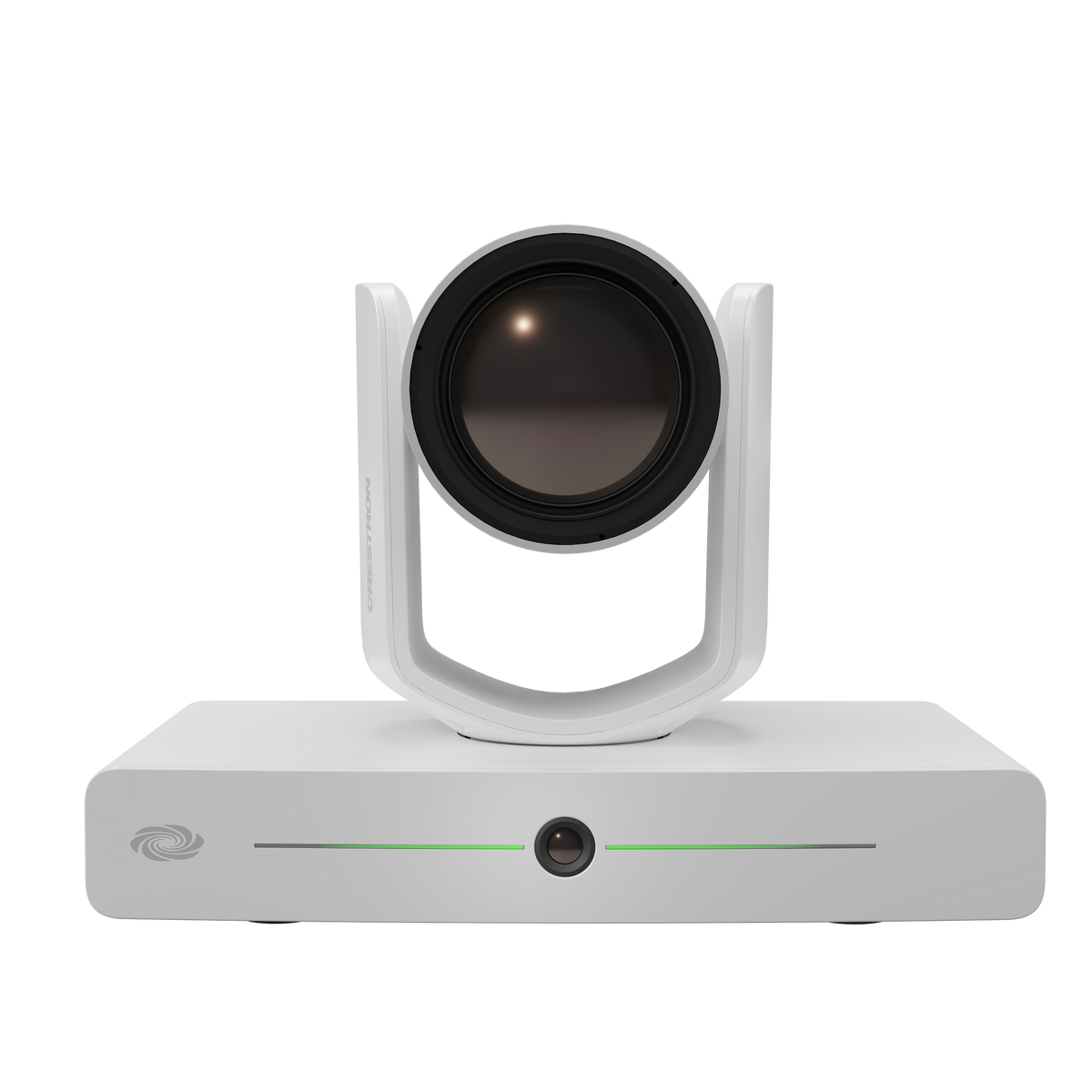

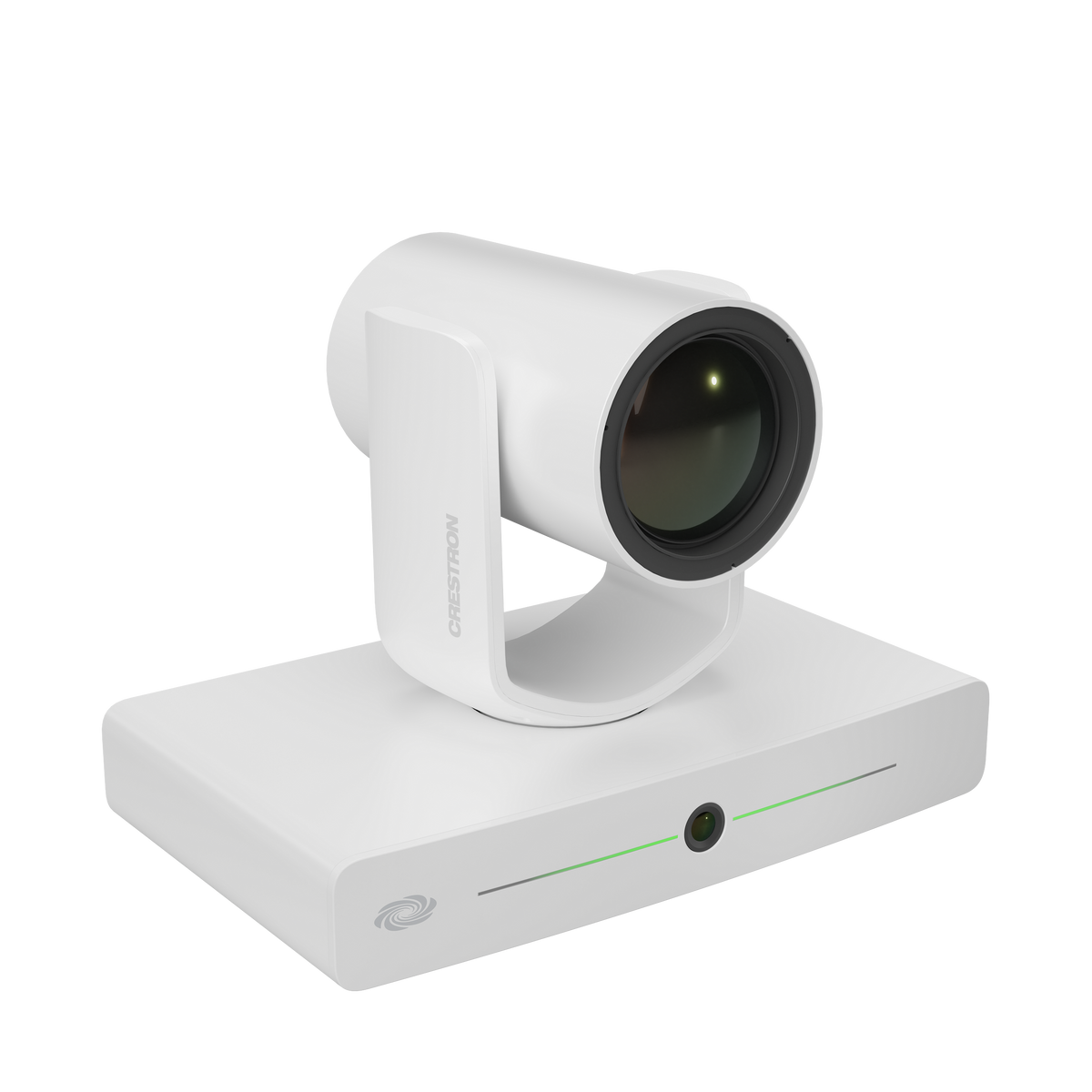

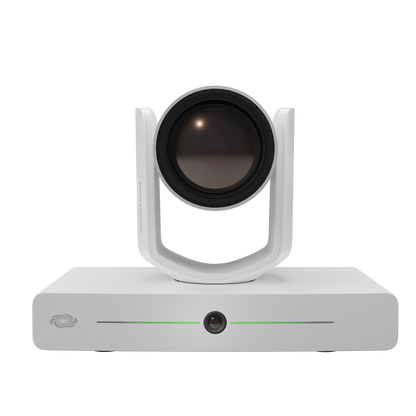

The IV-CAM-I12-W is a high quality intelligent PTZ camera that uses visual AI to automatically track or frame meeting participants. The IV-CAM-I12-W is ideal for group framing meeting participants in medium to large spaces, and presenter tracking in medium sized presentation areas. The IV-CAM-I12-W has a dual camera design; the wide‑angle reference camera uses visual AI to direct the PTZ camera. All visual AI is built into the camera—no external system is needed.
The IV-CAM-I12-W is a TAA-compliant camera that is suitable for government deployments.
Group Framing Technology
Group framing utilizes visual AI to frame multiple participants smoothly in medium to large conference rooms. The wide‑angle reference camera tracks participant movement, and the PTZ camera automatically reframes to keep them in view.
Presenter Tracking Capability
Visual AI is used to smoothly track a single moving presenter as they move through a designated presentation area. It is easily configurable to prevent tracking other subjects or displays by using Blocking Zones. The recommended tracking range is 10 to 25 ft from the presentation area.
Intelligent Switching Capability
Two Crestron intelligent cameras can be set up to utilize intelligent switching. One camera can be designated as a group framing camera (IV‑CAM‑I12), and the other can be used as a presenter tracking camera (IV‑CAM‑I12 or IV‑CAM‑I20). This feature allows for seamless transition between the group framing camera and the presenter tracking camera when someone enters the presentation zone—no additional hardware or software required.
Automate VX Compatible
The IV-CAM-I12-W camera is compatible with Automate VX multi-camera speaker tracking systems. Use the IV-CAM-I12-W for close up shots of active speaking participants, and for presenter tracking in a designated area within 25 ft.
Certified for Conferencing Software
The IV-CAM-I12-W camera is certified for Microsoft Teams® Rooms and Zoom Rooms® conferencing software. Use the rear USB port and connect a USB cable to a compatible codec for conferencing software use.
High Quality Video
A high quality Sony® CMOS sensor enables the camera to output up to 1080p60 resolution video.
Networked Power, Viewing, and Control
Connect a single Ethernet cable to power (PoE), view, set up, and control the IV-CAM-I12-W camera.
Mounting Options (Sold Separately)
Standard mounting holes make it easy to mount the camera. The IV-CAM-I12-W is compatible with the IV‑CAMA‑UMB Universal Mounting Bracket, IVA‑WMT‑BRKT‑1B Wall Mount Bracket, and IVA‑CMT‑BRKT‑1B J‑Mount Ceiling Bracket.
Features
Key Features
- Visual AI for Group Framing or Presenter Tracking
- High quality video supporting resolutions up to 1080p60
- Automatically pans, tilts, and zooms with dual camera technology, no external computer required
- Supports 12x optical zoom for tracking distances up to 25 ft from participants
- Connects directly to a codec or recording/streaming device
- Single Ethernet connection provides power (PoE), viewing, and control
- Easily configured with Crestron 1 Beyond Camera Manager software
- Compatible with Automate VX multi-camera systems
Specifications
| Optics | |
| Image Sensor | 1/2.8 Sony® CMOS Sensor |
| Optical Zoom | 12x |
| Focal Length | F=4.1-49.2 mm |
| Field of View (PTZ) | Horizontal: 67.68° |
| Field of View (Reference) | Horizontal: 104° (changes based on camera mode) |
| Shutter Speed | 1/50-1/10,000 sec |
| Iris | F1.8-F2.68 |
| Minimum Illumination | 2 lux |
| Pan/Tilt Angle | Pan: -130° — 130°, Tilt: -30° — 90° |
| Pan/Tilt Speed | Pan: 0.2° — 90°/s, Tilt: 0.2° — 70°/s |
| White Balance | Auto, Indoor, One Push, Manual |
| Exposure | Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
| Signal to Noise Ratio | ≥50dB |
| Camera Processing | |
| Intelligent Video Functions | Group Framing, Presenter Tracking, Intelligent Switching |
| Recommended Range (Group Framing) | 5-25 ft |
| Recommended Range (Presenter Tracking) | 15-25 ft |
| Presets | Up to 256 configurable presets |
| Video | |
| Video Outputs | 3G-SDI, NDI®|HX2, HDMI®, USB, ONVIF, RTSP, UVC |
| Signal Formats | SDI or HDMI: 1080p60/59.94/50/30/29.94/25, 720p60/59.94/50; USB (NV12 and MJPEG): 1080p30/25, 720p30/25, 360p30 |
| Communications | |
| Ethernet | RJ-45, 100Mbps |
| Serial | RS-232, RS-485 |
| Control Protocol | VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF |
| IR Receiver | IR Camera Remote (IV-CAMA-REMOTE) |
| Management Client | |
| Software | Crestron 1 Beyond Camera Manager 2 (Windows® OS computer required) |

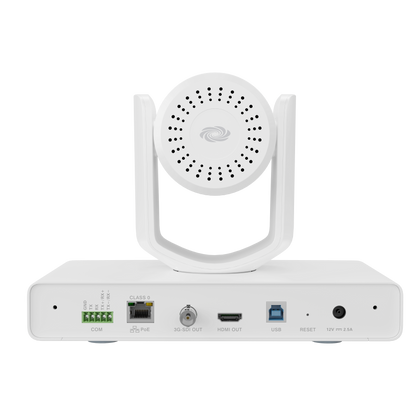

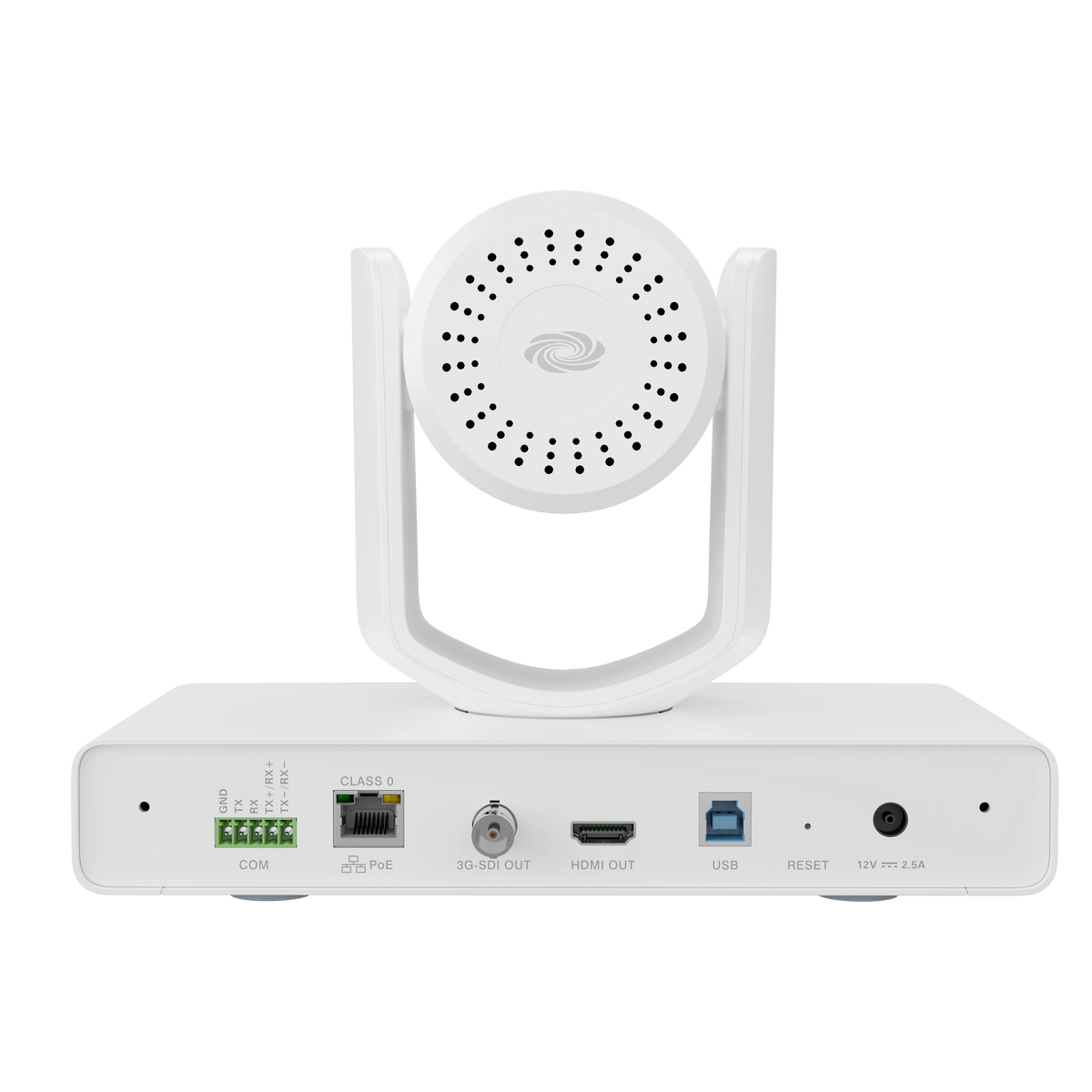

| Connectors | |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232/485 port |
| PoE | (1) 8-pin RJ-45 connector, female |
| 3G-SDI OUT | (1) BNC connector, female; 3G-SDI digital video output |
| HDMI OUT | (1) HDMI Type A connector; HDMI digital video output |
| USB | (1) USB Type B connector, female; USB 3.0 device port for video and control; USB 2.0 device port for video (MJPEG only) and control |
| 12VDC 2.5A | (1) 3.3 mm DC power connector; 12VDC power input; PW-1225DU power pack sold separately |
| Controls and Indicators | |
| Status Bar | (1) Multisegment tricolor LED bargraph; Half green LED bargraph indicates live camera feed; Full green LED bargraph indicates camera tracking; Full amber LED bargraph indicates firmware upgrade; Half red LED bargraph indicates Privacy Mode |
| RESET | (1) Recessed push button for hardware reset |
| Power | |
| Power Source Options | Ethernet (PoE), Power Pack (PW-1225DU) |
| Power over Ethernet | IEEE 802.3af Class 3 Powered Device |
| Power over Ethernet Rating | 15.4 W NOTE: To comply with the European Directive (CE), shielded CAT5e cable must be used as a minimum for PoE power. |
| Power Pack (sold separately) | 12VDC, 2.5A, 50/60 Hz |
| Environmental | |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Construction | |
| Mounting Options | IV-CAMA-UMB 1 Beyond Universal Mounting Bracket (sold separately), IVA-WMT-BRKT-1B 1 Beyond Wall Mount Bracket (sold separately), IVA-CMT-BRKTJ-1B 1 Beyond JMount Bracket (sold separately) |
| Mounting Thread | 1/4 in. threaded mount hole |
| Dimensions | |
| Height | 6.55 in. (166 mm) |
| Width | 8.89 in. (226 mm) |
| Depth | 5.86 in. (149 mm) |
| Weight | |
| 4.11 lb (1.86 kg) | |
| Compliance | |
|
Regulatory Model: M202306003 FCC Part 15 Class B, IC Class B, CE, Intertek® Listed for US and Canada |
|
