A high quality intelligent PTZ camera that uses visual AI to automatically track or frame a presenter. Ideal for presenter tracking in large to extra large sized training rooms and classrooms, and group tracking meeting participants in large to extra large conference rooms. Preset Zones are available to automatically change camera behavior when participants enter different areas in the room. The IV-CAM-I20-GV-B is a TAA-compliant camera that is suitable for government deployments.
Overview

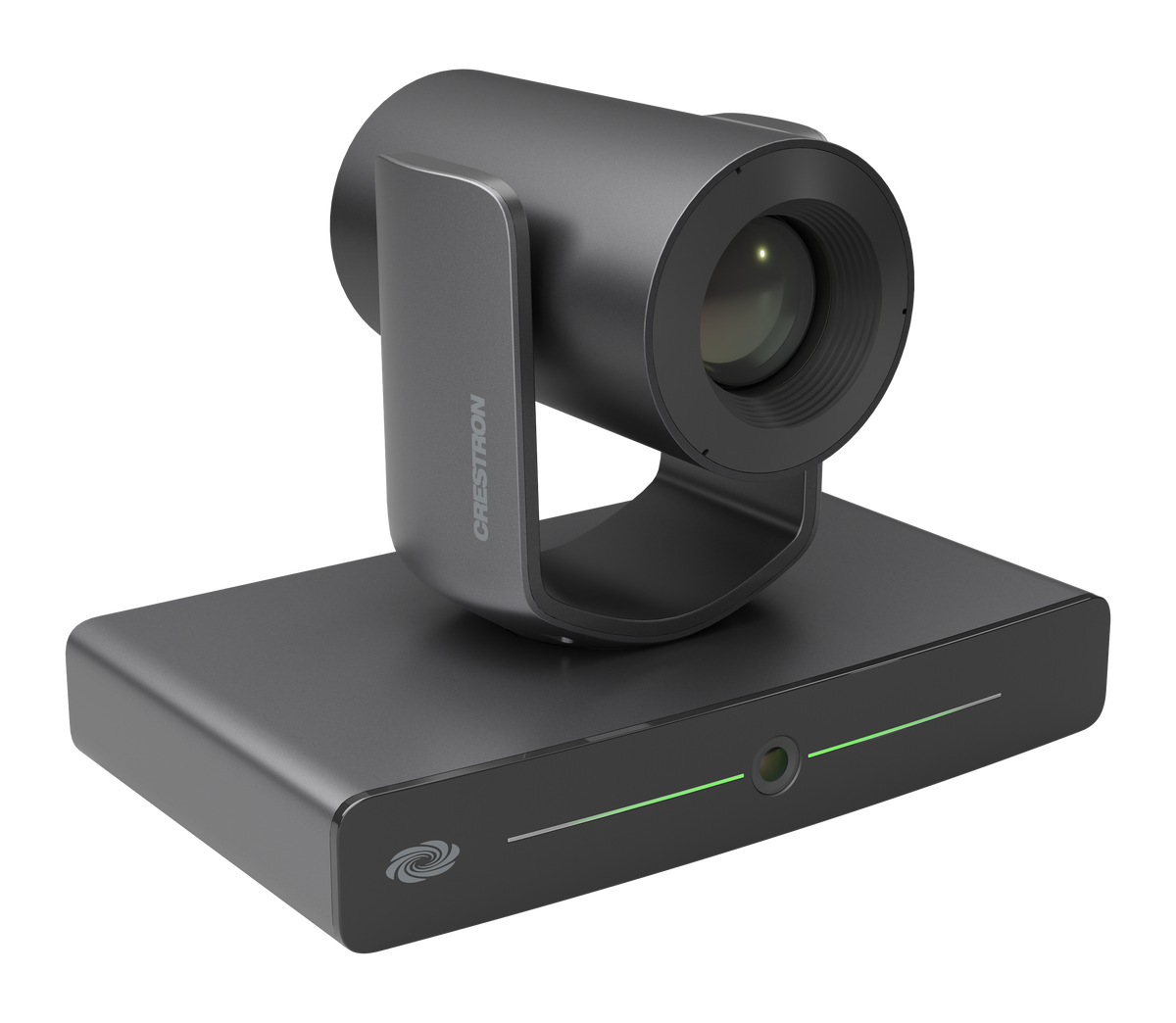

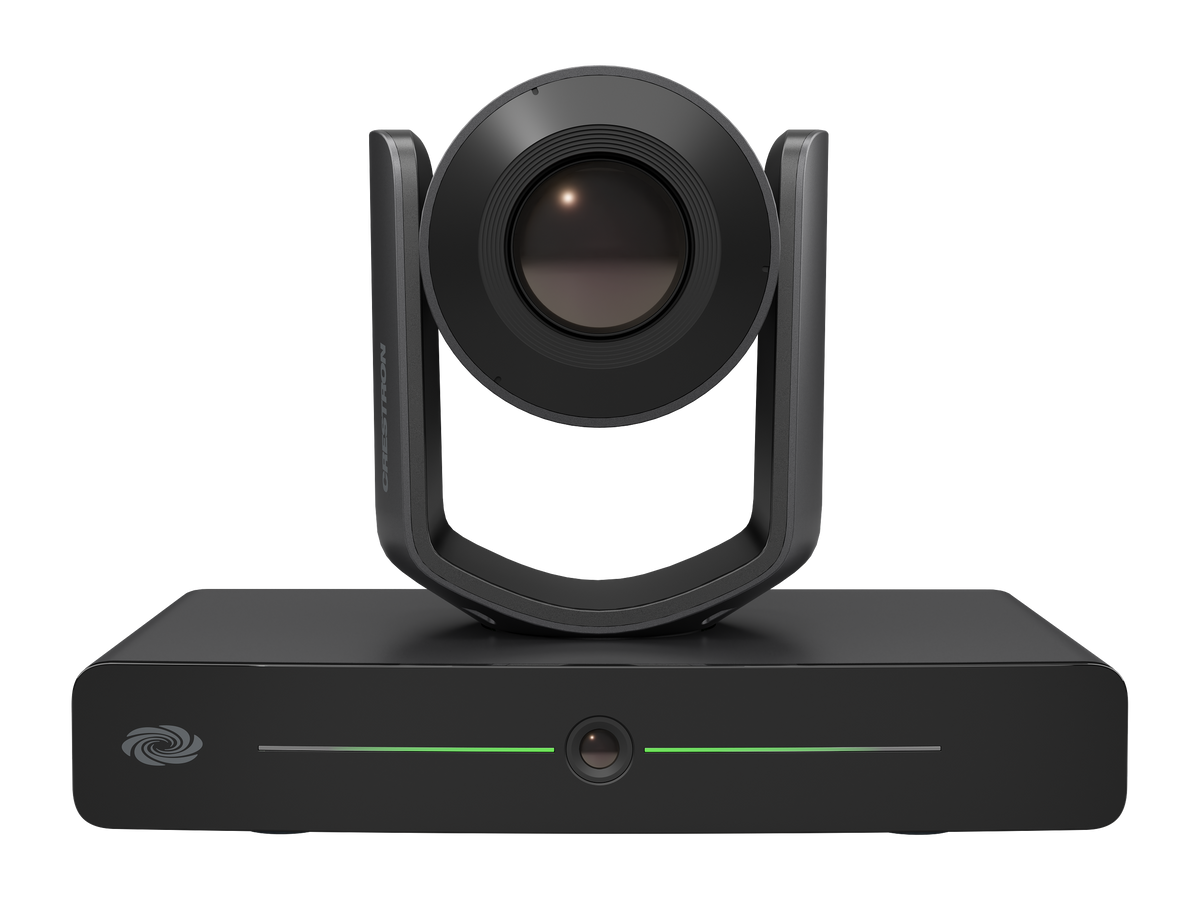

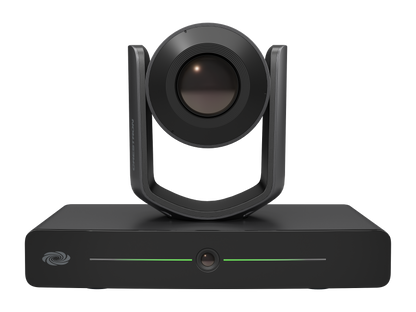

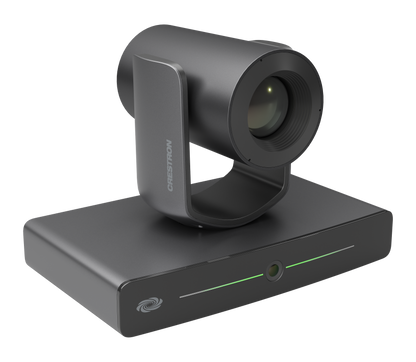

The IV-CAM-GV-I20 is a high quality intelligent PTZ camera that uses visual AI to automatically track or frame a presenter. The IV‑CAM‑I20 is ideal for presenter tracking in large to extra large sized training rooms and classrooms, and group tracking meeting participants in large to extra large conference rooms. The IV‑CAM‑I20 has a dual camera design; the wide‑angle reference camera uses visual AI to direct the PTZ camera. All visual AI is built into the camera – no external system is needed.
The IV-CAM-I20-GV-B is a TAA-compliant camera that is suitable for government deployments.
Presenter Tracking Capability
Visual AI is used to smoothly track a single moving presenter as they move through a designated presentation area. It is easily configurable to prevent tracking other subjects or displays by using Blocking Zones. Recommended tracking range is 15 to 50 ft from the presentation area.
Group Tracking Technology
Group Tracking utilizes visual AI to track multiple presenters smoothly in large training rooms and classrooms. The wide-angle reference camera continuously detects when participants enter or leave the presentation area, and the PTZ camera pans, tilts, and zooms to keep all presenters in the frame.
Preset Zones
Preset Zones utilizes visual AI to frame a dedicated area of the room. When a participant enters the Preset Zone, the camera automatically displays the area regardless of who is currently talking or where other participants may be.
Automate VX Compatible
The IV-CAM-I20-GV-B camera is compatible with Automate VX multi-camera speaker tracking systems. Use the IV-CAM-I20-GV-B for presenter tracking in a designated area within 50 ft.
Certified for Microsoft Teams® Conferencing Software
The IV-CAM-I20-GV-B camera is certified for Microsoft Teams® conferencing software. Use the rear USB port and connect a USB cable to a compatible codec for conferencing software use.
High Quality Video
A high quality Sony® CMOS sensor enables the camera to output up to 1080p60 resolution video.
Networked Power, Viewing, and Control
Connect a single Ethernet cable to power (PoE), view, set up, and control the IV-CAM-I20-GV-B camera.
Mounting Options
Standard mounting holes make it easy to mount the camera. The IV-CAM-I20-GV-B ships with the color matched IVA‑WMT‑BRKT‑1B Wall Mount Bracket, and is compatible with the IV‑CAMA‑UMB Universal Mounting Bracket and the IVA‑CMT‑BRKT‑1B J‑Mount Ceiling Bracket (both sold separately).
Features
Key Features
- TAA compliant for government deployments
- Visual AI for Presenter Tracking
- High quality video supporting resolutions up to 1080p60
- Automatically pans, tilts, and zooms with dual camera technology, no external computer required
- Supports 20x optical zoom for tracking distances up to 50 ft from participants
- Connects directly to a codec or recording/streaming device
- Single Ethernet connection provides power (PoE), viewing, control, and NDI® HX2 video
- Easily configured with Crestron 1 Beyond Camera Manager software
- Compatible with Automate VX multi-camera systems
- Available in Moon Gray and Bright White colors
Specifications
| Optics | |
| Image Sensor | 1/2.8 Sony® CMOS Sensor |
| Optical Zoom | 20x |
| Focal Length | F=5.2-94 mm |
| Field of View (PTZ) | Horizontal: 56.45° |
| Field of View (Reference) | Horizontal: 104° (changes based on camera mode) |
| Shutter Speed | 1/50-1/10,000 sec |
| Iris | F1.5-F3.0 |
| Minimum Illumination | 2 lux |
| Pan/Tilt Angle | Pan: -130° — 130°, Tilt: -30° — 90° |
| Pan/Tilt Speed | Pan: 0.2° — 90°/s, Tilt: 0.2° — 70°/s |
| White Balance | Auto, Indoor, One Push, Manual |
| Exposure | Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
| Camera Processing | |
| Intelligent Video Functions | Presenter Tracking, Group Tracking, Preset Zones |
| Recommended Range | 15-50 ft |
| Presets | Up to 256 configurable presets |
| Video | |
| Video Outputs | 3G-SDI, HDMI®, USB, NDI® HX2, ONVIF, RTSP, UVC |
| Signal Formats | SDI or HDMI: 1080p60/59.94/50/30/29.94/25, 720p60/59.94/50 USB: 1080p30/25, 720p30/25, 360p30 |
| Communications | |
| USB | USB-B 3.0 |
| Ethernet | RJ-45, 100Mbps |
| Serial | RS-232, RS-485 |
| Control Protocol | VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF |

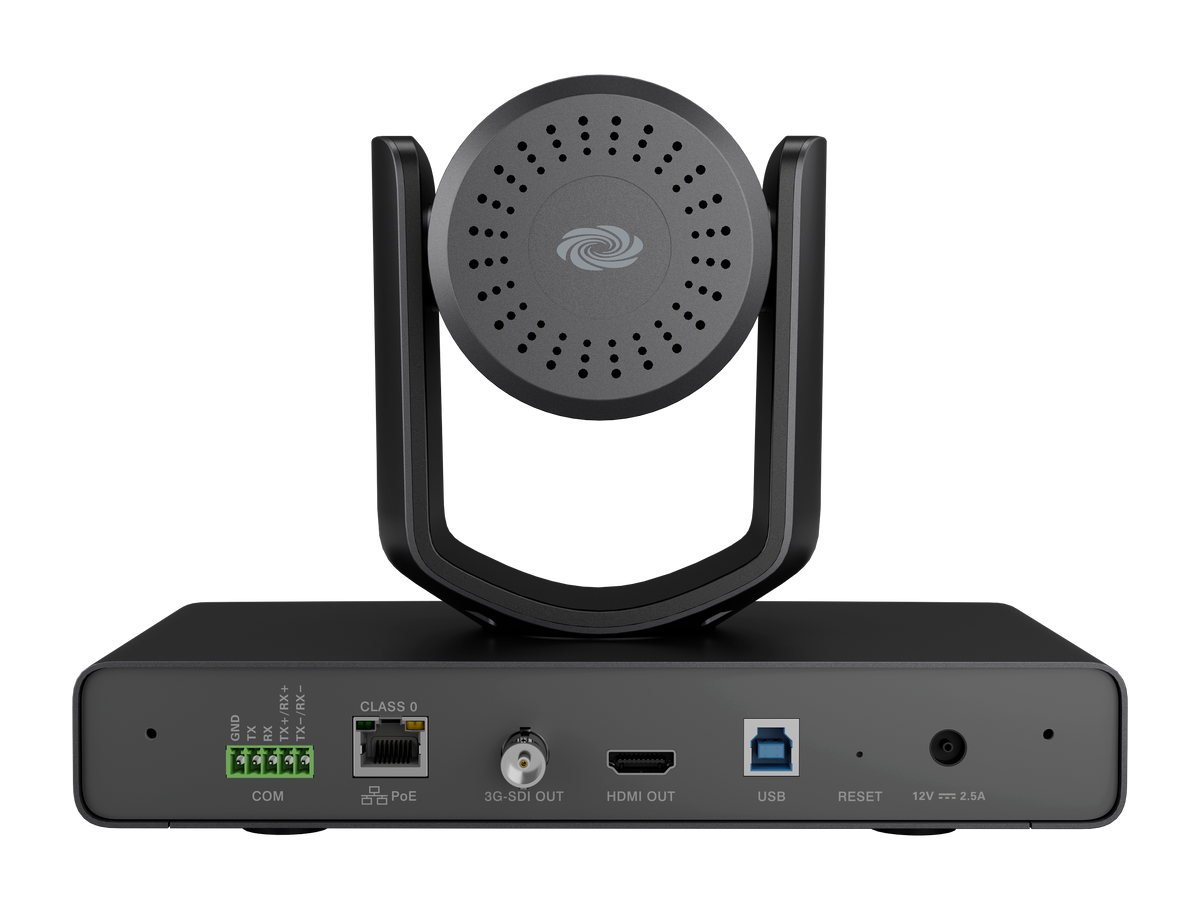

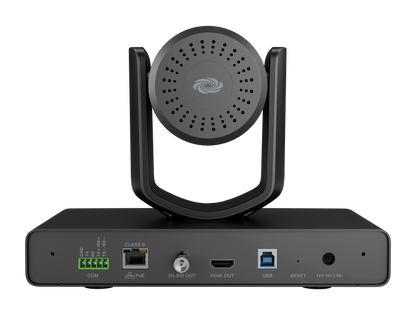

| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232/485 port |
| PoE | (1) 8-pin RJ-45 connector, female |
| 3G-SDI OUT | (1) BNC connector, female; 3G-SDI digital video output |
| HDMI OUT | (1) HDMI Type A connector; HDMI digital video output |
| USB | (1) USB Type B connector, female; USB 3.0 device port for video and control; USB 2.0 device port for video (MJPEG only) and control |
| 12VDC 2.5A | (1) 3.3 mm DC power connector; 12VDC power input; PW-1225DU power pack sold separately |
| Controls and Indicators | |
| Status Bar | (1) Multisegment tricolor LED bargraph; Half green LED bargraph indicates live camera feed; Full green LED bargraph indicates camera tracking; Full amber LED bargraph indicates firmware upgrade; Half red LED bargraph indicates Privacy Mode |
| RESET | (1) Recessed push button for hardware reset |
| Power | |
| Power Source Options | Ethernet (PoE), Power Pack (PW-1225DU) |
| Power over Ethernet | IEEE 802.3af Class 3 Powered Device |
| Power over Ethernet Rating | 15.4 W NOTE: To comply with the European Directive (CE), shielded CAT5e cable must be used as a minimum for PoE power. |
| Power Pack (sold separately) | 12VDC, 2.5A, 50/60 Hz |
| Environmental | |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Construction | |
| Mounting Options | IVA‑WMT‑BRKT‑1B 1 Beyond Wall Mount Bracket (included), IVA‑CMT‑BRKTJ‑1B 1 Beyond J‑Mount Bracket (sold separately), IVA‑CAMA‑UMB 1 Beyond Universal Mounting Bracket (sold separately) |
| Mounting Thread | 1/4 in. threaded mount hole |
| Dimensions | |
| Height | 6.51 in. (165 mm) |
| Width | 8.90 in. (226 mm) |
| Depth | 5.86 in. (149 mm) |
| Weight | |
| 4.11 lb (1.86 kg) | |
| Compliance | |
|
Regulatory Model: M202306001 FCC Part 15 Class B, IC Class B, CE, Intertek® Listed for US and Canada |
|
