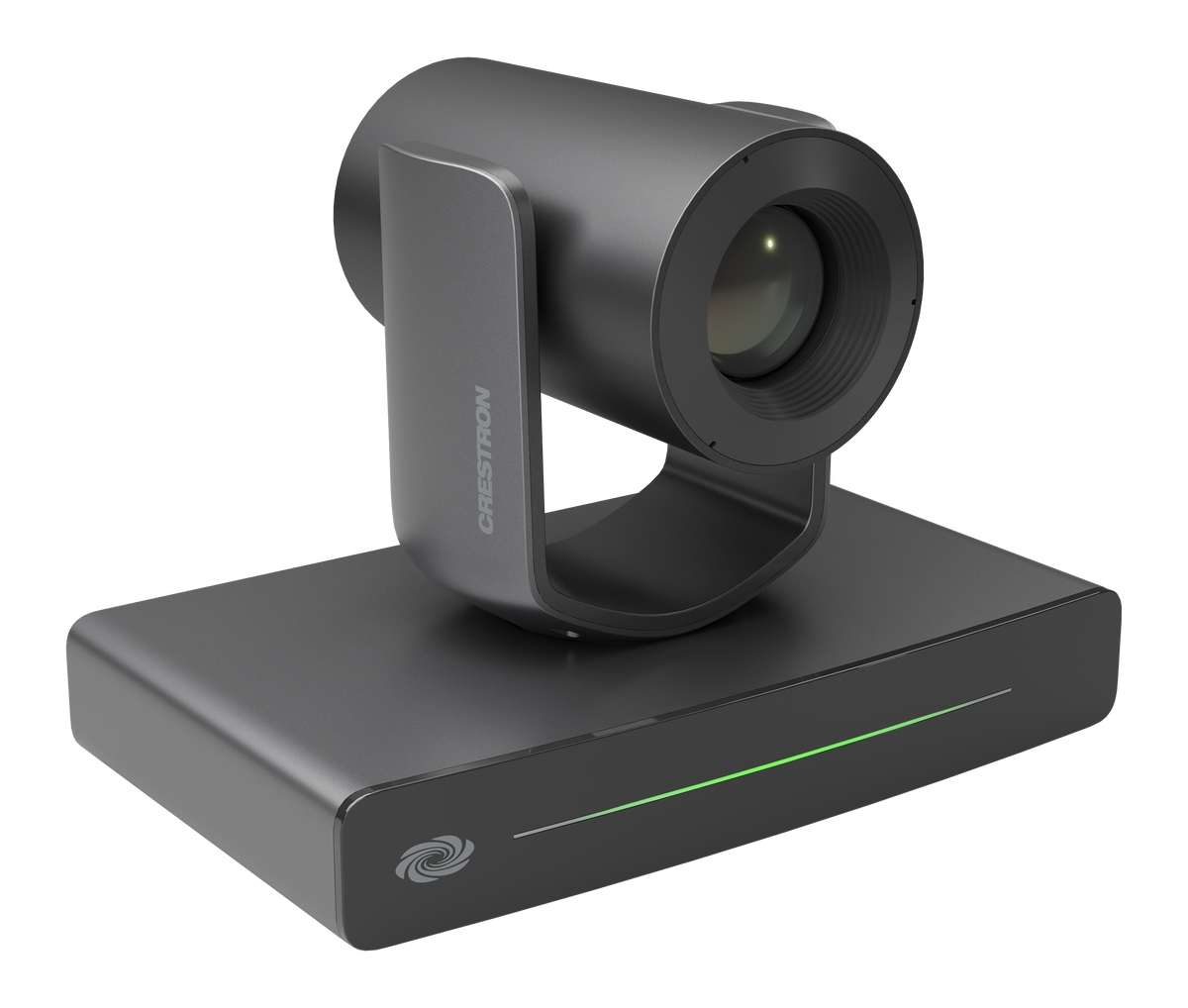

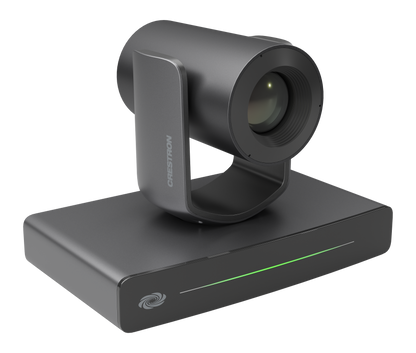

A high quality PTZ camera that can output up to 1080p60 resolution video. Ideal for large to extra large rooms where one camera needs to capture several areas of the room. Use with the Crestron 1 Beyond Automate VX Series as part of a complete multicamera switching solution. The IV-CAM-P20-GV-B is a TAA-compliant camera that is suitable for government deployments.
Overview
The IV-CAM-P20-GV-B is a high quality PTZ camera that outputs up to 1080p60 resolution video. The IV-CAM-P20-GV-B is ideal for meetings in where one camera needs to capture several areas of the room. The IV-CAM-P20-GV-B can be used with the Crestron 1 Beyond Automate VX Series as part of a complete multi-camera switching solution. The IV-CAM-P20-GV-B supports a single Ethernet connection and provides power (PoE), viewing, and control on a network.
The IV-CAM-P20-GV-B is a TAA-compliant camera that is suitable for government deployments.
Automate VX Compatible
The IV-CAM-P20-GV-B camera is compatible with Automate VX multi-camera speaker tracking systems. Use the IV-CAM-P20-GV-B for close up shots of active speaking participants in large to extra large spaces.
Certified for Conferencing Software
The IV-CAM-P20-GV-B camera is certified for Microsoft Teams® and Zoom Rooms® conferencing software. Use the rear USB port and connect a USB cable to a compatible codec for conferencing software use.
High Quality Video
A high quality Sony® CMOS sensor enables the camera to output up to 1080p60 resolution video.
Networked Power, Viewing, and Control
Connect a single Ethernet cable to power (PoE), view, set up, and control the IV‑CAM‑P20 camera.
Mounting Options
Standard mounting holes make it easy to mount the camera. The IV-CAM-P20-GV-B ships with the color matched IV‑CAMA‑UMB Universal Mounting Bracket, and is compatible with the IVA‑WMT‑BRKT‑1B Wall Mount Bracket and the IVA‑CMT‑BRKT‑1B J‑Mount Ceiling Bracket (both sold separately).
Features
Key Features
- TAA compliant for government deployments
- High quality video supporting resolutions up to 1080p60
- Connects directly to a codec or recording/streaming device
- Single Ethernet connection provides power (PoE), viewing, control, NDI® HX2 video
- Easily configured with Crestron 1 Beyond Camera Manager 2 software
- Compatible with Automate VX multi-camera systems
Specifications
| Optics and Processing | |
| Image Sensor | 1/2.8 Sony® CMOS Sensor |
| Optical Zoom | 20x |
| Focal Length | F=5.2-94 mm |
| Field of View | Horizontal: 56.45° |
| Shutter Speed | 1/50-1/10,000 sec |
| Iris | F1.5-F3.0 |
| Minimum Illumination | 2 lux |
| Pan/Tilt Angle | Pan: -130° — 130°, Tilt: -30° — 90° |
| Pan/Tilt Speed | Pan: 0.2° — 90°/s, Tilt: 0.2° — 70°/s |
| Presets | Up to 256 configurable presets |
| White Balance | Auto, Indoor, One Push, Manual |
| Exposure | Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
| Video | |
| Video Outputs | 3G-SDI, HDMI®, USB, NDI® HX2, ONVIF, RTSP, UVC |
| Signal Formats | SDI or HDMI: 1080p60/59.94/50/30/29.94/25, 720p60/59.94/50 USB: 1080p30/25, 720p30/25, 360p30 |
| Communications | |
| USB | USB-B 3.0 |
| Ethernet | RJ-45, 100Mbps |
| Serial | RS-232, RS-485 |
| Control Protocol | VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF |

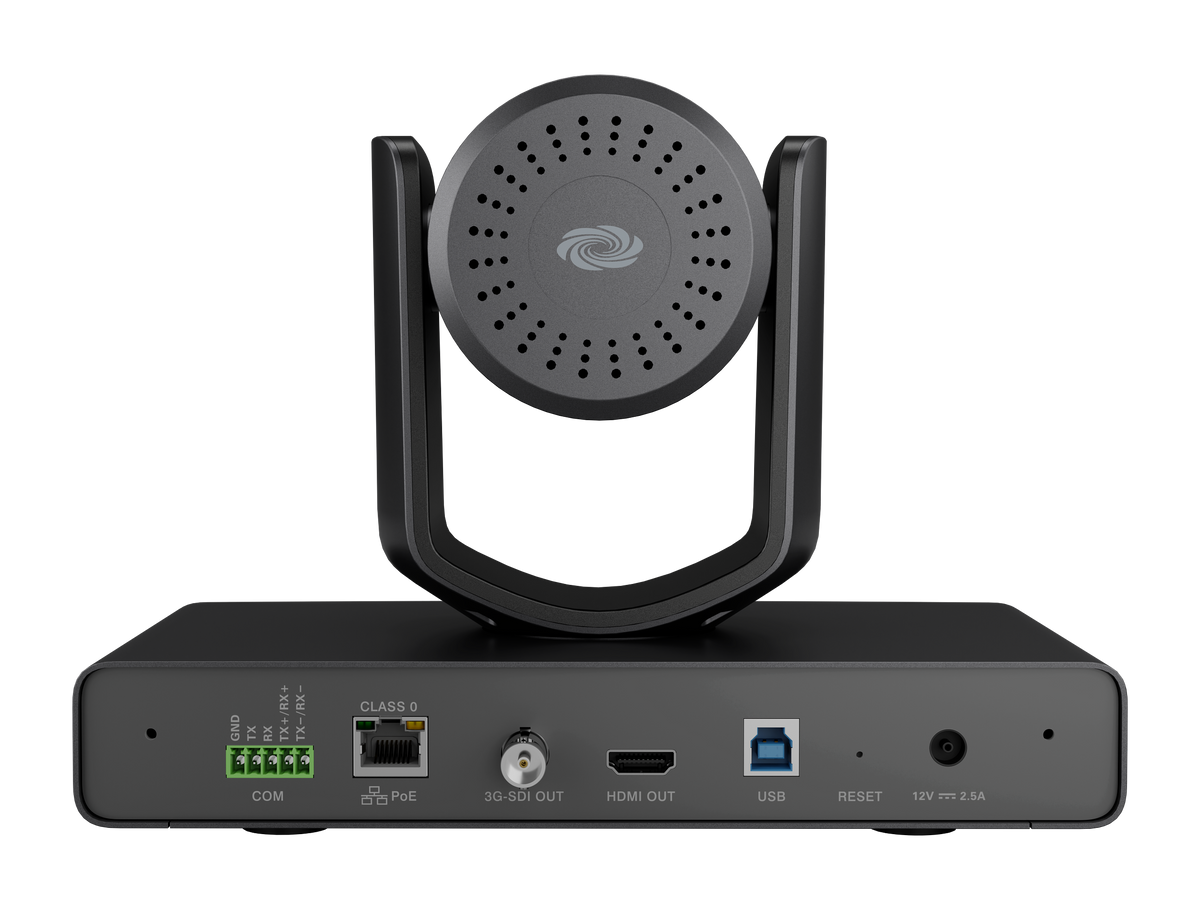

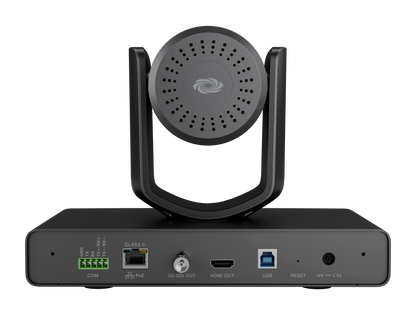

| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232/485 port |
| PoE | (1) 8-pin RJ-45 connector, female |
| 3G-SDI OUT | (1) BNC connector, female; 3G-SDI digital video output |
| HDMI OUT | (1) HDMI Type A connector; HDMI digital video output |
| USB | (1) USB Type B connector, female; USB 3.0 device port for video and control; USB 2.0 device port for video (MJPEG only) and control |
| 12VDC 2.5A | (1) 3.3 mm DC power connector; 12VDC power input; PW-1225DU power pack sold separately |
| Controls and Indicators | |

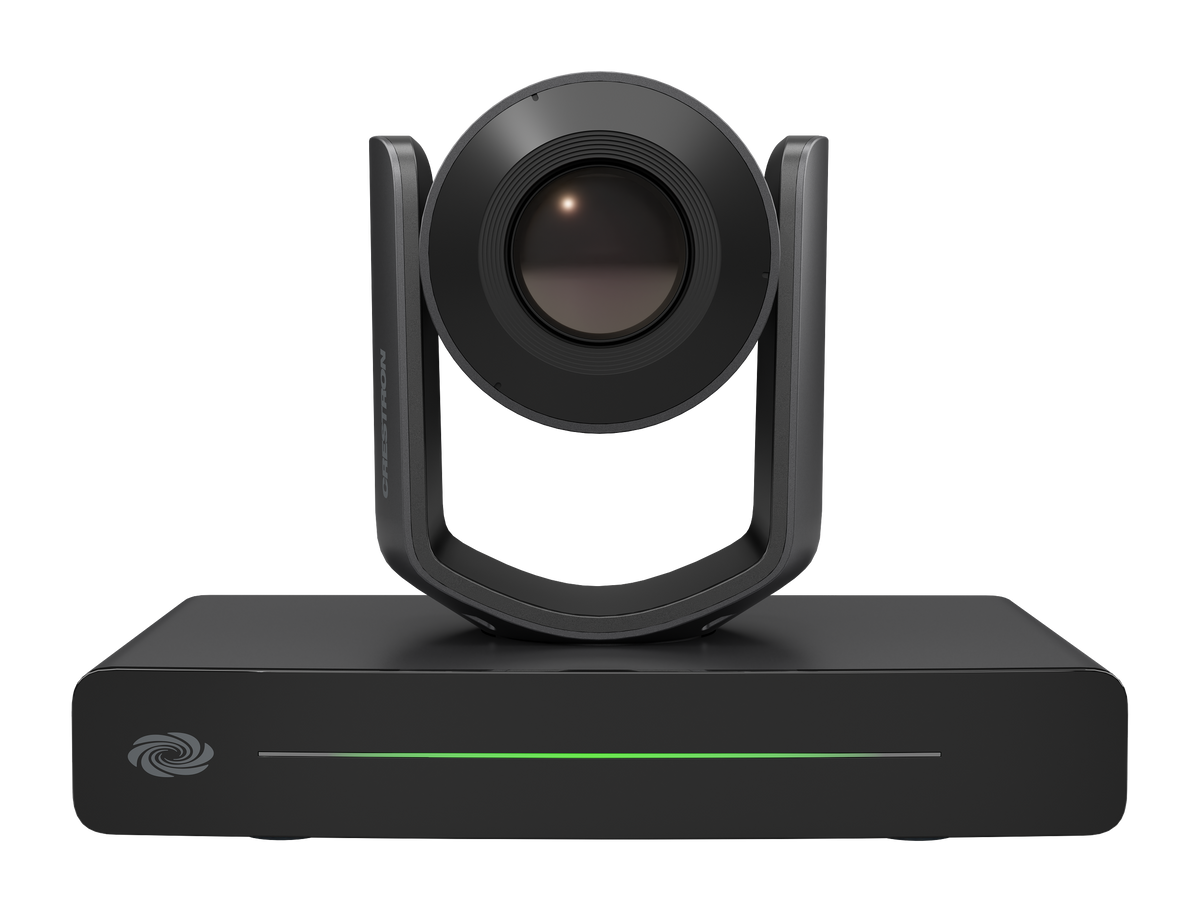

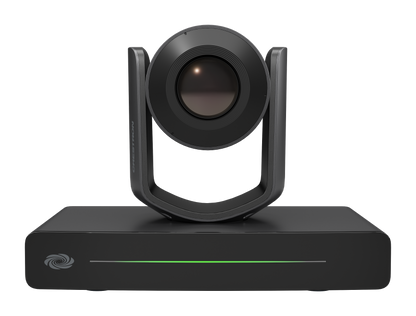

| Status Bar | (1) Multisegment tricolor LED bargraph; Half green LED bargraph indicates live camera feed; Full amber LED bargraph indicates firmware upgrade; Half red LED bargraph indicates Privacy Mode |
| RESET | (1) Recessed push button for hardware reset |
| Power | |
| Power Source Options | Ethernet (PoE), Power Pack (PW-1225DU) |
| Power over Ethernet | IEEE 802.3af Class 3 Powered Device |
| Power over Ethernet Rating | 15.4 W NOTE: To comply with the European Directive (CE), shielded CAT5e cable must be used as a minimum for PoE power. |
| Power Pack (sold separately) | 12VDC, 2.5A, 50/60 Hz |
| Environmental | |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Construction | |
| Mounting Options | IV‑CAMA‑UMB 1 Beyond Universal Mounting Bracket (included), IVA‑WMT‑BRKT‑1B 1 Beyond Wall Mount Bracket (sold separately), IVA‑CMT‑BRKTJ‑1B 1 Beyond J‑Mount Bracket (sold separately) |
| Mounting Thread | 1/4 in. threaded mount hole |
| Dimensions | |
| Height | 6.51 in. (165 mm) |
| Width | 8.90 in. (226 mm) |
| Depth | 5.86 in. (149 mm) |
| Weight | |
| 4.12 lb (1.87 kg) | |
| Compliance | |
|
Regulatory Model: M202306003 FCC Part 15 Class B, IC Class B, CE, Intertek® Listed for US and Canada |
|
