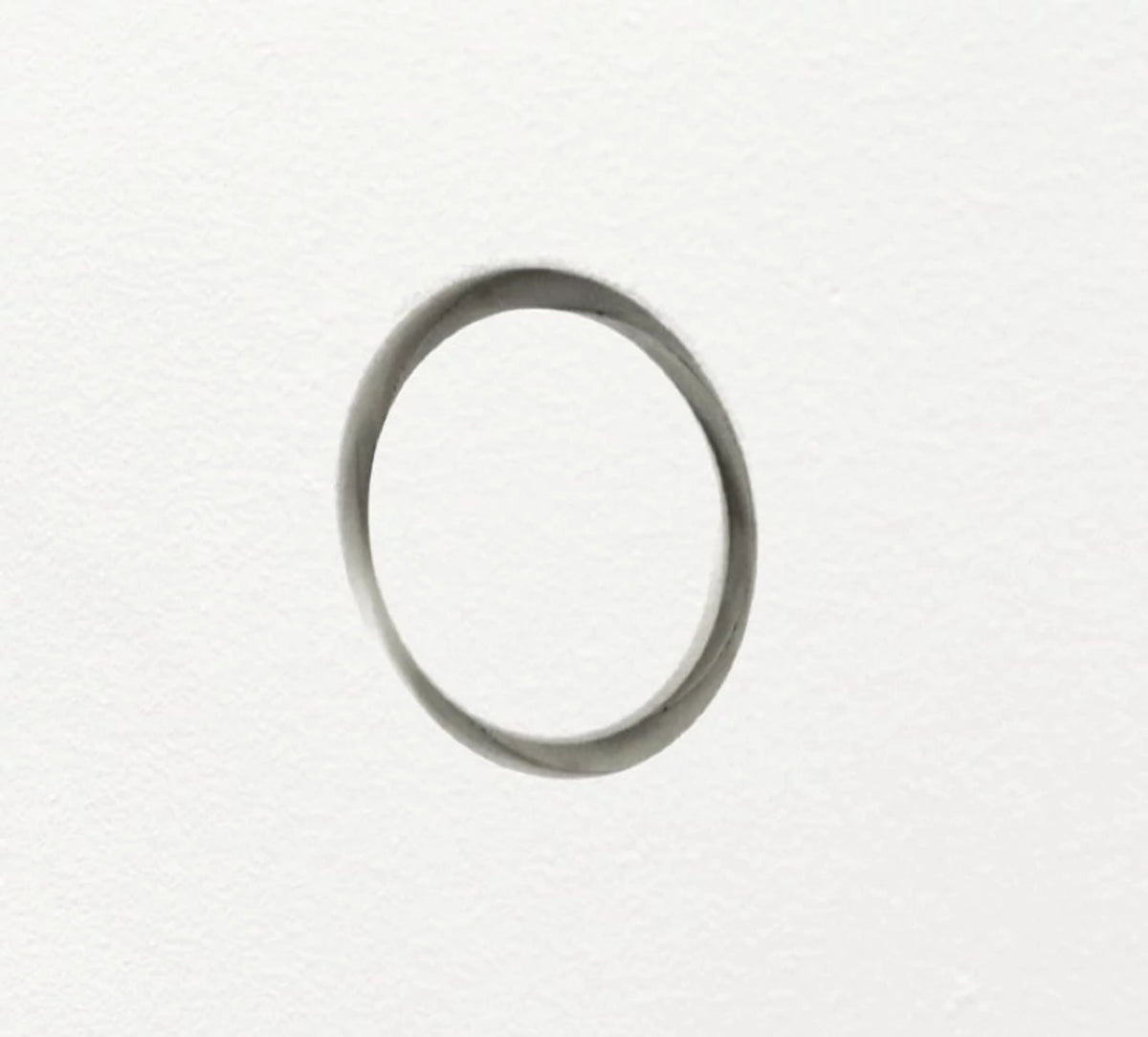

The MMK-RS is a wall-mounted remote temperature sensor designed for use with select Crestron® thermostats. The 1-1/2 in. (39 mm) diameter face of the MMK-RS protrudes just 1/8 in. (3 mm) from the wall surface and is easily painted or wallpapered to blend into the wall surface.
Overview
The MMK‑RS pre-construction mounting kit is designed for installation during the rough-in stage of construction to simplify wiring and sensor positioning. The mounting kit also provides the ability to completely flush mount a sensor to make it virtually hidden on a wall. Depth adjustments allow the MMK-RS to be installed in wall surfaces that are up to 3 in. (77 mm) thick.
The mounting kit includes an escutcheon ring that allows for sensor mounting in non-drywall installations. Additionally, the escutcheon ring can be used in drywall applications where a flush installation is not required.
The MMK-RS is compatible with the CHV‑RTS, CHV‑RTHS, C2N‑RTHS, and GLS‑OIRLCL‑C‑CN in-wall remote sensors (all sold separately).
Features
Key Features
- Mount in-wall remote sensors completely flush with drywall
- Pre-construction mounting kit provides rough-in for wiring and sensor during construction
- Compatible with Crestron® CHV‑RTS, CHV‑RTHS, C2N‑RTHS, and GLS‑OIRLCL‑C‑CN in-wall sensors (all sold separately)
- Optional surface mount with a flat, paintable, escutcheon ring (supplied)
Specifications
| Device Compatibility | |
| In-Wall Sensors | Compatible with CHV‑RTS, CHV‑RTHS, C2N‑RTHS, and GLS‑OIRLCL‑C‑CN sensors; Sensors all sold separately |
| Construction | |

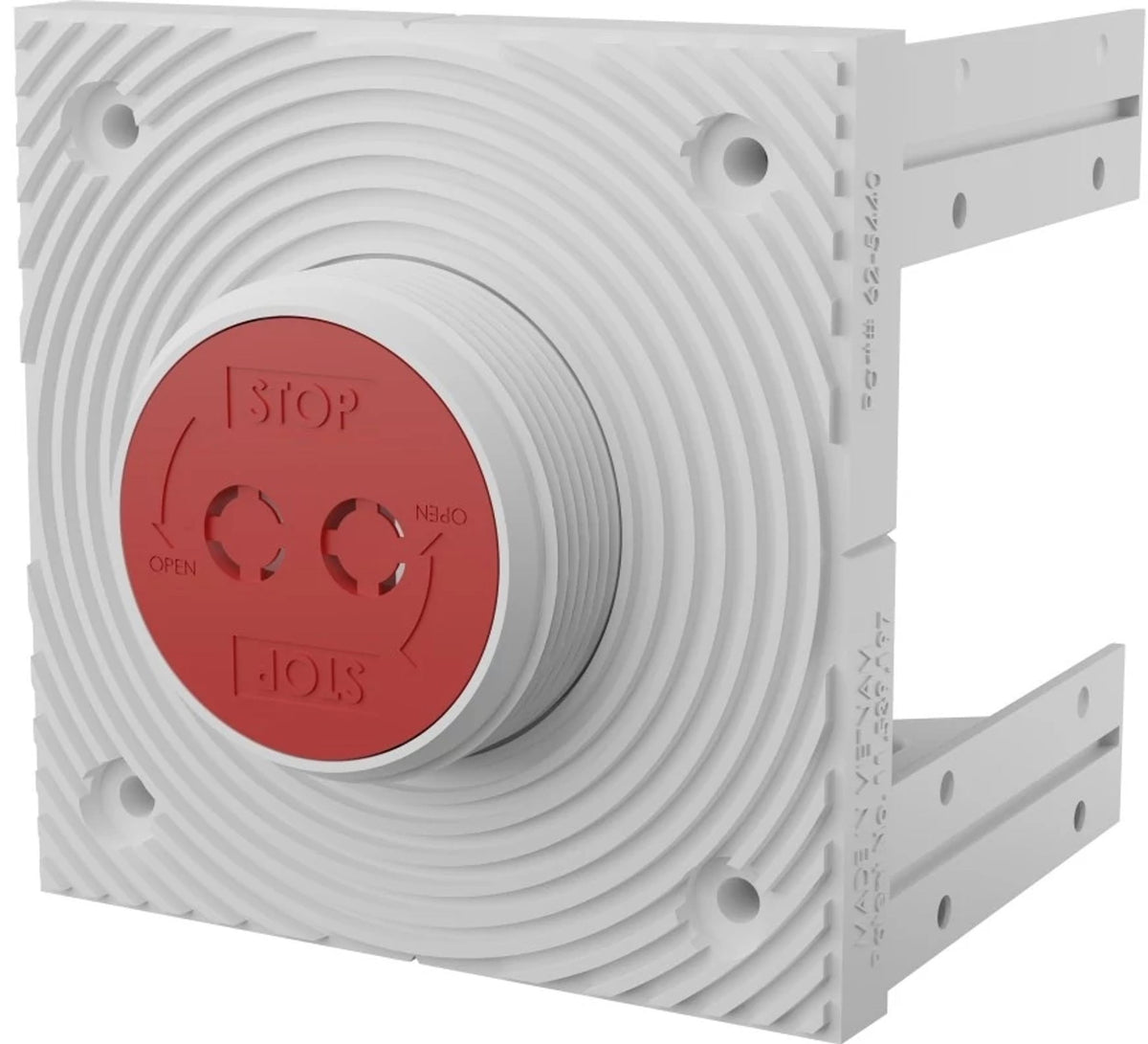

| Material | White ABS plastic mounting block with two ABS plastic mounting brackets; Red ABS plastic mud shield protects opening and provides reference point to stop sanding, provides cable tie off point |
| Mounting | New construction mount; Secures to 2 in. x 4 in. (minimum) framing, vertical stud or horizontal blocking; Integrated center marks; Requires 3.25 in. (83 mm) of free space behind bracket for mounting legs, wiring, and sensor; Mounts in wall surfaces up to 3 in. (77 mm) thick; Flush Mount in drywall using drywall mud, sensor does not protrude from wall surface; Surface mount in non-drywall installations using paintable escutcheon ring, sensor and escutcheon ring protrudes ~1/8 in. (3 mm) from wall surface |
| Dimensions | |
| Height | 4.01 in. (102 mm) |
| Width | 4.01 in. (102 mm) |
| Depth |
3.66 in. (93 mm) with brackets installed; 0.56 in. (15 mm) without brackets |
| Weight | |
| 7.56 oz (214 g) | |
| Compliance | |
| Intertek® Listed for US and Canada | |
