Product Information

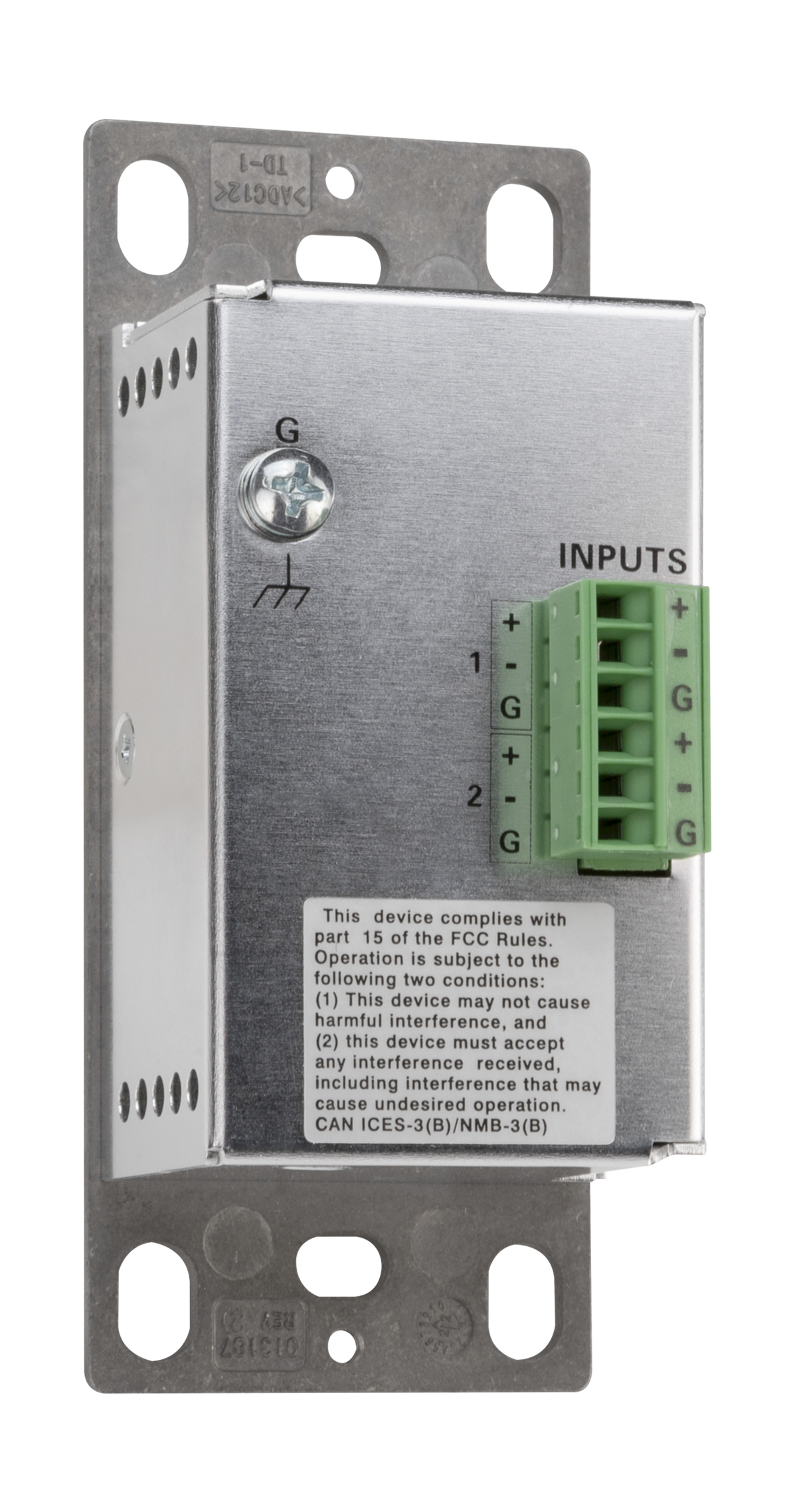

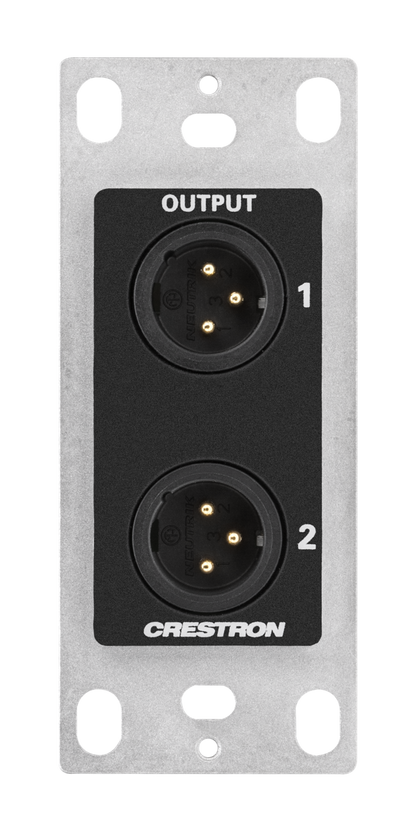

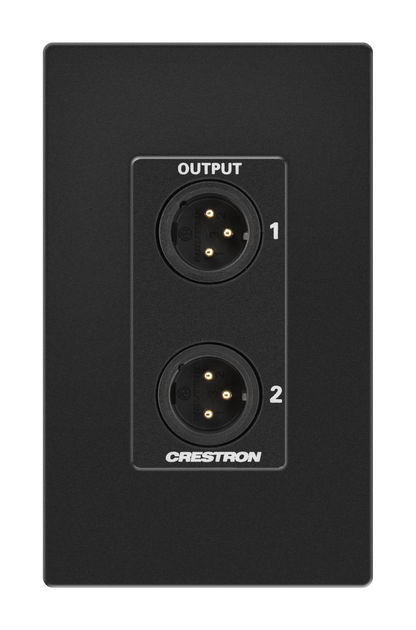

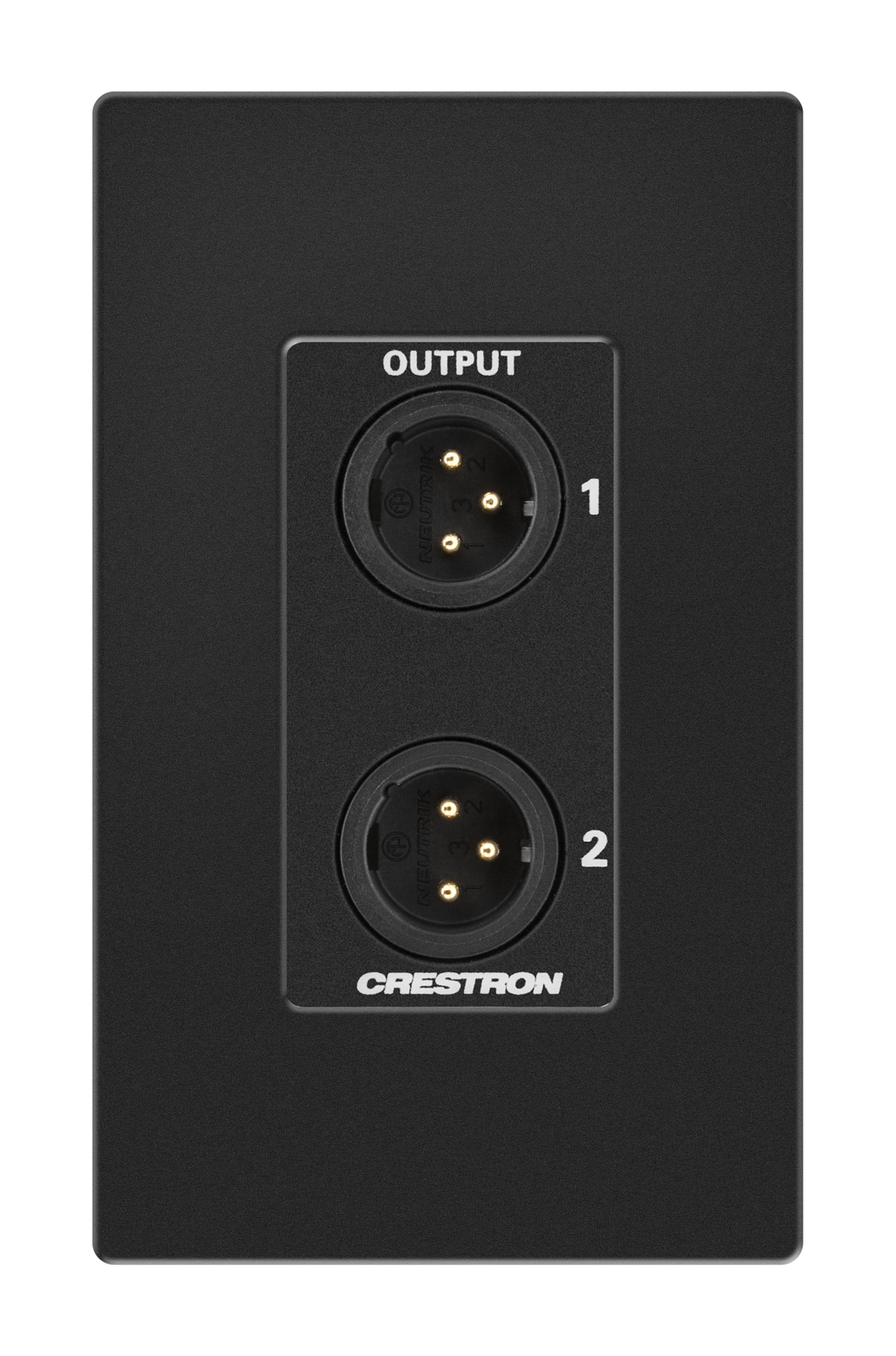

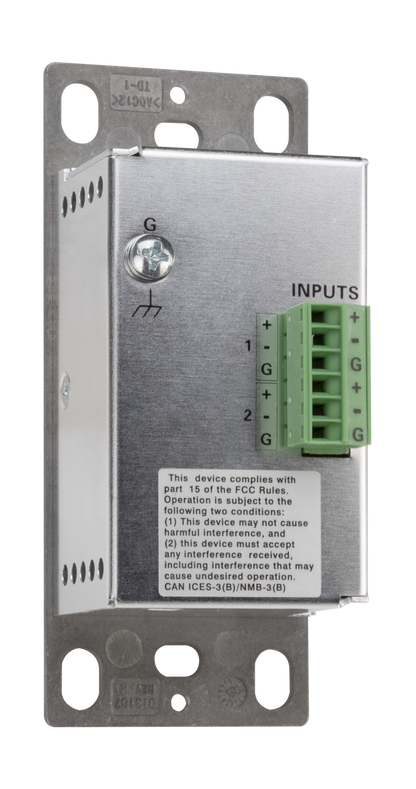

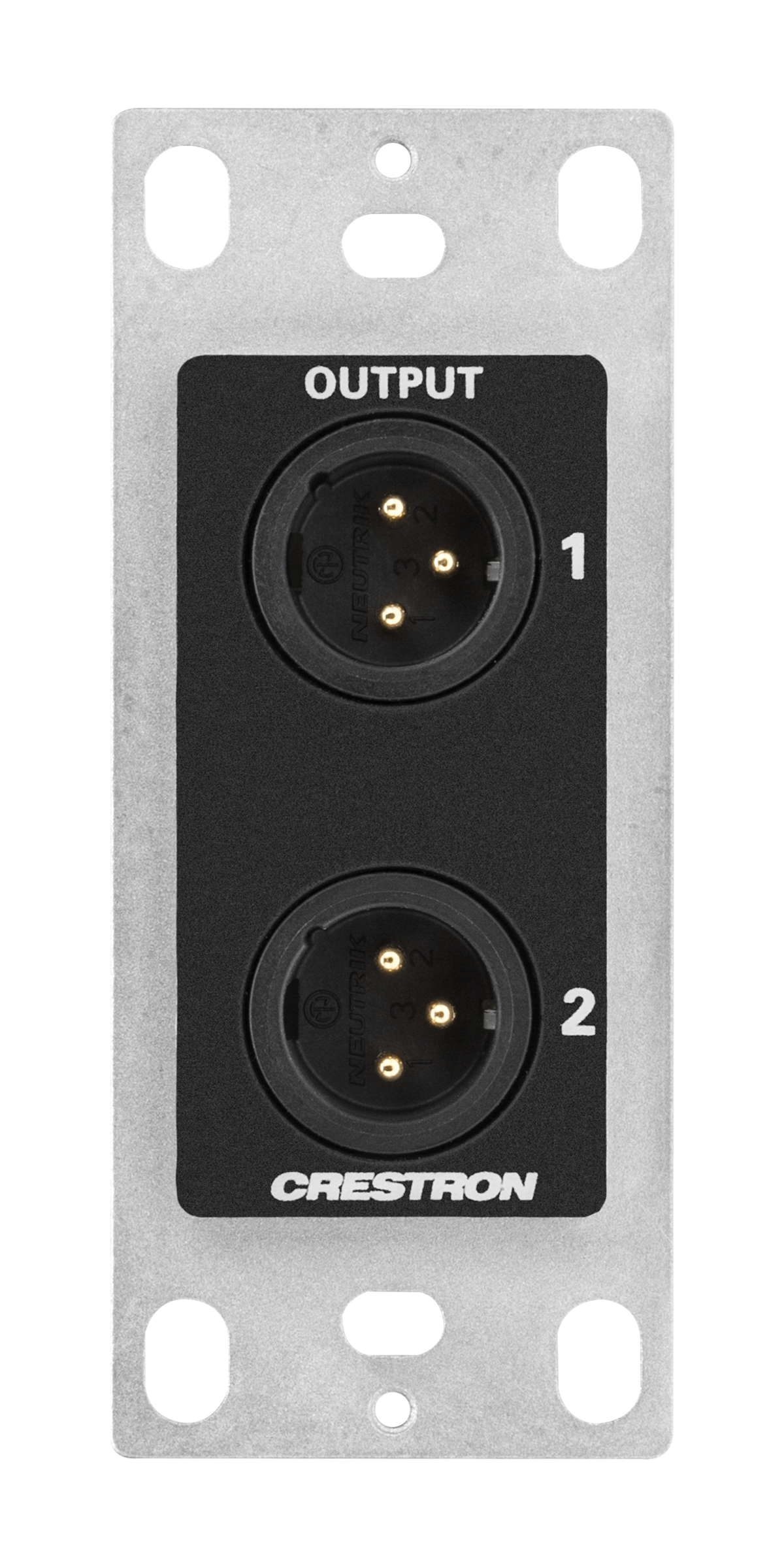

The MP-WP-2XLRO-1G provides a single-gang wall mount for (2) XLR outputs. The rear of the wall plate features a six-pin line-level audio input for two sources.
Overview
Media Presentation Wall Plates complete the total Crestron package, ensuring end-to-end Crestron quality for every installation. A range of wall plates is offered to support all types of analog and digital video, audio, and control signals.
The MP-WP-2XLRO-1G provides a single-gang wall mount for (2) XLR outputs. The rear of the wall plate features a six-pin line-level audio input for two sources.
Features
Key Features
- Two XLR output connectors
- Two rear-panel line-level audio inputs
- Single-gang U.S. wall box installation
- Mountable on rack rail or flat surface
Specifications
| Connectors | |
| XLR 1-2 (OUTPUT) | (2) Balanced XLR output ports |
| INPUT 1-2 | (1) 6-pin 3.5 mm detachable terminal block; Balanced line-level audio input; Pins 1-3: Input 1, Pins 4-6: Input 2 |
| Environmental | |
| Temperature | 32° to 111° F (0° to 40° C) |
| Humidity | 10% to 95% RH (noncondensing) |
| Enclosure | |
| Mounting | Mountable on the following: 1-gang U.S. electrical box or plaster ring (not included), 3.5 in. (26 mm) electrical box depth recommended; Rack rail; Flat surface with included mounting bracket |
| Faceplate | Requires FP-G1 decorative faceplate (sold separately) |
| Dimensions | |
| Height | 4.12 in. (105 mm) |
| Width | 1.72 in. (44 mm) |
| Depth | 1.85 in. (47 mm) |
| Weight | |
| 0.17 lb (80 g) | |
| Compliance | |
|
Regulatory Model: M202217001 IC, FCC Part 15 Class B digital device |
|
