Product Information
Provides a single-gang wall mount input or output for HDMI® digital video and audio.
Overview
Media Presentation Wall Plates complete the total Crestron® package, ensuring end-to-end Crestron quality for every installation. A range of wall plates is offered to support all types of analog and digital video, audio, and control signals.

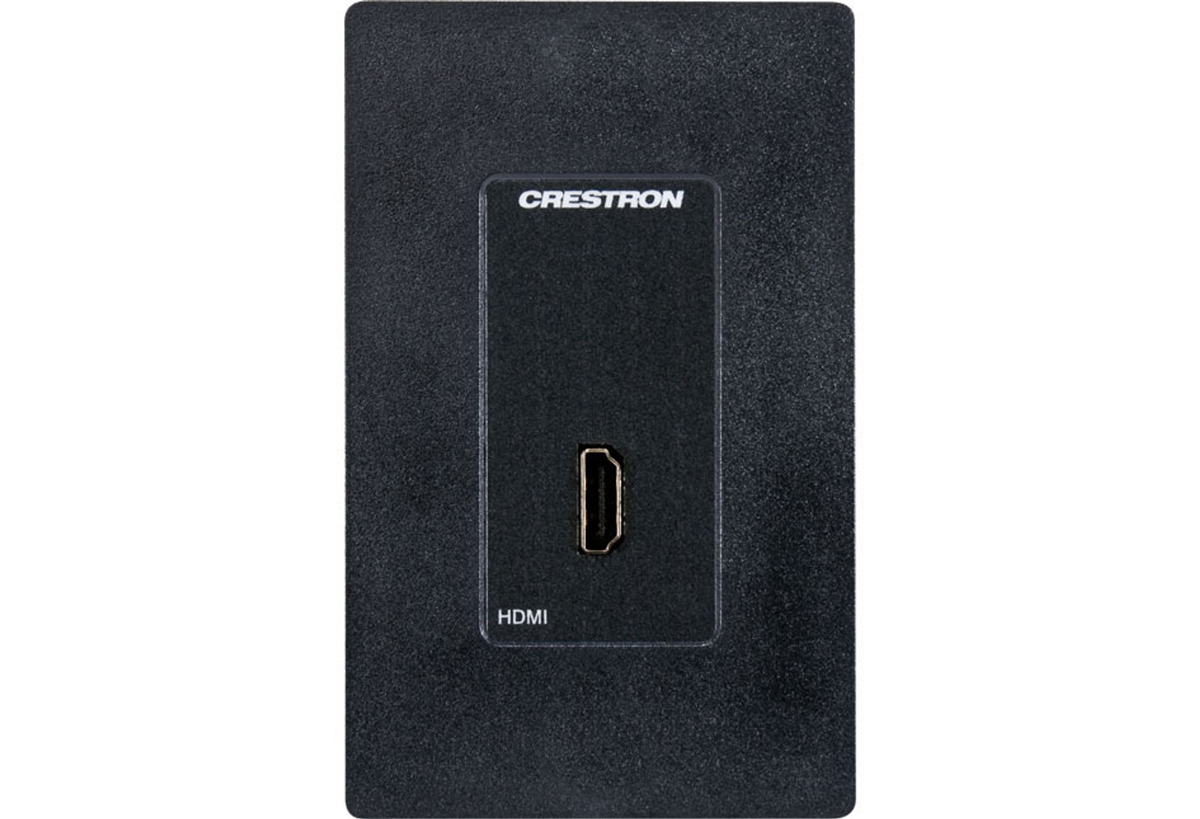

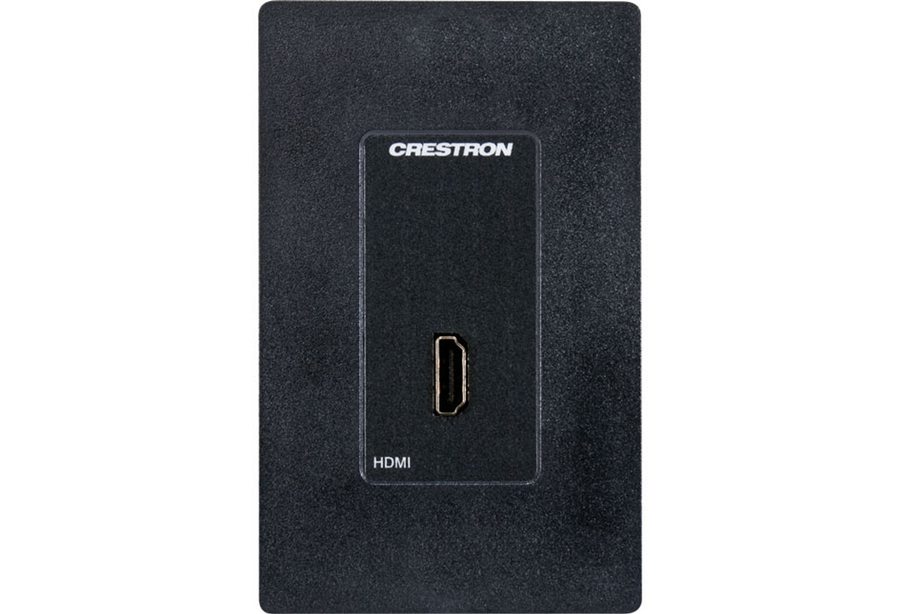

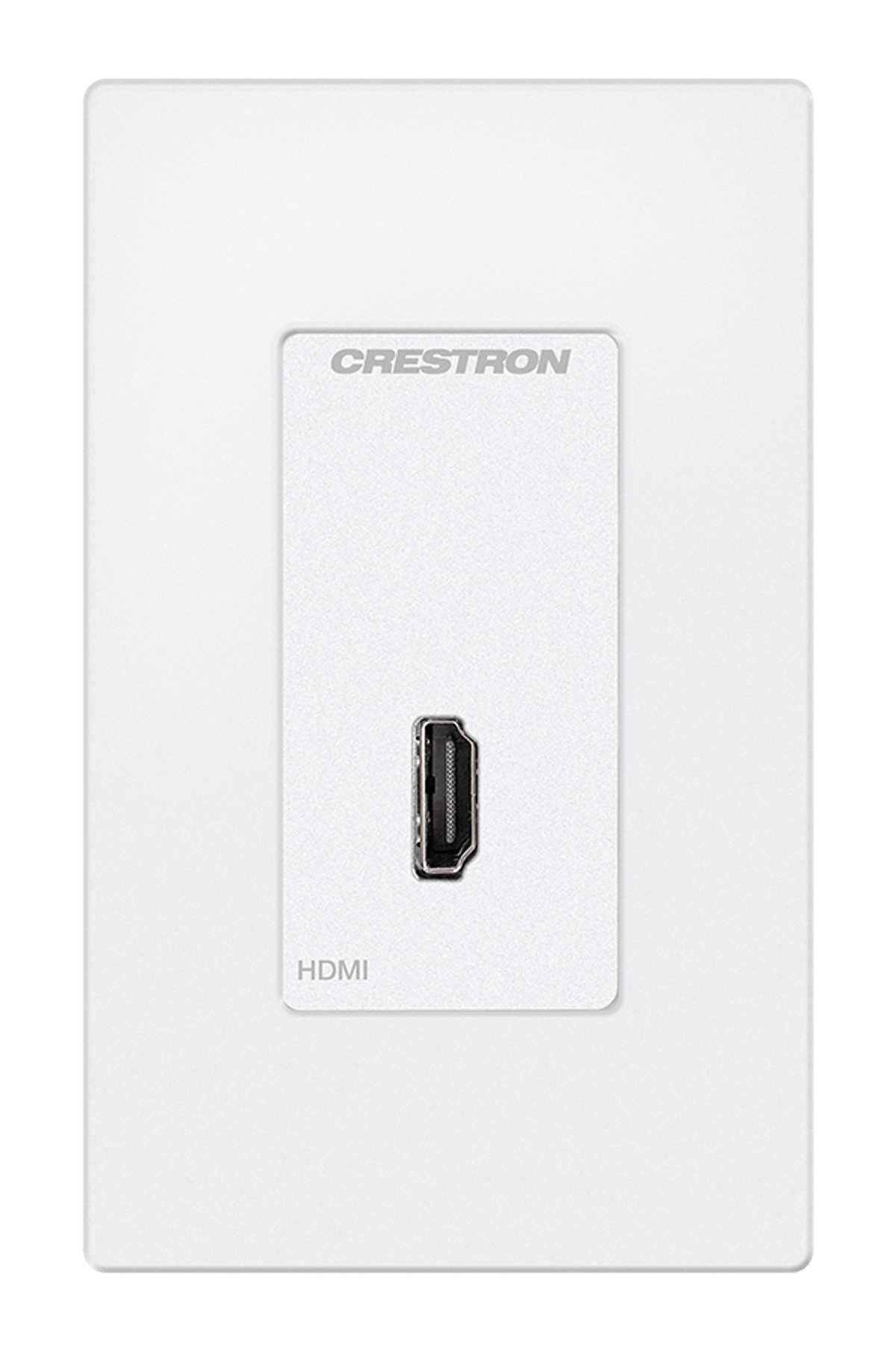

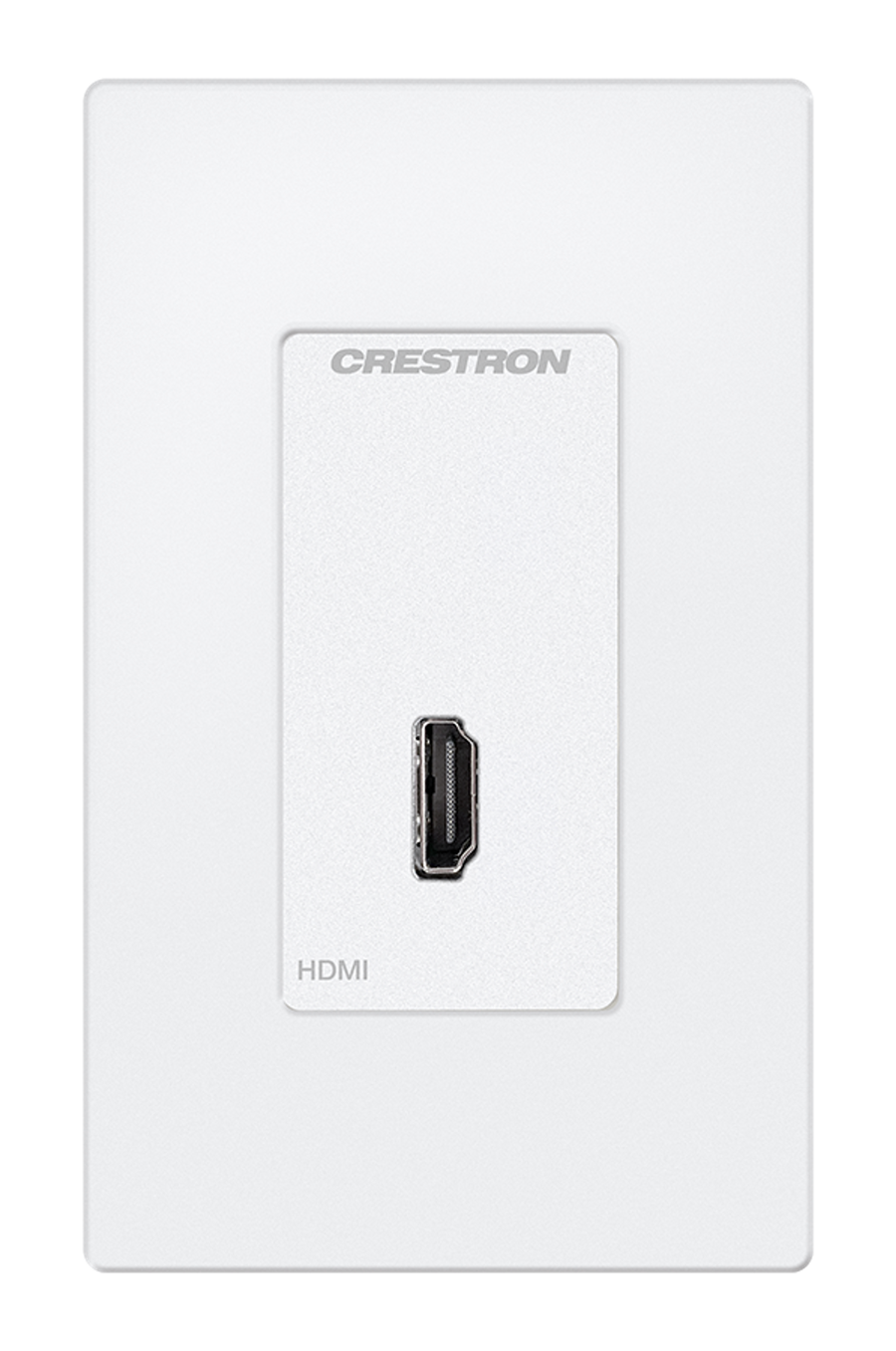

The MP-WP152 features one (1) Type A HDMI connector. A bulkhead type feed-through connector is used, which provides a female HDMI connection at the rear of the wall plate to facilitate installation using a standard HDMI cable. The MP-WP152 supports HD and UHD video signals with resolutions up to 4K60 4:2:0 and 4K30 4:4:4.
Features
Key Features
- Provides a single gold-plated HDMI® connection
- Affords Crestron® guaranteed end-to-end system performance
- Supports 4K60 4:2:0 and 4K30 4:4:4 digital video
- 10.2 Gbps TMDS bandwidth
- Supports 7.1 digital surround sound audio
- 1-gang electrical box mountable [1]
- Gangable for custom wall, lectern, and rack mount applications
- Available in white, black, or almond
- Decorator-style faceplate available separately
