CTN MPC4-302-B 4-Series® Media Presentation Controller 302, Black

The MPC4-302 is a wall-mounted, PoE-powered 4-Series® Control System automated processor and control panel in one. Its customizable backlit capacitive buttons provide an ideal user interface for controlling AV and other functions. It offers fully-programmable functionality, supports web and cloud-based configuration and management, and integrates with XiO Cloud® software as part of a complete managed enterprise solution.

Crestron® MPC4 series controllers are perfect for classrooms, meeting rooms, lecture halls, and training facilities. Use the MPC4-302-B to control a video display or AV system, adjust lighting and window shades, or perform a custom function via programming.

Customizable Backlit Buttons

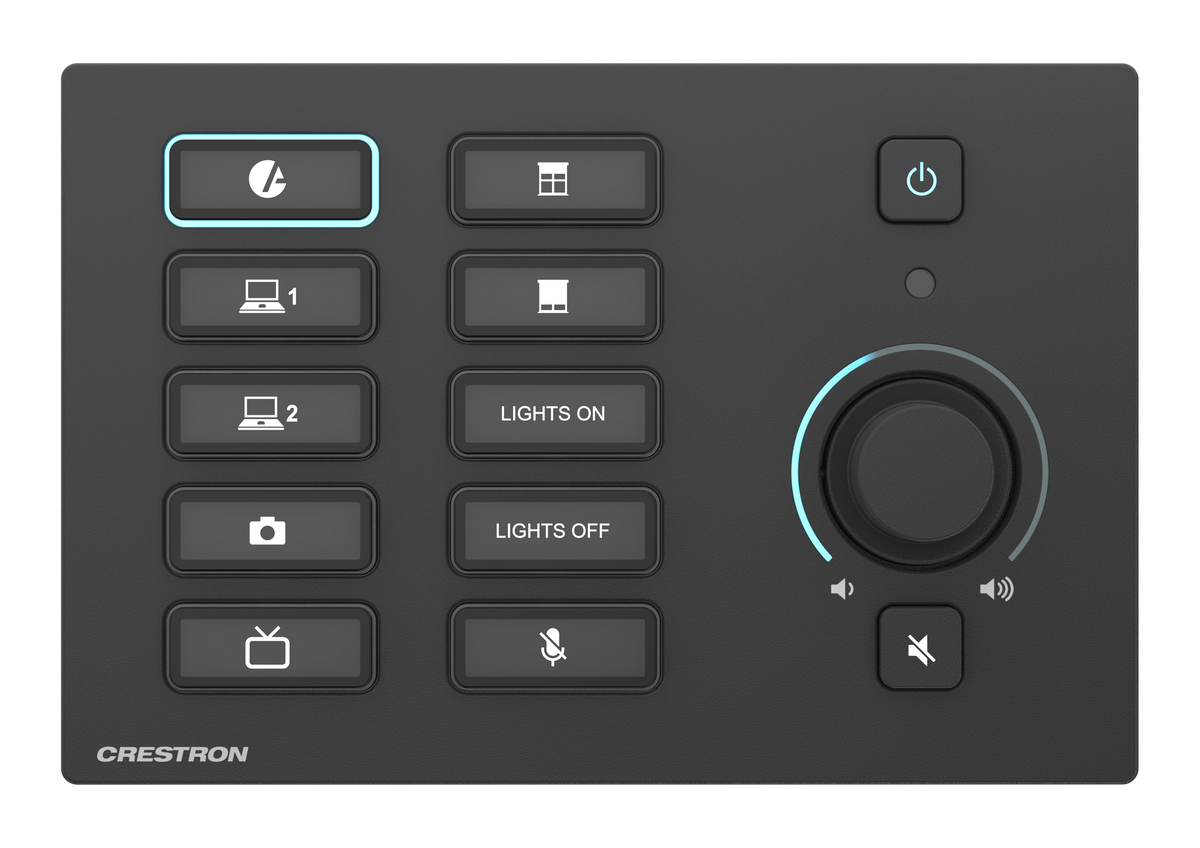

The MPC4-302-B features ten backlit buttons, which can each be labeled using the icon chips provided, or custom labeled using laser-engravable chips. Each button is backlit blue when active and white when inactive to provide clear indication of what media source or lighting scene is currently selected. A volume knob is included, encircled by a blue volume gauge to indicate the audio volume setting. Additional buttons are provided for power and mute control.

All buttons on the MPC4-302-B are custom programmable to control any device or function. Built-in autobrightness control maintains optimal visibility of the buttons under varying lighting conditions.

NOTE: For information about ordering custom button labels, refer to the MPB4/MPC4-BTN5-B ENGRAVED (black) or MPB4/MPC4-BTN5-W ENGRAVED (white) web pages. Refer to the PDF version of the MPC4-302-B spec sheet for a list of supplied labels.

4-Series Control Engine
4-Series control systems come equipped with an upgraded multicore CPU, delivering a sizable speed and performance increase compared to all Crestron 3-Series® control processors. The improved performance allows 4-Series control systems to handle the increasing demands of an advanced automated system. Crestron 4-Series delivers a dynamic and secure control system platform capable of managing a room full of disparate technologies. Reliable networking and IP control afford seamless integration with other systems and devices, with add-on control capability using Crestron touch screens, wireless remotes, and mobile device apps, as well as remote management through Crestron Fusion® software and the XiO Cloud® service.

No Programming Required
Built‑in .AV Framework™ software technology delivers a fully functional AV presentation system with simplified web‑based configuration and a choice of control options and add‑ons. For complete details on the capabilities supported by .AV Framework, visit www.crestron.com/avframework.

XiO Cloud Provisioning and Management
4-Series control systems leverage the power and flexibility of XiO Cloud services, enabling users to remotely provision, monitor, and manage Crestron devices across an enterprise network. XiO Cloud can be used to configure and load programs to the control system before it is received, making the control system fully functional as soon as it is connected to the network. XiO Cloud is built on the Microsoft® Azure® software platform and utilizes Microsoft's industry leading Azure IoT Hub technology. XiO Cloud enables installers and IT managers to deploy and manage thousands of devices simultaneously. Unlike other virtual machine based cloud solutions, Azure services provide unlimited scalability to suit the ever growing needs of an enterprise. For more information, visit www.crestron.com/xiocloud.

Enterprise-Grade Security
The MPC4-302-B is an enterprise-class control processor that can be deployed across hundreds of spaces and set up easily using a web browser, Crestron Toolbox™ software, Crestron Fusion, or XiO Cloud. It employs standard network security protocols, including 802.1X network access control, Active Directory® software authentication, SSH, TLS, and HTTPS, to ensure reliability and compliance with your organization’s IT policies.

SNMP V3 Support
Built-in SNMP V3 support enables integration with third-party IT management software, allowing network administrators to manage and control Crestron systems on the network in an IT-friendly format.

Power over Ethernet
Using PoE+ technology, the MPC4-302-B gets its operating power directly through the LAN wiring. PoE+ (Power over Ethernet Plus) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN‑SWPOE‑10 or CEN‑SWPOE‑26) may also be used to provide a total networking solution with built-in PoE+. All PoE+ switches are sold separately.

Cresnet Network
Cresnet provides a simple four‑wire network wiring solution for Crestron keypads, lighting controls, shade motors, thermostats, occupancy sensors, and other devices that don’t require the higher speed of Ethernet. The MPC4-302-B includes a Cresnet server port capable of supporting approximately 20 Cresnet devices. Systems with more than 20 devices can be handled by adding a Cresnet hub (DIN‑HUB or CNXHUB) or Ethernet to Cresnet bridge (DIN‑CENCN‑2‑POE).

NOTE: The MPC4-302-B supplies a maximum of 2.5 W to power Cresnet devices. For applications requiring more than 2.5 W, an external Cresnet power supply must be added.

Onboard Control Ports

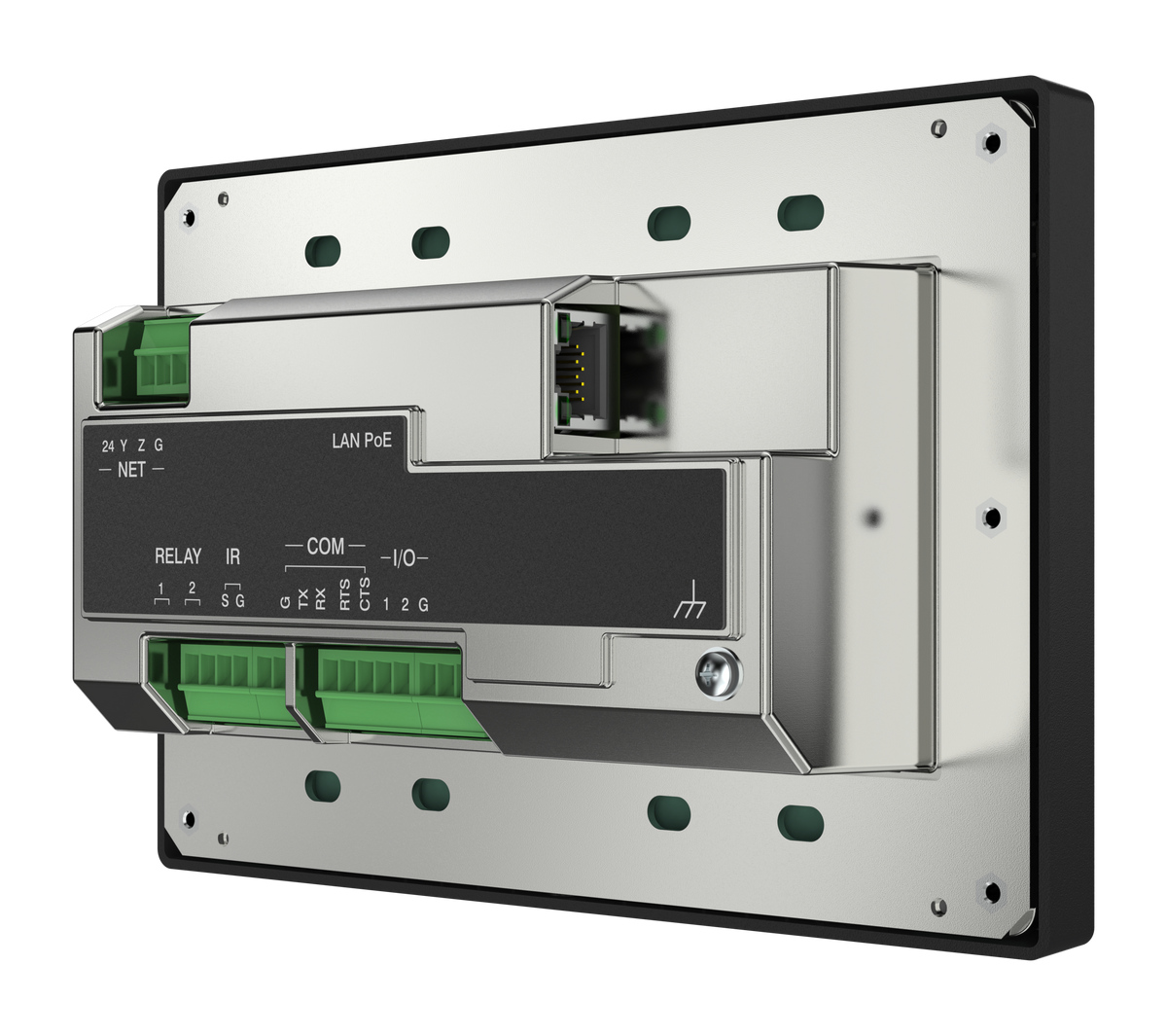

In addition to Ethernet, the MPC4-302-B includes a variety of control ports for interfacing with third‑party equipment. Its bidirectional COM port and IR port (one of each) allow for control of a video display, document camera, and other devices. Two programmable relay ports are provided for controlling a projection screen, lift, or other low‑voltage contact‑closure actuated equipment. Two Versiport I/O ports enable the integration of various types of sensors or anything else that provides a dry contact closure, low‑voltage logic, or provides 0–10 VDC signal.

Flush Mount Installation

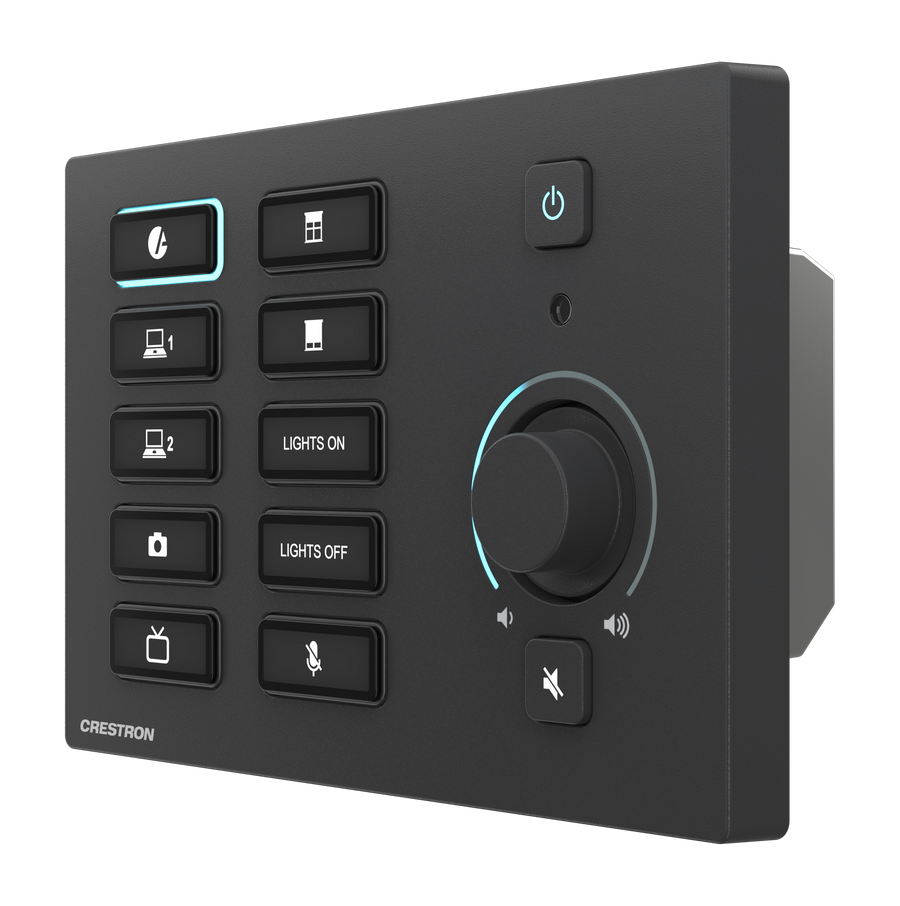

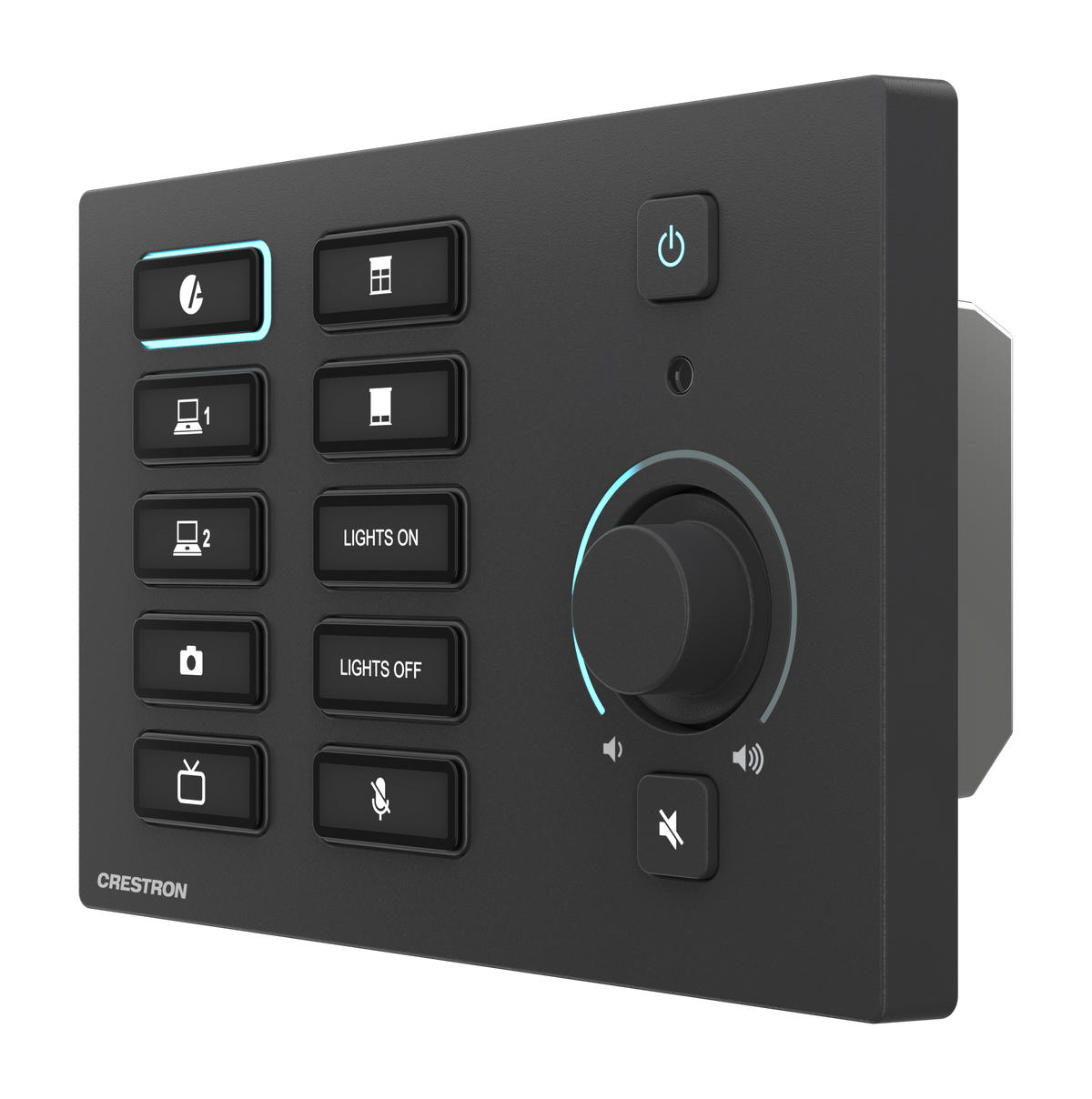

The MPC4-302-B is designed to be flush-mounted in a wall using a 3-gang U.S. electrical box (not included), and made to easily replace an existing MPC3 Series Media Presentation Controller. It can also be installed in a lectern or podium with no back box. Once installed, the button labels can be changed at any time by simply removing the front cover. A security screw is included to prevent unauthorized removal.

Tabletop Option
Using the optional tabletop kit (TTK‑MP/MPC/IPAC‑B‑T or TTK‑MP/MPC/IPAC‑W), the MPC4-302-B becomes a stylish, freestanding controller that fits perfectly on a table, desk, or countertop. All tabletop options are sold separately.
