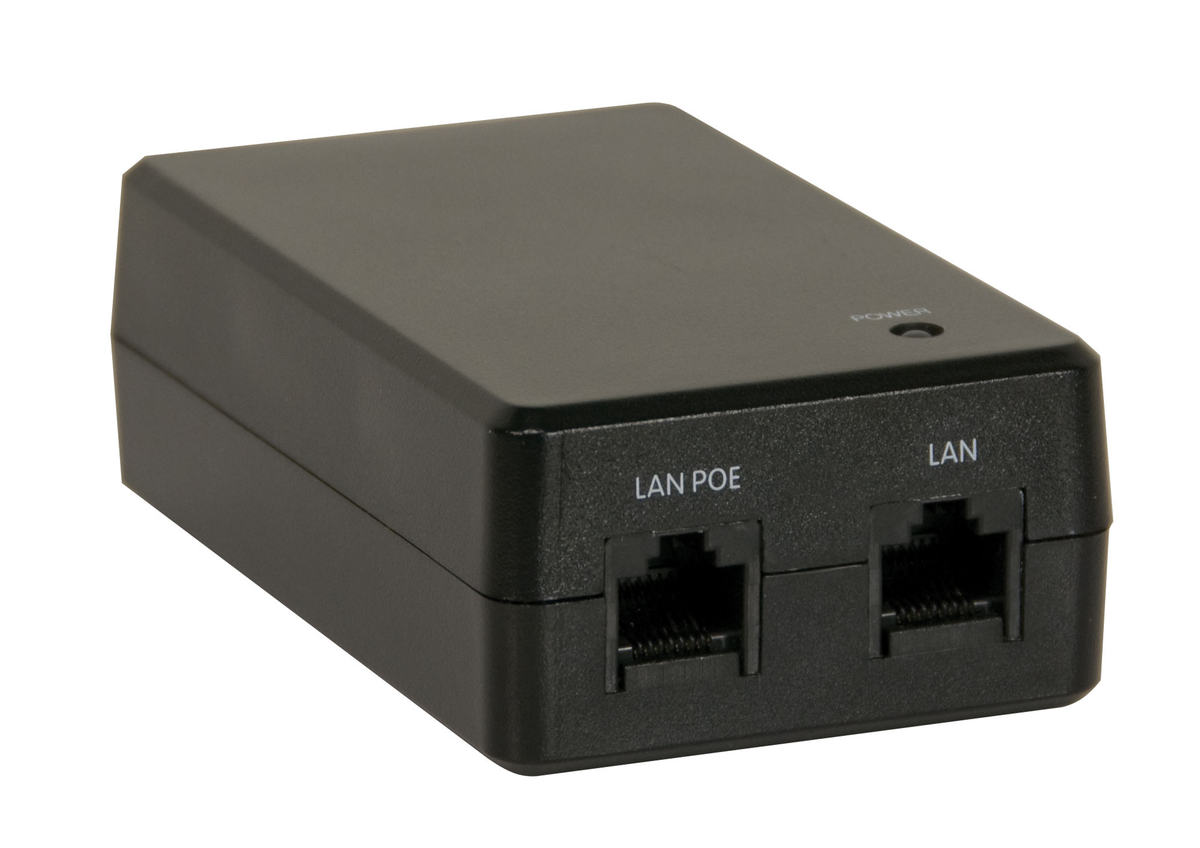

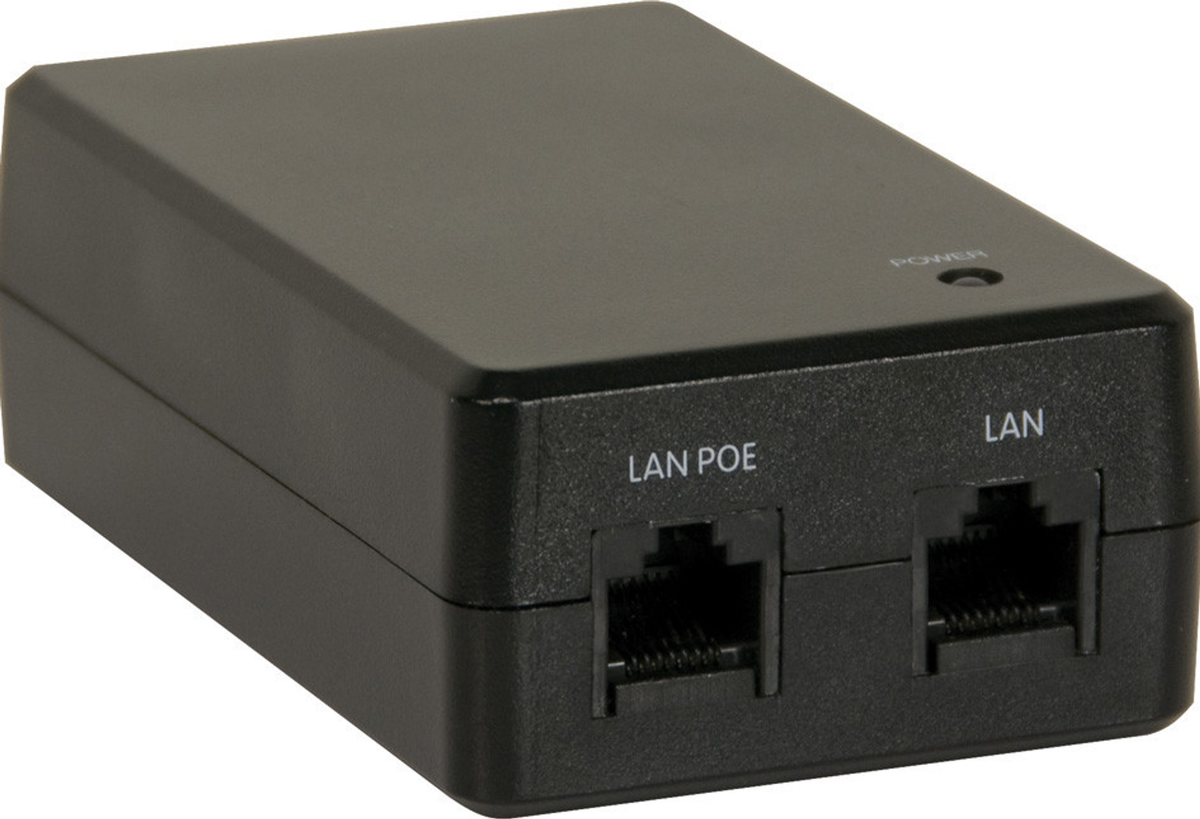

The PWE-4803RU is an 802.3af compliant Power over Ethernet (PoE) power source designed to support PoE powered devices such as the Crestron® CEN-WAP-ABG-1G Wireless Access Point. Standards-based Power over Ethernet affords a one-wire solution for connecting Ethernet devices, delivering power and data over a single CAT5/6 network cable. Using the PWE-4803RU, there is no need to install a separate power supply at the device location. The PWE-4803RU can simply be mounted at any convenient location up to 100 meters (328 feet) from the device.
Overview
The PWE-4803RU is an 802.3af compliant Power over Ethernet (PoE) power source designed to support PoE powered devices. Standards-based Power over Ethernet affords a one-wire solution for connecting Ethernet devices, delivering power and data over a single CAT5/6 network cable. Using the PWE-4803RU, there is no need to install a separate power supply at the device location. The PWE-4803RU can simply be mounted at any convenient location up to 100 meters (328 feet) from the device.
Features
Specifications
| Output Rating | ||
| 350 mA maximum @ 48 Volts DC nominal; IEEE 802.3af Class 0 PoE Power Sourcing Equipment |
||
| Power Requirements | ||
| 100-250 Volts AC, 50/60 Hz | ||
| Connectors | ||
| LAN | (1) 8-wire RJ45, female; 10BaseT/100BaseTX Ethernet port; Connects to Ethernet LAN |
|
| LAN PoE | (1) 8-wire RJ45, female; 10BaseT/100BaseTX Ethernet pass-thru port and IEEE 802.3af Class 0 PoE Power Sourcing Equipment output |
|
| Main Power Input | (1) IEC 320 C14 socket; Mates with removable power cord, included |
|
| LED Indicators | ||
| POWER | (1) Tri-color LED; Amber indicates power is available but no device is connected; Green indicates a PoE device is connected and drawing power; Red (flashing) indicates a non-PoE device is connected |
|
| Environmental | ||
| Temperature | 32° to 104°F (0° to 40°C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Heat Dissipation | 28 BTU/Hr | |
| Enclosure | ||
| Black plastic, desktop | ||
| Dimensions | ||
| Height | 1.35 in (3.43 cm) | |
| Width | 2.40 in (6.10 cm) | |
| Depth | 3.98 in (10.11 cm) | |
| Weight | ||
| 6.0 oz (169 g) | ||
