CTN REFERENCE IW4X8-W-T-EACH Reference 4 in. x 8 in. In-Wall Speaker, White Textured, Single

CTN REFERENCE IW4X8-W-T-EACH Reference 4 in. x 8 in. In-Wall Speaker, White Textured, Single

MFR: Crestron MPN : REFERENCE IW4X8-W-T-EACH
SKU: REFERENCE IW4X8-W-T-EACH
$212.50 USD
$212.50 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

Audiophile performance in-wall speaker to please the most ardent listener and the most demanding interior designer — with thoughtful features that simplify installation.

Overview

Crestron® Reference speakers made by Origin Acoustics deliver the pinnacle of performance for demanding residential installations. Select materials, top shelf components and a high-end appearance underscore the design behind each model. The result is a complete line of in-wall speakers suitable for installation in luxury residential applications, restaurants, retail spaces, universities, and office buildings.

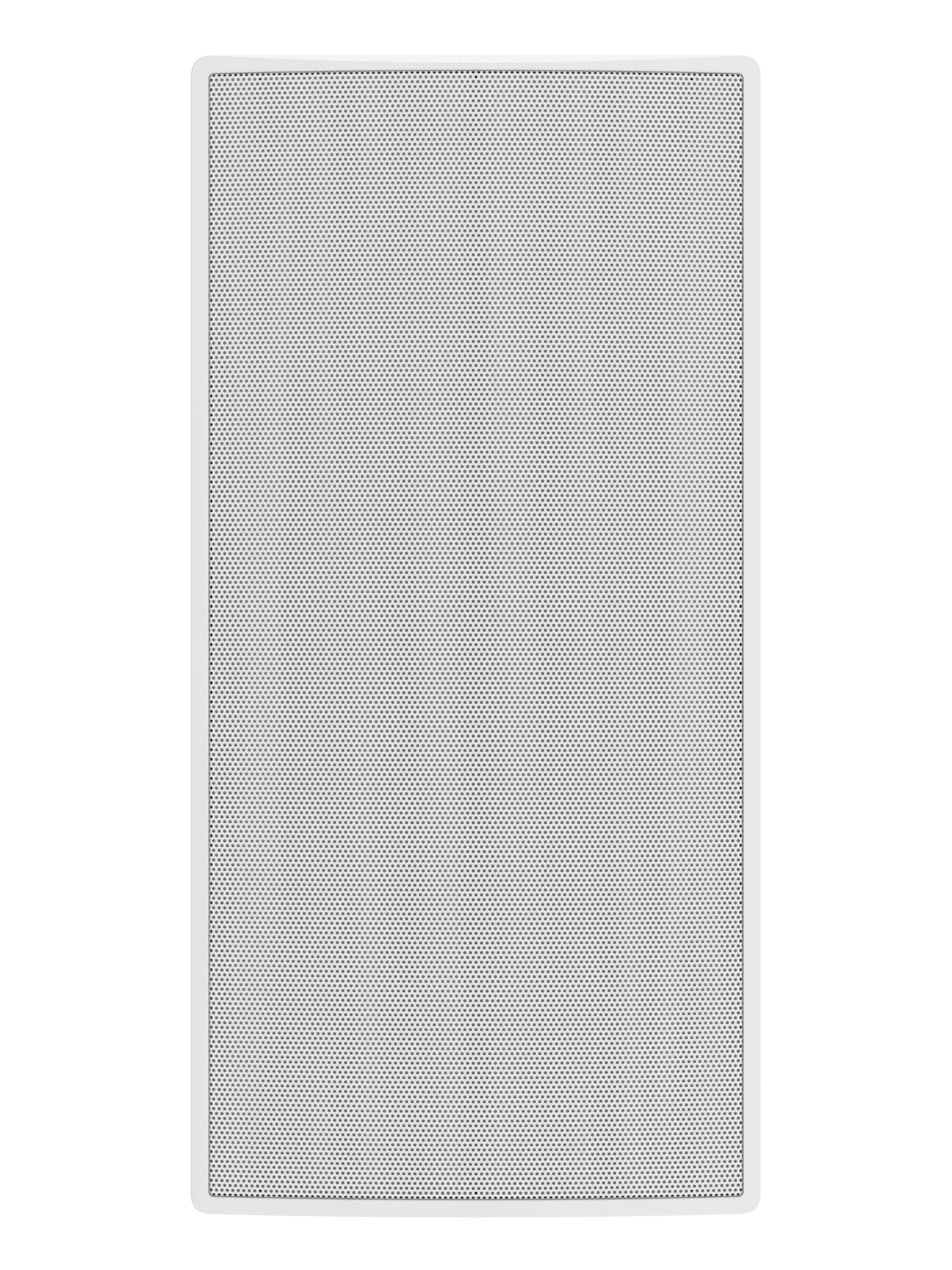

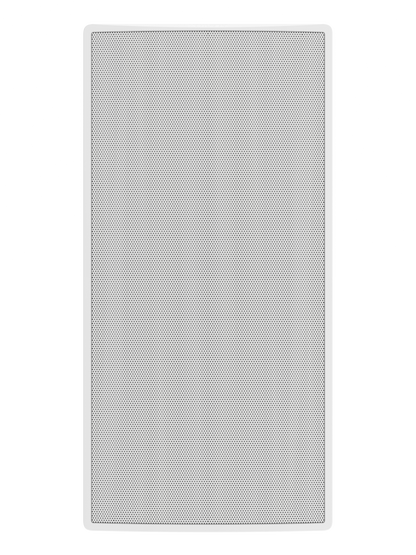

The REFERENCE IW4X8-W-T-EACH promises the best in installed audio design, delivering stunning sound quality while minimizing impact to the customer's decor. The in-wall speaker is provided with a rectangular grille with white plastic bezel. An aluminum-colored grille option is sold separately. In addition, the following accessories are available:

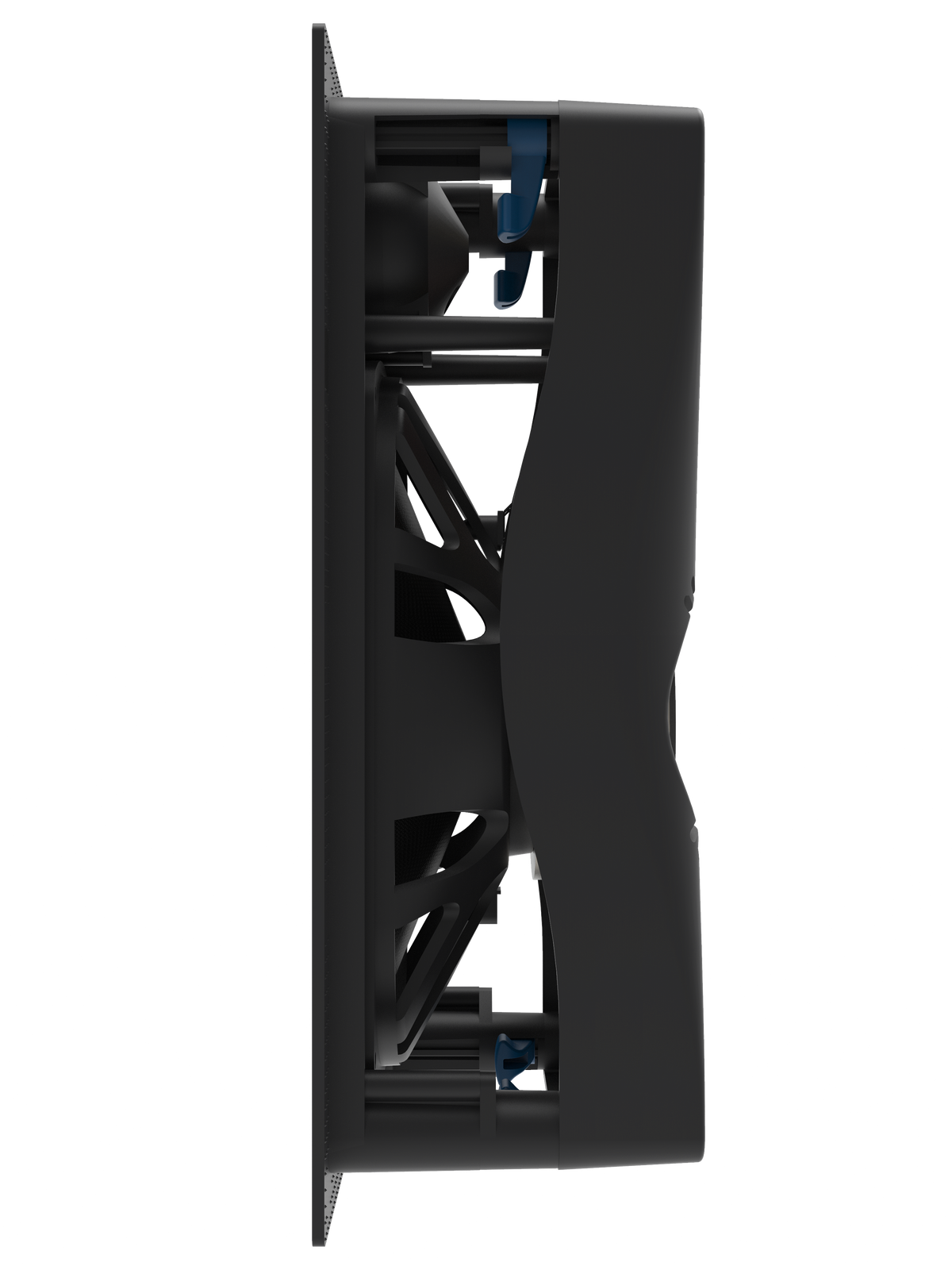

Streamlined installation of each speaker is facilitated through an easy to use turn and click Spring Lock mounting system optimized to minimize interference with other elements present in the wall space.

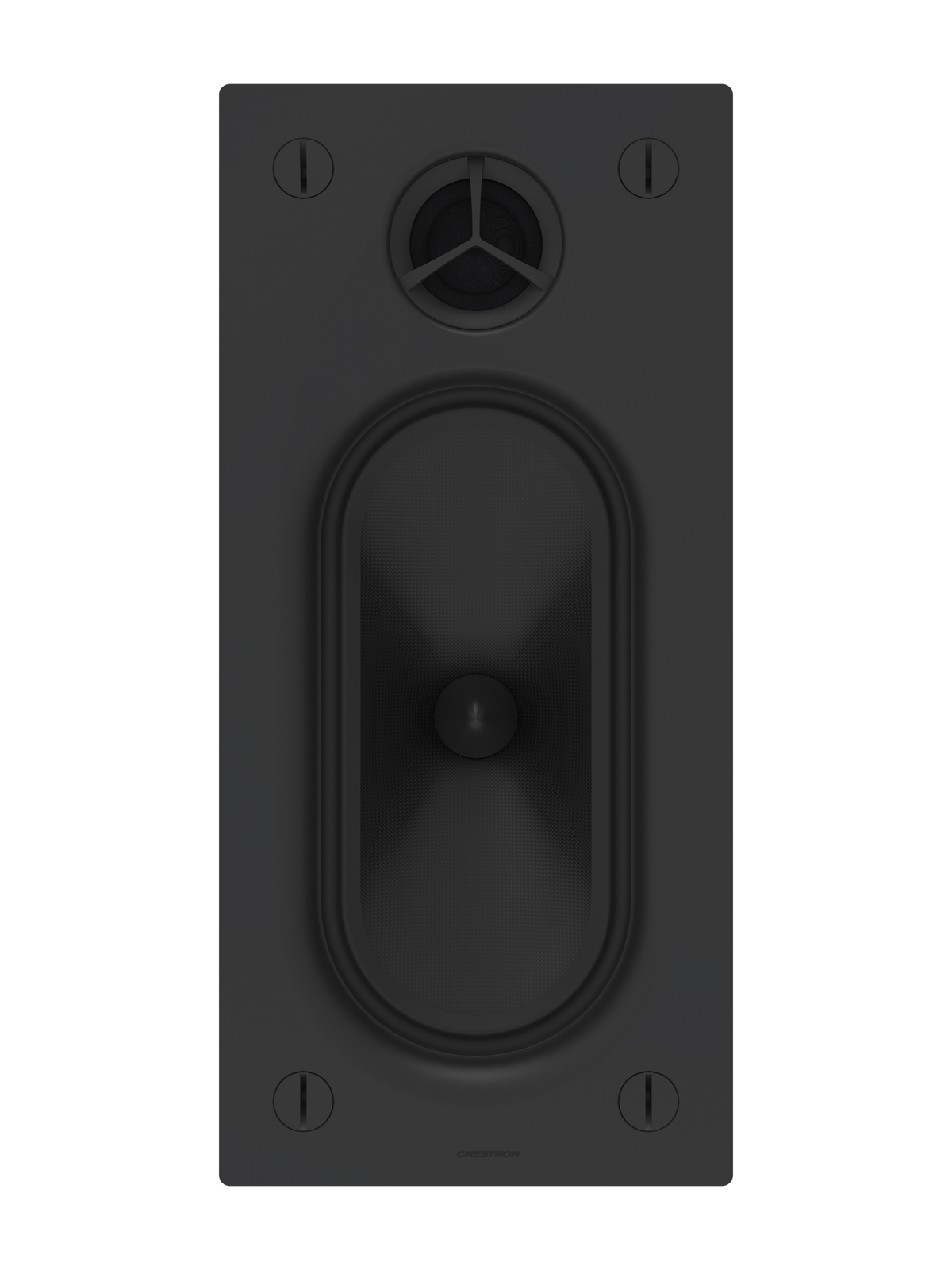

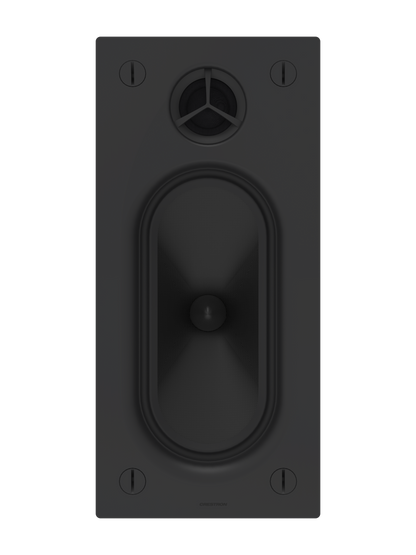

The REFERENCE IW4X8-W-T-EACH in‑wall speaker features a 4 in. x 8 in. (102 mm x 203 mm) racetrack woven glass fiber woofer for deep, defined low end and articulate midrange, and a 1 in. (25 mm) Silk DPSD tweeter for crisp highs with consistent coverage across a wide listening area. A compression molded woofer basket assures pure, uncolored bass response.

CrestronHome (2)

Features

Key Features
  • Audiophile performance in-wall speaker
  • 4 in. x 8 in. (102 mm x 203 mm) racetrack woven glass fiber woofer
  • 1 in. (25 mm) Silk DPSD™ tweeter
  • Turn and click Spring Lock™ mounting system
  • 100 W (Program), and 200 W (Peak) power handling
  • 60 Hz to 20 kHz (±3 dB) frequency response
  • 8 Ohms nominal impedance

Specifications

Features & Performance
Woofer 4 in. x 8 in. (102 mm x 203 mm) racetrack woven glass fiber woofer
Tweeter 1 in. (25 mm) Silk DPSD
Crossover Slope 12 dB/oct
Crossover Point 3 kHz
Impedance 8 Ohms nominal
Frequency Response 60 Hz to 20 kHz (±3 dB)
Frequency Range 45 Hz to 20 kHz (±10 dB)
Power Handling Program: 100 W;
Peak: 200 W
Sensitivity 86 dB @ 1 W/1 M
Connections

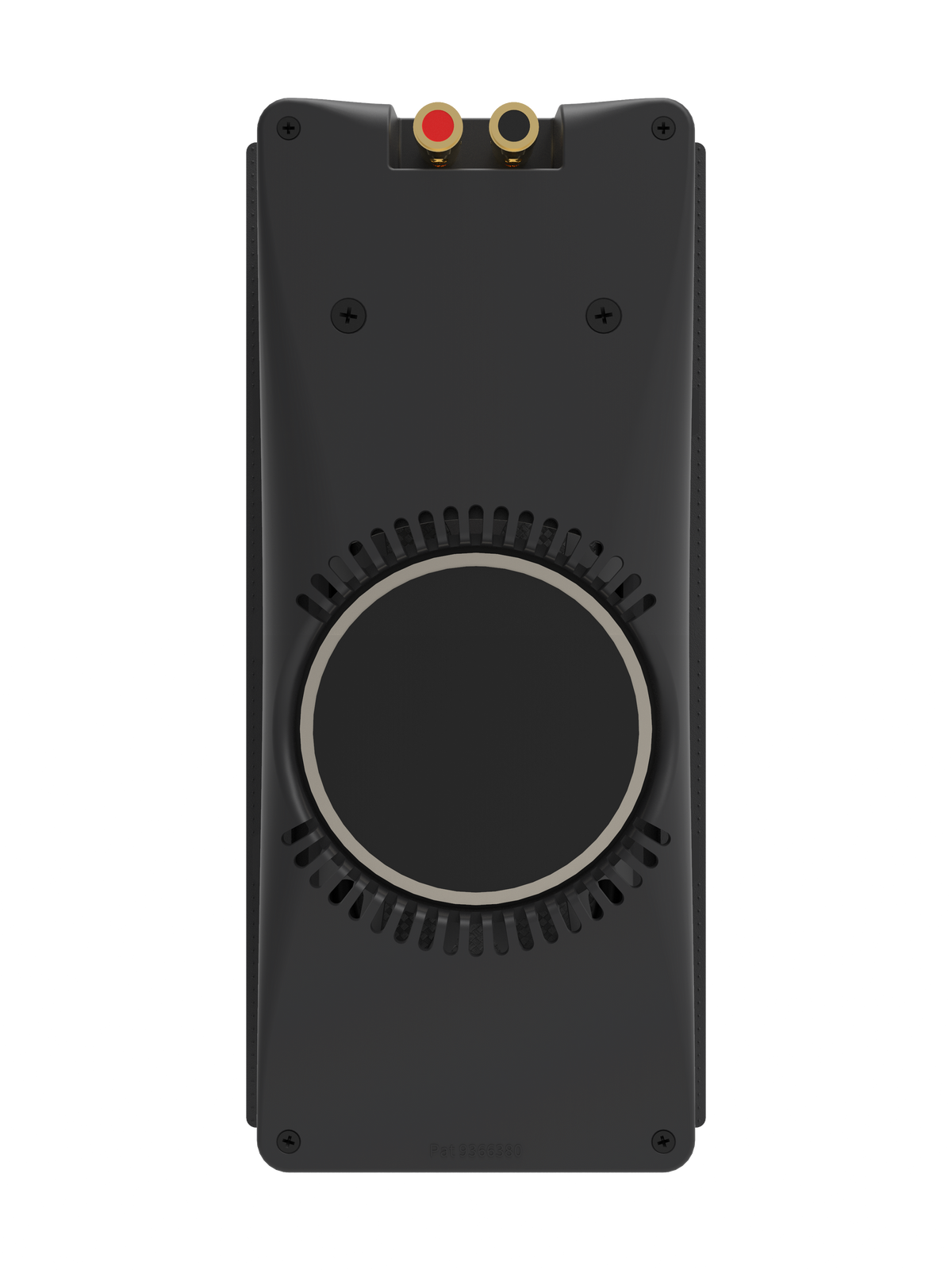

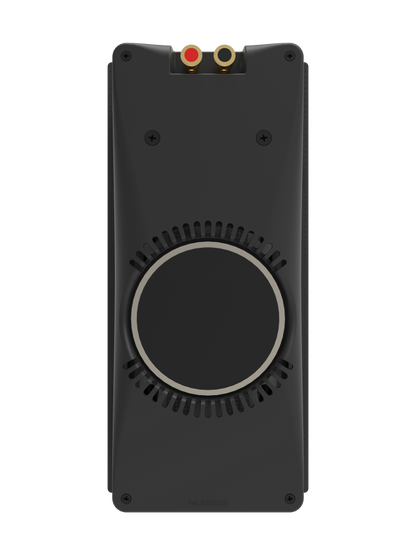

Input (2) Gold-plated spring terminals
Maximum Wire Size 10 AWG (6 mm2)
Environmental
Temperature 4° to 176°F (-15.5° to 80°C)
Humidity 10% to 90% RH (non-condensing)
For indoor use only
Construction
Baffle Glass fiber reinforced ABS
Grille Electroplated and powder coated steel, paintable, magnetically held bezel design
Mounting Spring Lock mounting system
Dimensions
Height without grille 11.81 in. (300 mm)
Width without grille 5.51 in. (140 mm)
Depth 3.74 in. (95 mm)
Rectangle Grille
Length 12.40 in. (315 mm)
Width 6.10 in. (155 mm)
Recommended Cutout Dimension
Height 11 in. (279 mm)
Width 4.68.in. (119 mm)
Weight
3.8 lb (1.72 kg)
Compliance
CE, RoHs, FCC Part 15 Class B digital device
Regulatory Model M202046014
