Crestron

CTN REFERENCE OD4.1-4-S10-BRZ-T KIT Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

CTN REFERENCE OD4.1-4-S10-BRZ-T KIT Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

MFR: Crestron MPN : REFERENCE OD4.1-4-S10-BRZ-T KIT
SKU: REFERENCE OD4.1-4-S10-BRZ-T KIT
$1,818.75 USD
$1,818.75 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

Crestron® landscape solution delivers high-performance audio to all corners of the property.

Overview

The Crestron® REFERENCE OD4.1-4-S10-BRZ-T KIT landscape solution made by Origin Acoustics provides the full impact of your music outdoors with tremendous coverage, excellent stereo imaging, and rich deep bass.

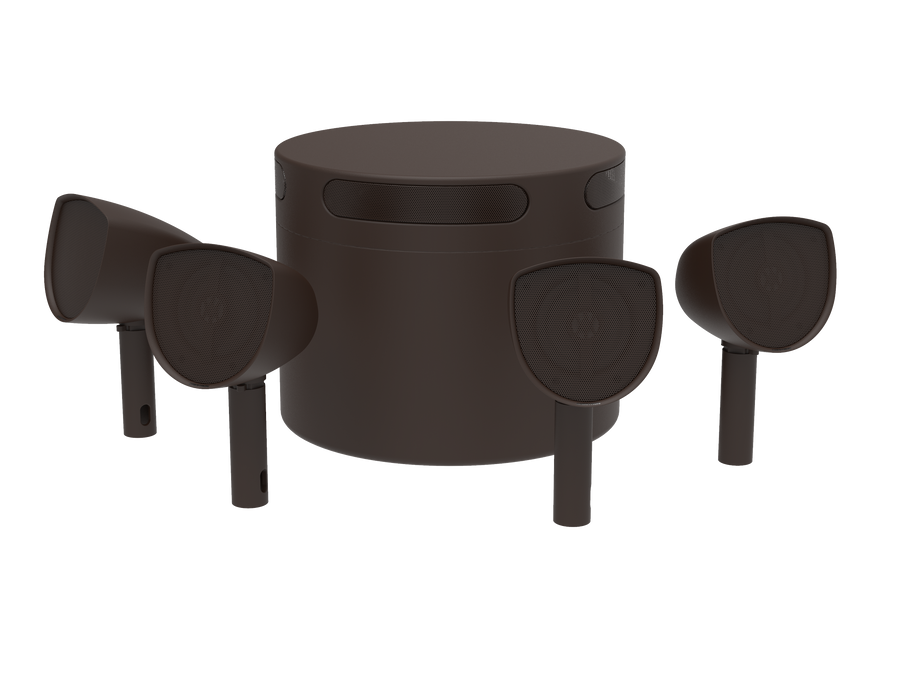

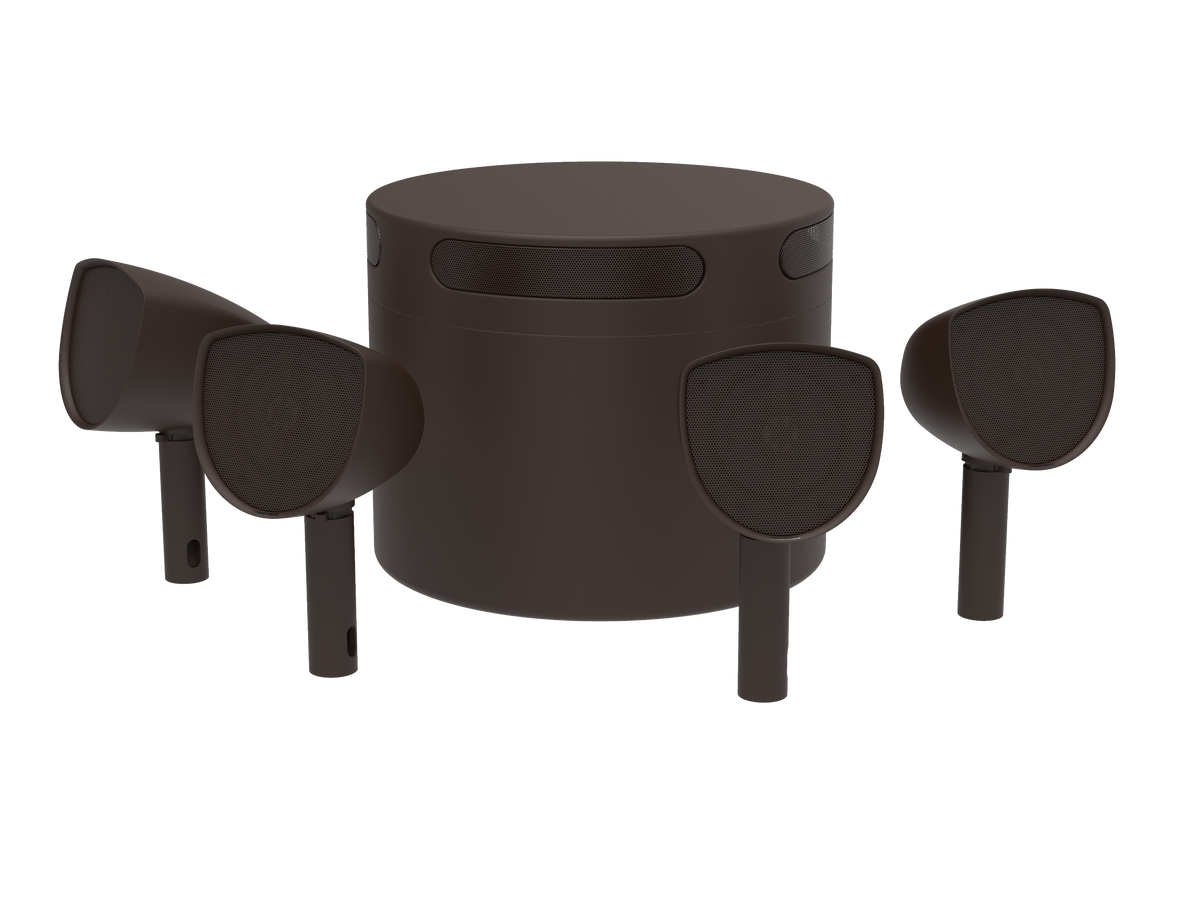

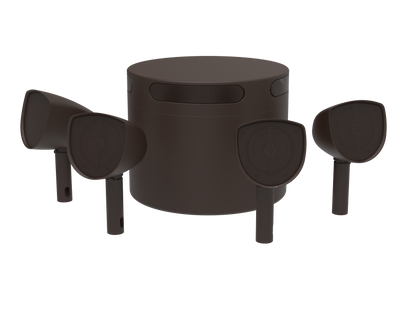

The 4.1 kit includes 4 weatherproof 2-way outdoor satellite speakers and an in-ground subwoofer. The satellite outdoor speakers are designed to be staked directly into the ground or mounted to an exterior wall, fence post, or tree. The satellite speakers feature a 4 in. (102 mm) polypropylene woofer with a coaxially mounted 0.75 in. (19 mm) PEI mylar tweeter for crisp highs with consistent coverage across a wide listening area.

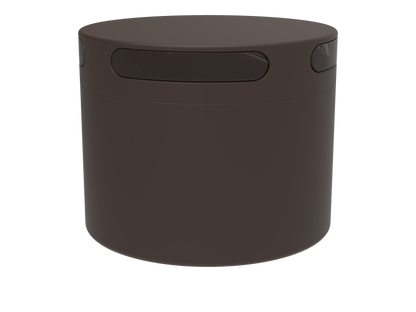

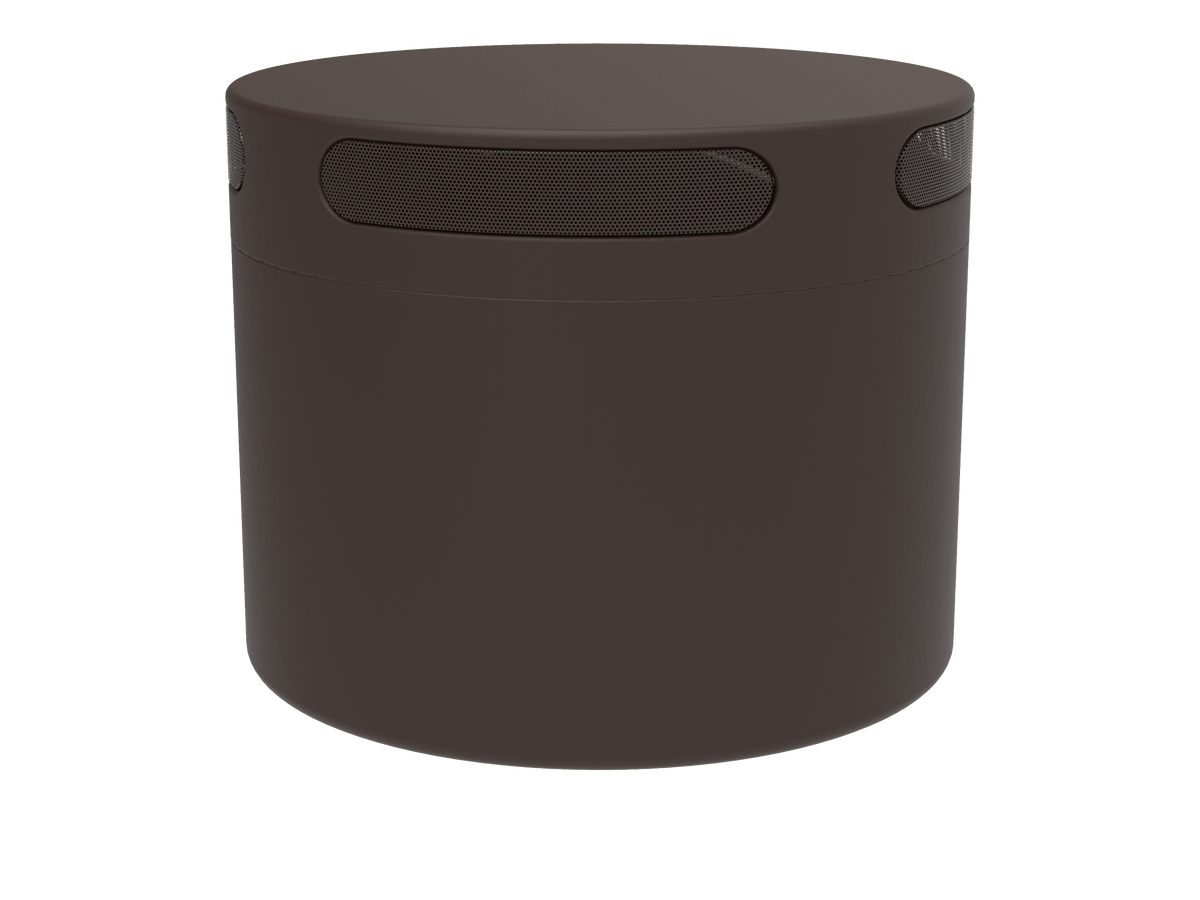

The subwoofer's compact and watertight enclosure installs beneath the ground’s surface, affording a virtually hidden appearance with just the vents visible. The vents protrude 2.5 in. (64 mm) from the ground. The passive subwoofer employs a 10 in. (254 mm) woofer for tight, controlled bass. Power handling is 120 W (Program), and 240 W (Peak) at 8 Ohms, with a frequency response of 35 Hz to 20 kHz (±3 dB).

Each satellite speaker includes a 32.5 in. (826 mm) direct-burial 2-conductor speaker wire. The subwoofer includes a 39.5 in.(1003 mm) direct-burial 4-conductor speaker wire that is permanently attached to the speaker enclosure. A suitable in-ground electrical box (not included) is advised for the termination of the speaker wiring. It includes one pair of silicone filled waterproof wire nuts for each satellite speaker and two pairs for the subwoofer to terminate the bare wire ends.

The following accessories are available for the satellite speakers:

  • 12.43 in. (316 mm) ground stake (included) to mount and install the speaker directly into the ground
  • 17.72 in. (450 mm) ground stake (SPKA-STAKE-OD-18)
  • Tree or surface mount bracket (SPKA-SMK/TREEMK-REFERENCE-OD4) to mount the speaker to an exterior wall, fence post, or tree.

NOTE: The SPKA-STAKE-OD-18 and SPKA-SMK/TREEMK-REFERENCE-OD4 are not included.

CrestronHome (2)

Features

Key Features
  • 4.1 kit includes 4 weatherproof 2-way outdoor satellite speakers and an in-ground subwoofer
  • 4 x Satellite Speakers: 4 in. (102 mm) polypropylene woofer and 0.75 in. (19 mm) PEI mylar tweeter
  • 1 x Subwoofer: 10 in. (254 mm) polypropylene woofer
  • IPX6 waterproof rating
  • Satellite speakers are designed for landscape and wall mount applications
  • Coaxial satellite speakers for wide dispersion over a larger listening area
  • Subwoofer enclosure constructed of rugged poly composite PVC
  • 8 Ohms nominal impedance
  • 120 W (Program), and 240 W (Peak) power handling
  • 35 Hz to 20 kHz (±3 dB) frequency response
  • 1500 sq ft area coverage

Specifications

Features & Performance
Woofer 4 x 4 in. (102 mm) polypropylene woofer and 1 x 10 in. (254 mm) polypropylene woofer
Tweeter 4 x 0.75 in. (19 mm) PEI mylar tweeter
Crossover 100 Hz
Crossover Point 2.5 kHz
Impedance Kit 8 Ohms Nominal
Frequency Response Kit 35 Hz to 20 kHz (±3 dB)
Frequency Range Satellite Speaker: 90 Hz to 20 kHz (±10 dB);
Subwoofer: 35 Hz to 150 Hz (±10 dB)
Power Handling (8 Ohms) Program: 120 W;
Peak: 240 W
Sensitivity 87 dB @ 1 W/1 M
Coverage 1500 sq ft
Connections
Input (1) 32.5 in. (826 mm) attached direct-burial 2-conductor speaker wire per satellite speaker;
(1) 39.5 in. (1003 mm) attached direct-burial 4-conductor speaker wire for the subwoofer;
Includes one pair of silicone filled waterproof wire nuts for each satellite speaker and two pairs for the subwoofer
Wire Gauge (2) 12 AWG (4 mm2)
Environmental
Temperature 4° to 176°F (-15.5° to 80°C)
Humidity 10% to 95% RH (non-condensing)
Splash Resistance IPX6 waterproof
Construction
Satellite Speaker Enclosure: Color-molded composite;
Baffle: UV treated HDPE;
Grille: Electroplated and powder coated steel;
Mounting: Ground stake, tree, fence post or surface mount
Subwoofer Enclosure: Rugged poly composite PVC;
In-Ground Installation: Designed for direct-burial in soil with good drainage
Dimensions
Satellite Speaker Height: 18.02 in. (458 mm);
Width: 5.76 in. (147 mm);
Depth: 7.05 in. (180 mm)
Subwoofer Height: 12.84 in. (326 mm);
Width: 15.75 in. (400 mm)
Weight
Satellite Speaker 3 lb (1.36 kg)
Subwoofer 23.5 lb (10.65 kg)
Compliance
RoHs, FCC Part 15 Class B digital device
Regulatory Model M202046016
