Provides a sleek RFID card reader solution for supported room scheduling applications and room control projects via a Crestron® TSW-70 or TSS-70 series touch screen. A small form factor and versatile mounting options allow it to be incorporated easily into new and existing installations.
Overview

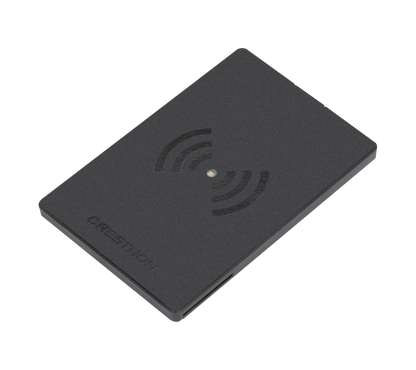

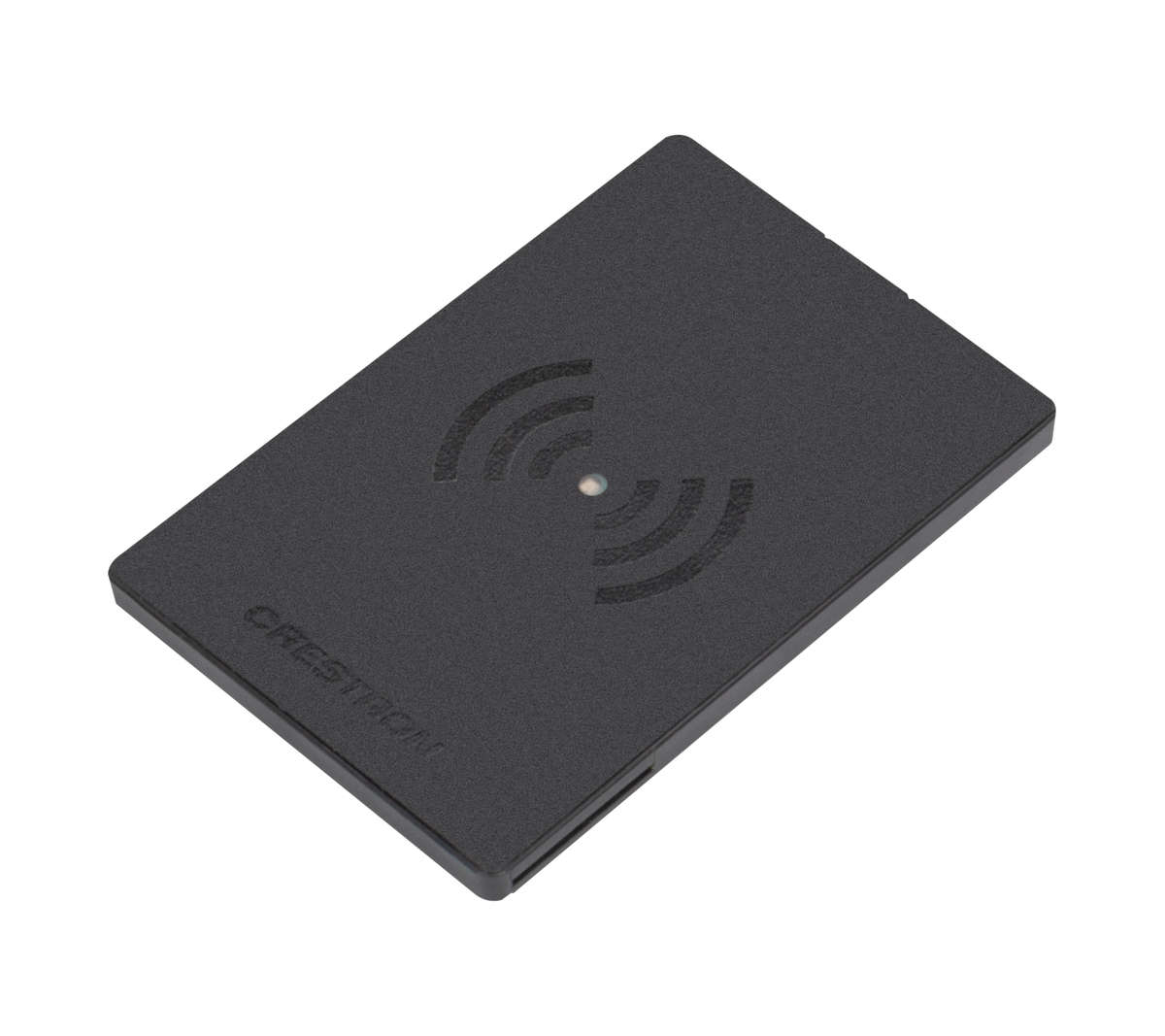

The Crestron® RFID-USB is a sleek RFID card reader that integrates into supported room scheduling applications and custom room control projects via a TSW-70 series or TSS-70 series touch screen. The RFID-USB installs next to the touch screen, allowing users to easily authenticate with or communicate to the touch screen by scanning an RFID card. The RFID-USB also integrates with a Crestron control system for custom room control or access projects. The RFID‑USB supports a range of LF and HF technologies (125 kHz and 13.56 MHz) as well as NFC and Bluetooth® Low Energy (BLE) communications to satisfy numerous RFID use cases.

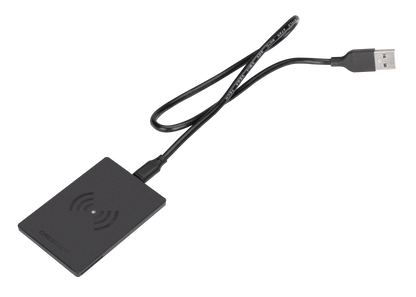

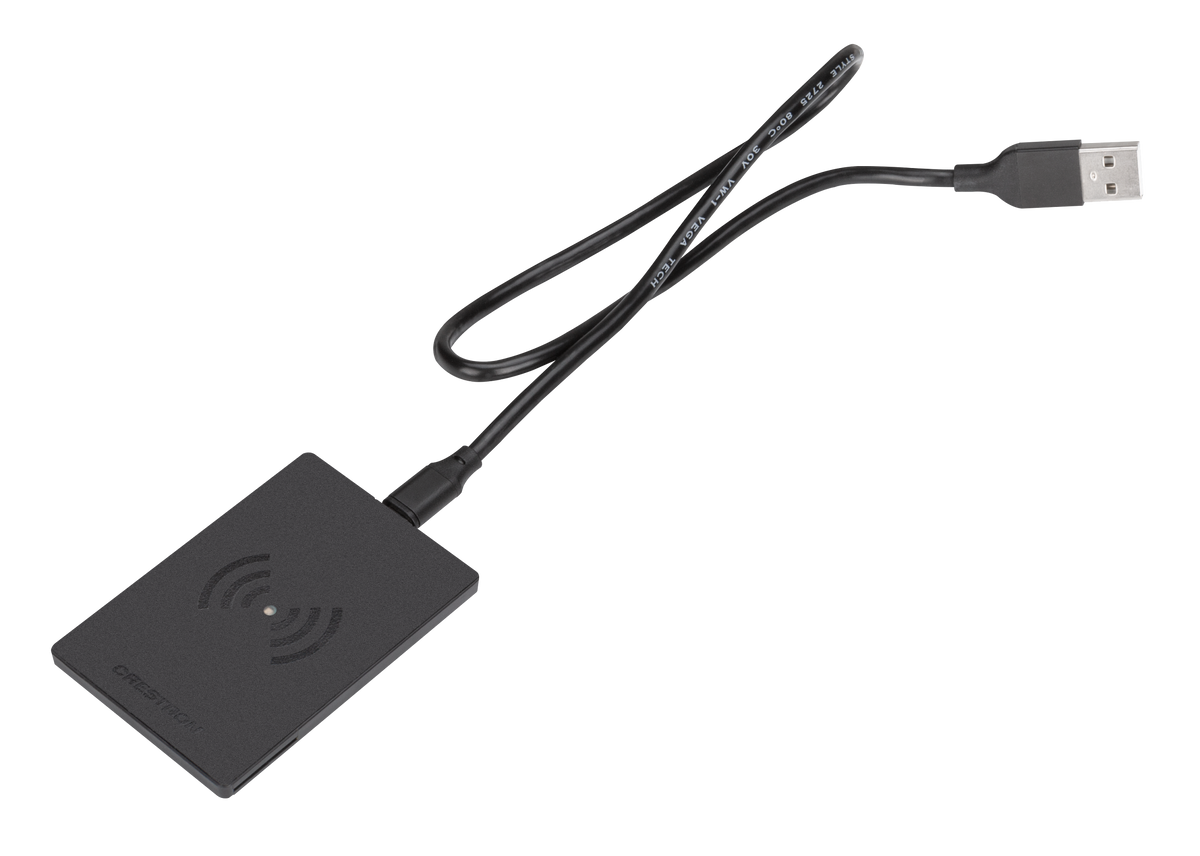

The RFID-USB provides a small form factor and versatile mounting options for incorporation into new and existing installations. The RFID‑USB attaches securely to glass or drywall surfaces using adhesive pads without requiring any screws. The RFID-USB also is compatible with mullion mount kit installations (TSW‑770/1070‑MSMK series). The RFID‑USB connects directly to the touch screen via USB for power supply and data communication.
Features
Key Features
- Provides an RFID card reader solution for supported scheduling applications and custom room control projects
- Integrates directly with Crestron® TSW-70 or TSS-70 series touch screens and control systems
- Presents a sleek, modern design with a small form factor
- Installs onto drywall or glass surfaces with support for mullion mount kit installations
Specifications
| Wireless Communications | |
| Frequency | 125 kHz (LF); 13.56 MHz (HF); 2.4 GHz (BLE) |
| Antenna | Integrated into device |
| Read/Write Distance | Up to 3.15 in. (80 mm) depending on environment (for LF and HF) |
| Transmission Speed | USB full speed, 12 Mbit/s (Host); < 848 kbit/s (HF Air); < 100 kbit/s (BT Air) |
| Bluetooth® Communications (BLE) | Bluetooth v4.2; GAP, SM, L2CAP, ATT standards; Predefined GATT structure; AES128 supported |
| Connectors | |
| USB | (1) Micro USB connector, female; For connection to USB host port on TSW-70 series touch screen |
| Power | |
| Power Supply | 4.3–5.5V via micro USB; Limited power source according to IEC60950-1 or PS2 classified IEC 62368‑1, short-circuit current < 8 A |
| Power Consumption | 70 mA typical (idle); 135 mA typical (RF field on) |
| MTBF | 500,000 hours |
| Environmental | |
| Temperature | -4° to 140° F (-20° to 60° C) |
| Humidity | 5% to 95% RH (non‑condensing) |
| Construction | |
| Housing | Plastic, black finish |
| Mounting | Peel-and-stick adhesive mount to glass, drywall, or similar surfaces; Mounting frame provided for integration with mullion mount kit installations |
| Dimensions | |
| Height | 2.58 in. (66 mm); 3.37 in. (86 mm) with mounting frame |
| Width | 1.79 in. (46 mm); 1.94 in. (49 mm) with mounting frame |
| Depth | 0.16 in. (4 mm); 0.26 in. (7 mm) with mounting frame |
| Weight | |
| 0.64 oz (18 g) | |
| Compliance | |
|
Regulatory Model: TWN4 Slim IC, FCC Part 15 Class B Digital Device |
|
