The Crestron RMK-AMP-X is a rack mounting kit designed to provide a complete mounting solution for Crestron sub-1RU modular X-Series Amplifiers. The kit includes components for either extending the faceplate of a single sub-1RU unit to fully fill out a 1RU space in the rack, joining several sub-1RU models together to fill out a 1RU width space, or a combination of both (for example, pairing two quarter-rack width AMP-X75's and extending the faceplate out for the remaining half-rack width coverage).
Overview
The Crestron RMK-AMP-X is a rack mounting kit designed to provide a complete mounting solution for Crestron sub-1RU modular X-Series Amplifiers and Presentation Systems. The kit includes components for either extending the faceplate of a single sub-1RU unit to fully fill out a 1RU space in the rack, joining several sub-1RU models together to fill out a 1RU width space, or a combination of both (for example, pairing two quarter-rack width AMP-X75's and extending the faceplate out for the remaining half-rack width coverage).

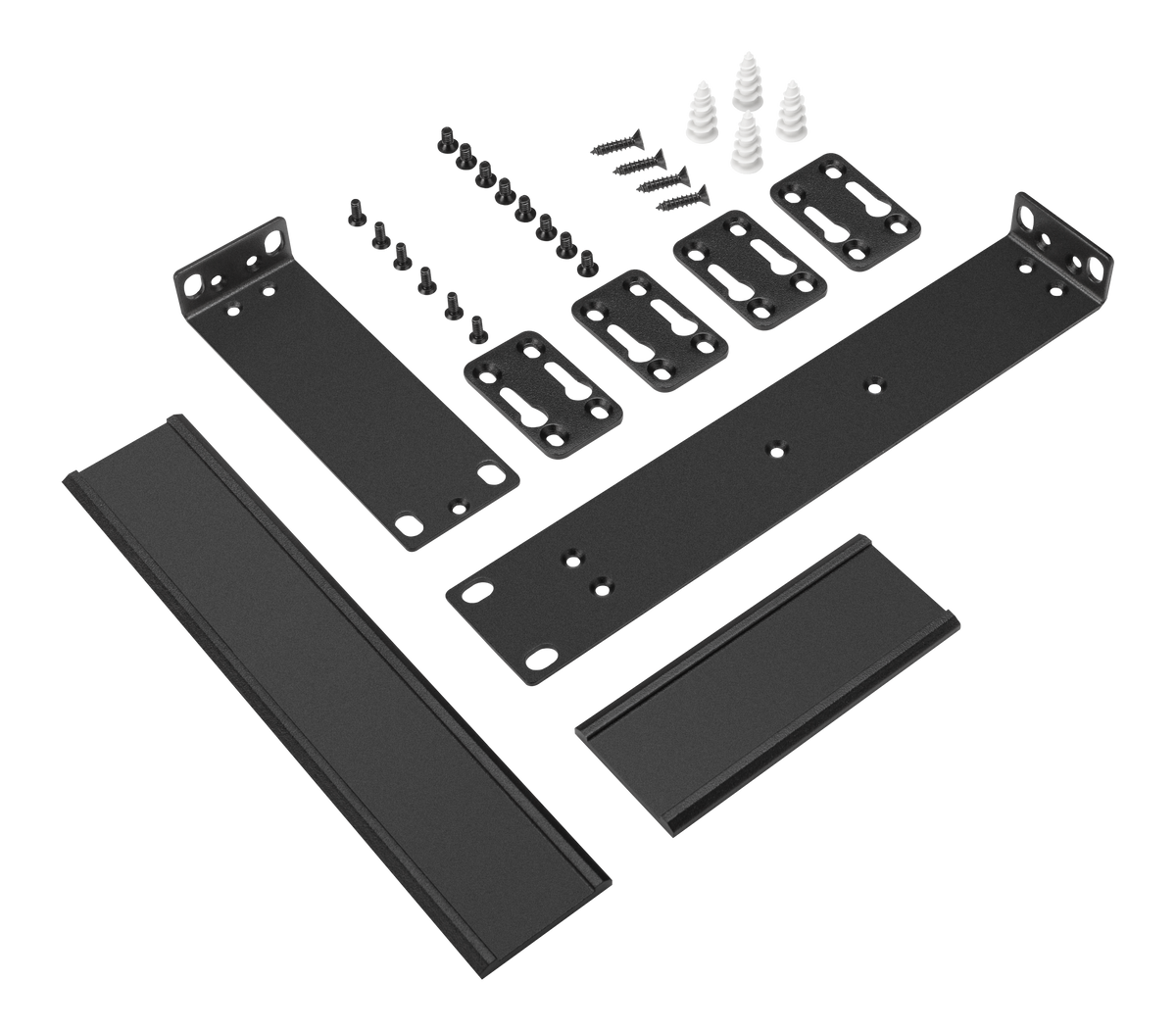

The kit includes joining plates, rack ears, and fascia plates to facilitate any combination of quarter-rack and/or half-rack width X-Series Amplifiers in a 1RU space.
Features
Key Features
- Rack mount kit designed to accommodate AMP‑X300, AMP‑X50MP, and AMP‑X75 amplifiers and the HD-PS401 presentation system.
- Provides a secure rack mount solution for placing multiple units together in a rack.
- Facilitates joining several sub-1RU units together to fill out a single rack unit space, or to extend the faceplate of a single sub-1RU unit to fill an entire 1RU space.
Specifications
| Dimension‑Rack Ear (Half Width) | |
| Height | 0.85 in. (22 mm) |
| Width | 9.50 in. (241 mm) |
| Depth | 1.72 in. (44 mm) |
| Dimension‑Rack Ear (Quarter Width) | |
| Height | 0.85 in. (22 mm) |
| Width | 5.17 in. (131 mm) |
| Depth | 1.72 in. (44 mm) |
| Dimension‑Fascia plate (Half Width) | |
| Height | 1.74 in. (44 mm) |
| Width | 8.66 in. (220 mm) |
| Dimension‑Fascia plate (Quarter Width) | |
| Height | 1.74 in. (44 mm) |
| Width | 4.33 in. (110 mm) |
| Joining Plate | |
| Width | 1.96 in. (50 mm) |
| Depth | 1.185 in. (30 mm) |
| Environmental | |
| Temperature | 4° to 176° F (-15.5° to 80° C) |
| Humidity | 10% to 95% RH (non‑condensing) |
| Weight | |
| 1.10 lb (0.45 kg) | |
