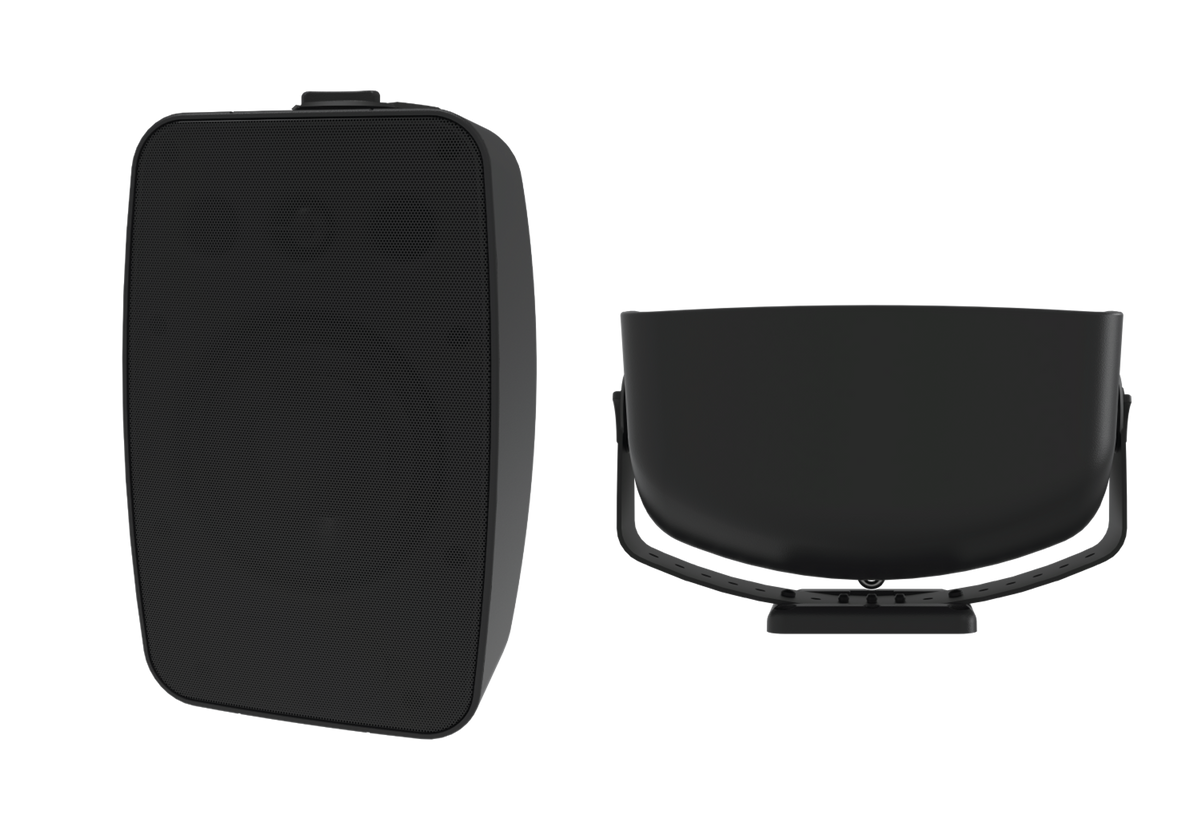

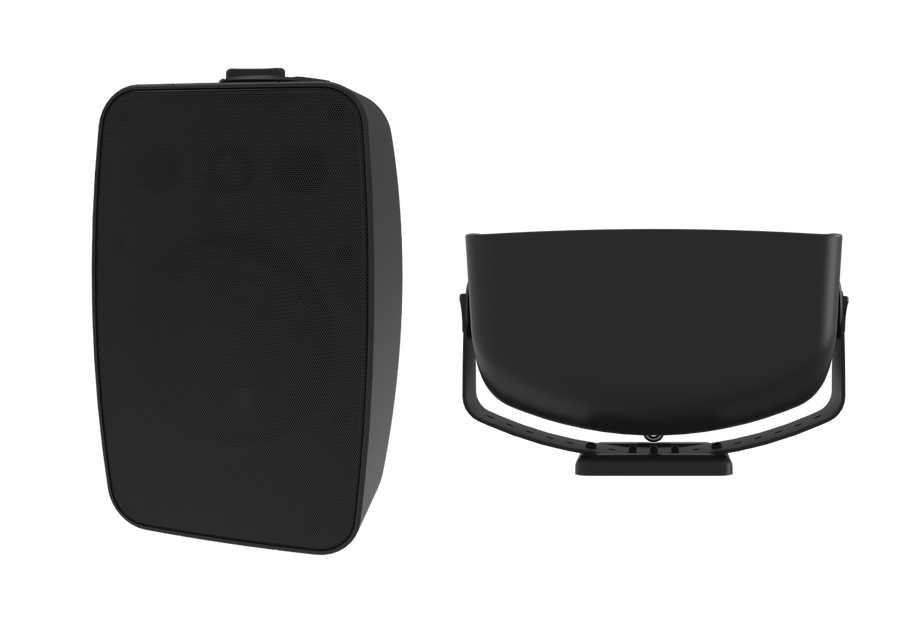

The Crestron SAROS SMT8T-AW-B-T-EACH speaker delivers professional grade performance and flexible installation.
Overview
Saros® speakers by Crestron deliver professional grade performance and flexible installation for demanding commercial or residential applications.
The SAROS SMT8T‑AW‑B‑T‑EACH is a surface-mountable, all-weather, 2-way speaker featuring an 8 in. (203 mm) IMPP woofer for deep, defined low end. A 1 in. (25 mm) ceramic-coated aluminum tweeter provides crisp highs with consistent coverage across a wide listening area. A built-in 80 Watt multi-tap transformer allows for use with 70 or 100 Volt distributed speaker systems. The power handling is an impressive 160 W (program) with a wide frequency response from 57 Hz to 20 kHz (±3 dB).
The SAROS SMT8T‑AW‑B‑T‑EACH features a clean and contoured enclosure with weatherized construction. It can be mounted to most solid flat surfaces using the included brackets. The speaker comes with a rectangular grille, and a preconstruction mounting kit (SPKA‑PMK‑SMT8T‑B‑T) is available as an accessory. The preconstruction mounting kit can be purchased prior to receiving the speaker to prepare an installation for speaker and cabling positioning. A safety tether kit (SPKA-ST-15) can also be purchased separately and installed to make the speaker compliant with the UL 2239 standard.
Features
Key Features
- High-performance 2-way surface mount speaker
- Designed for high reliability in both indoor and outdoor applications
- 8 in. (203 mm) Injection-Molded Polypropylene (IMPP) woofer
- 1 in. (25 mm) ceramic-coated aluminum tweeter
- IPX6 rated for water and weatherized construction
- UL 1480A safety rated speaker for commercial and professional use
- 160 W Program, 250 W Peak (8 Ω)
- Built-in 80 Watt 70/100V multi-tap transformer
- 57 Hz to 20 kHz (±3 dB) frequency response
- 8 Ω nominal impedance
- Mounting mechanism allows for pan or tilt
- Suitable for both Residential and Commercial applications
Specifications
| Features and Performance | |
| Woofer | 8 in. IMPP |
| Tweeter | 1 in. ceramic-coated aluminum |
| Crossover Point | 2 kHz |
| Impedance | 8 Ω nominal with tap transformer set to 8 Ω |
| Transformer Taps | 10 W, 20 W, 40 W, 80 W, 8 Ω |
| Frequency Response | 57 Hz-20 kHz +/-3 dB |
| Frequency Range | 42 Hz-20 kHz +/-10 dB |
| Power Handling | 160 W Program, 250 W Peak (8 Ω) |
| Sensitivity | 92 dB @1 m |
| Coverage | 115° conical (speech); 110° conical (music) |
| Connections | |
| Input | (1) 4-pin 5 mm detachable terminal block; Speaker input with parallel pass-through; 12 AWG maximum |
| Controls | |
| Transformer Tap | Front mounted, screwdriver-adjustable; Used to select 70/100 V tap or 8 Ω |
| Maximum Wire Size | 12 AWG |
| Environmental | |
| Temperature | 4° to 176° F (-15.5° to 80° C) |
| Humidity | 10% to 95% RH (non‑condensing) |
| Splash Resistance | IPX6 |
| Construction | |
| Enclosure | PP+Fiber loaded, fire retardant UL rated. |
| Baffle | PP+Fiber loaded, fire retardant UL rated. |
| Grille | Powder coated perforated aluminum. |
| Mounting | Die Cast AL wall mount to fit 1 gang box, pole clamp capable, safety tether, adjustable yoke. |
| Positioning | |
| Pitch (Vertical) | ±18° |
| Yaw (Horizontal) | ±90° |
| Dimensions | |
| Height | 14.92 in. (379 mm) |
| Width | 9.42 in. (239 mm) |
| Depth | 9.64 in. (245 mm) |
| Weight | |
| Speaker | 14.12 lb (6.4 kg) |
| Compliance | |
|
Regulatory Model: UL 1480A, UL22391 (with added safety tether) |
|
