Replacement SFP+ transceiver modules for use with DMF and DMCF series DigitalMedia SFP+ 4K Fiber transmitters and receivers.
Overview

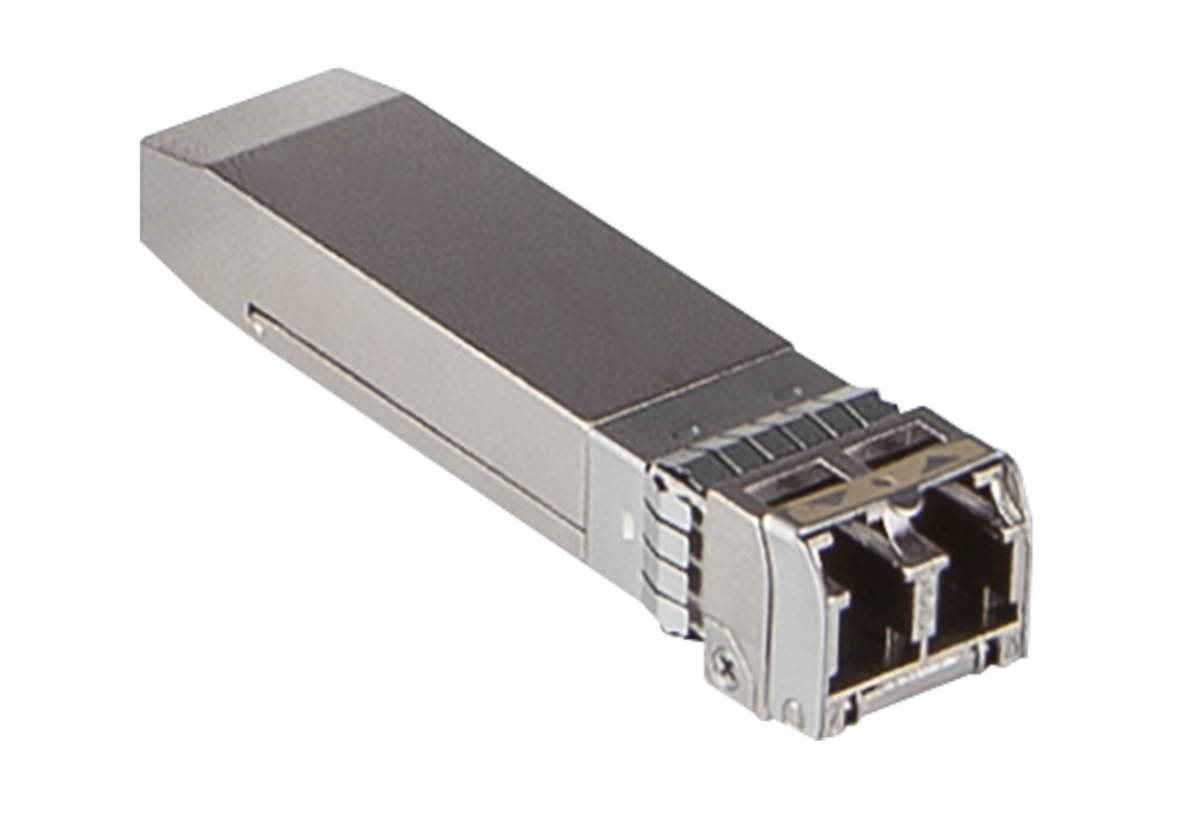

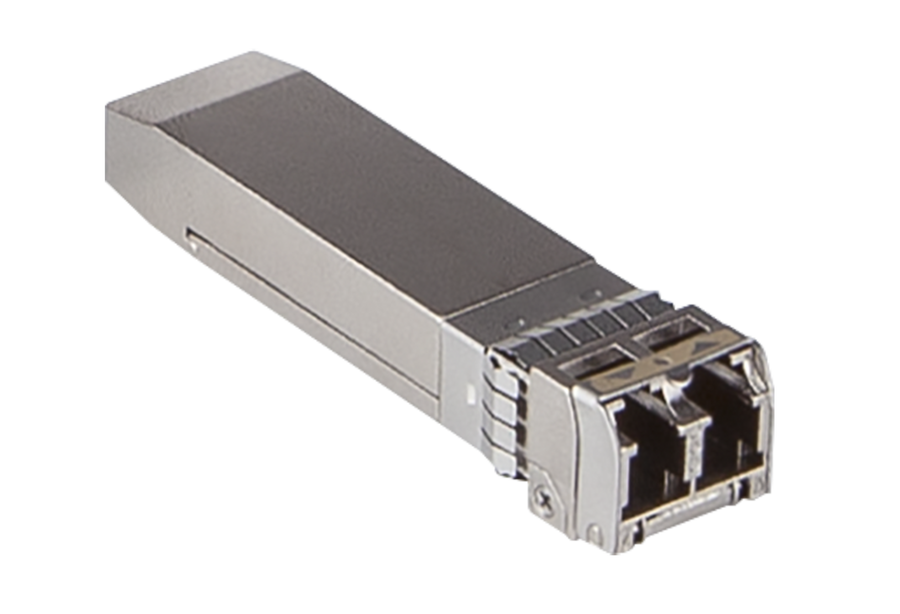

Crestron® SFP-10G series SFP+ Transceiver Modules are designed for use with DMF Series DigitalMedia™ SFP+ 4K Fiber Transmitters and Receivers and DMCF Series DigitalMedia SFP+ 4K Fiber Transmitter and Receiver Cards. A choice of modules is offered to support multimode or single-mode fiber types.
SFP-10G transceiver modules are normally sold as part of a packaged kit containing one SFP+ transceiver module and one DMF or DMCF device. They are also available individually to allow for replacement in the field. Refer to each DMF and DMCF product spec sheet for additional details.
| Color Code |
Model | Fiber Type | Connector Type |
Maximum Cable Length |
|---|---|---|---|---|
|
Beige |
SFP-10G-SR |
Multimode, duplex, |
Dual LC |
1000 ft (300 m) |
|
Blue |
SFP-10G-BX-U |
Single-mode, simplex, |
Single LC |
6.2 miles (10 km) |
|
Purple |
SFP-10G-BX-D |
Single-mode, simplex, |
Single LC |
6.2 miles (10 km) |
|
Cyan |
SFP-10G-S-U |
CresFiber® 8G Multimode, simplex |
Single SC |
650 ft (200 m) |
|
Brown |
SFP-10G-S-D |
CresFiber 8G Multimode, simplex |
Single SC |
650 ft (200 m) |
Note: The -U suffix denotes an uplink transceiver and the -D suffix denotes a downlink transceiver. An uplink transceiver is typically installed at the transmitter and a downlink transceiver is installed at the receiver, although the inverse will work as well. However, it is not possible to connect an uplink to another uplink, or a downlink to another downlink.
Note: The maximum cable length for single-mode fiber is measured using ITU-T G.652.D fiber optic cable, Crestron model CRESFIBER8G-SM-P or equivalent.
Features
Key Features
- For use with Crestron® DMF and DMCF series devices
- Supports a choice multimode or single-mode fiber types
- Supports cable lengths up to 1300 feet (400 meters) using OM4 MMF
- Supports cable lengths up to 6.2 miles (10 km) using G.652.D SMF
- Supports retrofit applications with existing CresFiber® 8G in place
- Hot-swappable to minimize downtime
