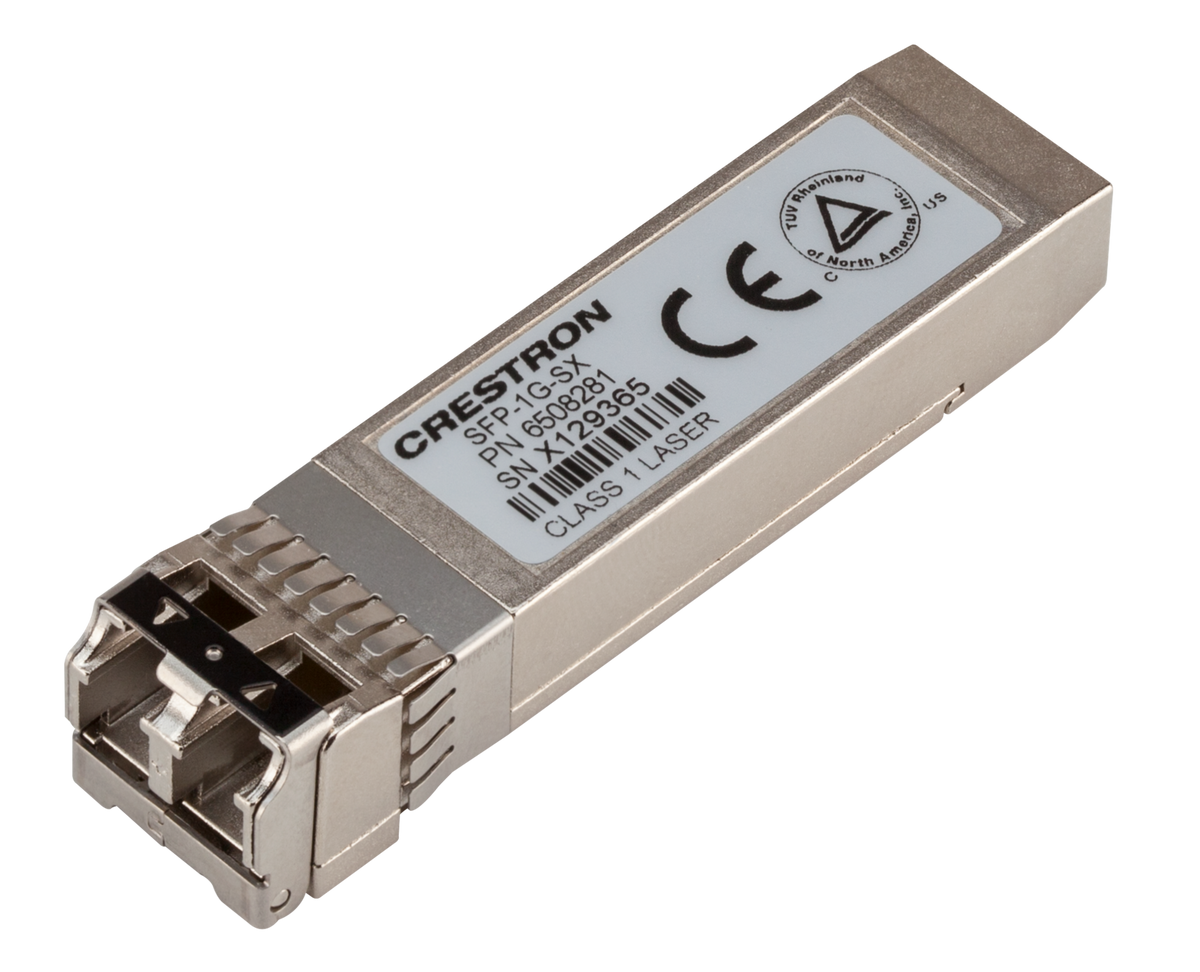

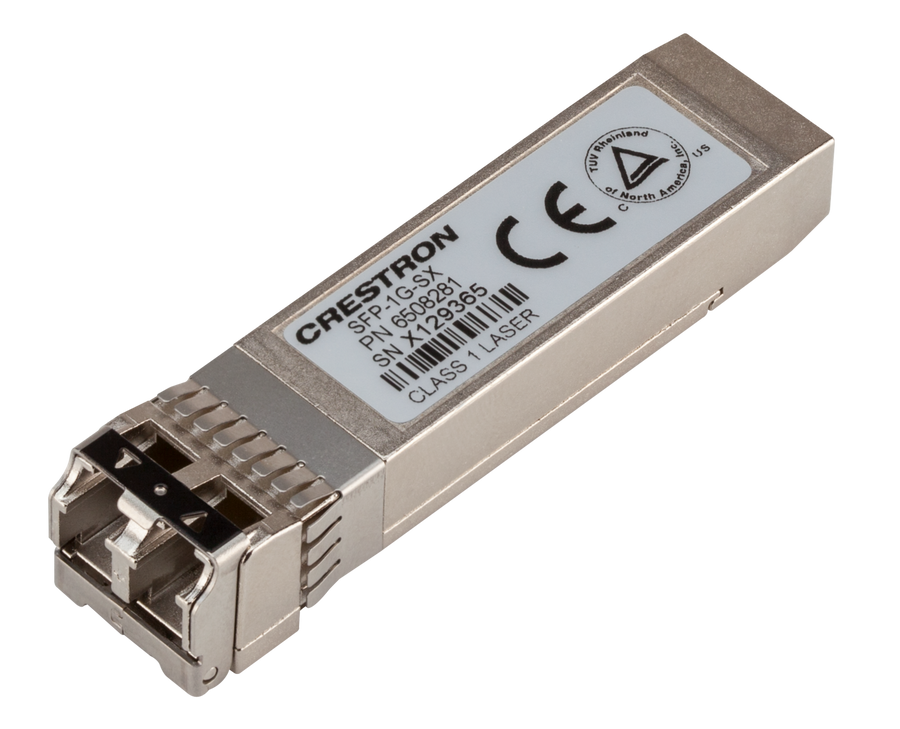

SFP Transceiver Module for DM-NVX Series, Duplex Multimode Fiber, 850 nm
Overview
Crestron® SFP-1G series SFP Transceiver Modules are designed for use with DigitalMedia™ NVX series network AV encoder/decoder boxes and cards. A selection of modules is offered to accommodate various multimode and single-mode fiber types.
| Model | Color Code |
IEEE Standard |
Interface Type |
Fiber Type |
Connector Type |
|---|---|---|---|---|---|
|
SFP-1G-SX |
Black |
802.3z |
1000BASE-SX |
MMF |
Dual LC |
|
SFP-1G-LX |
Blue |
802.3z |
1000BASE-LX10 |
SMF |
Dual LC |
|
SFP-1G-BX-U [1] |
Blue |
802.3ah |
1000BASE-BX10 |
SMF |
Single LC |
|
SFP-1G-BX-D [1] |
Purple |
802.3ah |
1000BASE-BX10 |
SMF |
Single LC |
| Model | Wavelength | Core Size |
Modal Bandwidth |
Supported Operating Distance |
|---|---|---|---|---|
|
SFP-1G-SX |
850 nm |
62.5 µm |
160 MHz km |
220 m (720 ft) |
|
62.5 µm |
200 MHz km (OM1) |
275 m (900 ft) |
||
|
50 µm |
400 MHz km |
500 m (1640 ft) |
||
|
50 µm |
500 MHz km or greater |
550 m (1800 ft) |
||
|
SFP-1G-LX |
1310 nm |
[3] |
n/a |
10 km (6.2 mi) |
|
SFP-1G-BX-U [1] |
1310 nm |
[3] |
n/a |
10 km (6.2 mi) |
|
SFP-1G-BX-D [1] |
1490 nm |
[3] |
n/a |
10 km (6.2 mi) |
Notes:
-
The -U suffix denotes an uplink transceiver and the -D suffix denotes a downlink transceiver. An uplink transceiver is typically installed at the DM-NVX device and a downlink transceiver is typically installed at the switch, although the inverse will work as well. It is not possible to connect an uplink to another uplink, or a downlink to another downlink.
-
Crestron strongly recommends OM3 or greater MMF for new installations.
-
Per ITU-T Rec. G.652.
Features
Key Features
- SFP transceiver modules for 1000BASE-X Gigabit Ethernet
- For use with Crestron® DigitalMedia™ NVX series devices
- Support for a variety of multimode and single-mode fiber types
- Hot-swappable to minimize downtime
