CTN SSC-102-EL-USB KIT Room Availability Hall Sign, Ceiling Mount with USB-C Adapter, Includes Custom Engraving

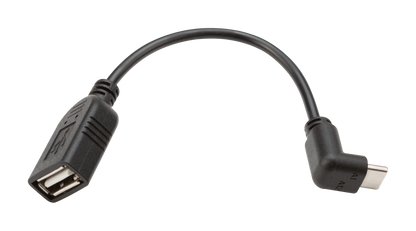

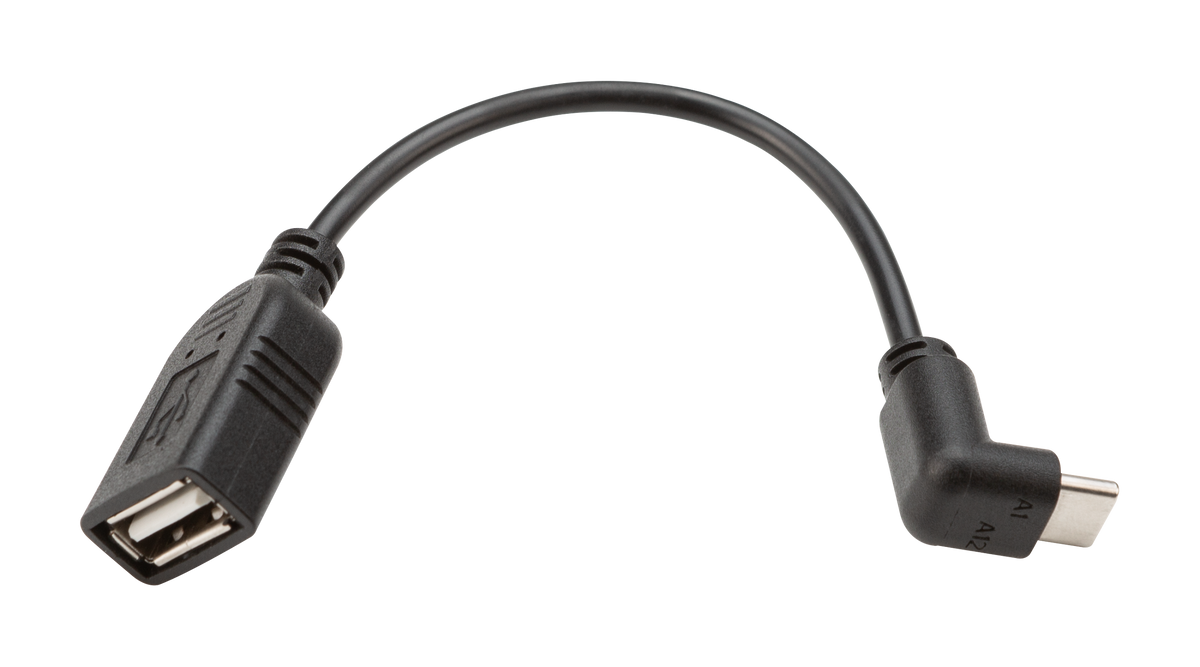

The SSC-102-EL-USB KIT includes the SSC-102-EL room availability hallway sign and the ADPT-USB-USB-RA USB‑C® to USB‑A adapter. Each adapter can be used to convert an existing room availability sign (SIW, SSW, or SSC series) from USB‑A to USB‑C for compatibility with TSW-80 touch screens.

Room Availability Status

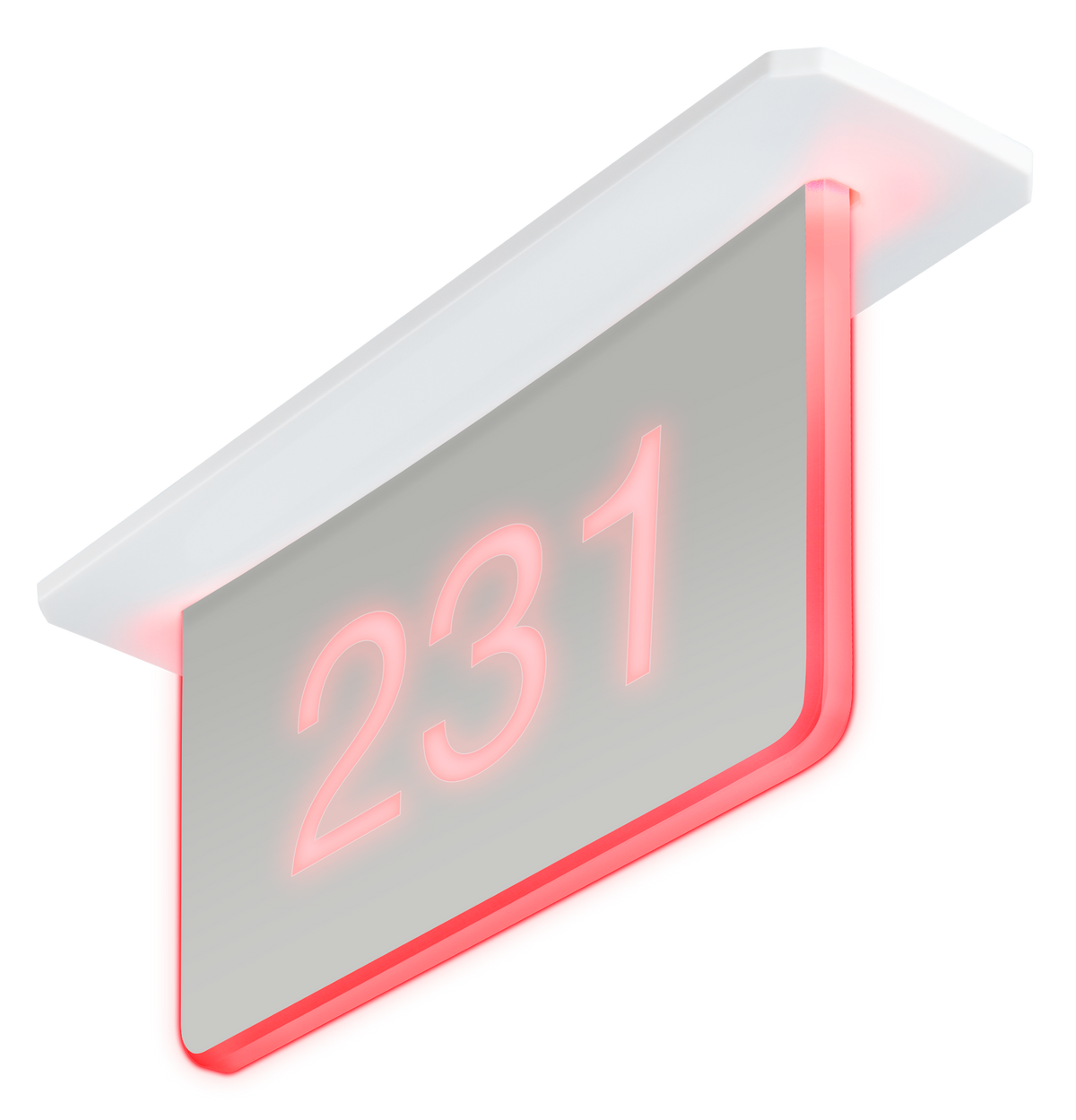

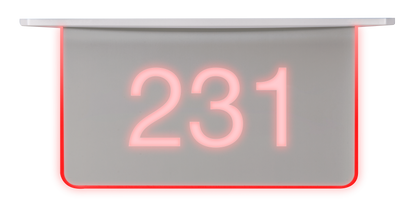

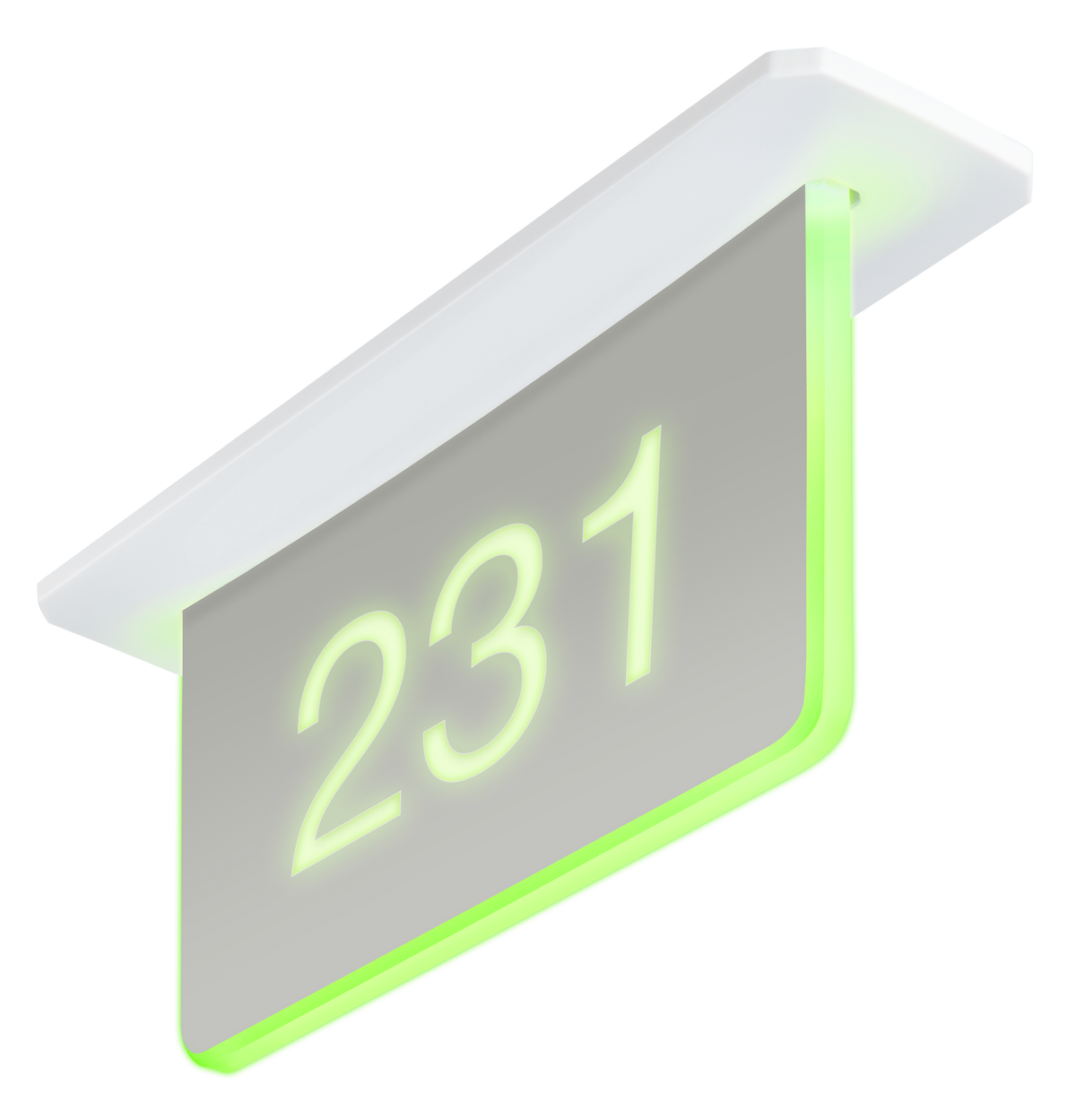

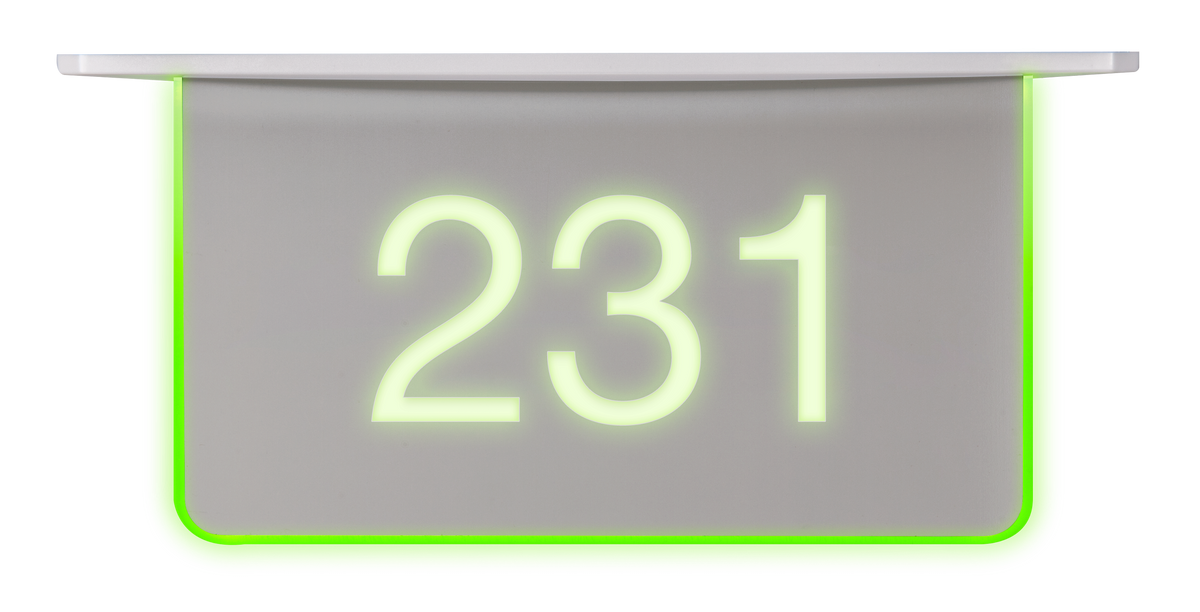

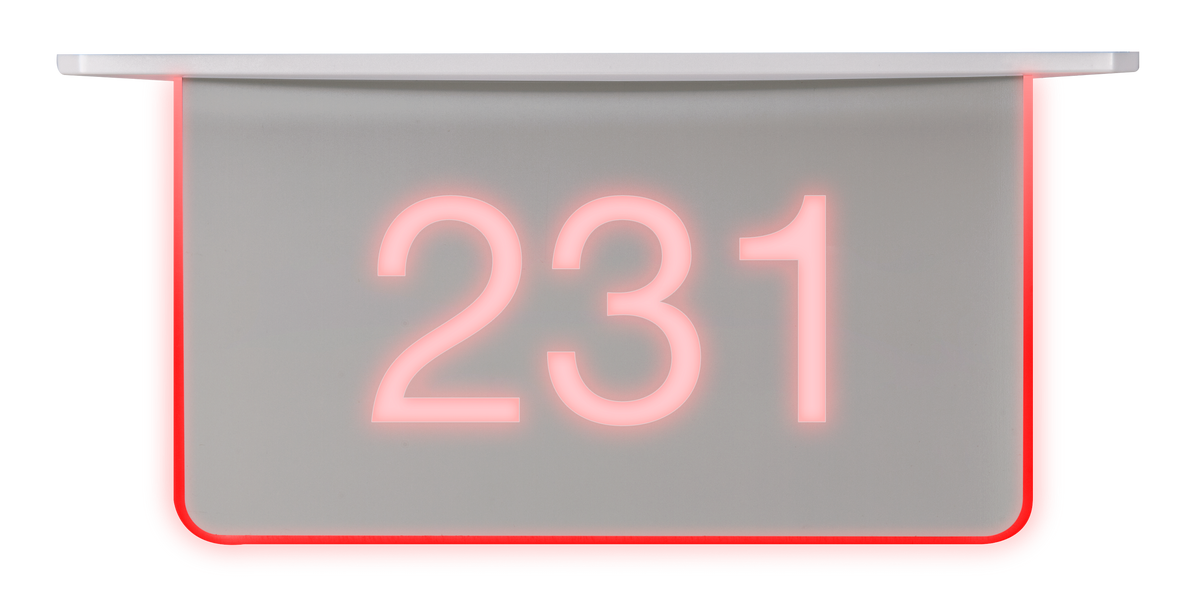

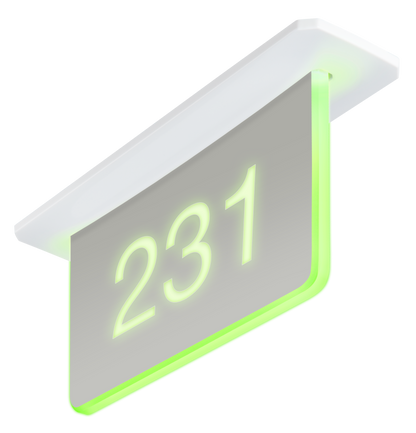

For room scheduling applications, the SSC‑102‑EL‑USB connects via USB to a Crestron TSW-70 or TSW-80 series touch screen. No special programming or configuration is required. The sign color is controlled by the room scheduling application, which runs on the touch screen and syncs with Crestron Fusion® software or another room scheduling service. The sign illuminates green when the room is available and red when the room is occupied.

Custom RBG Colors
For custom applications, the SSC‑102‑EL‑USB can be integrated with a Crestron control system and programmed to illuminate in a variety of colors:

• The RGB LEDs can be controlled in 10% increments per color.
• When the sign is powered by USB, any single color LED can be used at full brightness.
• When the sign is connected to a control system via a Cresnet® network connection, two color LEDs can be used at full brightness simultaneously.
• Three color mixing is possible via Cresnet if each LED is limited to 70%.
• The control system can be programmed to support all types of functionality, enabling colors to alternate, fade in and out, or blink on and off.

Control system integration can be accomplished through a USB connection to a TSW-70 or TSW-80 series touch screen, or through a Cresnet connection to the control system. Connection to an 80 series touch screen requires an ADPT‑USB‑USB‑RA (included).

Simple Installation

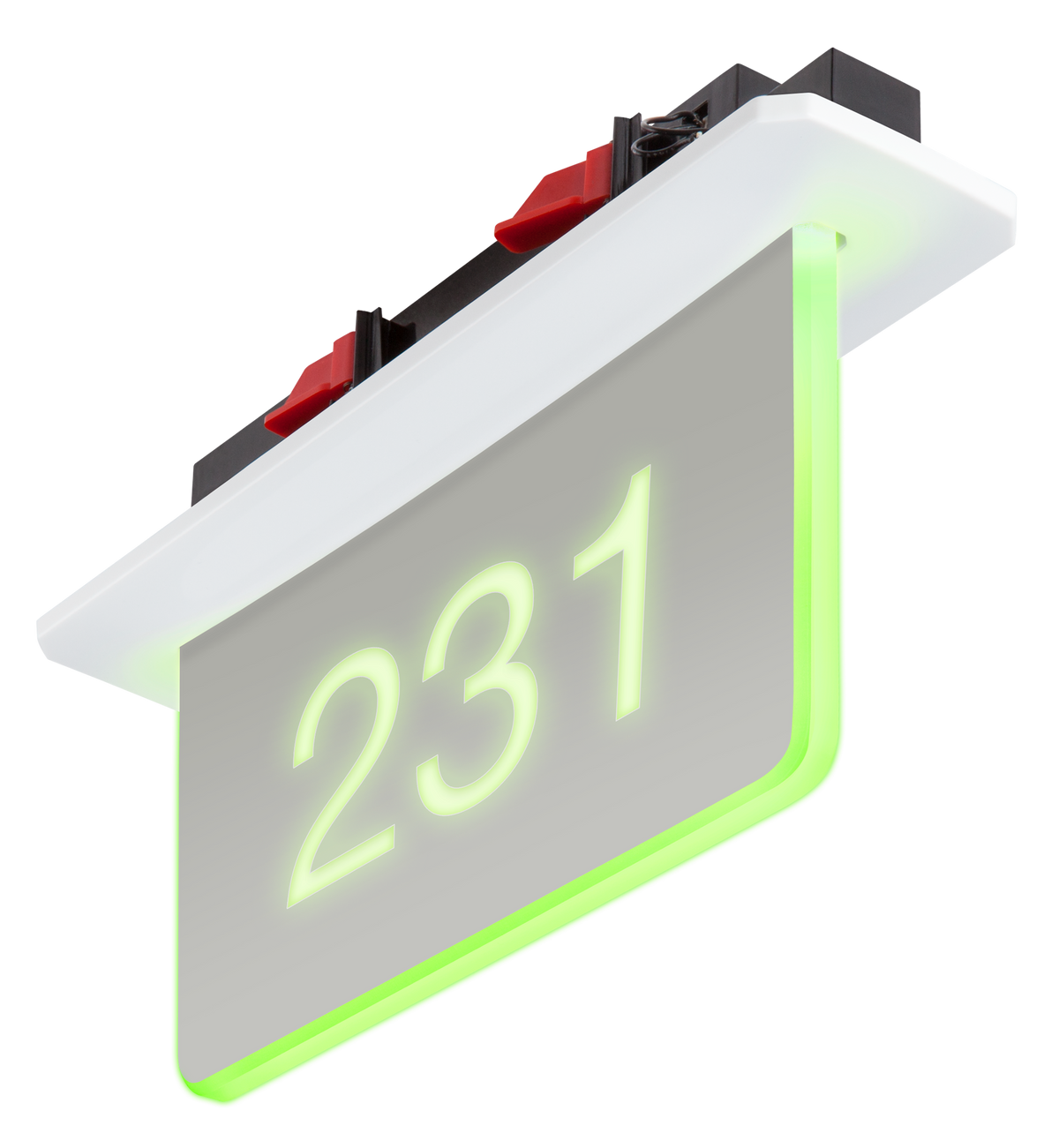

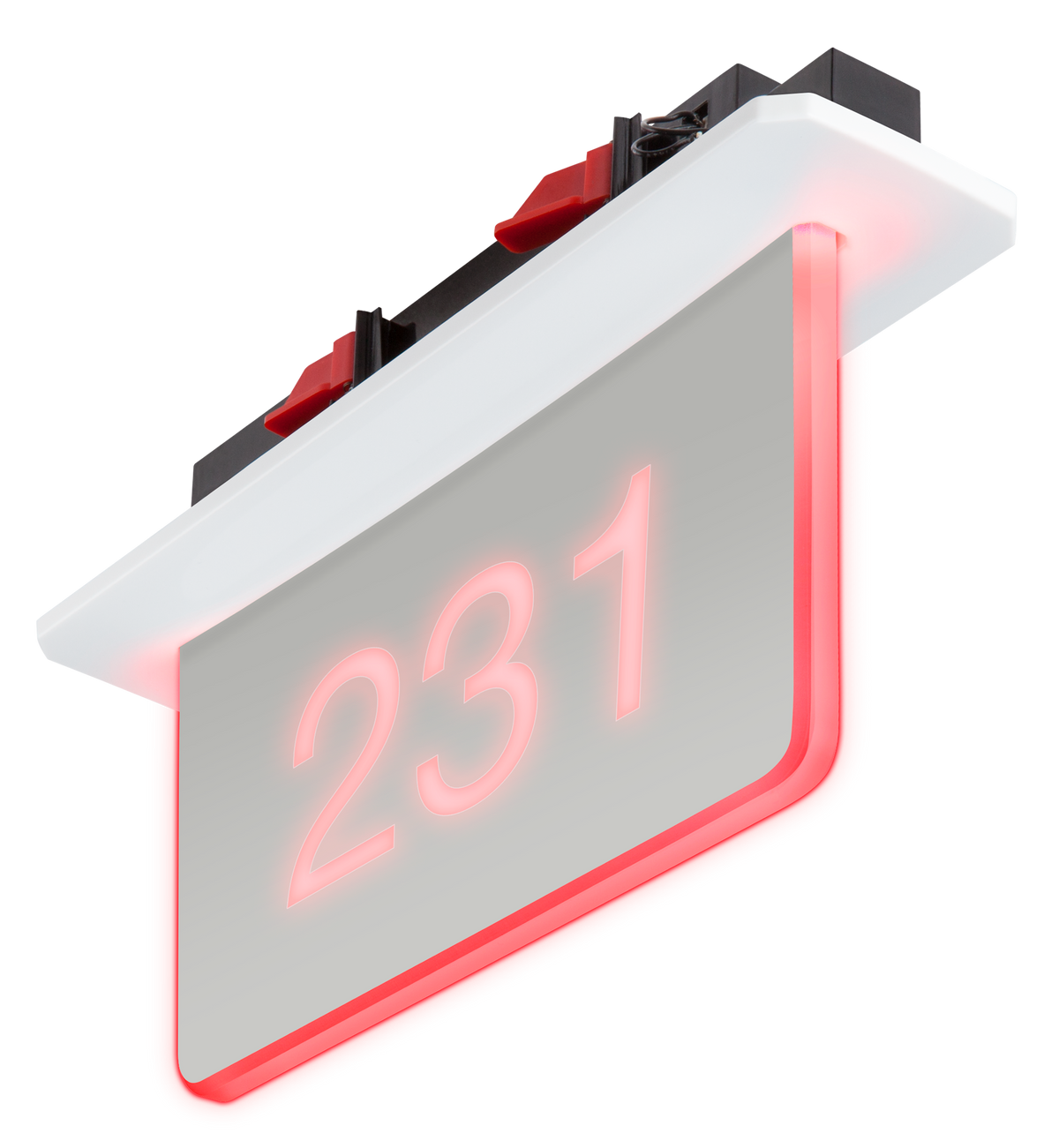

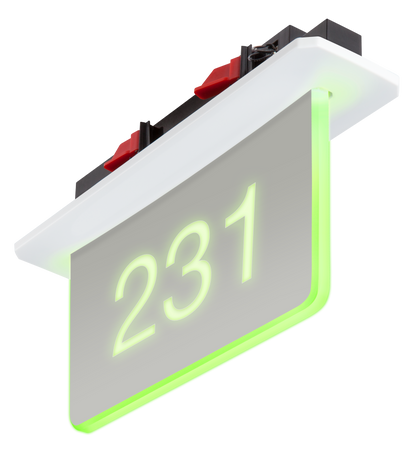

The SSC‑102‑EL‑USB mounts into a drywall or drop-tile ceiling through a 2.0 in. x 10.4 in. (51 mm x 264 mm) cutout using four swiveling dogs that are integrated into the unit. Power and communications are supplied by a single plenum‑rated USB or Cresnet cable. A 6 ft (1.83 m) USB cable is included, which connects to the touch screen mounted below the sign. Alternately, a Cresnet cable (sold separately) can be run to a control system up to 3,000 ft (914 m) away. Cresnet permits multiple hallway signs to be daisy chained using a single cable.

Custom Engraving

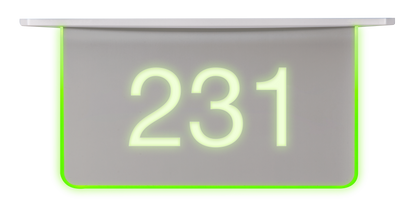

The SSC‑102‑EL‑USB includes an acrylic sign that supports custom engraving. The engraving appears on both sides of the acrylic sign face to identify the room by name, number, or a representative icon image. When illuminated, the engraving is clearly visible at a distance of 150 ft (46 m) if 1 in. fonts are used. Engraving can be changed at any time by purchasing a replacement sign face (models SSC‑ACR‑100‑EL or SSC‑ACR‑102‑EL). The SSC‑102‑EL‑USB supports engravings generated by Impress Custom Engraving Software or a third party.
