Provides a permanent tabletop mounting solution for TS‑770 and TS‑1070 series touch screens. Allows up to 330 degree swivel rotation.
Overview

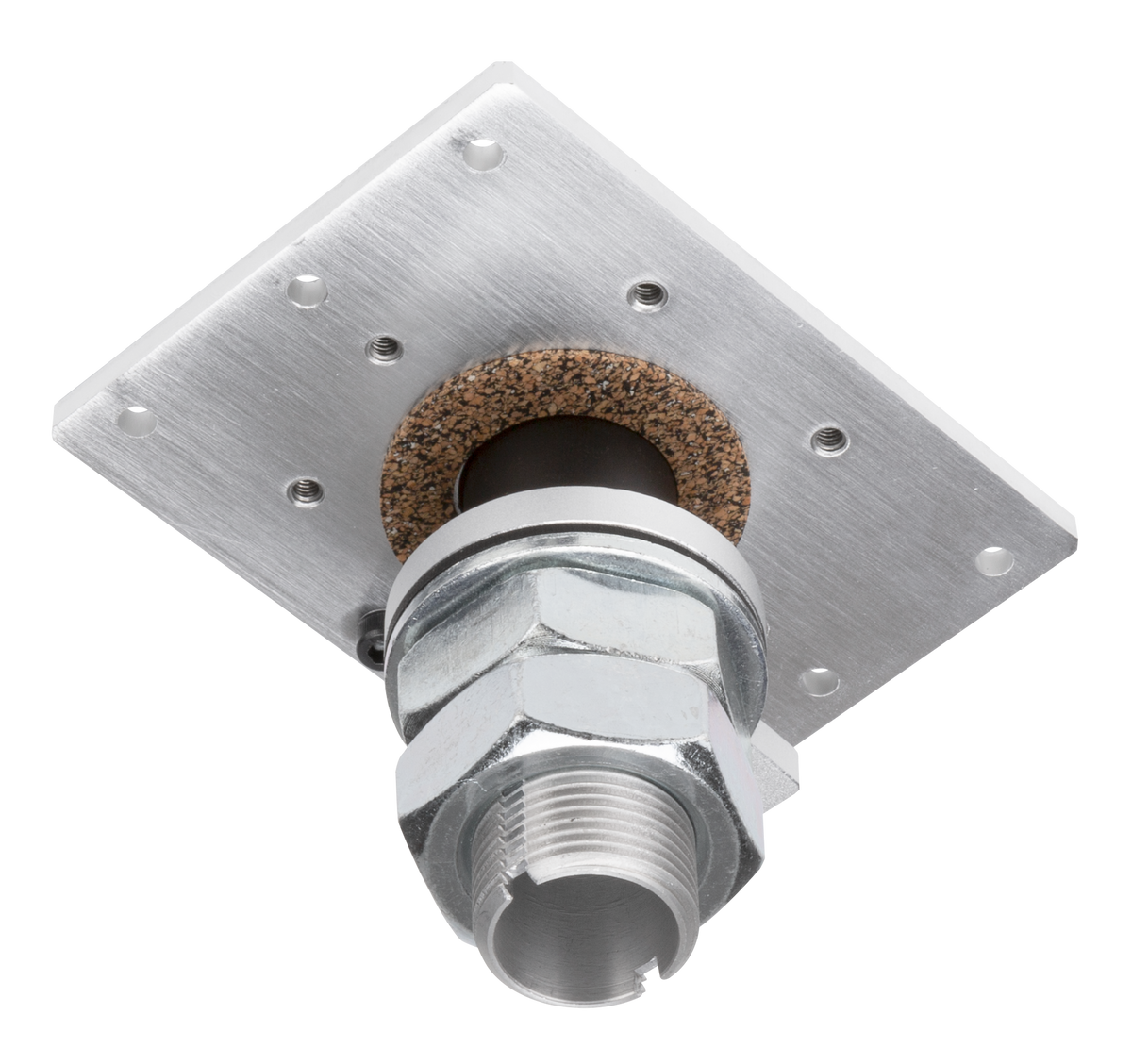

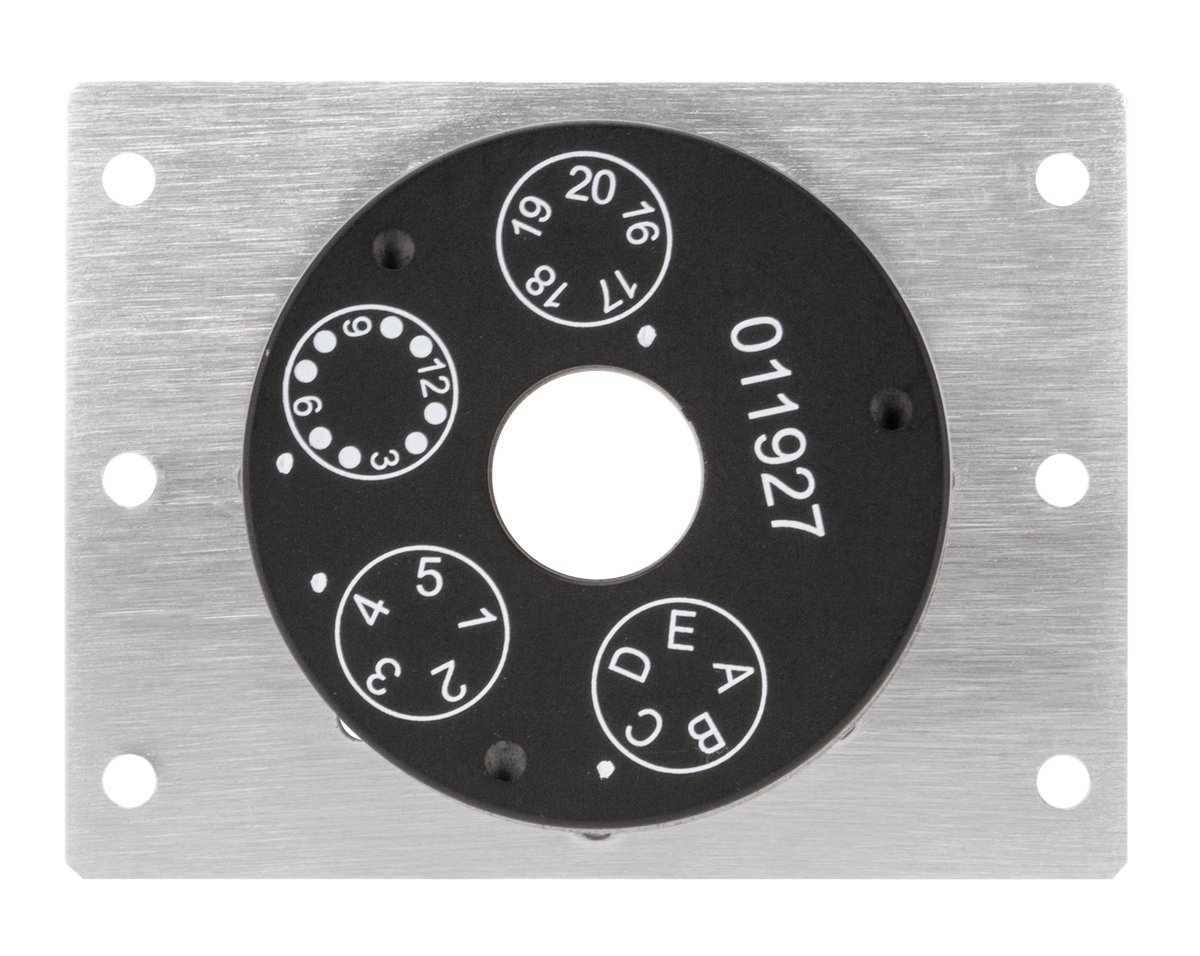

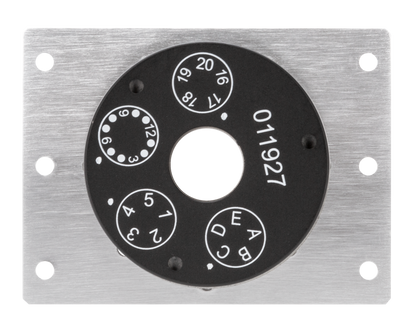

The Crestron® TS‑770/1070‑SMK is a low‑profile swivel mount accessory for TS-770 and TS-1070 series tabletop touch screens. The TS‑770/1070‑SMK provides a means for permanently mounting the touch screen to a tabletop surface while retaining the ability to rotate it for optimal positioning. The swivel range can be customized using optional limiting screws, with a maximum 330‑degree rotation permitted.
The swivel mount may be installed on any flat, level surface with a thickness of 1 in. (25 mm) minimum to 1-3/8 in. (35 mm) maximum. Cables are routed through the center of the swivel mount, passing beneath the mounting surface for a completely hidden appearance.
Features
Specifications
| Construction | |
| Material | Metal swivel tube and swivel stop plate |
| Mounting | Installs into 1-1/16 in. (27 mm) cutout hole in table using included template; 1 in. (25 mm) minimum surface thickness; 1-3/8 in. (34 mm) maximum surface thickness |
| Dimensions | |
| Height | 3.34 in. (85 mm) |
| Width | 4.00 in. (102 mm) |
| Depth | 3.00 in. (76 mm) |
| NOTE: Dimensions shown are for the fully assembled mounting hardware excluding the touch screen. | |
