A Full HD capacitive touch screen display that can be used with the DGE-100 or DM-DGE-200-C digital graphic engines to provide a powerful touch screen control solution.
Overview

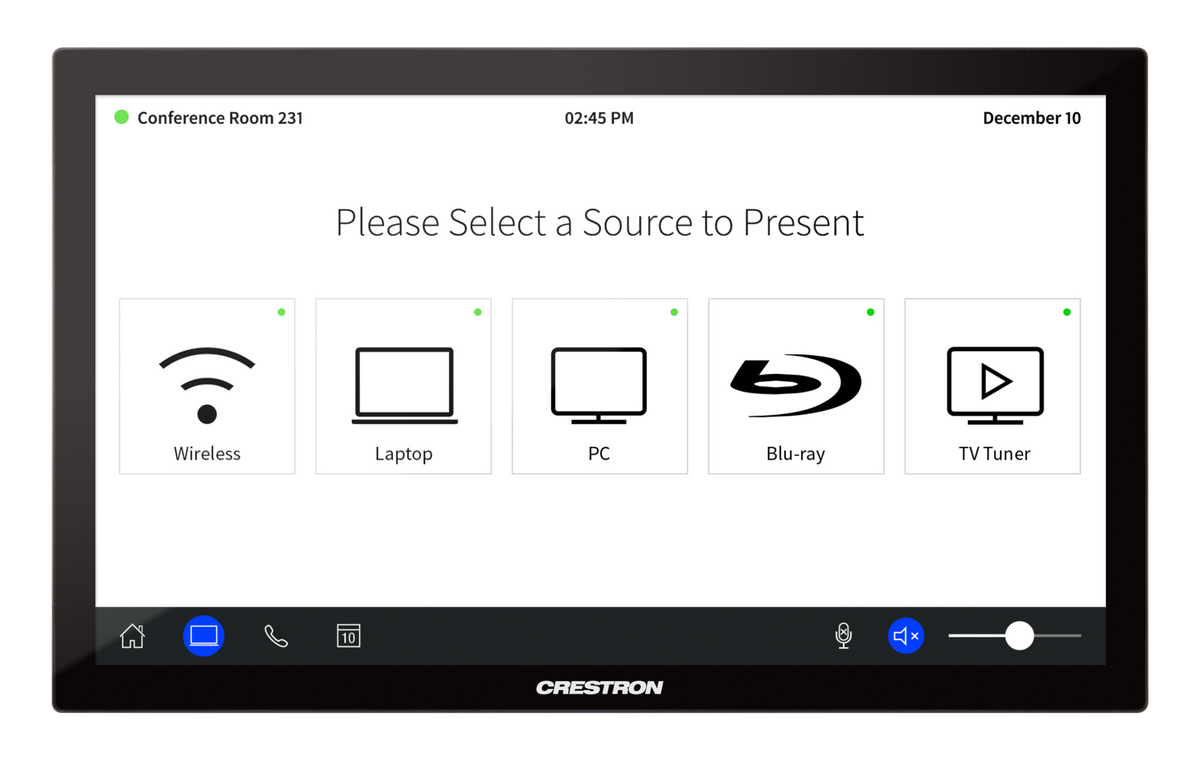

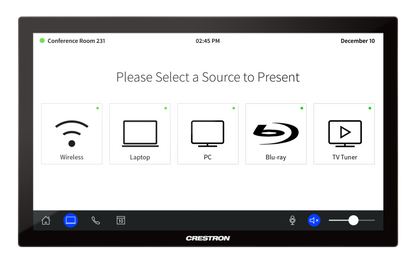

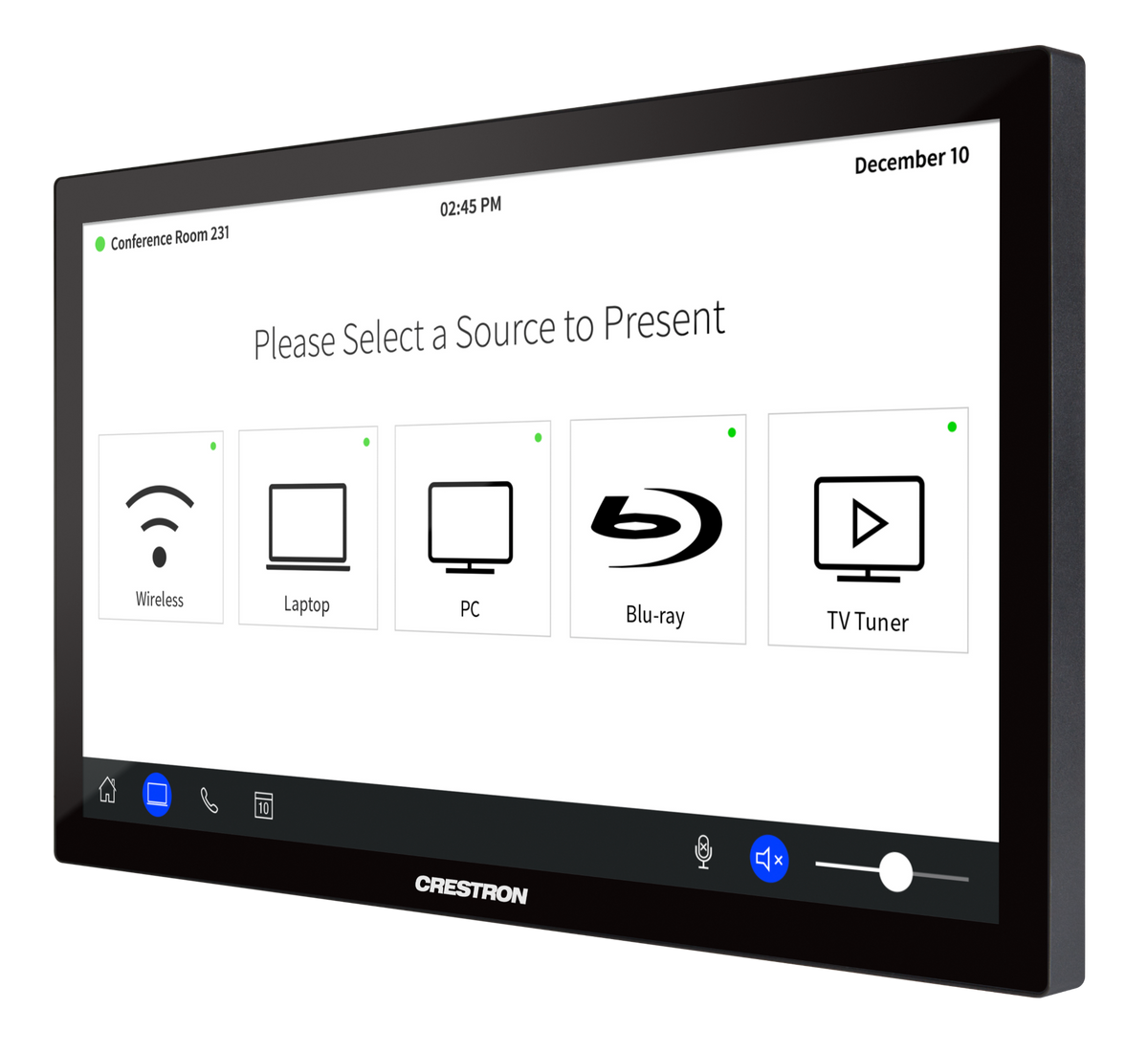

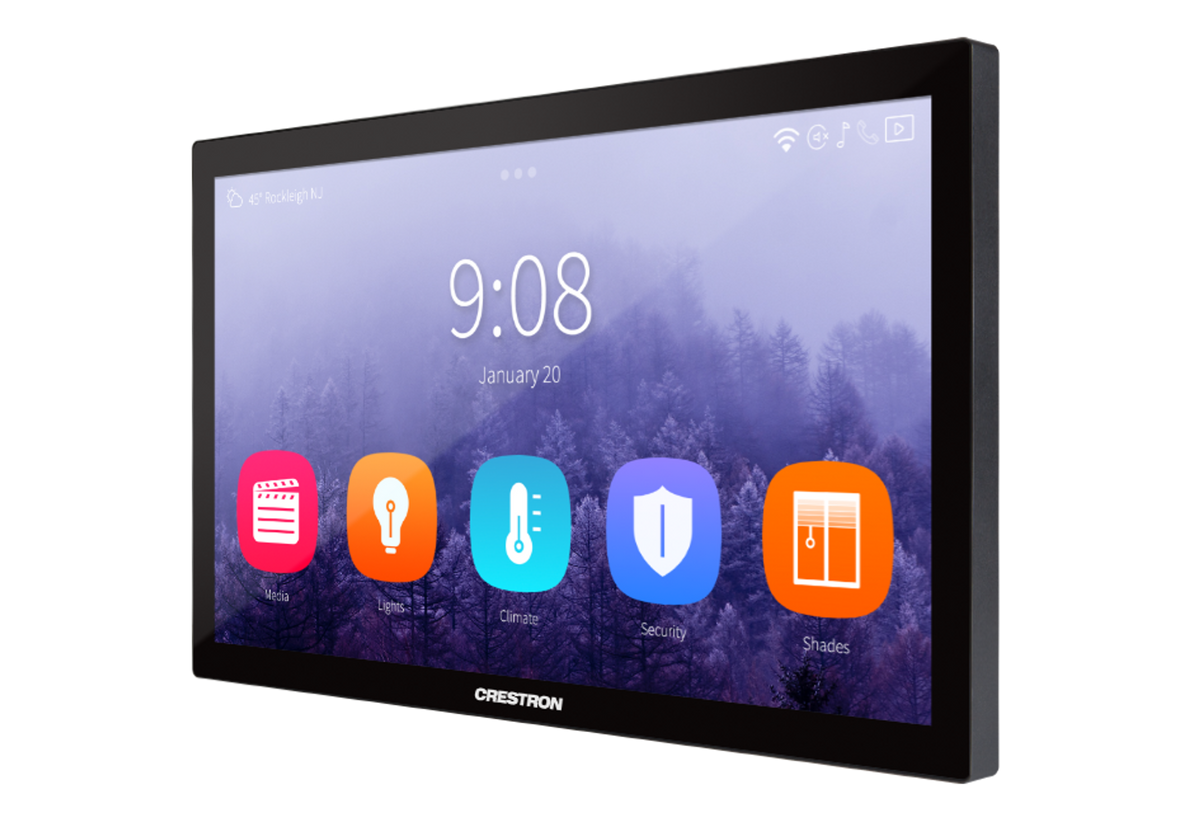

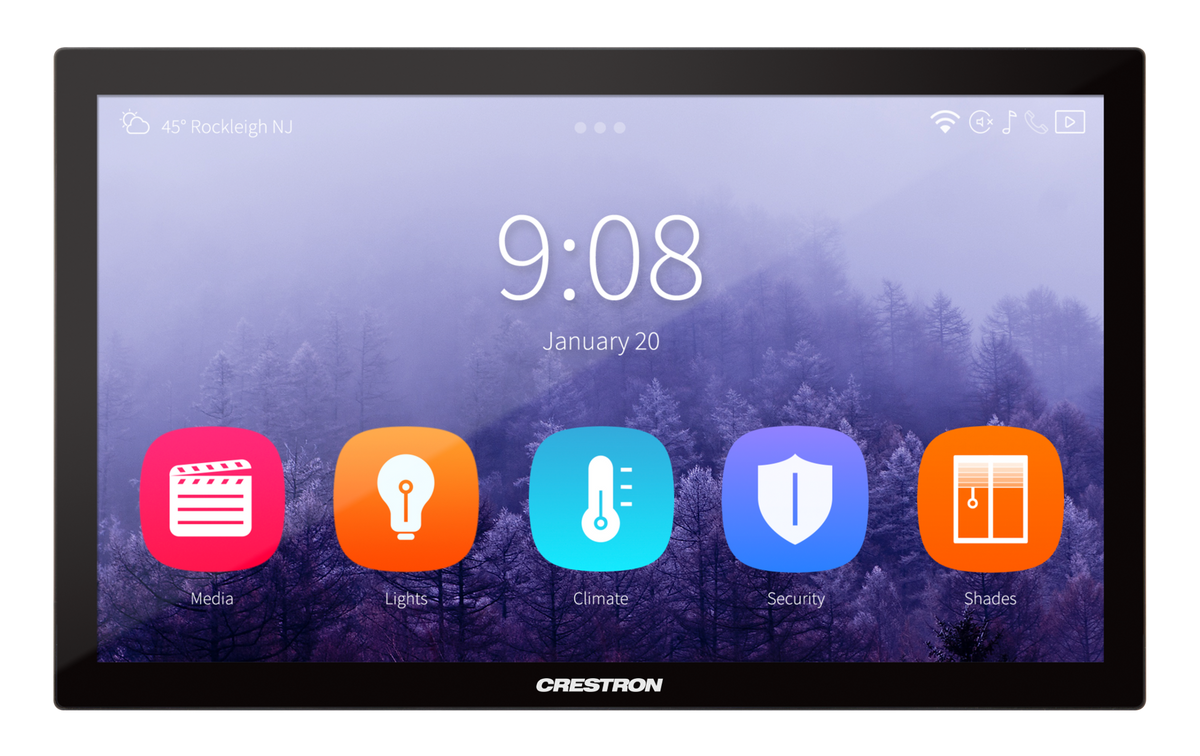

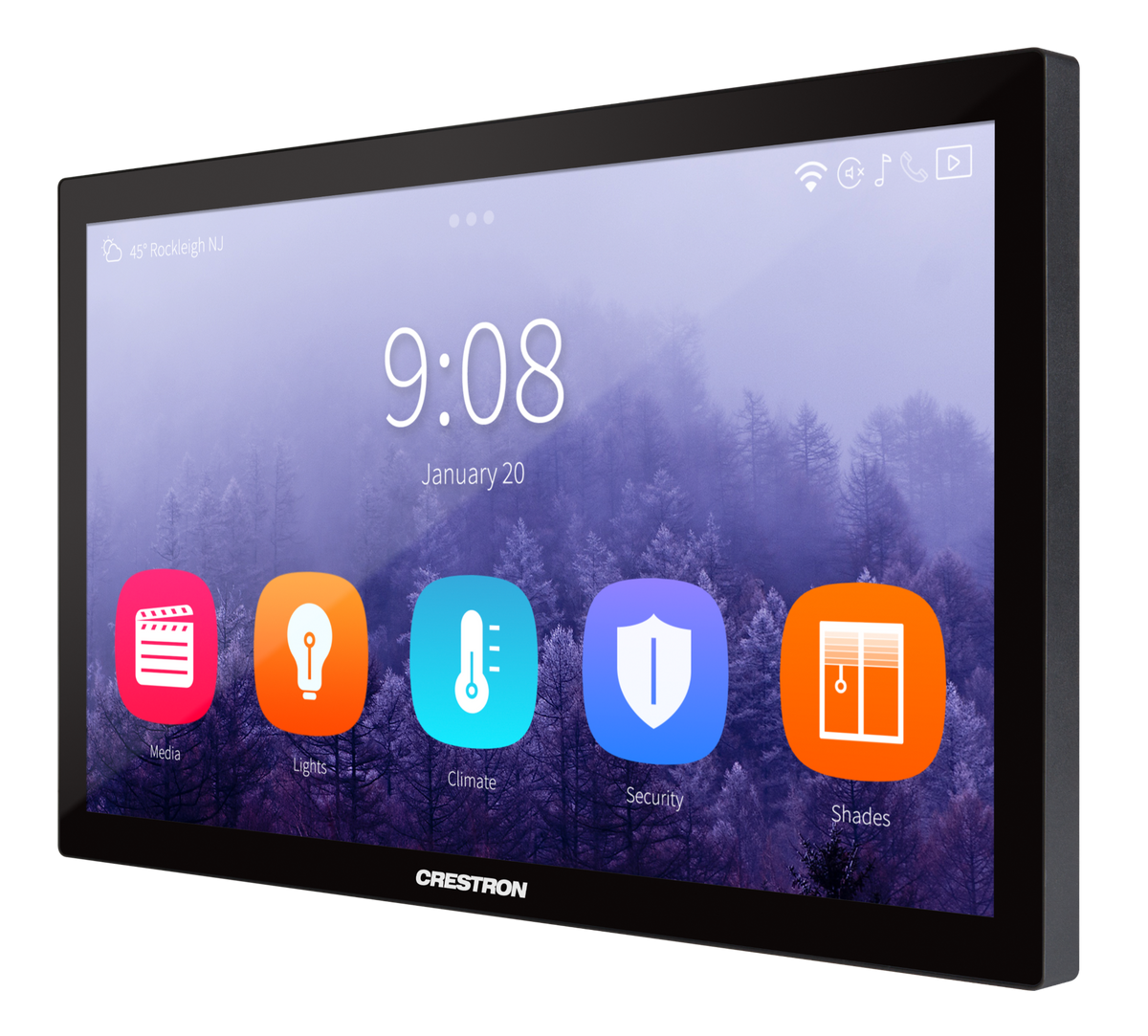

The TSD-2220 is a 21.5 in. (546 mm) Full HD capacitive touch screen display that can be used with the Crestron® DGE‑1000 or DM‑DGE‑200‑C digital graphic engines (both sold separately) to provide a powerful touch screen control solution. It supports input resolutions up to 4K60 UHD (3840 x 2160 @ 60 Hz) via a single HDMI® input. It can be installed using a variety of VESA compliant mounting accessories, including wall‑mount brackets, desk stands, and articulating arms. The TSD-2220 is compatible with VESA 100 x 100 mm and VESA 200 x 100 mm mounts (not included).
High-Definition Touch Display
The TSD-2220 offers a high-definition 21.5 in. widescreen touch display with a full HD 1920 x 1080 display resolution. The display offers ultrawide 178° viewing angles.
Advanced Touch Screen Control
The TSD-2220 offers a sleek and powerful user interface for controlling technology in a home, boardroom, classroom, or command center. The touch screen provides an intuitive interface that is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status display.
CEC Embedded Device Control
For controlling third-party AV devices, DigitalMedia™ technology offers an alternative to conventional IR, RS 232, and Ethernet by harnessing the Consumer Electronics Control (CEC) signal embedded in HDMI.
HDMI Input
An HDMI input is provided for connecting and displaying an HD video source. Wireless presentation is also supported by connecting an AirMedia® gateway to the HDMI input, allowing for laptops and mobile devices to connect to the DGE 100 over Wi Fi® communications.2
HDCP Support
The TSD-2220 is High bandwidth Digital Content Protection (HDCP) 2.2 compliant. HDCP support ensures seamless compatibility with content protected optical disc, television, and streaming sources.
Built-in Speakers
The TSD-2220 comes with rear-facing amplified speakers for audio streaming and feedback.
Third-Party Mounting Solution
The TSD-2220 is compatible with Wall-Smart® retrofit mount products via a partnership with Crestron.
Features
Key Features
- High-Definition 21.5 in. widescreen touch display with full HD 1920 x 1080 display resolution
- Built-in 4K UHD downscaling
- HDCP 2.2 compliant
- Multitouch capacitive touch screen
- Ultrawide 178° viewing angles
- Built-in stereo speakers
- Slim, rugged design
- IP65 dust proof and water resistant
- Rear connector cover
- VESA 100 x 100 or 200 x 100 mountable
- CEC-controllable power, volume, and brightness
- Designed for use with a DGE 100 or DM DGE 200 C Digital Graphics Engine
- 100–240V universal power pack included
- Third-party flush wall mount kit available
Specifications
| Touch Screen Display | |
| Display Type | TFT active matrix color LCD |
| Size | 21.5 in. (546 mm) diagonal |
| Aspect Ratio | 16:9 Full HD |
| Resolution | 1920 x 1080 pixels |
| Brightness | 225 Nit (225 cd/m²) |
| Contrast | 1000:1 |
| Response Time | 14 ms |
| Color Depth | 24-bit, 16.7M colors |
| Illumination | WLED backlit |
| Viewing Angle | ±89° horizontal, ±89° vertical |
| Touch Screen | Projected capacitive, 10-point multitouch capable |
| Buttons and Indicators | |

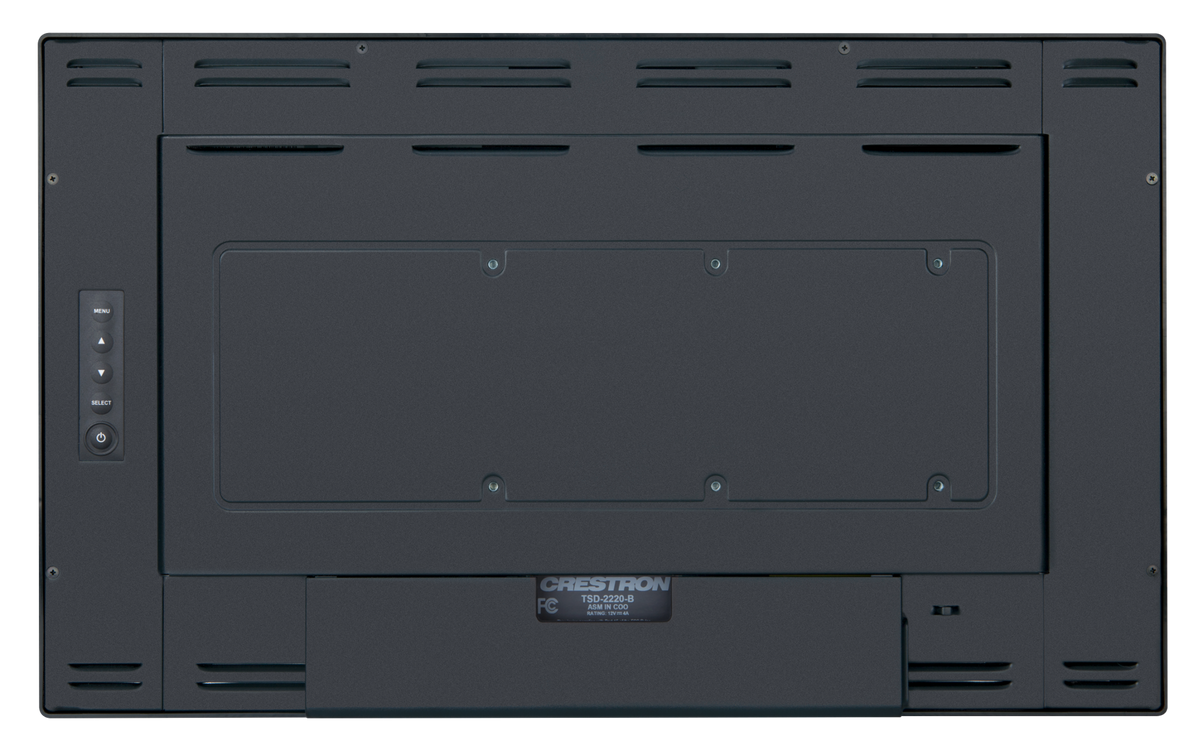

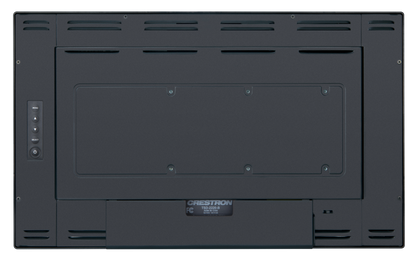

| Power/Menu (rear) | (5) Push buttons for power and setup |
| Power (rear behind cover) | (1) LED, indicates operating power supplied via the power pack |
| Communications | |
| USB | USB Human Interface Device (USB HID) |
| Video | |
| Input Signal Types | HDMI® signal |
| Input Resolutions | 3840 x 2160 @ 60 Hz maximum |
| Audio | |
| Input Signal Types | HDMI |
| Speakers | Built-in rear-facing stereo amplified speakers |
| Connectors | |
| HDMI | (1) 19-pin Type A HDMI female; HDMI digital video/audio input; DVI compatible1 |
| USB | (1) USB type B, female; USB device port; 6 ft (1.83 m) cable included |
| 12VDC | (1) DC power connector; 12VDC power input, power pack included |
| Power | |
| Power Pack (included) | Output: 4.16A @ 12VDC; Input: 100–240VAC, 50/60 Hz |
| Power Consumption | 27 W typical; 2 W standby (display backlight off) |
| NOTE: If power is lost while the TSD-2220 is powered on, it will automatically return to the powered on state when power is restored. | |
| Environmental | |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 20% to 80% RH (noncondensing) |
| Heat Dissipation | 93 BTU/hr |
| Construction | |
| Plastic case, IEC IP65 rated, VESA 100 x 100 or 200 x 100 mm mountable (M4 screw size) | |
| Dimensions | |
| Height | 12.34 in. (313 mm) |
| Width | 20.37 in. (517 mm) |
| Depth | 1.81 in. (46 mm) |
| Weight | |
| 9.7 lb (4.4 kg) | |
| Compliance | |
|
Regulatory Model: TSD-2220 To search for product certificates, refer to support.crestron.com/app/certificates. |
|
