Product Information

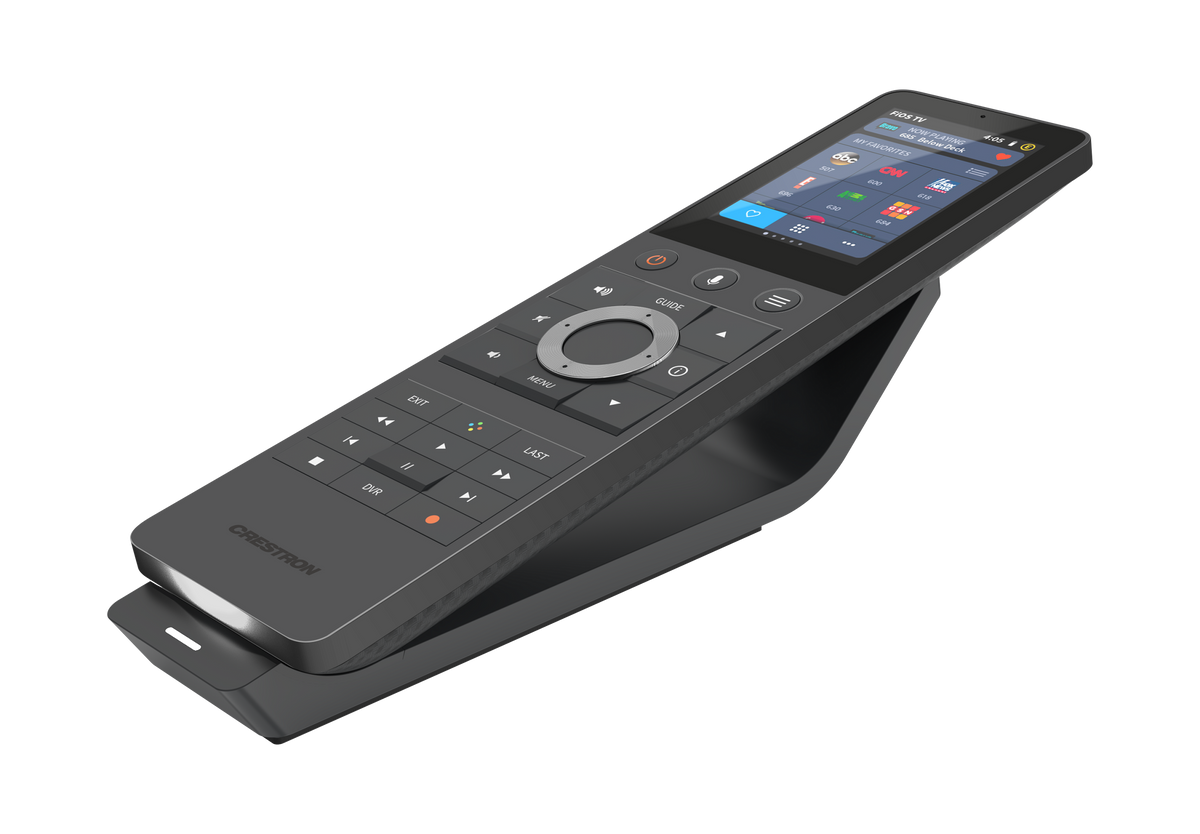

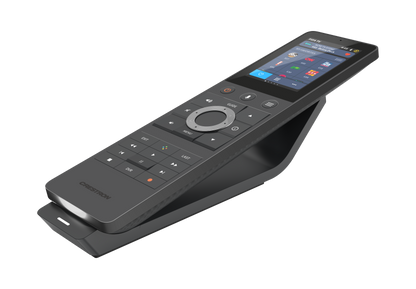

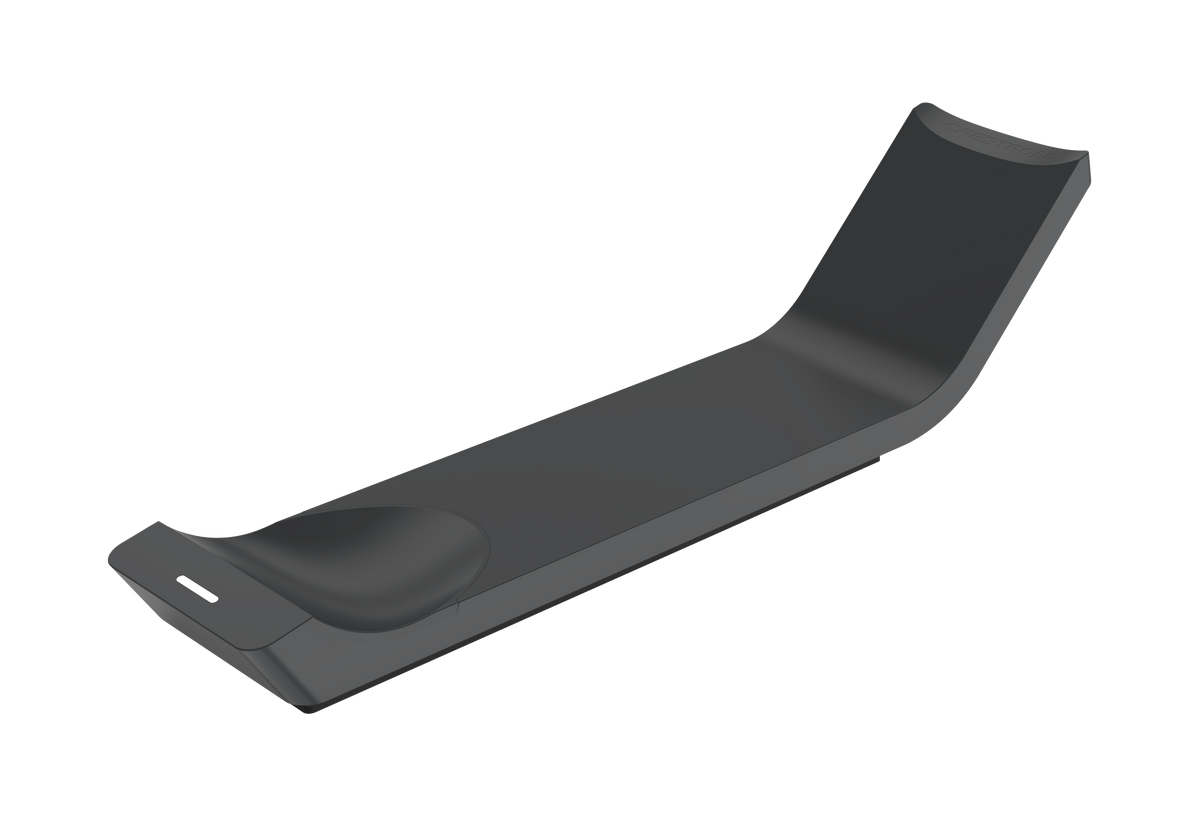

The TSR-310-DS-H is a horizontal table dock designed for charging a single Crestron TSR-310 Handheld Touch Screen Remote.
Overview
The TSR-310-DS-H is a horizontal table dock designed for charging a single Crestron TSR-310 Handheld Touch Screen Remote.
The TSR-310-DS-H is available in black or white.
Features
Key Features
- Charges the TSR-310 Handheld Touch Screen Remote
- Available in black or white
- Simple, elegant styling
- Allows full use of the remote while docked
- White LED power indicator
Specifications
| Connectors | |
| Power | (1) USB-C connector (black 59 in (1500 mm) USB-C cable included) |
| Indicators | |
| Power | (1) White LED, indicates dock is powered on |
| Power | |
| USB-C or USB BC 1.2 |
A power supply meeting the USB Type-C 1.2 or USB BC 1.2 standard is required and not included. USB Type-C 1.2 has a maximum power of 7.5 W and a maximum current of 1.5A @ 5VDC. USB BC 1.2 has a maximum power of 15 W and a maximum current of 3A @ 5VDC. |
| Environmental | |
| Temperature | 32° to 104°F (0° to 40°C); 50° to 104°F (10° to 40°C) while charging |
| Humidity | 10% to 90% RH (non-condensing) |
| Construction | |
| Aluminum, plastic, and silicone; free-standing, non-slip bottom surface; For information on cleaning, refer to Touch Screens and Interfaces: Cleaning and Disinfecting. |
|
| Dimensions | |
| Height | 1.81 in (46 mm); 2.71 in (69 mm) with remote docked |
| Width | 1.57 in (40 mm); 2.24 in (57 mm) with remote docked |
| Depth | 7.28 in (185 mm); 8.97 in (228 mm) with remote docked |
| Compliance | |
| CE, IC, FCC Part 15 Class B digital device | |
