Product Information

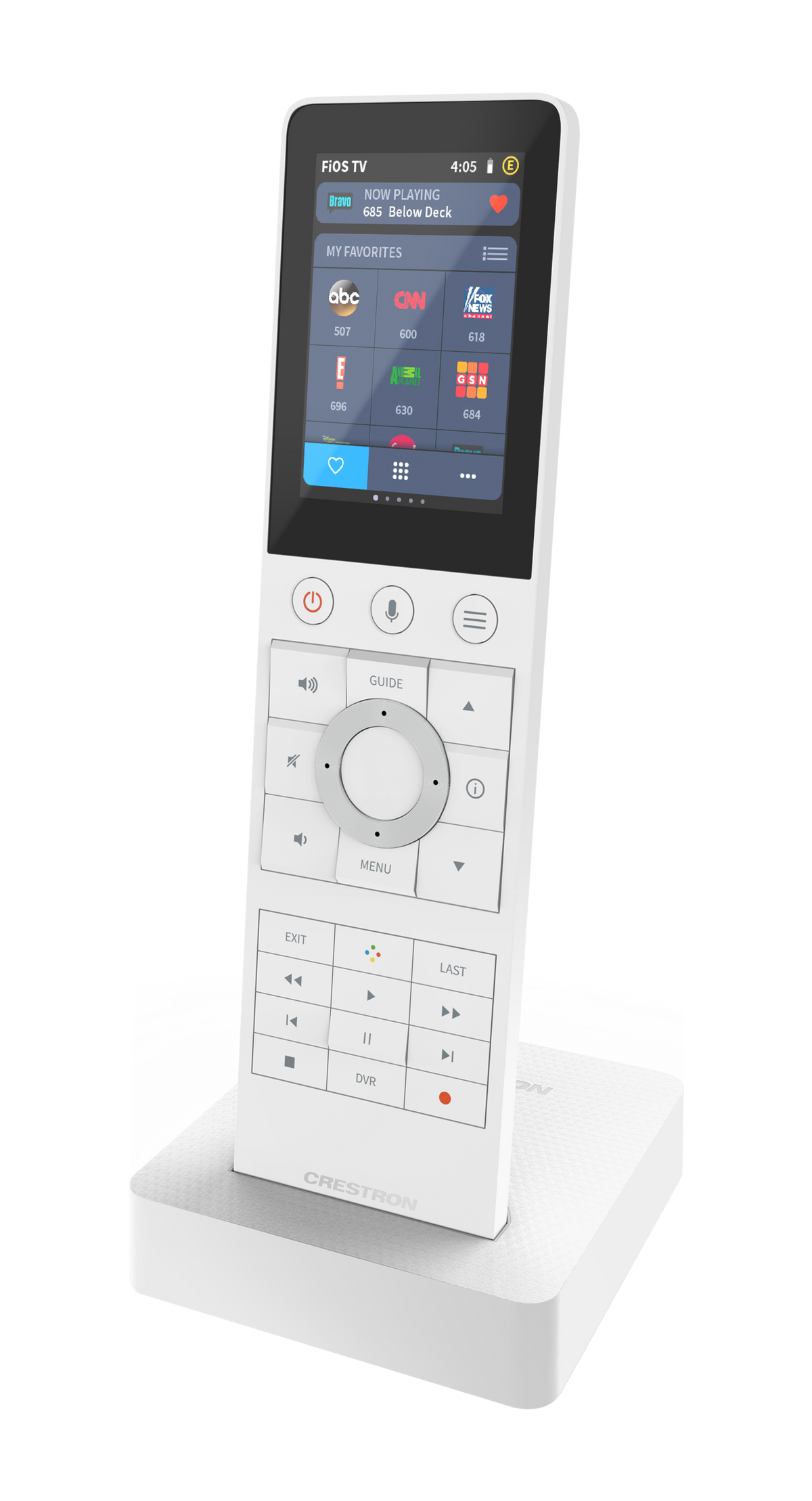

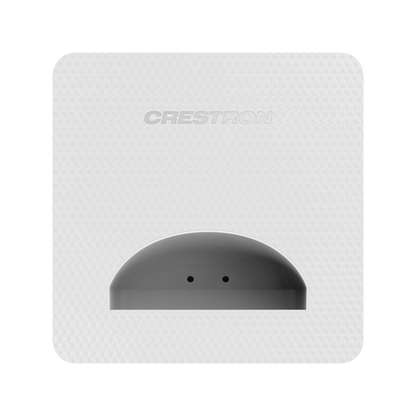

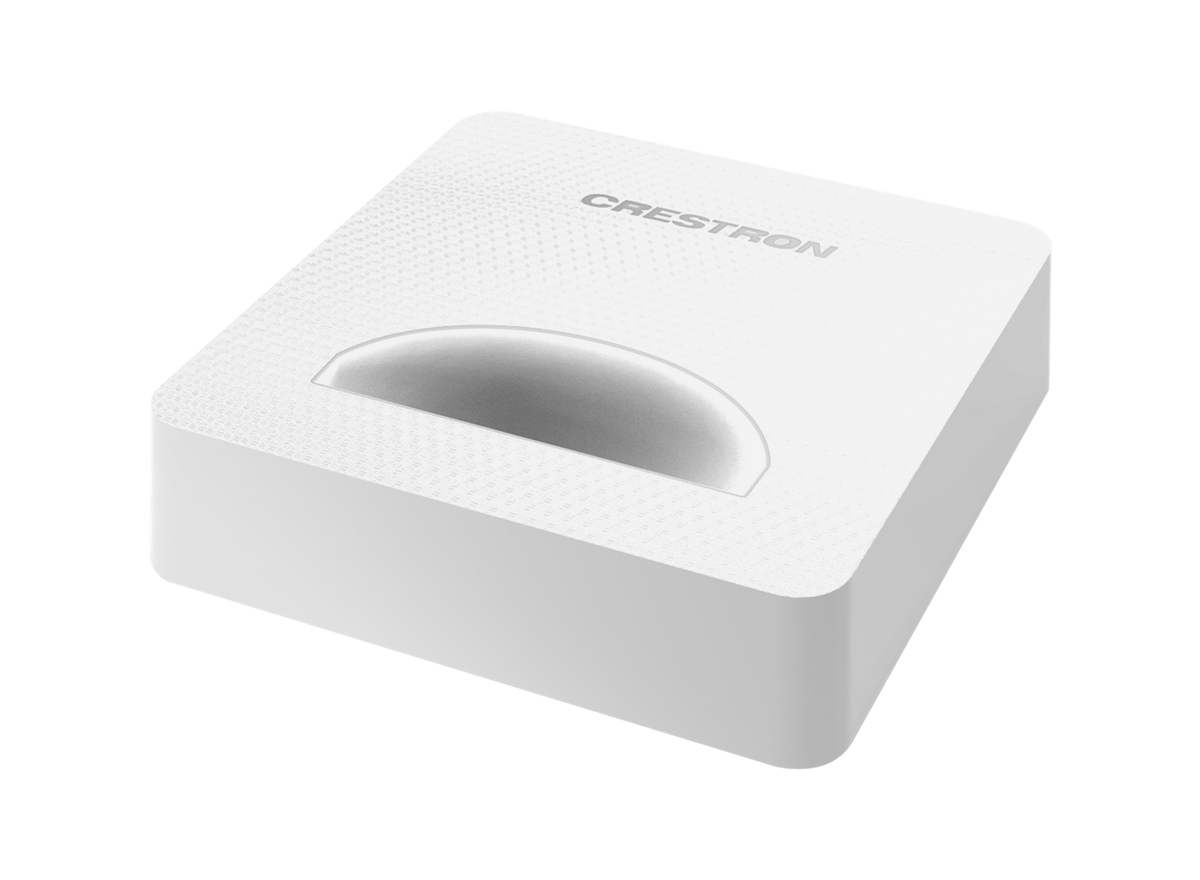

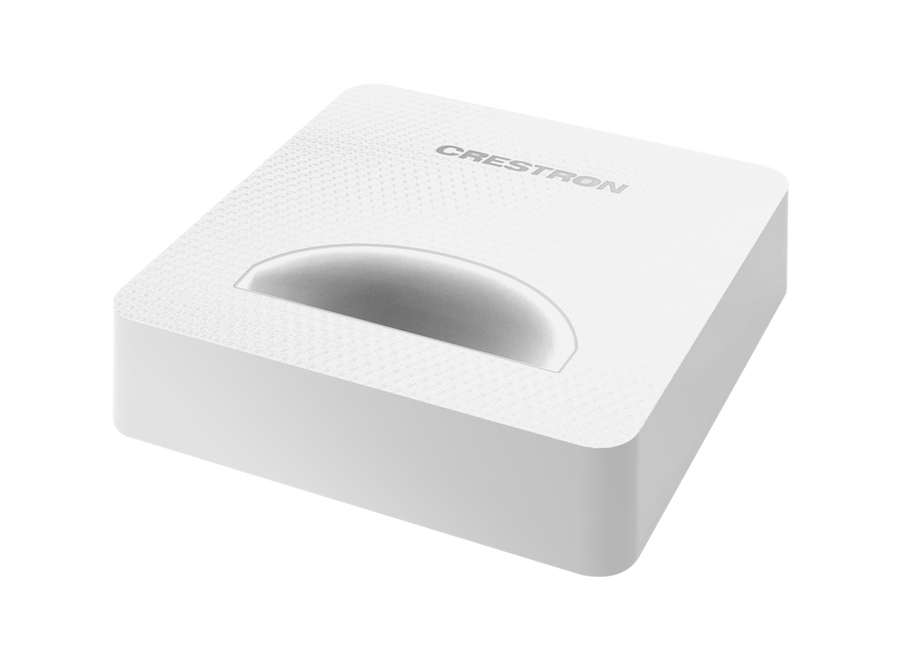

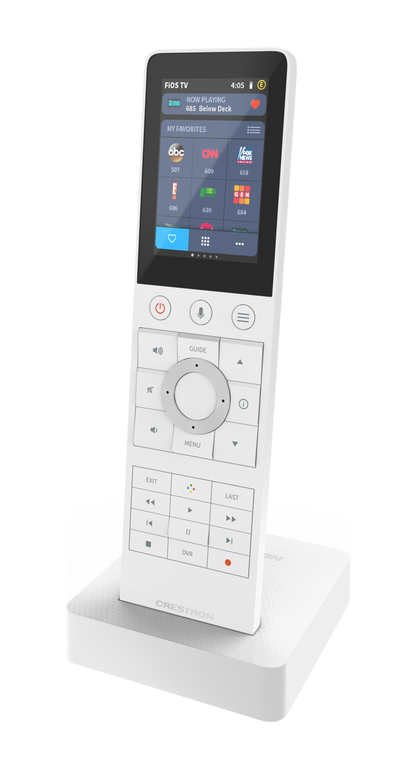

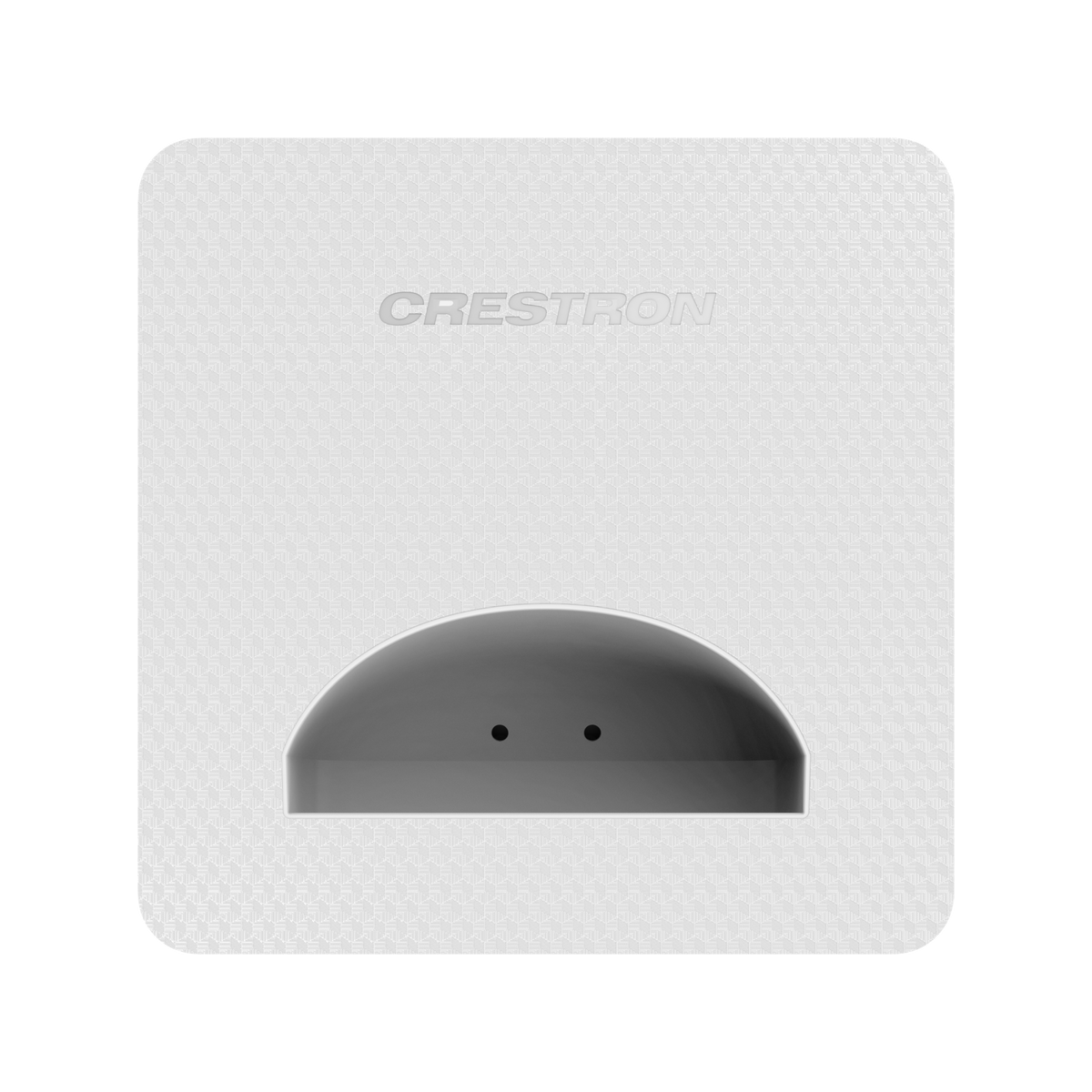

The TSR-310-DS is a space-saving table dock designed for charging a single Crestron TSR-310 Handheld Touch Screen Remote.
Overview
The TSR-310-DS is a space-saving table dock designed for charging a single Crestron TSR-310 Handheld Touch Screen Remote. One table dock is included with each remote, and additional docks may be purchased separately to accommodate multiple docking locations.
The TSR-310-DS is available in black or white.
Features
Key Features
- Charges the TSR-310 Handheld Touch Screen Remote
- Available in black or white
- Simple, elegant styling
- Requires less than a 4 inch square area on a table or shelf
- Allows full use of the remote while docked
- White LED power indicator
- Universal 100-240V AC power pack included
Specifications
| Connectors | |
| Power | (1) DC power connector; 5 Volt DC power input (power pack included) |
| Indicators | |
| Power | (1) White LED, indicates dock is powered on |
| Power | |
| Power Pack (included) | Input: 100-240 Volts AC, 50/60 Hz; Output: 2A @ 5VDC |
| Environmental | |
| Temperature | 32° to 104°F (0° to 40°C); 50° to 104°F (10° to 40°C) while charging |
| Humidity | 10% to 90% RH (non-condensing) |
| Construction | |
| Plastic, free-standing, non-slip bottom surface | |
| Dimensions | |
| Height | 0.93 in (24 mm); 9.00 in (229 mm) with remote docked |
| Width | 3.67 in (94 mm) |
| Depth | 3.67 in (94 mm) |
| Construction | |
| CE, IC, FCC Part 15 Class B digital device | |
