Product Information
Provides a table docking solution for the TST-1080 wireless touch screen that simultaneously charges it and allows it to be used as a stationary touch screen.
Overview

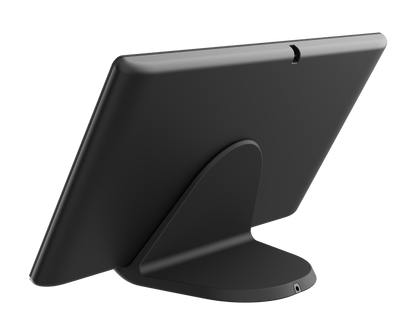

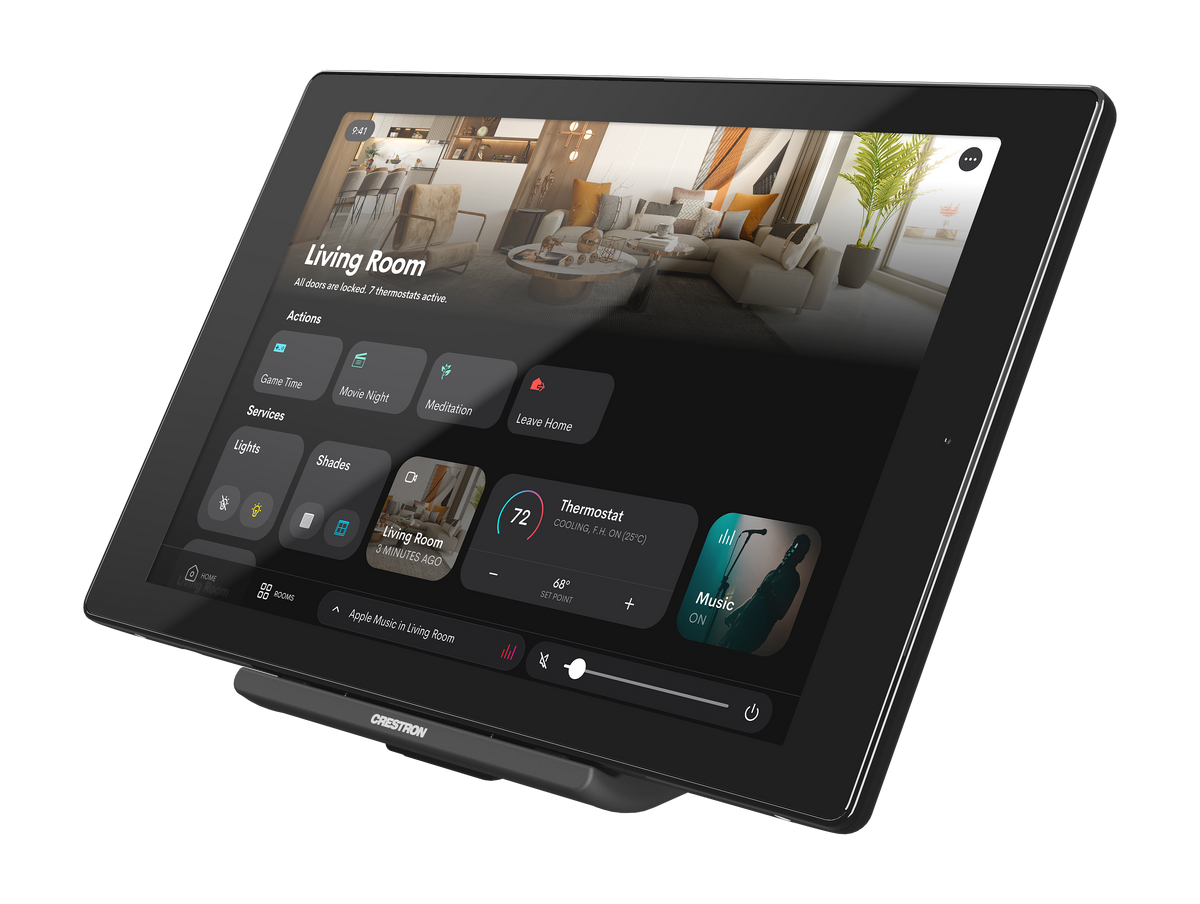

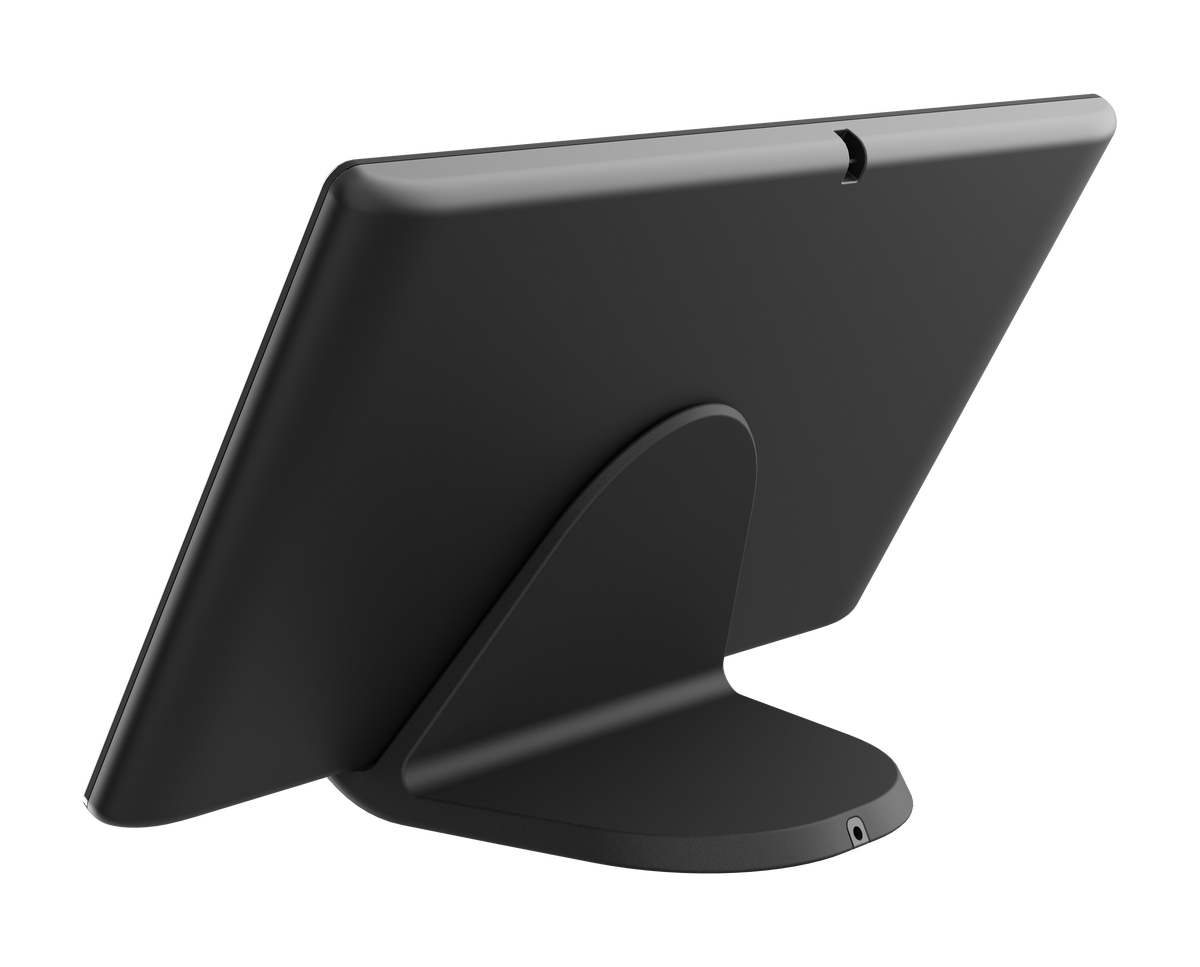

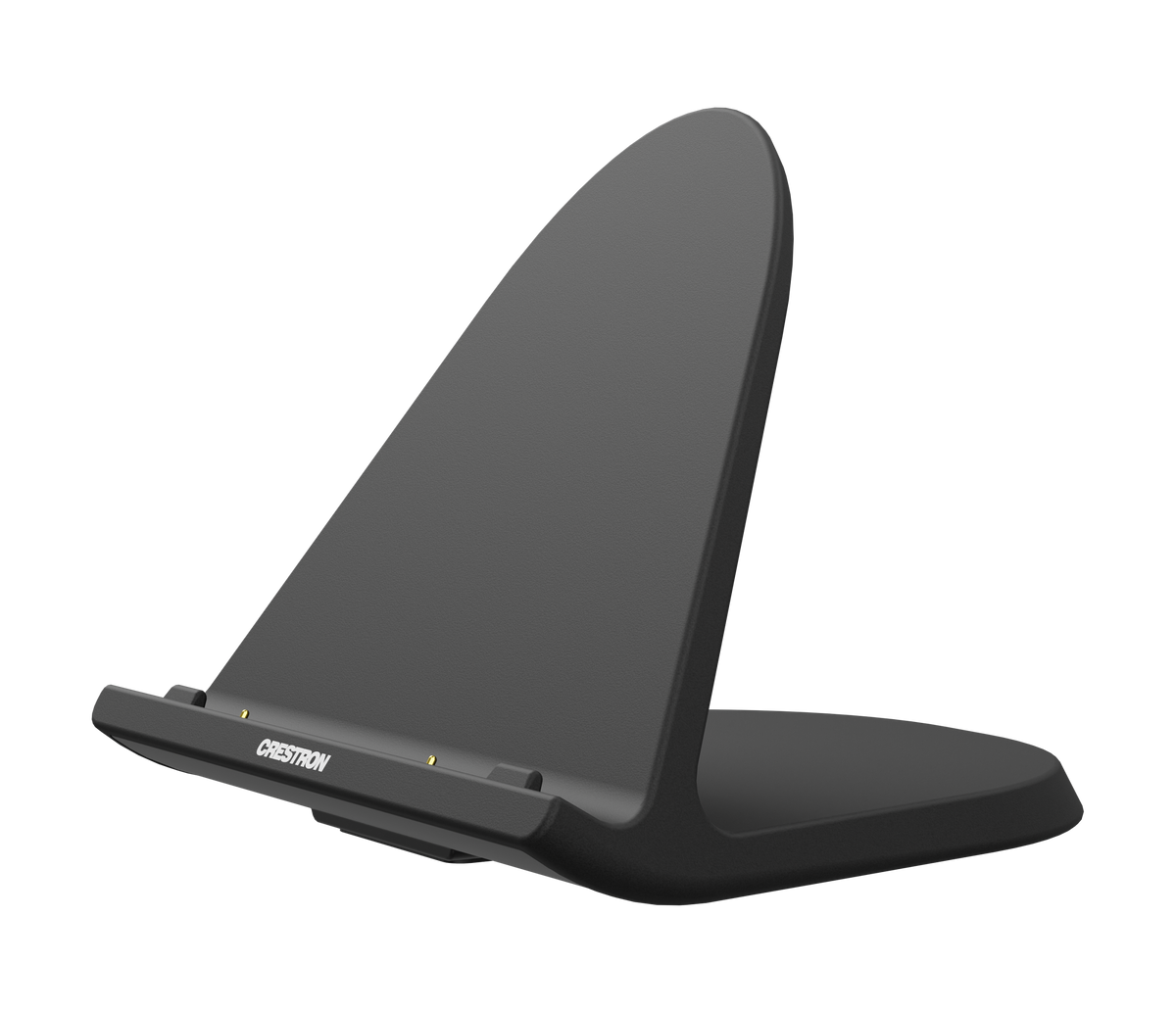

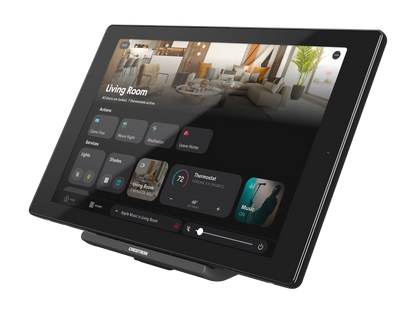

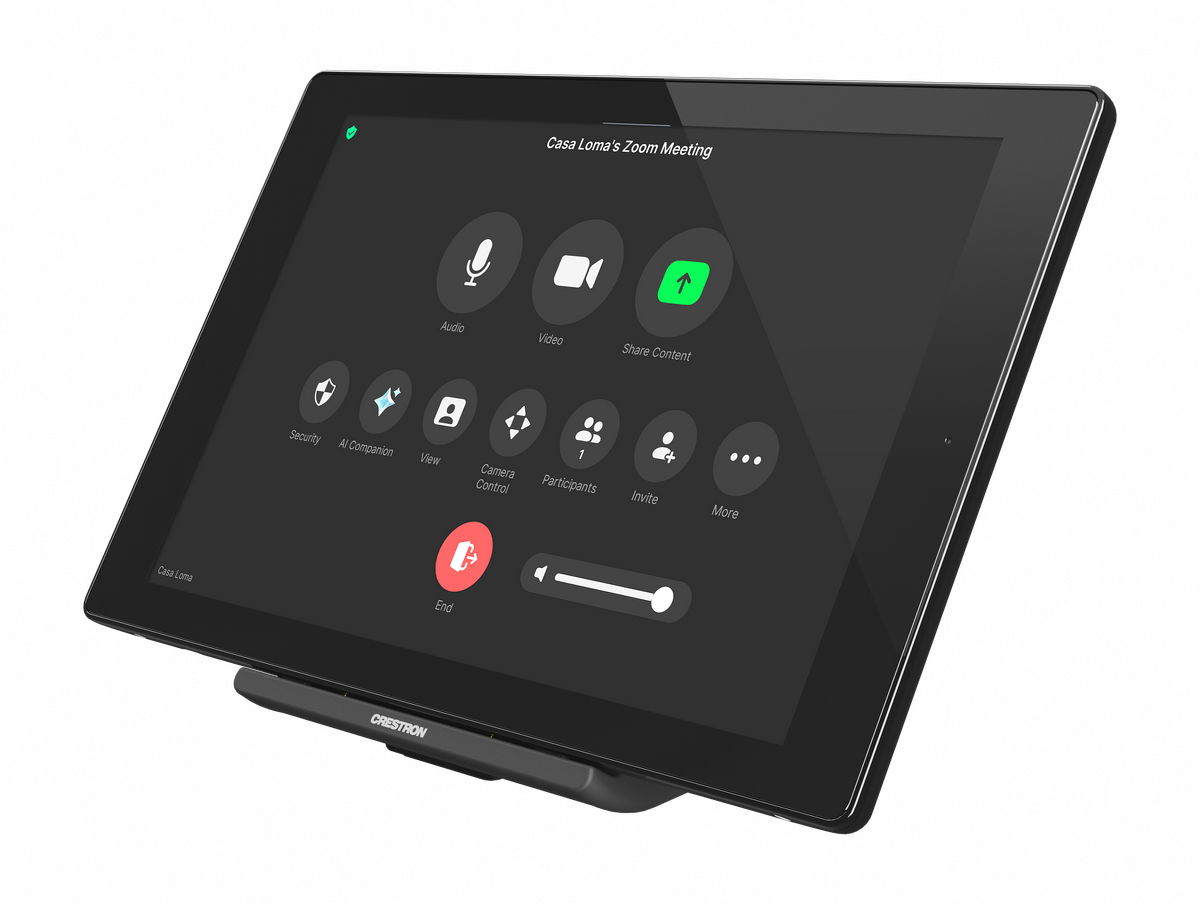

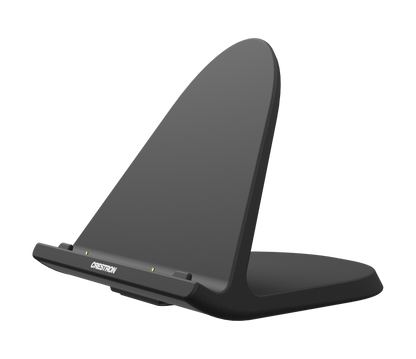

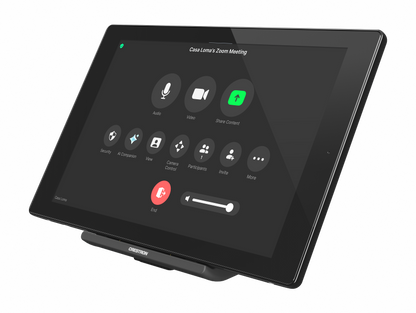

The TST‑1080‑DS is a stylish table dock designed for charging a single TST‑1080 wireless touch screen. The table dock also allows the TST‑1080 to be used as a stationary tabletop touch screen. The table dock holds the TST‑1080 firmly at a fixed upright angle while docked, and allows it to be taken off at any time for portable use. Its sleek appearance makes it a perfect fit for any home or office.
One table dock is included with the TST‑1080. Additional table docks can be purchased separately to accommodate multiple docking locations.
Features
Specifications
| Connectors | |
| Power | (1) Attached 6 ft (1.83 m) cable with inline 2.1 x 5.5 mm DC power connector; 24VDC power input (for included power pack) |
| Power | |
| Power Pack (Included) | Input: 0.8A (maximum) @ 100–240VAC, 50/60 Hz; Output: 1.25A @ 24VDC; DC power connection can be made via charging dock or onboard DC power connector; Includes 6 ft (1.83 m) attached cable with 2.1 x 5.5 mm DC power barrel connector and universal blade kit to accommodate most AC outlet types |
| Power Consumption | 6 W |
| Environmental | |
| Temperature | 32° to 112°F (0° to 45°C); 50° to 104°F (10° to 40°C) while charging |
| Humidity | 10% to 90% RH (noncondensing) |
| Construction | |
| Metal, black | |
| Dimensions | |
| Height | 3.64 in. (93 mm); 6.17 in. (157 mm) with touch screen docked |
| Width | 4.87 in. (125 mm); 10.31 in. (262 mm) with touch screen docked |
| Depth | 4.31 in. (110 mm) |
| Weight | |
| 1.2 lb (545 g) | |
| Compliance | |
| WEEE | |
