Provides a wall docking solution for the TST-1080 wireless touch screen that also charges it.
Overview

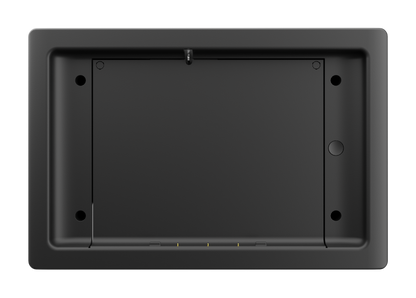

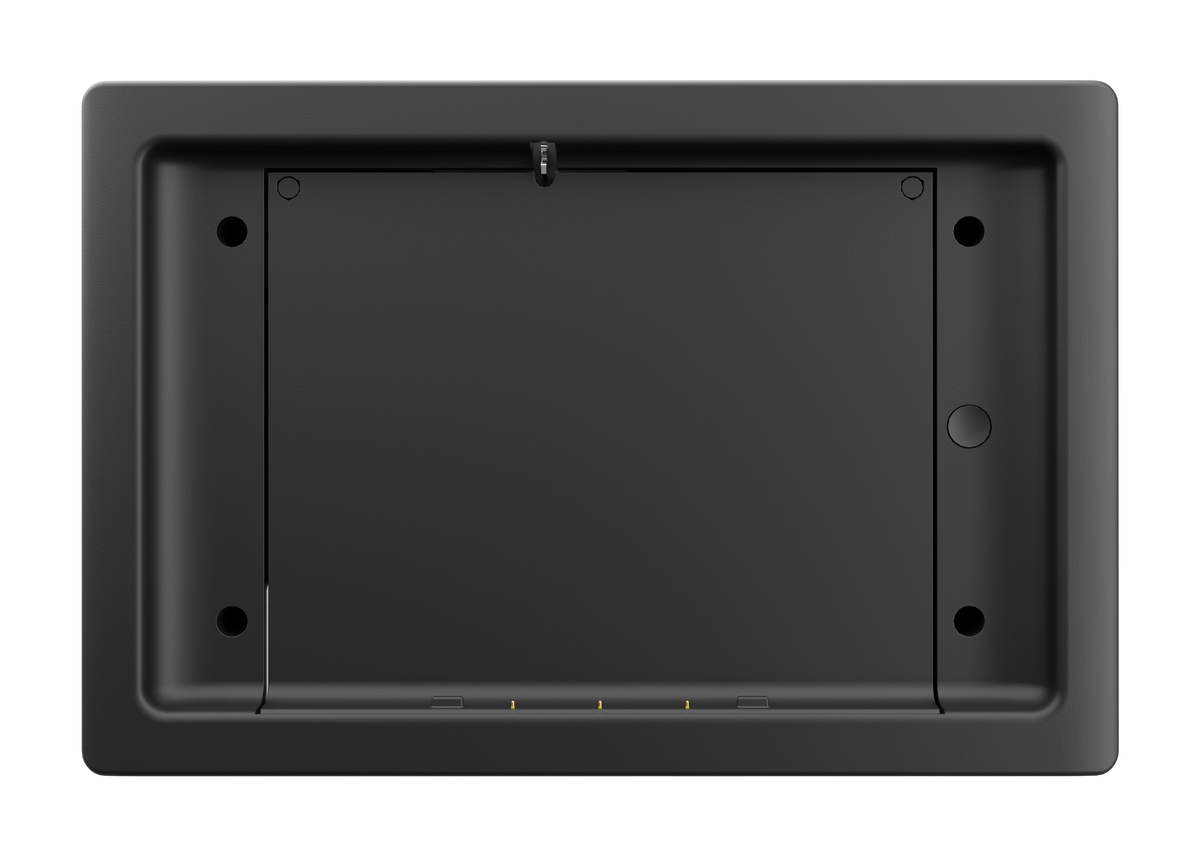

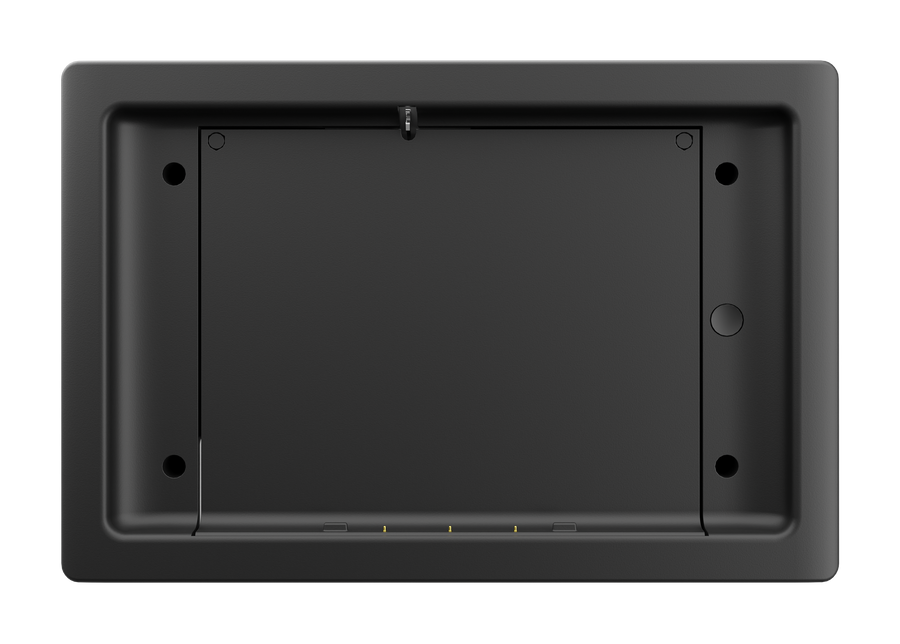

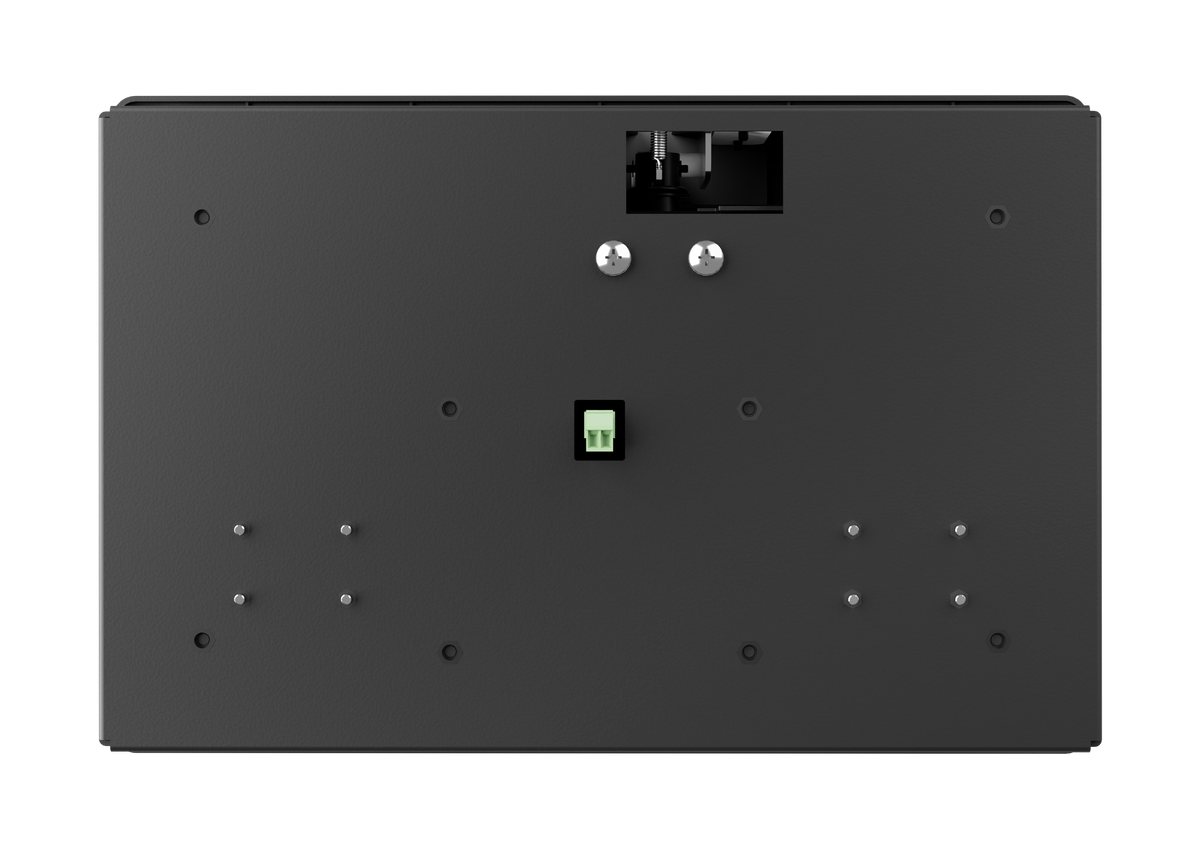

The TST‑1080‑DSW is an optional wall dock for the TST‑1080 wireless touch screen. Placing the TST‑1080 into the wall dock allows it to be used as a stationary touch screen while simultaneously charging its internal battery.

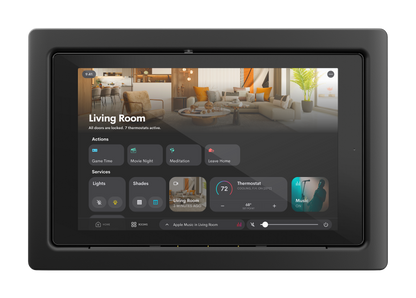

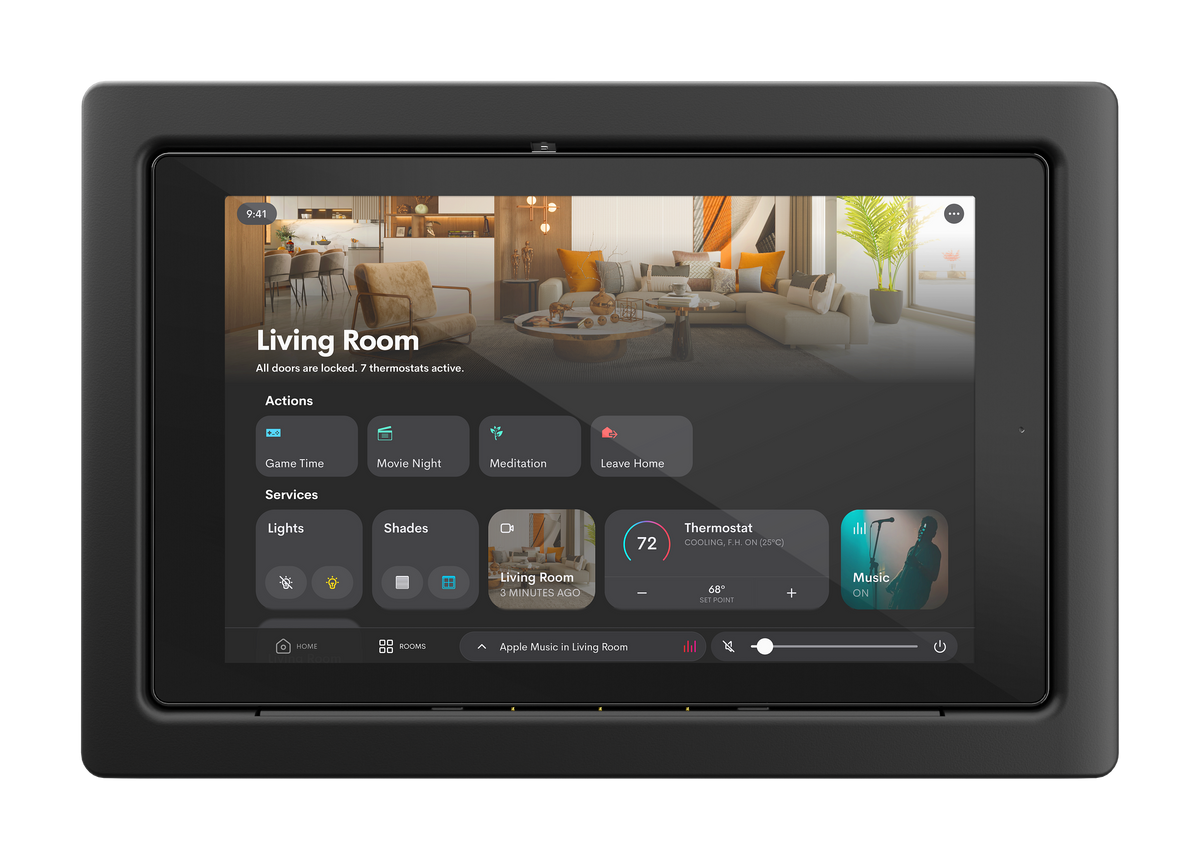

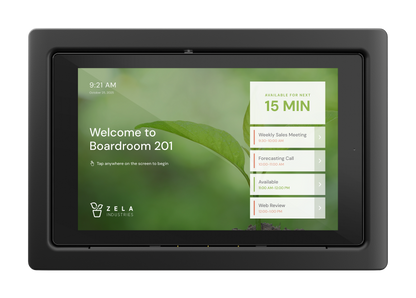

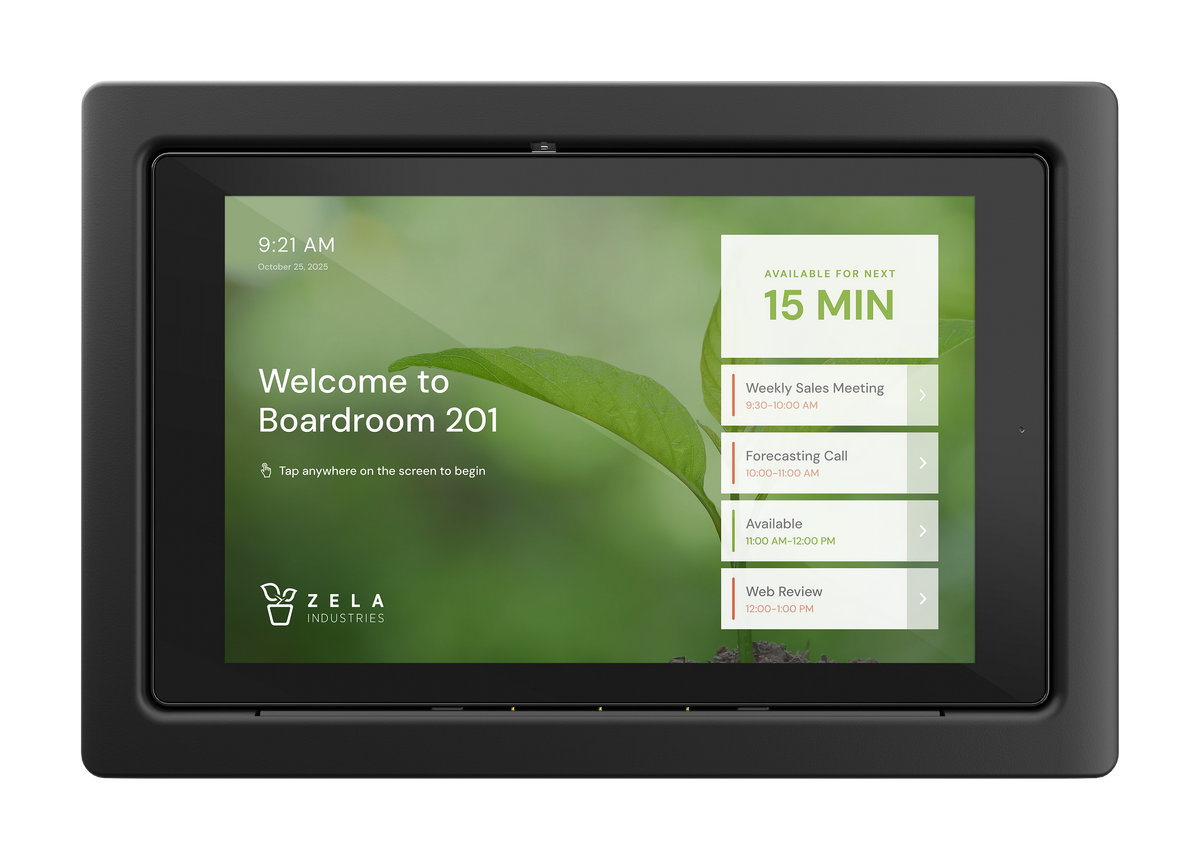

When docked in the TST‑1080‑DSW, the touch screen sits nearly flush with the outer bezel, affording a clean appearance while preventing unauthorized removal. By entering a pass code or pressing a button on the touch screen, the mechanism gently tilts the touch screen outward, allowing it to be released for wireless use. A hardware key is included to release the touch screen in the event of a power outage.
The TST‑1080‑DSW is designed for flush‑mount installation in a flat, vertical wall structure.1 Installation of the wall dock requires additional hardware (not included):
- The TST‑902‑DSW‑BB and TST‑902‑DSW‑BBI back boxes are available for both framed and masonry construction.
- The TST‑902‑DSW‑PMK, TST‑902‑DSW‑WMKM, and TST‑902‑DSW‑WMKT mounting kits are available for preconstruction and postconstruction applications that do not require a back box.
Features
Specifications
| Connectors | |

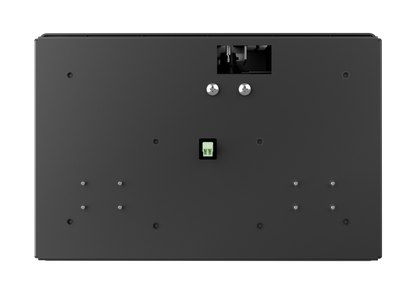

| 24VDC | (1) 2-pin 3.5 mm detachable terminal block; 24VDC power input; Wire size: 18 AWG (0.75 mm2) maximum |
| Controls | |
| OPEN | (1) Push button, accessible when touch screen is not docked; Releases the docking mechanism that allows the TST‑1080 to be docked |
| Power Requirements | |
| Cresnet® Power Usage | 30 W (1.25A @ 24VDC) with touch screen docked |
|
NOTE: May be powered by Cresnet® network power or a dedicated Cresnet power supply. Does not support Cresnet data communication (only power).
|
|
| Environmental | |
| Temperature | 41° to 112°F (5° to 45°C); 50° to 104°F (10° to 40°C) while charging |
| Humidity | 10% to 90% RH (noncondensing) |
| Enclosure | |
| Chassis | Metal, flush‑mountable in a vertical wall structure (with optional mounting accessories, sold separately)1 |
| Faceplate | Plastic, black |
| Dimensions | |
| Height | 8.01 in. (204 mm) |
| Width | 11.86 in. (301 mm) |
| Depth | 4.37 in. (111 mm) in undocked state; 3.16 in. (80 mm) in docked state |
| Weight | |
| 4.7 lb (2.1 kg) | |
| Compliance | |
|
WEEE |
|
