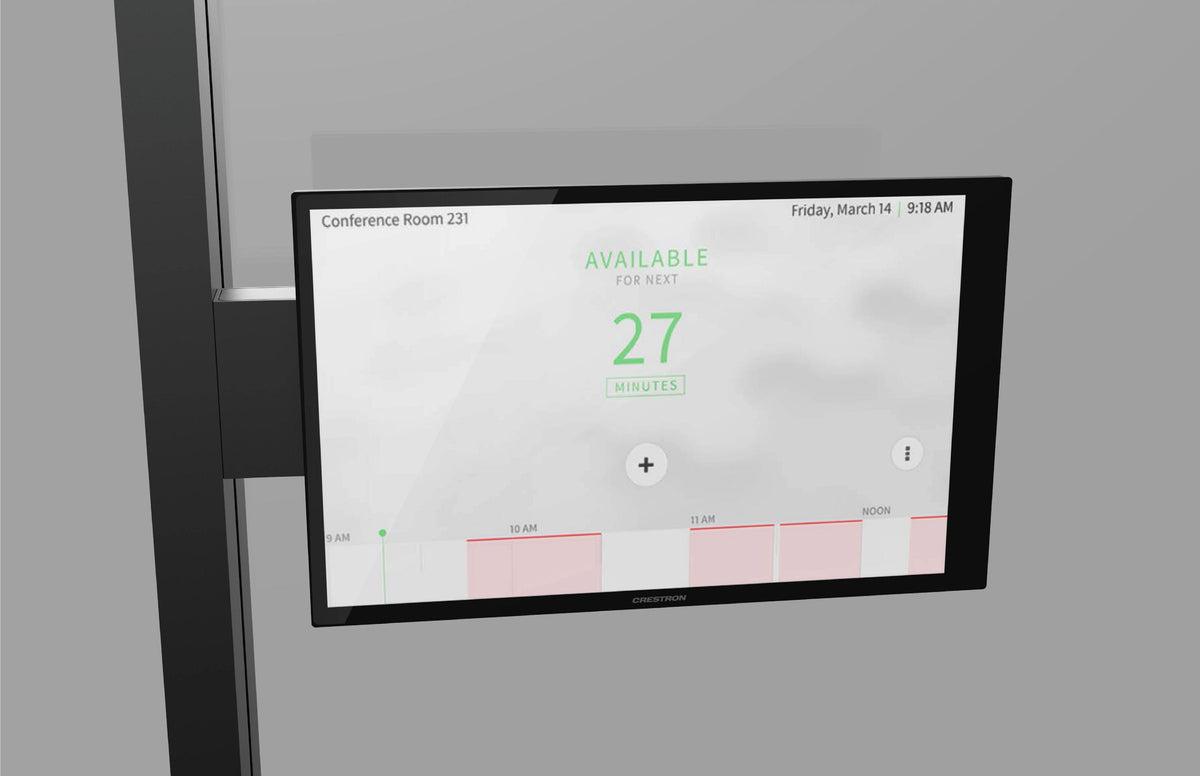

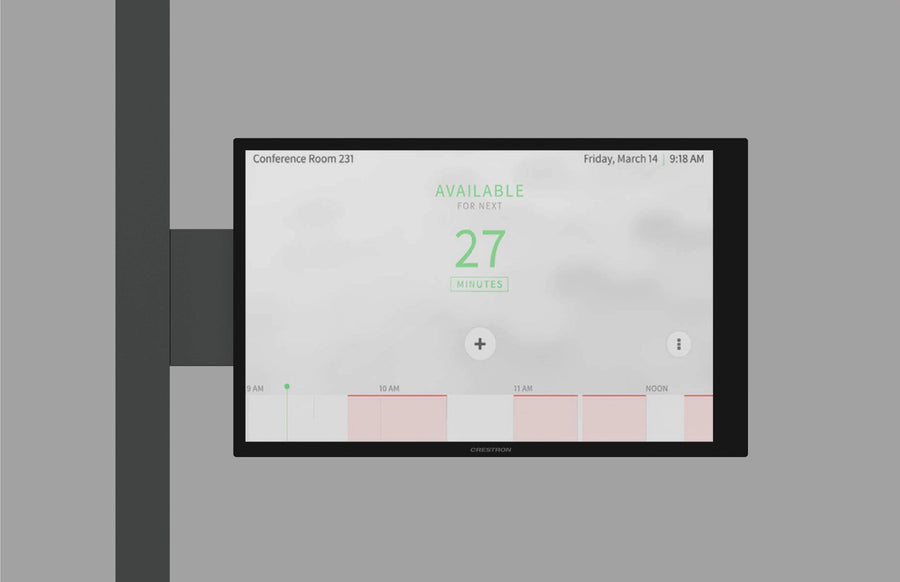

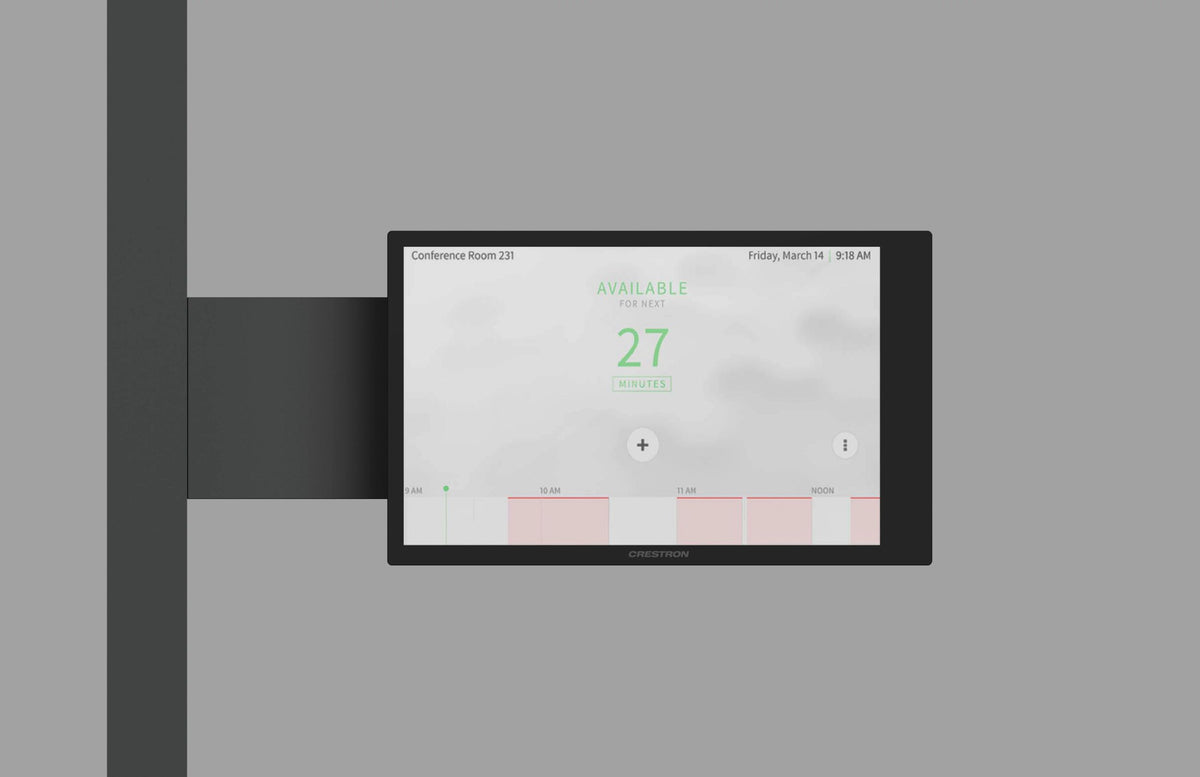

Permits a TSW‑770, TSW‑1070, TSS‑770, or TSS‑1070 series touch screen to be mounted to the mullion of an interior glass wall, window, or partition. Ideal for mounting at the entrance to a meeting space for room scheduling applications.
Overview

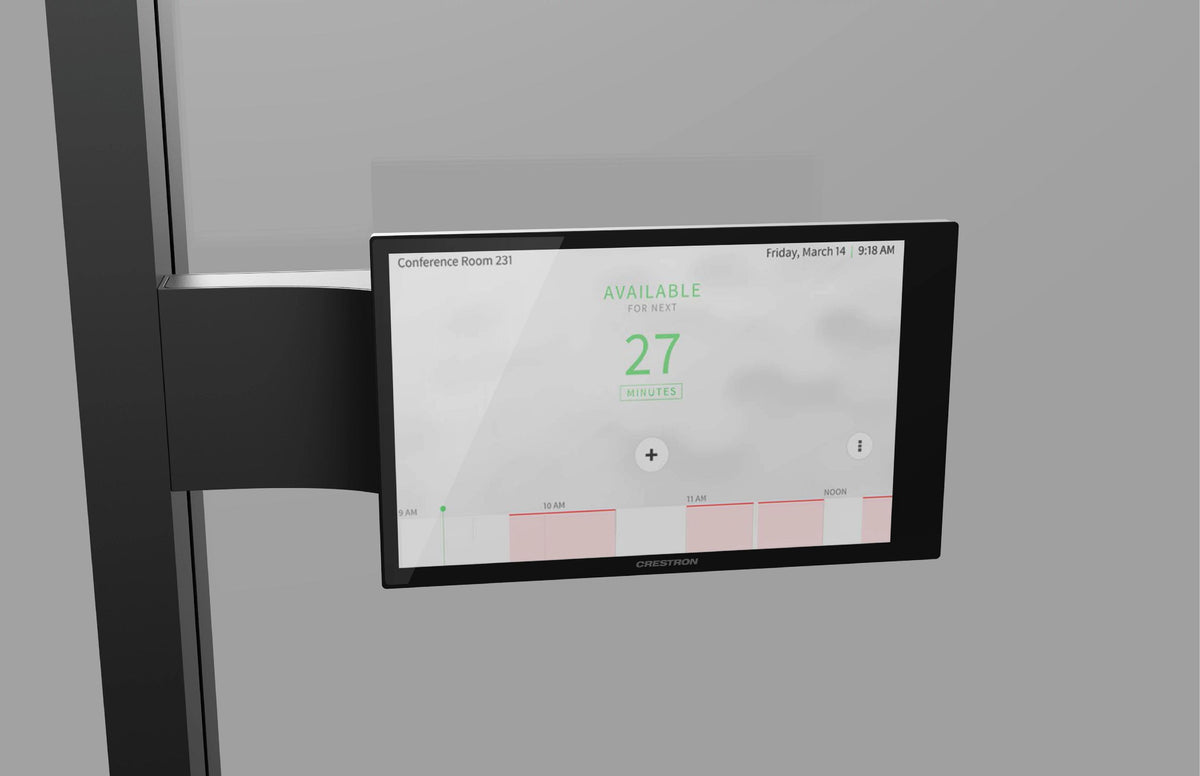

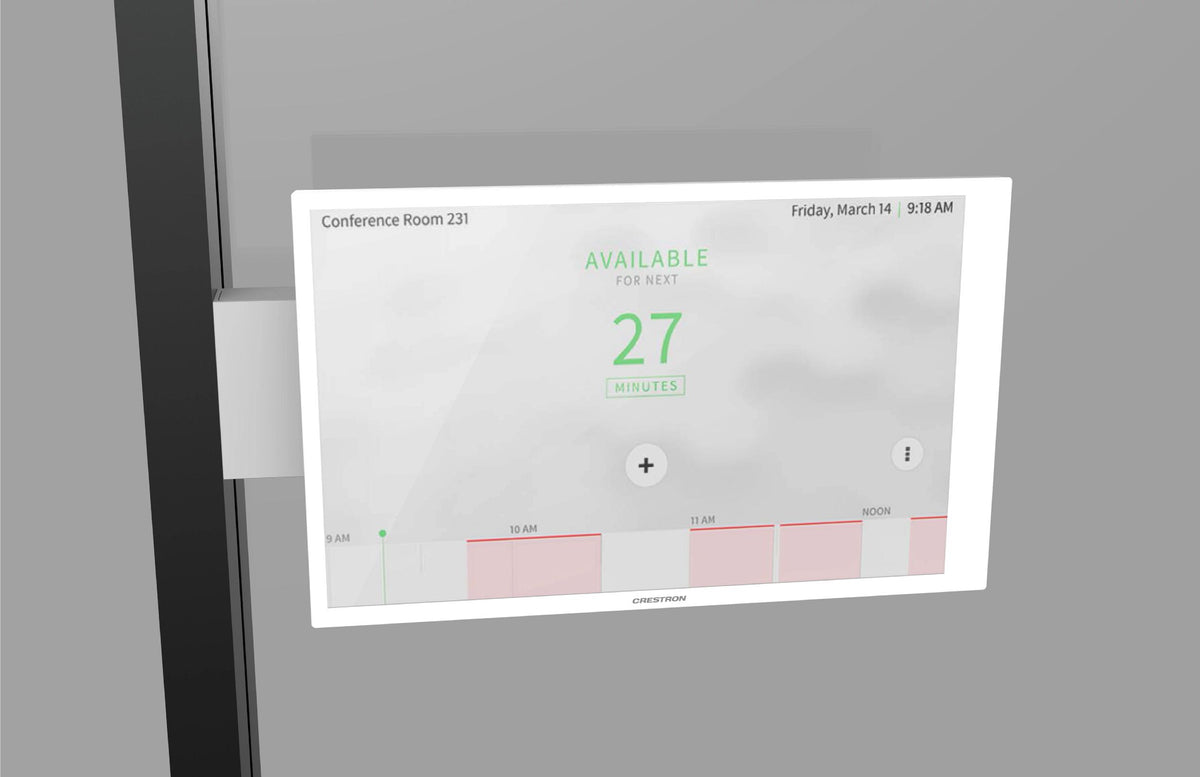

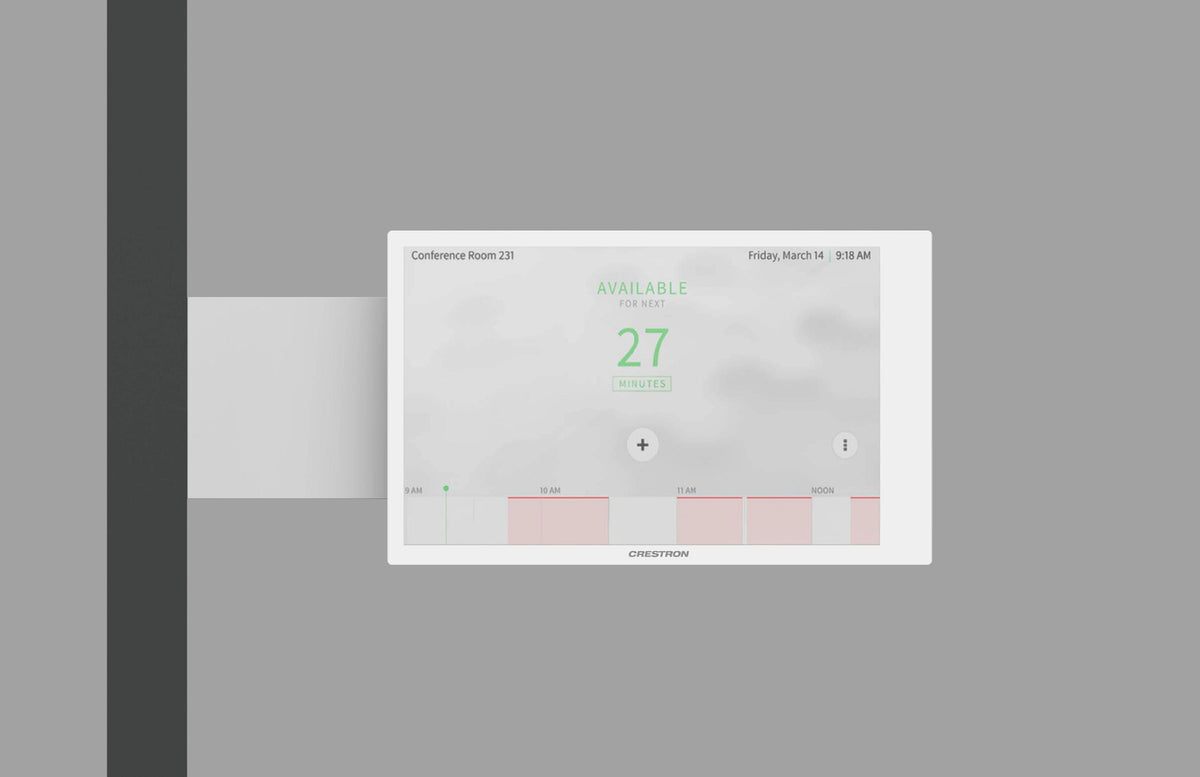

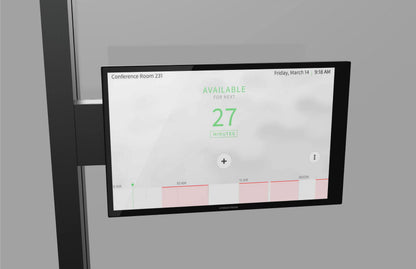

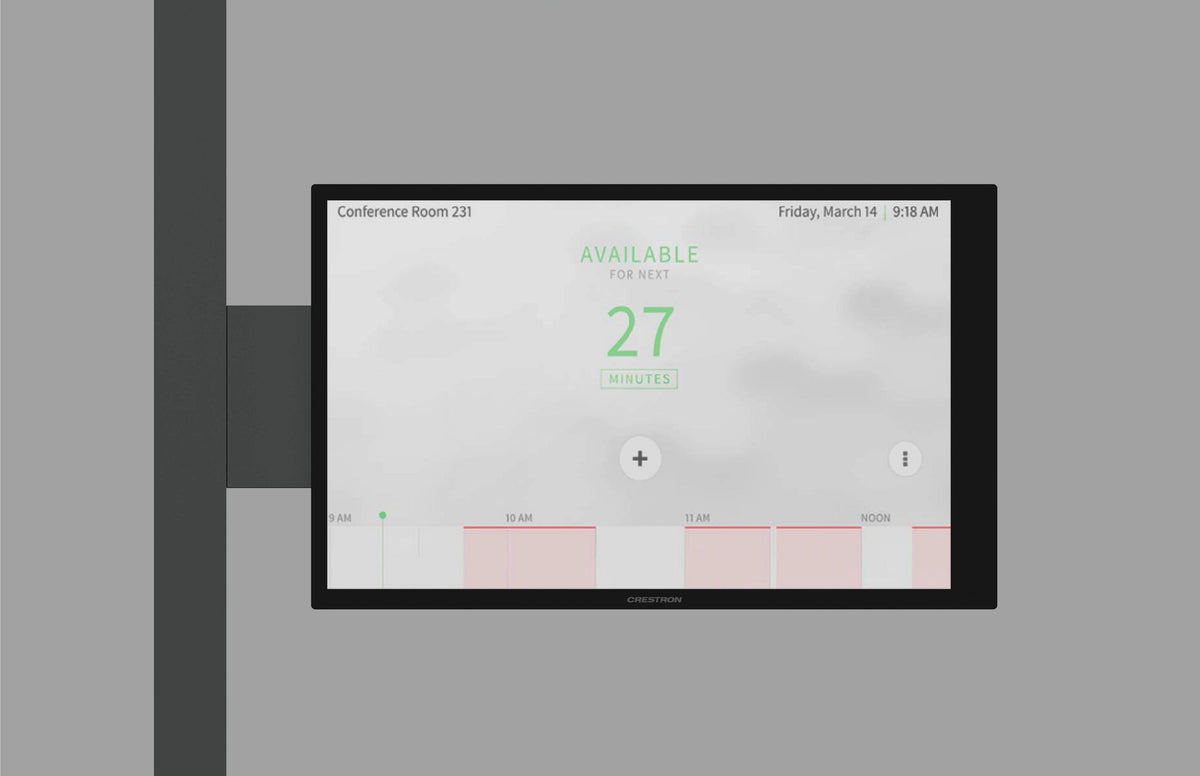

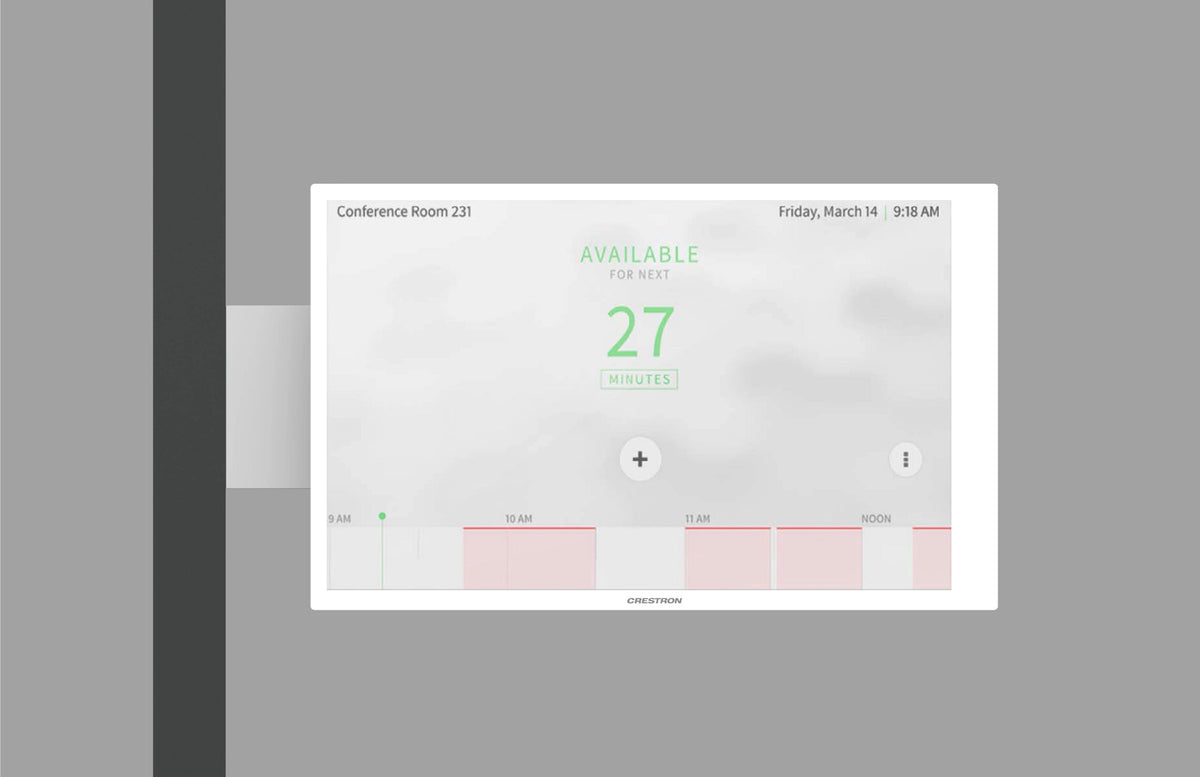

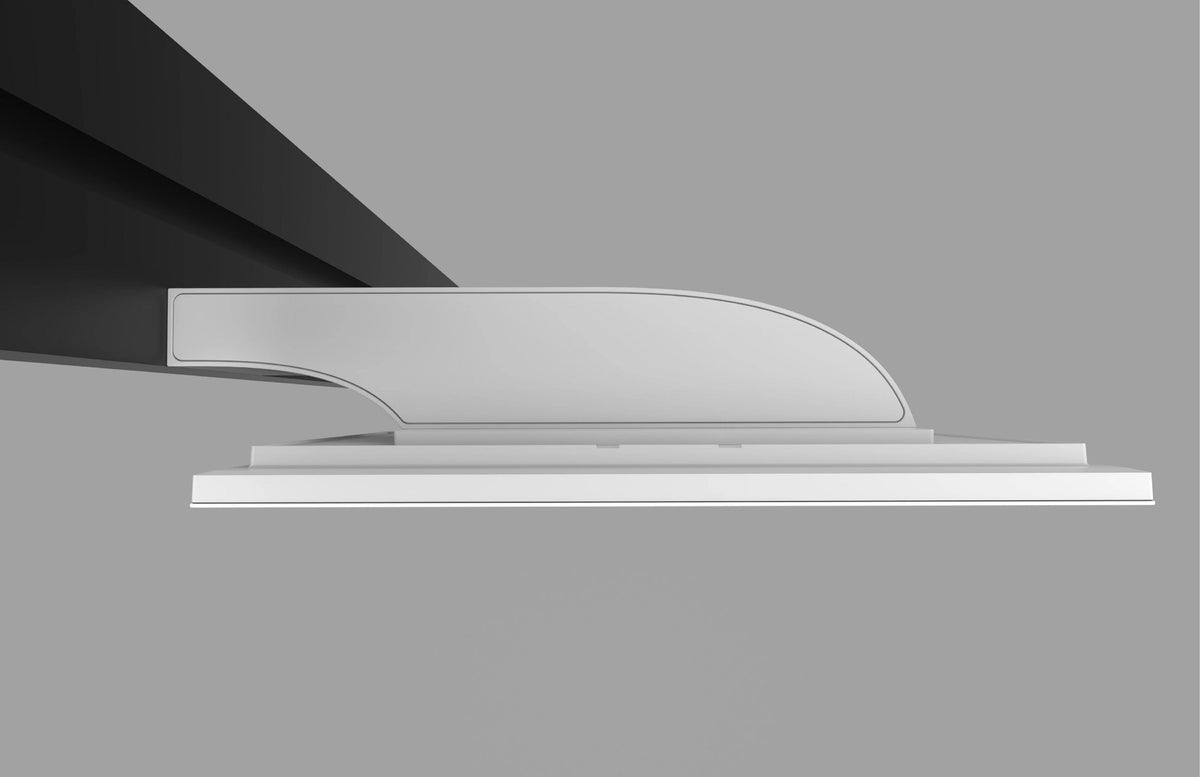

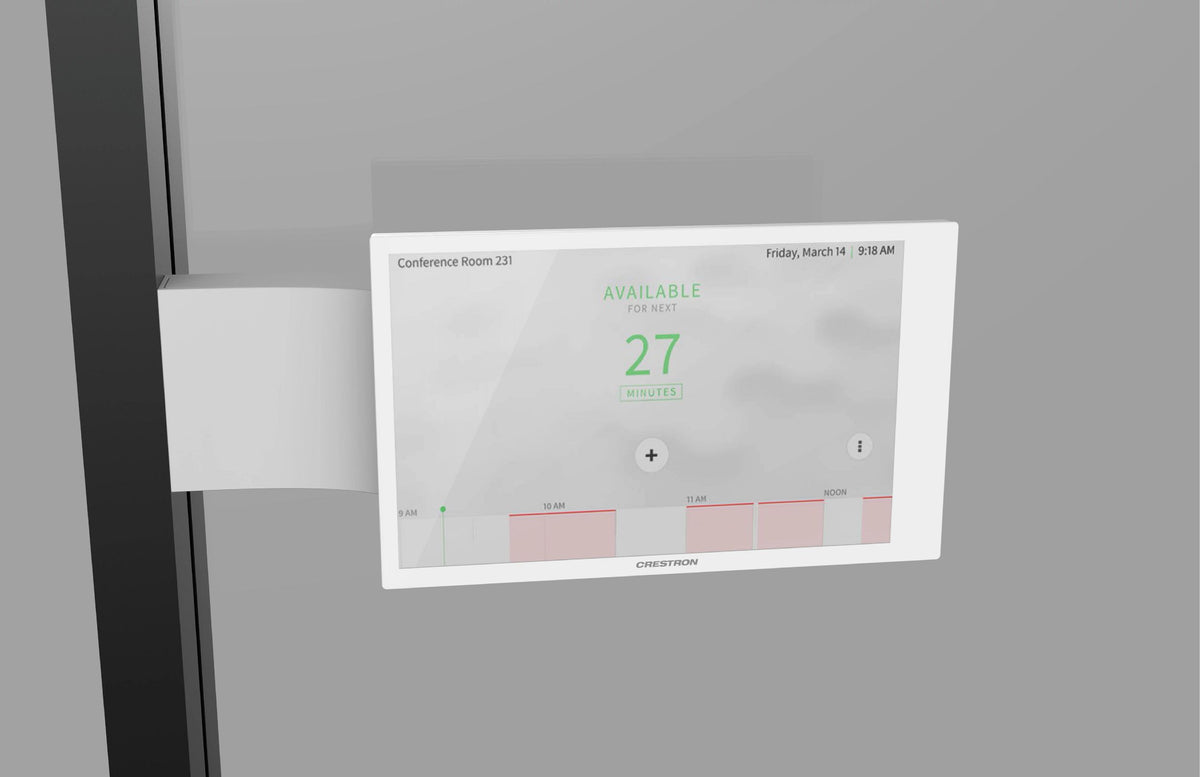

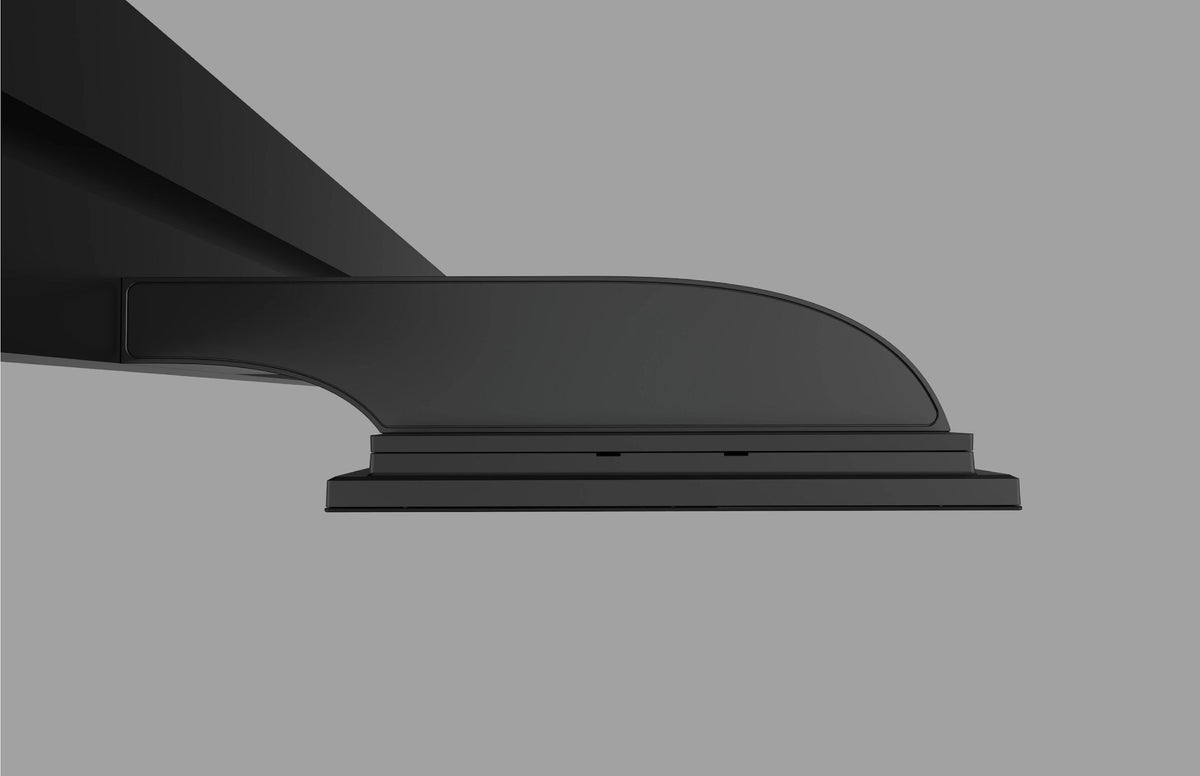

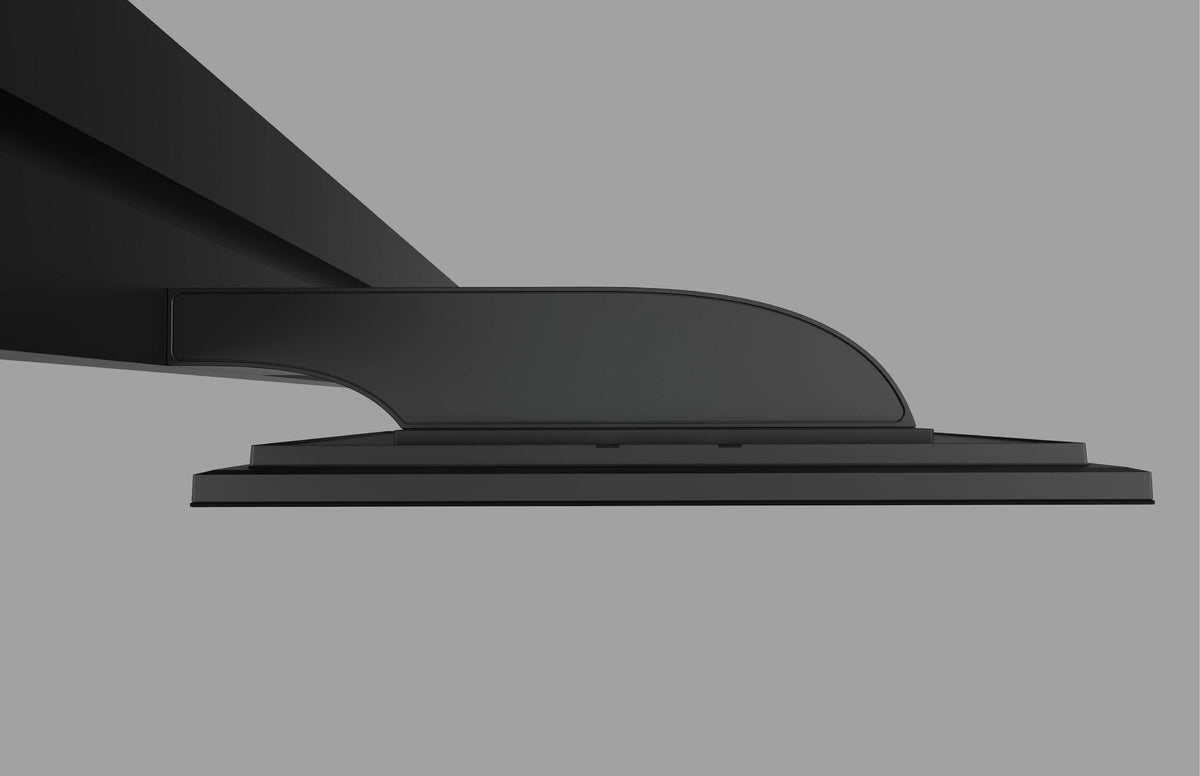

The TSW-770/1070-MUMK permits a TSW‑770, TSW‑1070, TSS‑770, or TSS‑1070 series touch screen touch screen to be attached to the mullion of an interior glass wall, window, or partition. The TSW-770/1070-MUMK mounts a compatible touch screen to the left or right of any hollow, metallic vertical mullion. Two mounting brackets are provided that allow the TSW-770/1070-MUMK to be installed in one of two configurations (side mount or front mount). Wiring is run to the touch screen from inside the mullion to create a clean, finished appearance.
The TSW-770/1070-MUMK is ideal for mounting at the entrance to a meeting space for room scheduling applications, and it is compatible with the TSW‑770‑LB and TSW‑1070‑LB light bars to provide a clear indication of the room availability status.
Features
Key Features
- Permits mounting a TSW‑770, TSW‑1070, TSS‑770, or TSS‑1070 series touch screen to the mullion of an interior glass wall, window, or partition
- Ideal for mounting at the entrance to a meeting space for room scheduling applications
- Installs in either side or front mount configuration
- Wiring is run inside the mullion for a finished appearance
- Compatible with TSW‑770‑LB and TSW‑1070‑LB light bars for a clear indication of the room availability status

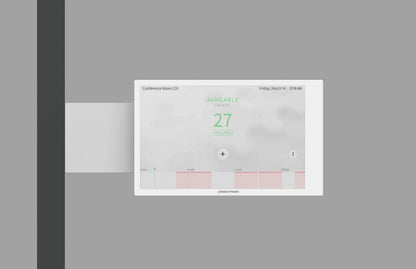

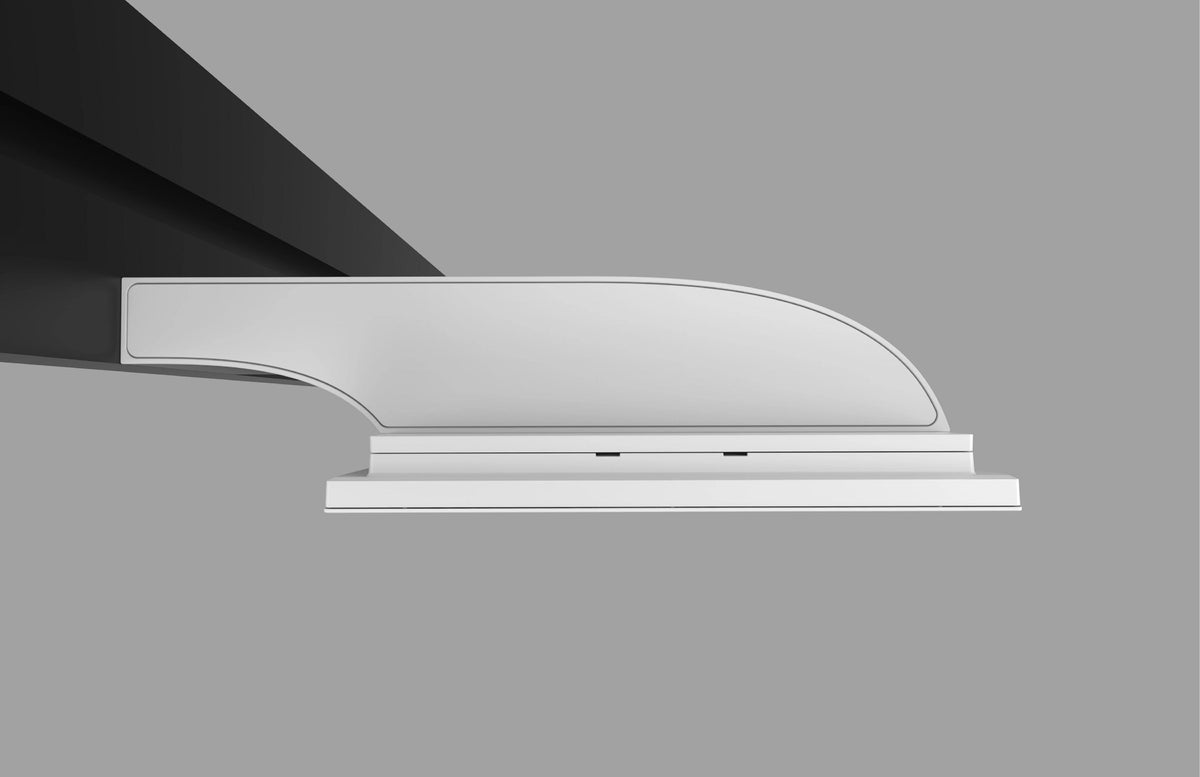

- Available in black or white finish
Specifications
| Construction | |
| Housing | Aluminum, steel |
| Mounting | Attaches to the inside surface of a hollow metallic mullion in side or front mount configuration |
| Dimensions | |
| Without touch screen | Height: 2.52 in. (64 mm) Width: 8.97 in. (228 mm) Depth: 1.70 in. (43 mm) |
| With TSW-770 or TSS-770 series touch screen installed | Height: 4.17 in. (106 mm) Width: 9.30 in. (236 mm) Depth: 2.44 in. (62 mm) |
| With TSW-1070 or TSS-1070 series touch screen installed | Height: 5.87 in. (149 mm) Width: 10.63 in. (270 mm) Depth: 2.46 in. (62 mm) |
