Permits a TSW-880, TSS-880, TSW-1080 or TSS-1080 series touch screen to be flush mounted to a glass wall or other smooth, flat surface. Ideal for mounting at the entrance to a meeting space for room scheduling applications and can angle a touch screen at a 20° tilt.
Overview

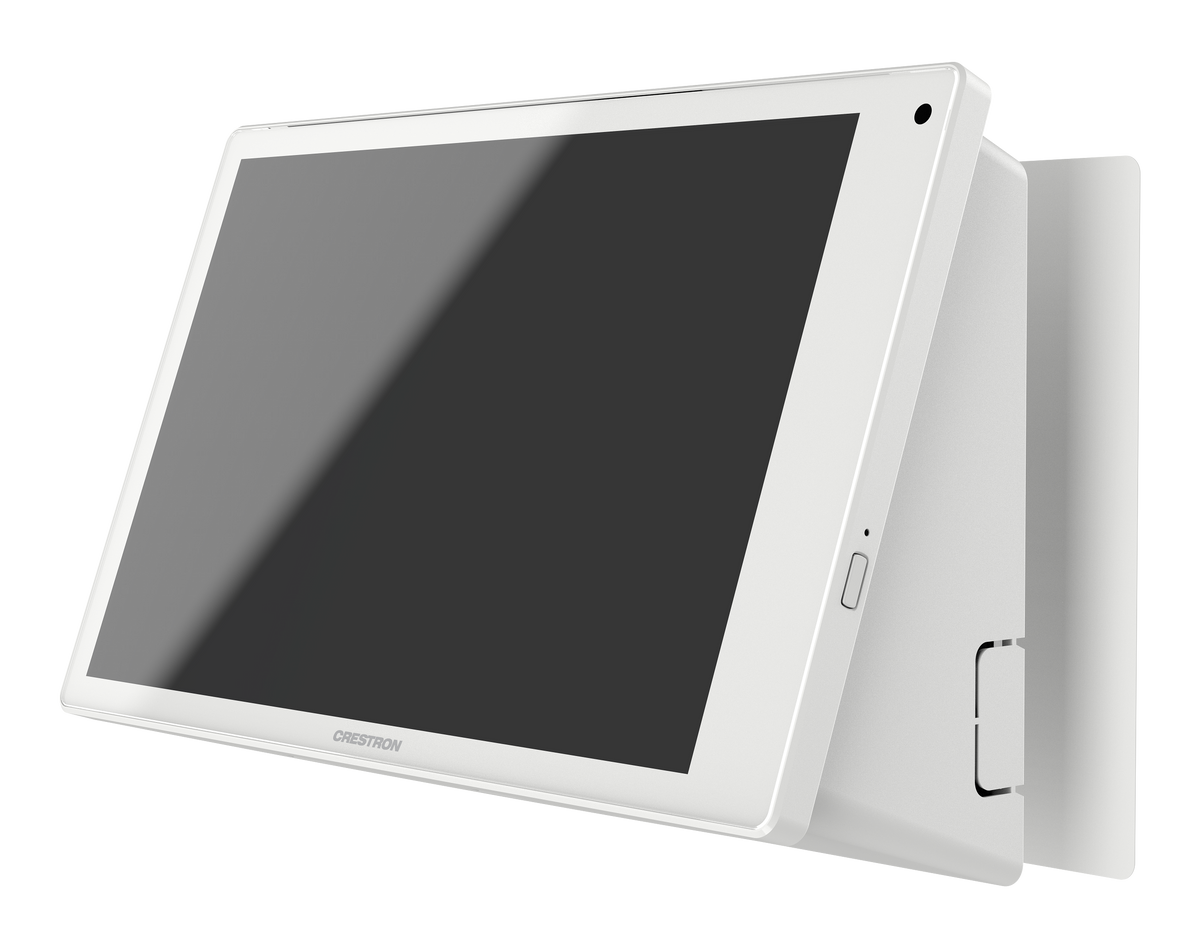

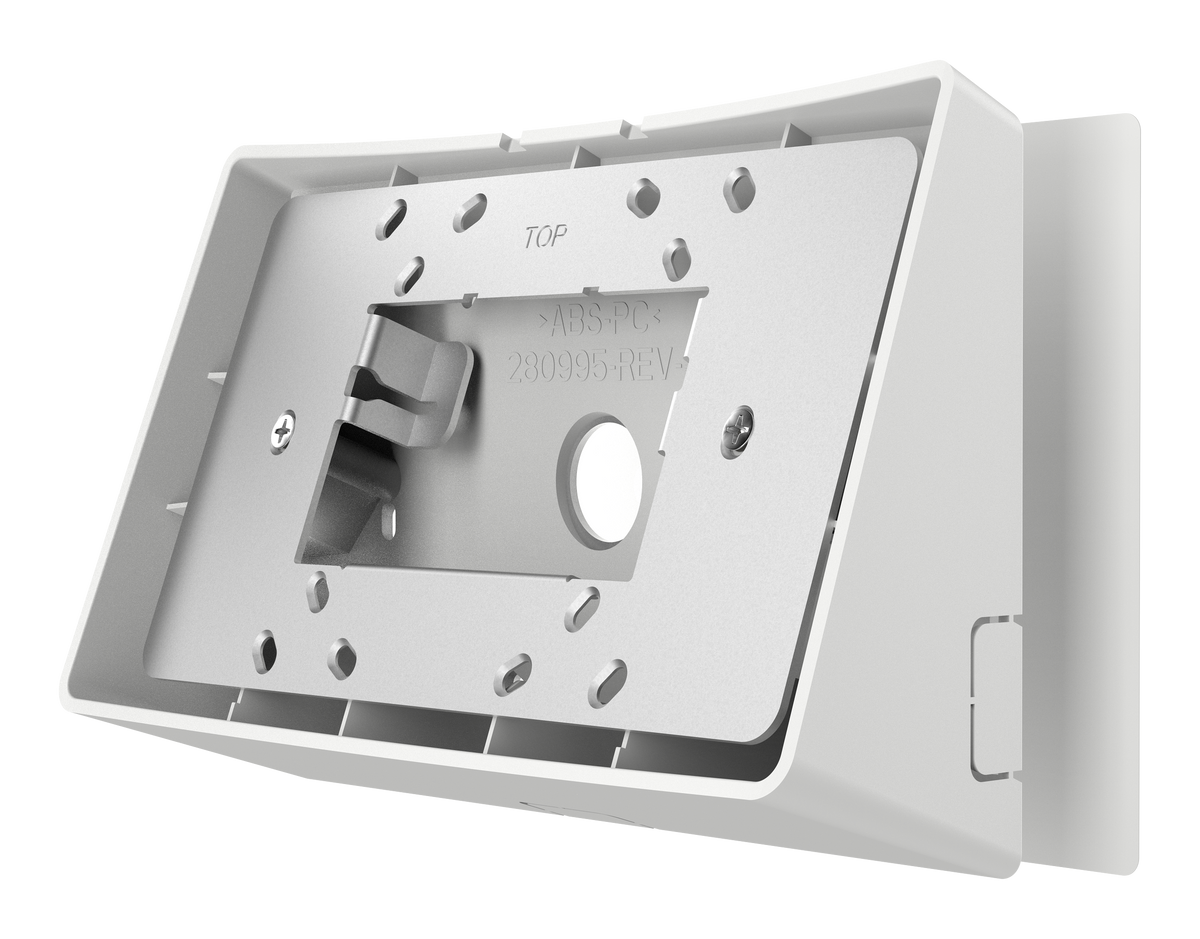

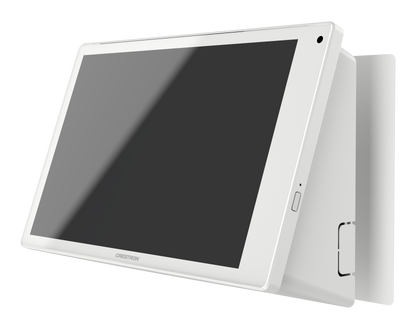

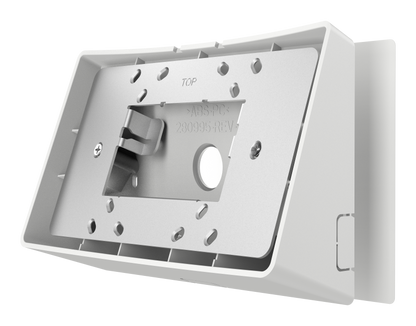

The TSW-880/1080-MSMK-ANG angled multisurface mount kit provides a versatile surface mounting solution for a TSW-880, TSS-880, TSW‑1080 or TSS‑1080 series touch screen. Using the multisurface mount kit, the touch screen can be mounted directly to glass, granite, marble, wood paneling, plaster, smooth masonry, or virtually any other flat surface. The touch screen can also be mounted into wall or supported electrical boxes. The TSW‑880/1080‑MSMK‑ANG is ideal for mounting near the entrance to a meeting space for room scheduling applications. When installed, the touch screen is angled upwards at a 20° tilt.
Simple Mounting

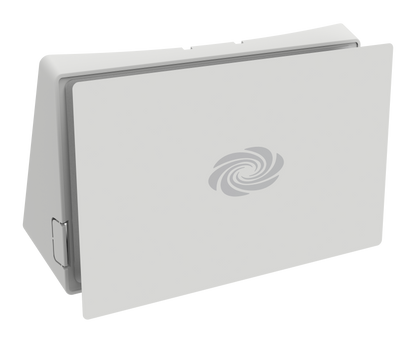

The mount kit attaches securely to a flat, smooth surface without screws using the included peel‑and‑stick adhesive rear housing. For a finished appearance when mounted to a transparent glass wall, an adhesive molded plastic label is provided, which affixes to the opposite side of the glass behind the unit. Templates are provided to help ensure that the mounting kit is level and properly aligned with the surface.
Features
Key Features
- Enables flush mounting a TSW-880, TSW‑1080, TSS-880, or TSS‑1080 series touch screen to virtually any flat, smooth surface
- Ideal for mounting at the entrance to a meeting space for room scheduling applications
- Provides a 20° upward tilt angle
- Secure, screwless installation using the peel‑and‑stick adhesive rear housing
Specifications
| Construction | |
| Housing | Plastic, black or white finish |
| Surface Mounting | Peel-and-stick adhesive mounting to glass or other flat, smooth surface |
| Dimensions | |
| Height | 4.26 in. (108 mm) |
| Width | 7.51 in. (191 mm) |
| Depth | 2.18 in. (55 mm) |
| Weight | |
| 0.35 lb (5.6 oz) | |
