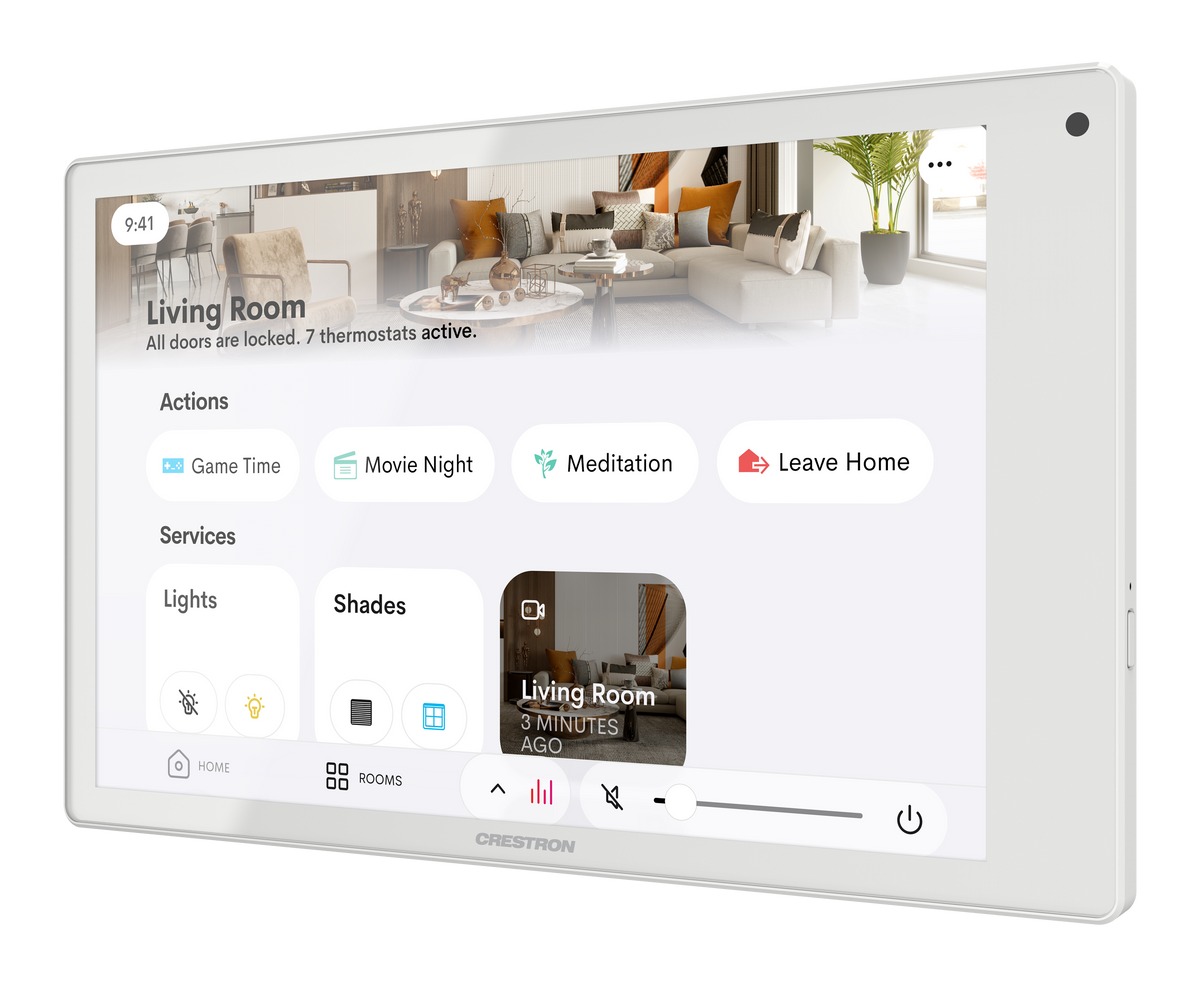

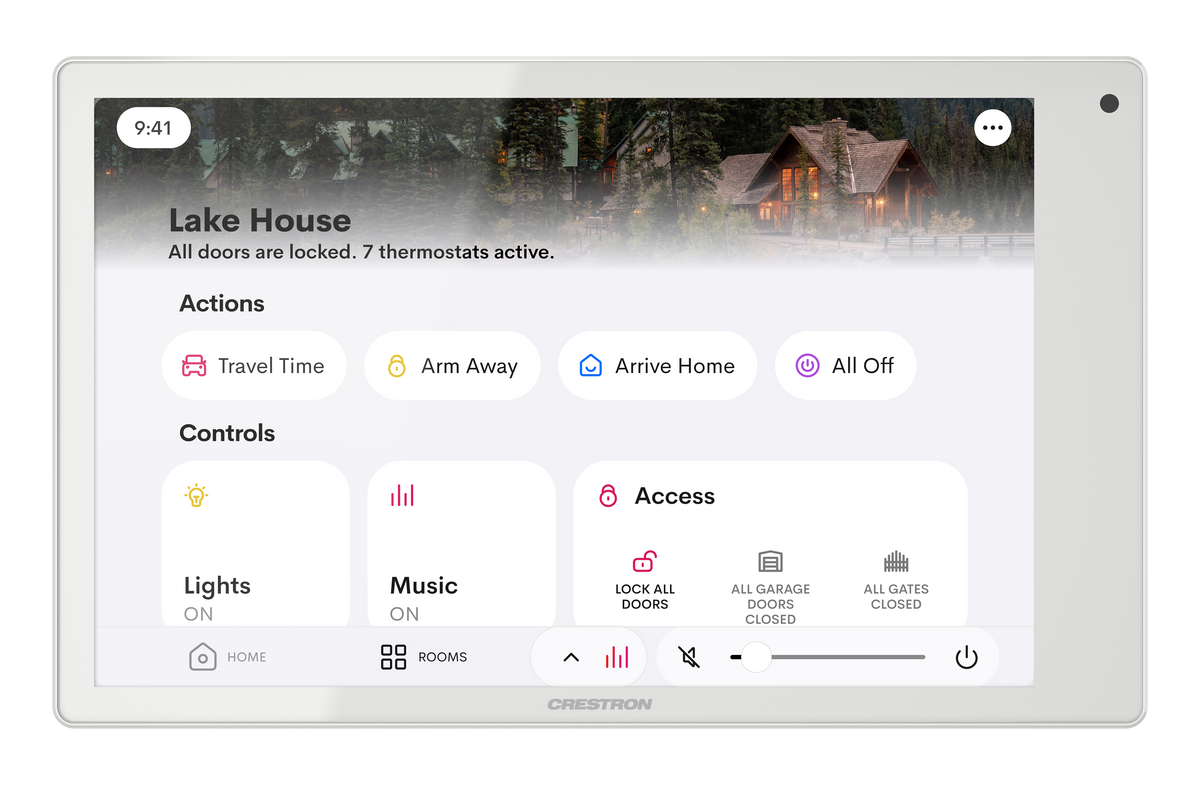

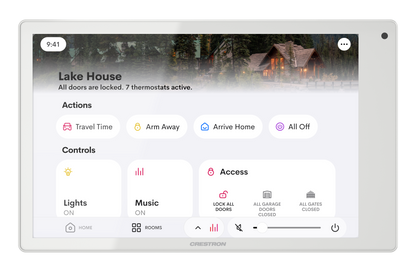

A wall mount touch screen ideal for residential applications, featuring a capacitive touch screen display designed to run Crestron Home OS. PoE and Wi Fi® network connectivity and a comprehensive assortment of mounting accessories simplify new and retrofit installations.
Overview
The Crestron TSW-880R touch screen is ideal for residential applications and is designed to run Crestron Home® OS. The TSW-880R features an 8.1 in. (204 mm) capacitive touch screen display. PoE and Wi‑Fi® network connectivity simplify new and retrofit installations.
Crestron Home OS Control
The TSW-880R is used to control a Crestron Home® OS whole home solution. Select the Crestron Home app from the touch screen to control lighting, shades, climate, media, security, and cameras, including the ability to create and recall scenes that create a desired ambiance throughout a home. A TSW-880R may be installed in each room to provide easy access to various Crestron Home functions for both the room and the home.
Advanced Touch Screen Control
The TSW-880R offers a sleek and powerful user interface for controlling technology in a home via the Crestron Home app. The touch screen provides an intuitive interface with easy-to-use capacitive controls, true feedback, and real-time status display. Automatic brightness controls ensure optimal visibility under varying lighting conditions.
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TSW-880R to display live streaming video from an IP camera or streaming encoder (Crestron DM‑TXRX‑100‑STR, or similar). Video is delivered to the touch screen over Ethernet, eliminating the need for extra video wiring.
Rava SIP Intercom
Rava® SIP Intercom Technology enables hands free VoIP communication with other Rava enabled touch screens and door stations. Rava works over Ethernet, supporting 2-way intercom and paging without requiring any special wiring. VoIP phone capability is also possible through integration with a SIP compatible IP phone system or SIP server, allowing hands free telephone functionality complete with speed-dialing, caller ID, custom ringers, and other enhancements. The far-field microphone picks up voice communication even when the user is not directly next to the touchscreen. Built in echo cancellation affords full duplex performance for clear, seamless voice communication using the integrated microphone and speakers.
Wired and Wi-Fi Connectivity
An Ethernet LAN connection is all that is required to wire the TSW-880R, containing all control, video, intercom, and power signals within a single wire.
For deployments without access to Ethernet, the touch screen can also be connected to the network over Wi-Fi communications via a local wireless access point (WAP).
Power over Ethernet
Using PoE technology, the TSW-880R gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches offer a total networking solution with built in PoE for multiple touch screens. Refer to the full list of supported PoE switches here.
NOTE: Refer to the Power specifications for more details.
SCEP Certificate Management
80 Series touch screens support Simple Certificate Enrollment Protocol (SCEP) and Enrollment over Secure Transport (EST) to automate certificate enrollment, issuance, and renewal across enterprises. SCEP provides fast and standardized certificate authentication with simple renewal capabilities and can be managed through the console, local web UI, and XiO Cloud.
NOTE: The touch screen must run firmware version 1.6 or greater in order to use SCEP/EST certificate management.
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such as 802.1X authentication, MDEP, TLS encryption, HTTPS connectivity, and Active Directory® service integration.
Optional Mounting Accessories
The TSW-880R supports numerous optional mounting accessories that allow the touch screen to be installed in all kinds of installations.
- The TSW-880/1080-MSMK multisurface mount kit allows a touch screen to be mounted directly to virtually any flat surface, which is ideal for mounting at the entrance to a meeting space for room scheduling applications.3
- The TSW-880/1080-MUMK allows the touch screen to be attached to the mullion of an interior glass wall, window, or partition.3
- The TSW-880/1080-MSMK-ANG multisurface mount kit allows a touch screen to be mounted directly to virtually any flat surface while displaying at an angle for easier viewing.
Features
Key Features
- Next generation Crestron touch screen featuring a native Crestron Home® OS application
- 8.1 in. (204 mm) widescreen active-matrix color display and 1280 x 800 WXGA display resolution
- Capacitive touch screen display
- Built-in Rava® SIP intercom
- Built-in speakers and microphone
- H.265, H.264, or MJPEG streaming video display
- Single wire Ethernet connection with PoE or PoE+ power
- Wi-Fi® network connectivity
- USB-C 2.0 port for room availability accessories and conferencing
- Enterprise grade security and authentication
- Web or device-based configuration
- Available in white or black finish
Specifications
| Touch Screen Display | |
| Display Type | TFT active matrix color LCD |
| Size | 8.1 in. (204 mm) diagonal |
| Aspect Ratio | 16:10 WXGA |
| Resolution | 1280 x 800 pixels |
| Brightness | Minimum: 350 nits (cd/m2) Maximum: 400 nits (cd/m2) |
| Contrast | 1000:1 |
| Color Depth | 24 bit, 16.7M colors |
| Illumination | Edgelit LED with auto brightness control |
| Viewing Angle | ±80° horizontal, ±80° vertical |
| Touch Screen | Projected capacitive, 5 point multitouch capable |
| Buttons | |
| Virtual Buttons | (6) Virtual buttons in collapsible universal tool bar, per button show/hide, preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone |
| Reset | (1) Pin hole on bottom for hardware reset |
| Graphics Engine | |
| Dual scalable streaming video window, native Crestron Home® OS app, touch screen setup and diagnostics via web browser, cloud, or onscreen UI, Crestron Home setup and diagnostics via Crestron Home Setup app | |
| Languages | |
| Onscreen Keyboard | Arabic, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (UK), English (US), Finnish, French (Canada), French (Switzerland), German, Hebrew, Hungarian, Italian, Japanese, Norwegian Bokmal, Polish, Portuguese, Russian, Serbian, Spanish, Swedish, Turkish |
| Memory | |
| RAM | 8GB LPDDR4 |
| Storage | 40GB eMMC pSLC |
| Maximum Project Size | 1000 MB |
| Wired Communications | |
| Ethernet | 1000Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, IEEE 802.3 at compliant |
| USB | USB 2.0 host |
| Wireless Communications | |
| Transceiver | IEEE 802.11a/b/g/n/ac/ax Wi-Fi 6E (2.4, 5 GHz and 6GHz) 2x2 MIMO, static IP or dynamic IP via DHCP |
| Security | 64 and 128-bit WEP, WPA, WPA2, WPA3, WPA Enterprise and WPA2 Enterprise |
| Range | Up to 50 ft (15 m), subject to site-specific conditions |
| Bluetooth® Hardware | BLE, BT5.2, 33 ft (10 m) typical range |
| Radio Frequency (RF) signals | Proximity sensor (Japan): 60.5 to 61 GHz Proximity sensor (Worldwide): 61 to 61.5 GHz |
| Streaming Decoder | |
| Video Formats | H.265, H.264 (MPEG‑4 part 10 AVC, MJPEG) |
| Audio Formats | AAC Stereo |
| Bitrates | Up to 25 Mbps (20 Mbps maximum recommended) |
| Input Resolutions | Up to 3840x2160@30fps |
| Protocol | RTSP |
| Audio | |
| Features | Built-in microphone and speakers, Rava® SIP Intercom |
| Connectors | |
| LAN PoE | (1) 8-pin RJ-45 connector, female, with 2 LED indicators; 1000BASE-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status |
| USB | (1) USB Type C connector, female; USB 2.0 host port USB 3.1 DisplayPort Alt Mode (for future release) |
| Power | |
| PoE (Power over Ethernet) | IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) Note: Enabling the USB port requires use of an 802.3 at Type 2 PoE+ PSE. |
| Environmental | |
| Temperature | 32 to 104°F (0 to 40°C) |
| Humidity | 10% to 95% RH (noncondensing) |
| Heat Dissipation | 44 BTU/hr |
| Construction | |
| Housing | Die-cast housing, smooth black or white finish, glass with black or white surround |

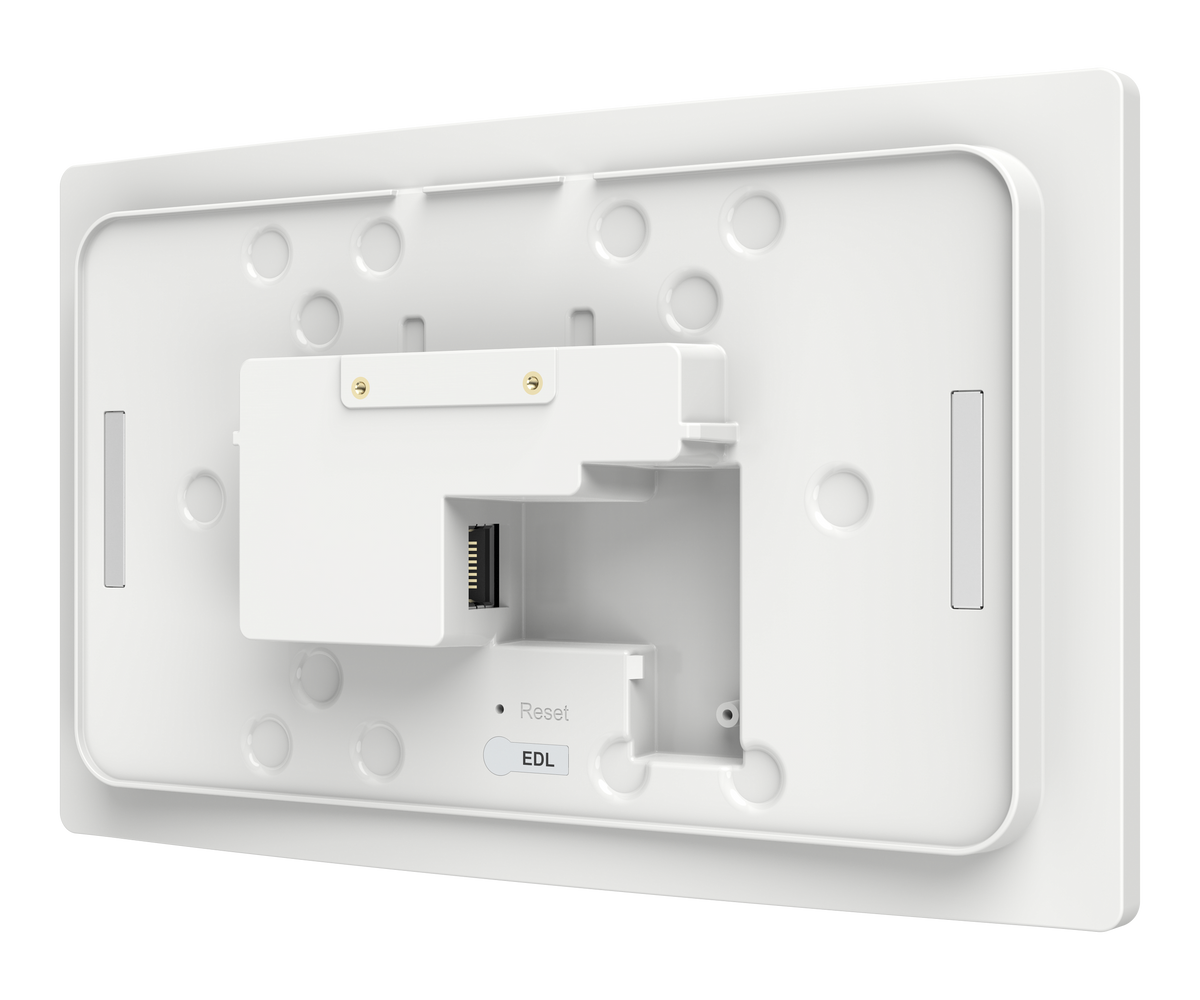

| Mounting | Surface mount over a 2 or 3‑gang US electrical box, 2‑gang European (DIN 49073) electrical box, or 2‑gang UK (BS 4662) electrical box; Lectern mount over a 2 in. H x 3‑3/4 in. W (51 mm H x 96 mm W) cutout; 1-3/8 in. (35 mm) minimum mounting depth; Wall mount available separately |
| Dimensions | |
| Height | 4.88 in. (124 mm) |
| Width | 7.93 in. (201 mm) |
| Depth | 1.18 in. (30mm) |
| Weight | |
| 14.46 oz (410 g) | |
| Compliance | |
|
Regulatory Model: M202404001 FCC Part 15 Class B, IC Class B, CE, UL® Listed for US and Canada/Intertek® |
|
