Provides an in-wall mounting solution for TSW-880, TSW-1080, TSS-880, or TSS-1080 series touch screens.
Overview

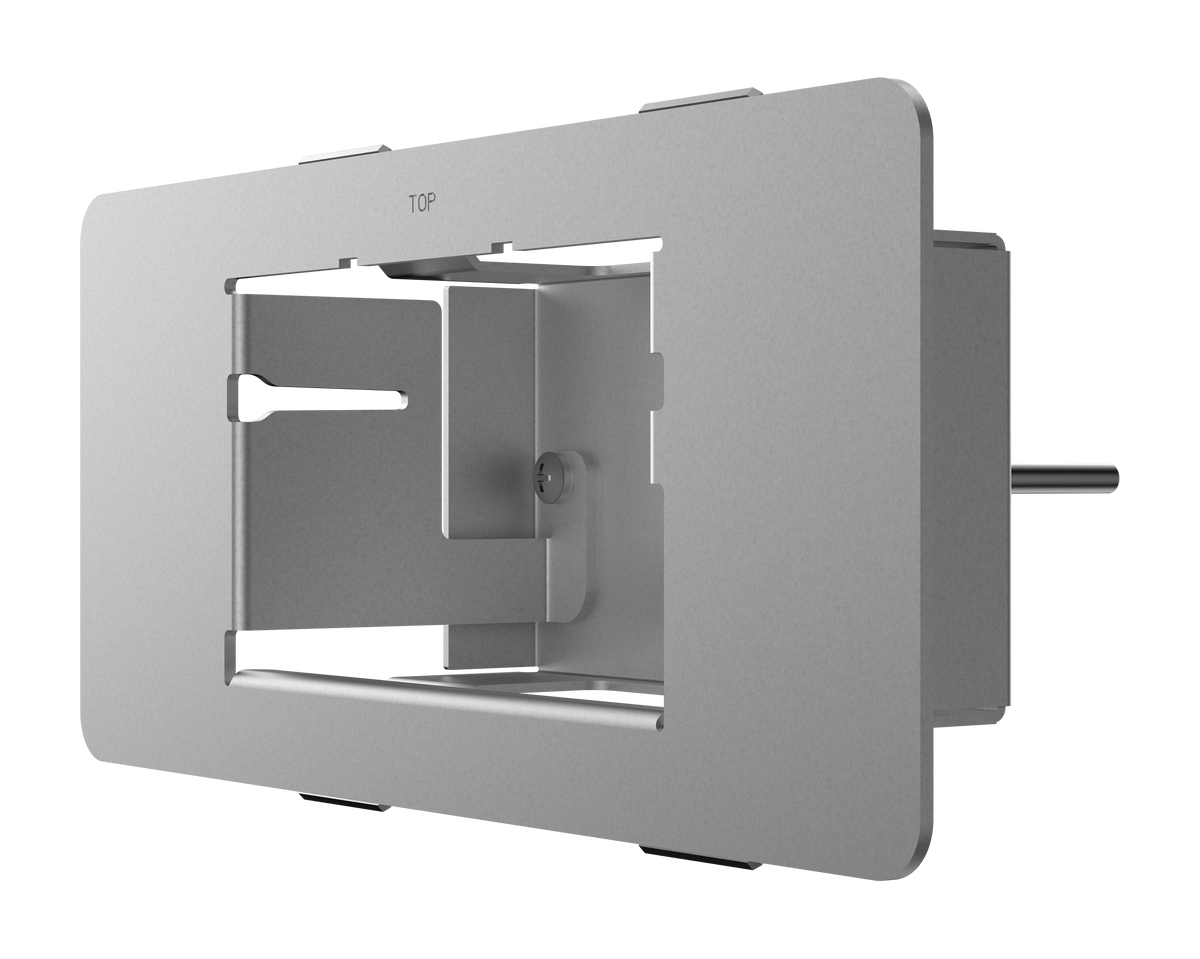

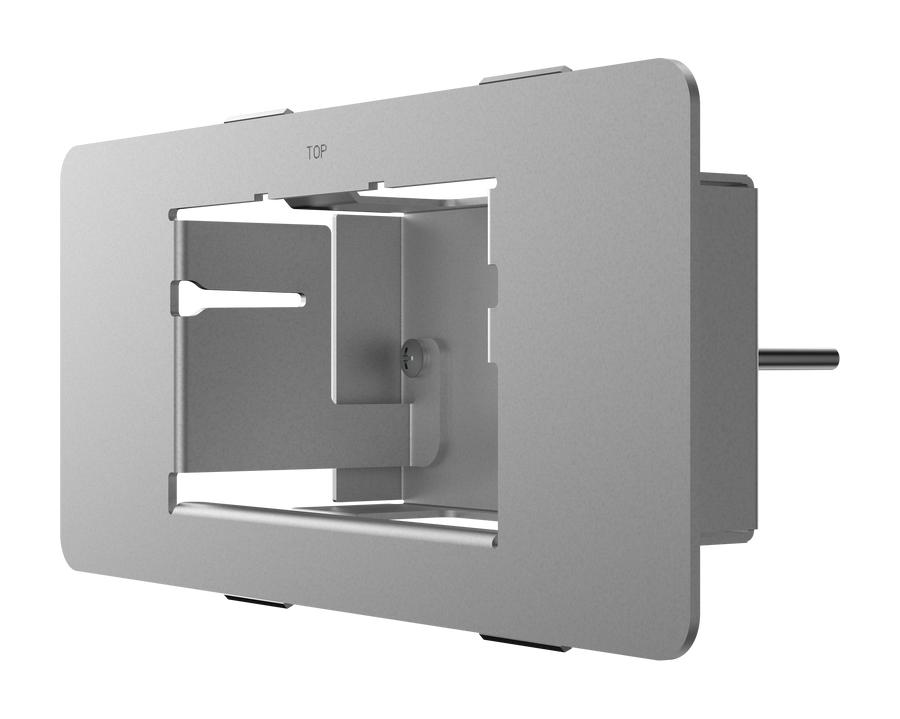

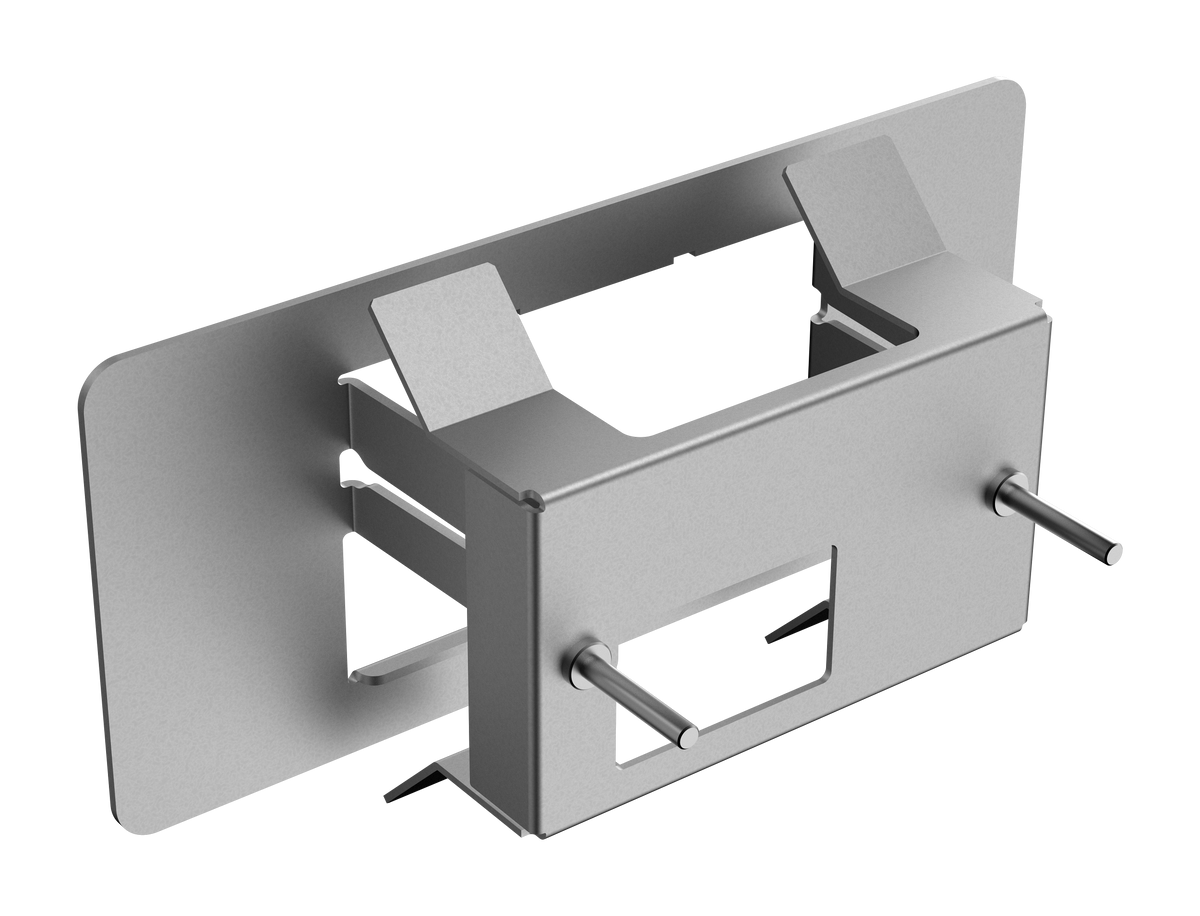

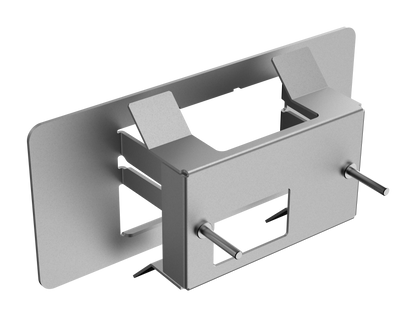

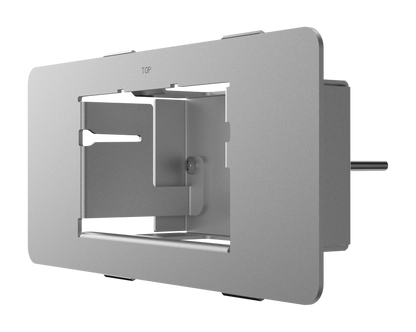

The TSW-UMB-80 universal mounting bracket provides a simple in‑wall mounting solution for TSW-880, TSS-880, TSW‑1080 or TSS‑1080 series touch screens. The TSW‑UMB‑80 is a postconstruction solution that allows the touch screen to be retrofitted into existing drywall or paneling. The bracket is also suitable for use in a lectern or podium. Additionally, supported touch screen models can be replaced easily without needing to cut or patch the wall.
For preconstruction wall mounting applications, the TSW‑UMB‑80 can be used along with the TSW‑UMB‑80‑PMK mounting kit. The TSW‑UMB‑80‑BBI wall mount back box can be used for masonry and concrete installations.
Features
Specifications
| Construction | |
| Material | Metal bracket and clamp assembly |
| Surface Mounting | Surface mount over a 2 in. H x 3‑3/4 in. W (51 mm H x 96 mm W) cutout; 2‑13/16 in. (72 mm) minimum mounting depth; 1‑1/4 in. (32 mm) maximum mounting surface thickness; Pre/postconstruction mounting bracket and wall mount back box accessories sold separately |
| Dimensions | |
| Height | 2.98 in. (76 mm) |
| Width | 6.65 in. (169 mm) |
| Depth | 1.56 in. (40 mm) |
| Weight | |
| 0.51 lb (8.16 oz) | |
