A cost-effective, simple to use tabletop presentation interface offering connectivity and one-touch control in a compact, stylish device that's easy to install.
Overview

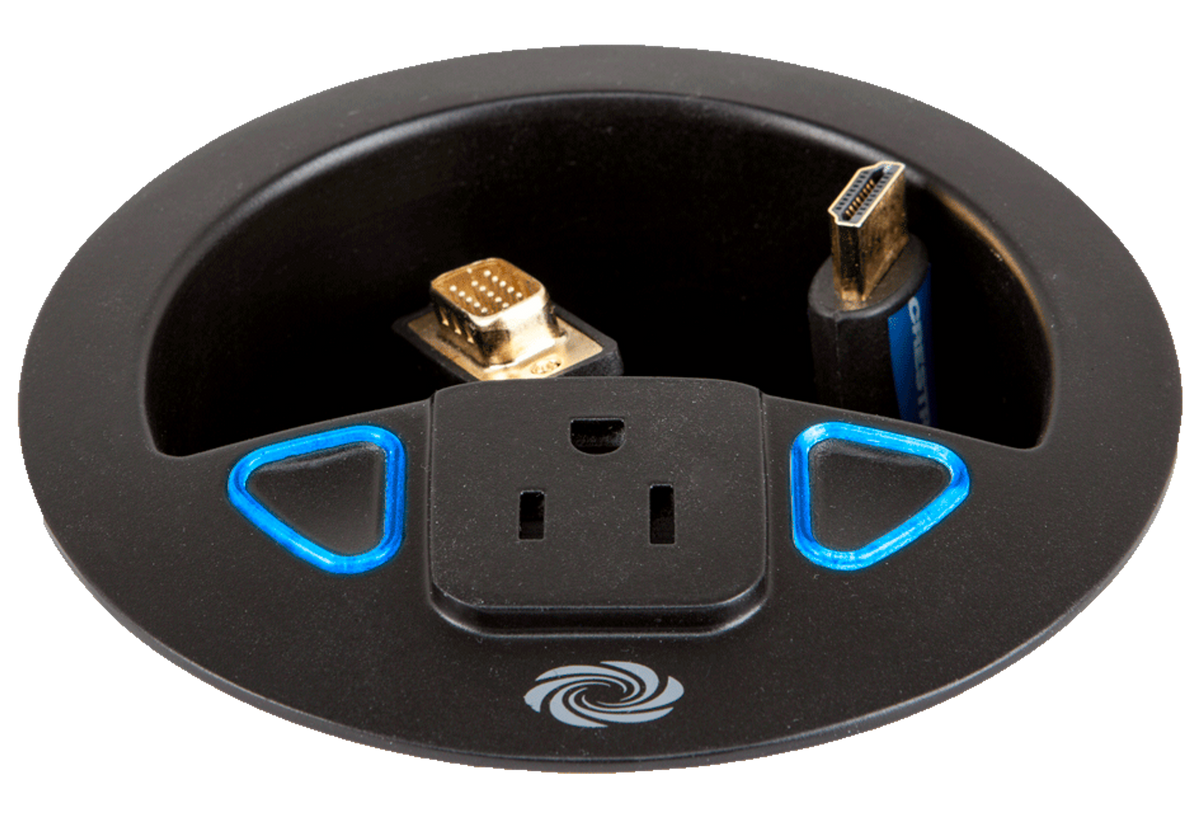

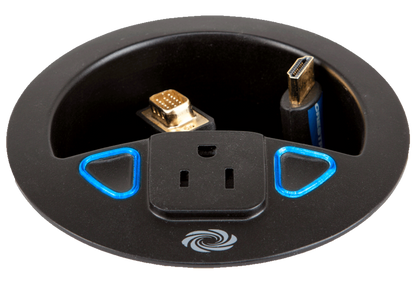

The TT‑100‑B‑T is a presentation solution that provides connectivity, cable management, and one-touch control, all in an easy‑to‑install tabletop device. Several cable caddies can be installed in a tabletop to allow multiple users to connect video sources to a single switcher underneath (sold separately). One-touch control at each cable caddy makes selecting between sources simple.
Switching Between Presenters
Starting a presentation and switching between presenters is easy and intuitive. Simply connect a source and the room display automatically turns on and displays that source. Another presenter can take over the presentation from an additional cable caddy via the soft-touch capacitive buttons. Multicolored lights surrounding each button indicate when a source is connected, ready, and being displayed.
Multiple Connections

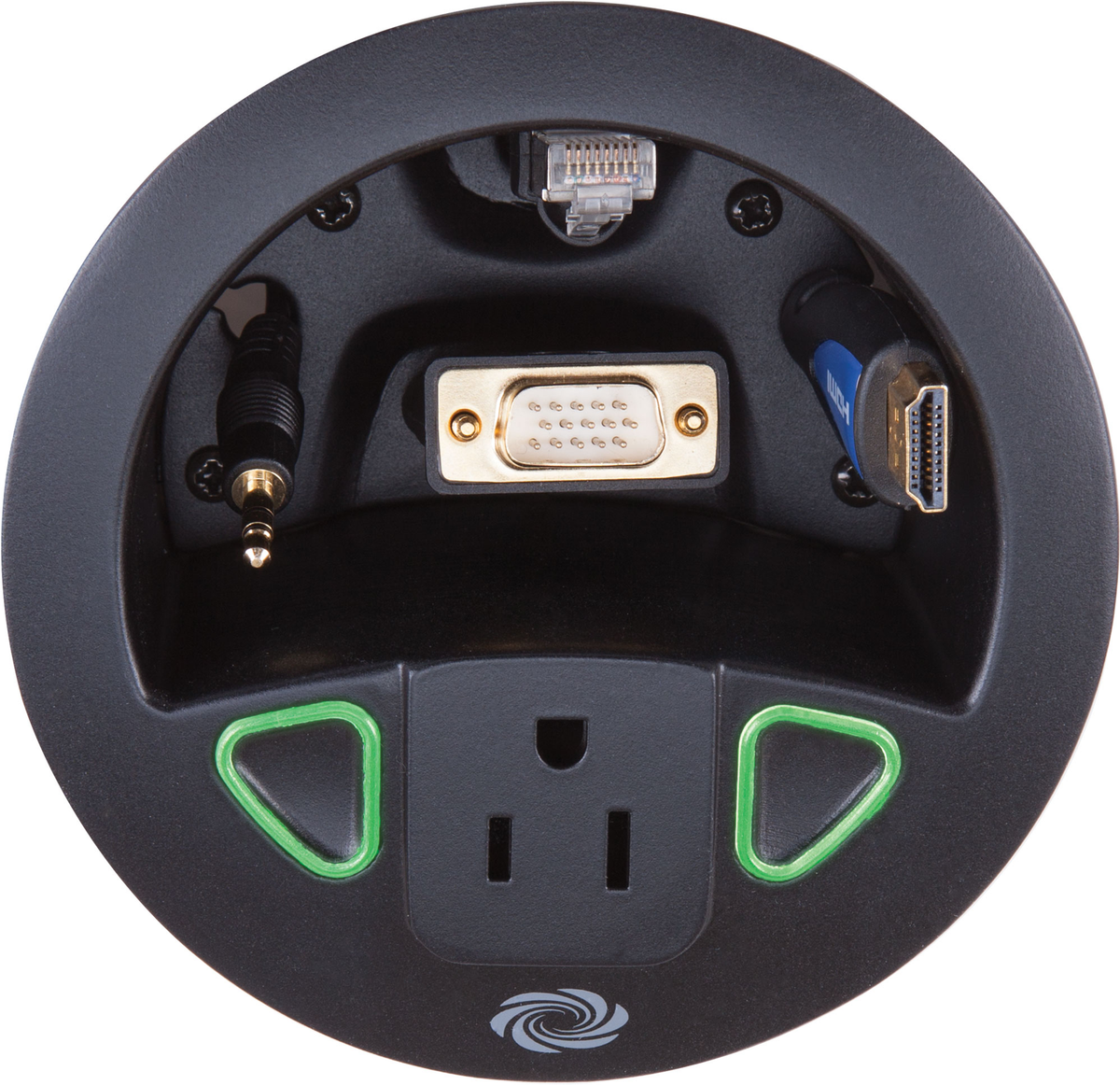

The Crestron Connect It Cable Caddy provides four pass-through openings for easy pull-out interface cables such as HDMI®, USB, Audio, and Ethernet (not included).
Simple Installation
Mounting the cable caddy only requires a 4 in. (102 mm) round hole through the tabletop surface. The caddy is secured in place with a single twist-on locking ring, which features three lock-down screws to prevent the device from coming loose.
Features
Key Features
- Simple-to-use tabletop presentation interface
- Soft-touch capacitive buttons with multicolored status indicators
- Recessed cable storage compartment
- 120VAC power outlet
- Compact and easy to install
- Integrates with control systems and AV signal extender endpoints
Specifications
| Controls & Indicators | ||
| "Connect It" Buttons | (2) Soft-touch capacitive buttons; Press either button to select the connected video source for viewing on a display device |
|
| "Connect It" Indicators | (2) Multicolored LED indicators: Blue (solid) – Indicates no video source is connected; Green (blinking) – Indicates a video source is connected and the display device is powering up; Green (solid) – Indicates the connected video source is selected for viewing on the display device; Green (slow pulse) – Indicates a video source is connected but not currently selected for viewing; Red (blinks 5 times) – Indicates one of the “Connect It” buttons has been pressed but no video source is connected |
|
| Communications | ||
| Cresnet® | Cresnet secondary mode | |
| Connections – Top | ||
| Cable Storage Compartment | Provides pass-through holes for up to four cables (cables not included) | |
| AC Power Outlet | (1) NEMA 5-15R grounded AC power receptacle; Maximum Load: 10 Amps @ 125 Volts AC, 50/60 Hz |
|
| Connections – Bottom Panel | ||
| NET | (1) 4-pin 3.5 mm detachable terminal block; Cresnet secondary port |
|
| USB | Not used | |
| Utility Power | (1) 9 ft (2.7 m) AC line cord with NEMA 5-15P grounded plug; Passes through to front panel AC power outlet |
|
| Power Requirements | ||
| Cresnet Power Usage | 1.2 Watts (0.05 Amps @ 24 Volts DC) | |
| Utility Power | 10 Amps at 125 Volts AC 50/60Hz | |
| Environmental | ||
| Temperature | 32° to 112° F (0° to 45° C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Heat Dissipation | <0.05 BTU/hr | |
| Construction | ||
| Housing | Plastic | |
| Mounting | Flush tabletop mount in a 4 inch (102 mm) round hole, 1/2 to 1-1/4 inch (13 to 32 mm) surface thickness | |
| Dimensions | ||
| Height | 3.76 in (96 mm) | |
| Diameter | 4.71 in (120 mm); 5.90 in (150 mm) with locking ring |
|
| Weight | ||
| 15.3 oz (433 g) without cables | ||
