Product Information
A cable organizer for network, audio, and video tabletop connections.
Overview

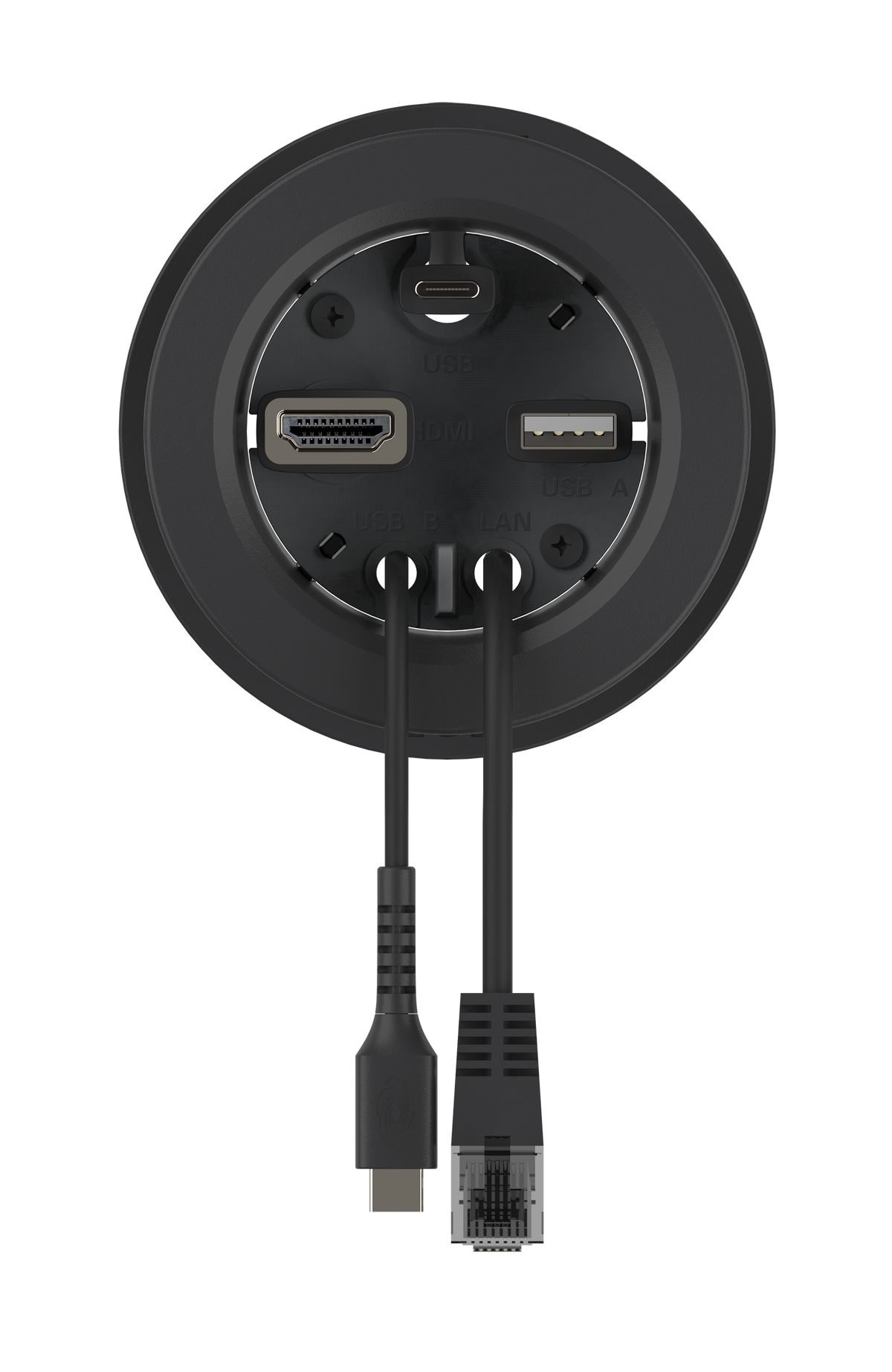

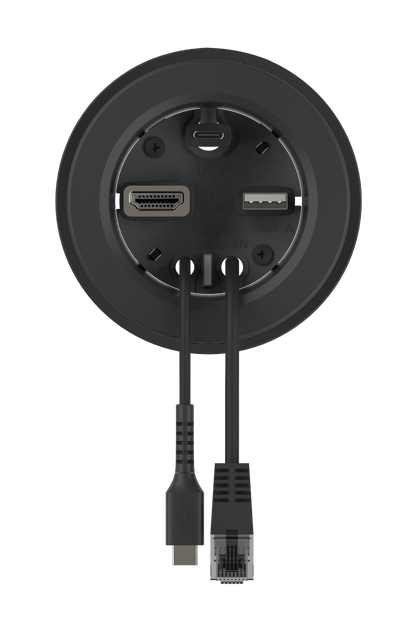

The TT-CMK is a cable organizer for tabletop connections. The cable organizer routes network, audio, and video connections to a tabletop controller or a user's laptop for BYOD (Bring Your Own Device) presentation.
Features
Key Features
- Cable organizer for BYOD tabletop connections
- Mounts on any flat level surface with a thickness of 1 in. (25 mm) minimum to 1.5 in. (38 mm) maximum
Specifications

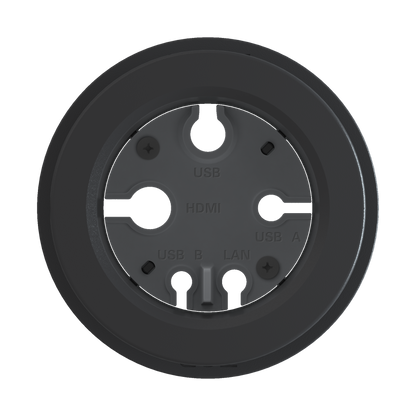

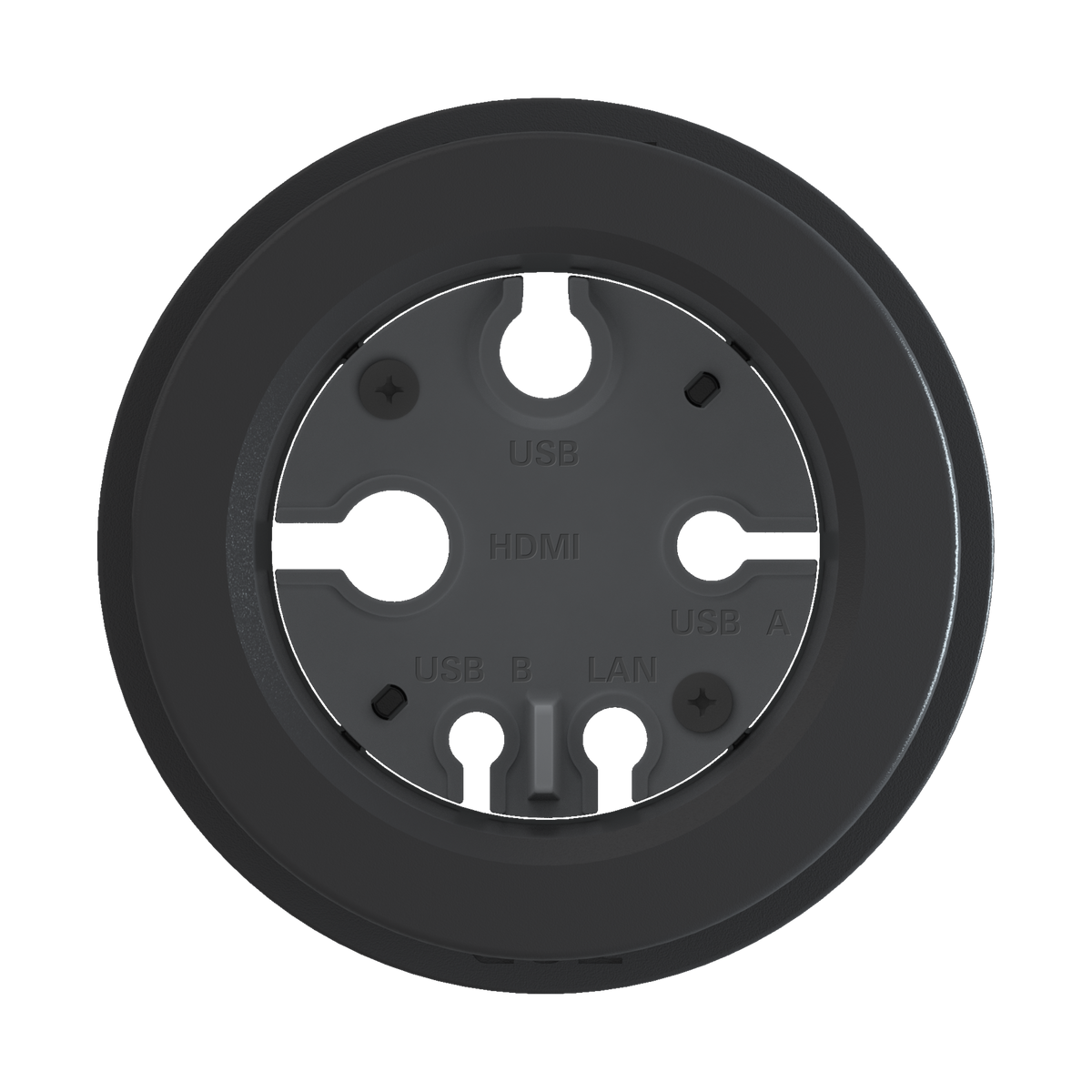

| Cable Routing Holes | |
| LAN | Accommodates CAT5e or higher Ethernet cable; 0.24 in. (6.1 mm) diameter |
| USB B | Accommodates USB A to Micro-B cable; 0.20 in. (5.1 mm) diameter |
| HDMI | Accommodates HDMI® cable; 0.41 in. (10.4 mm) diameter |
| USB A | Accommodates USB A to Micro-B cable; 0.26 in. (6.6 mm) diameter |
| USB | Accommodates USB-C® cable; 0.32 in. (8.1 mm) diameter |
| Construction | |
| Material | Black plastic |

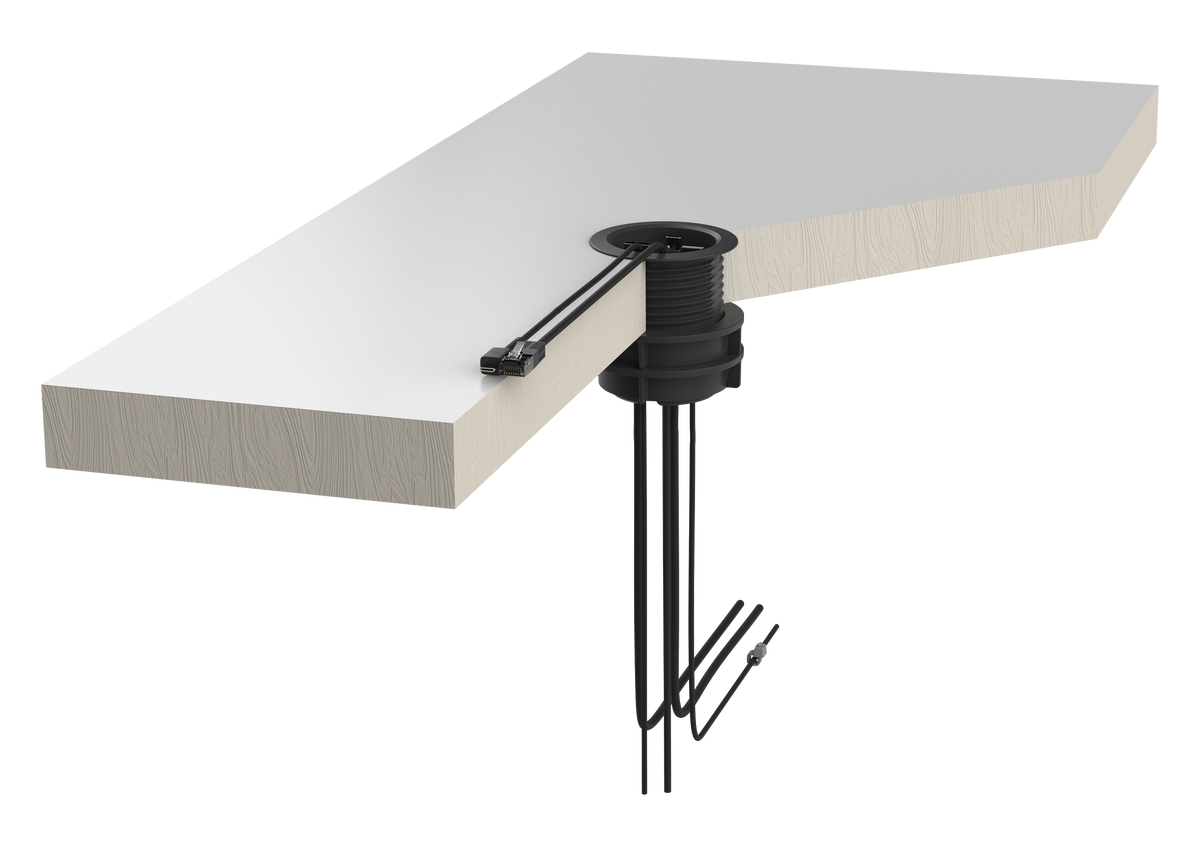

| Mounting | Tabletop mount, fastened by two locking nuts; Surface thickness: 1 in. (25 mm) to 1.5 in. (38 mm); 2.5 in. (64 mm) diameter mounting hole |
| Dimensions | |
| Height | 3.19 in. (81 mm); Above the table: 0.08 in. (2 mm); Below the table: 1.61 in. to 2.11 in. (41 mm to 54 mm); Height below the table varies based on the table's thickness |
| Width | Above the table: 3 in. (76 mm); Below the table: 3.25 in. (83 mm) with locking ring installed |
| Depth | Above the table: 3 in. (76 mm); Below the table: 3.25 in. (83 mm) with locking ring installed |
