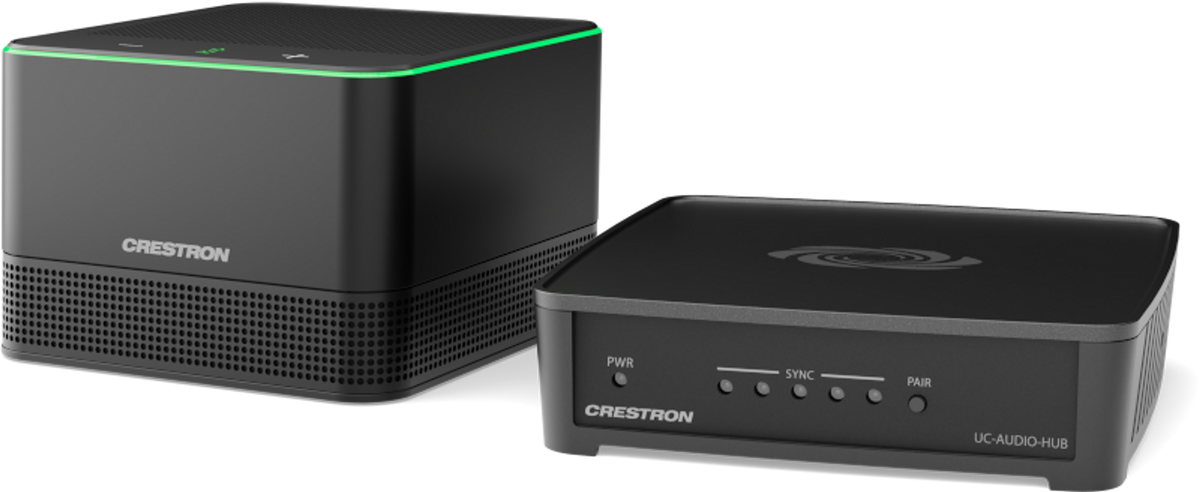

A wireless conferencing system that provides a small to large room audio conference solution. The kit includes a Crestron Flex UC-AUDIO-POD and UC-AUDIO-HUB.
Overview
The Crestron Flex UC-AUDIO-1-B KIT is a wireless conferencing system that provides a small to large room audio conference solution. The kit includes a Crestron Flex UC-AUDIO-POD and UC-AUDIO-HUB. The system can be expanded to support up to four pods, delivering a high-quality audio experience when connected to the hub through the Digital Enhanced Cordless Telecommunications (DECT™) technology.
High-Quality Audio

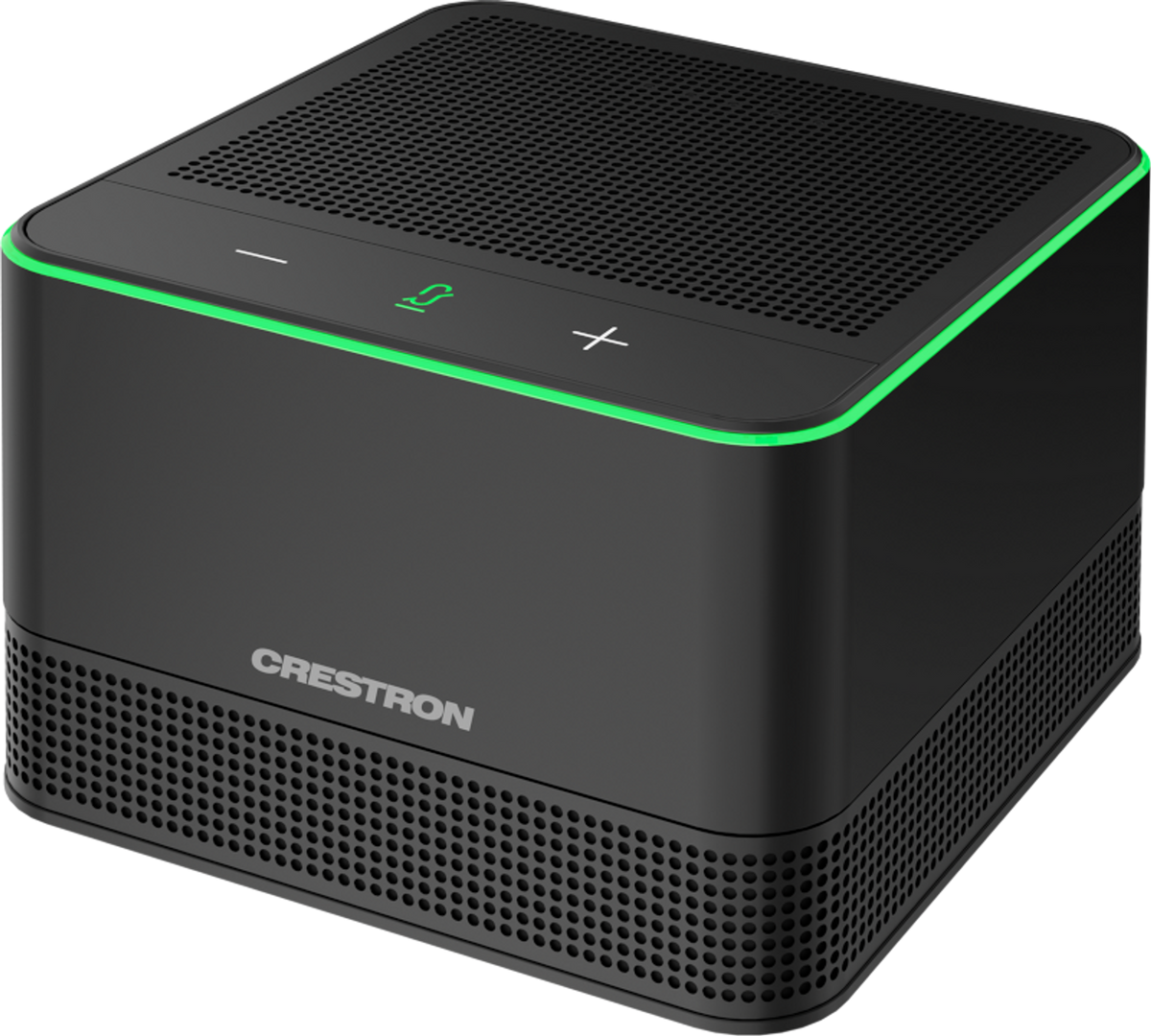

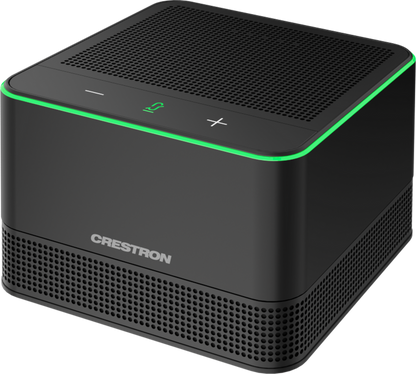

The pod delivers intelligible and high-quality audio across every corner of a room. It contains four auto-mixed directional mics that provide 360-degree pickup, high-quality echo cancellation, automatic gain compensation, and noise reduction.
Wireless Connectivity

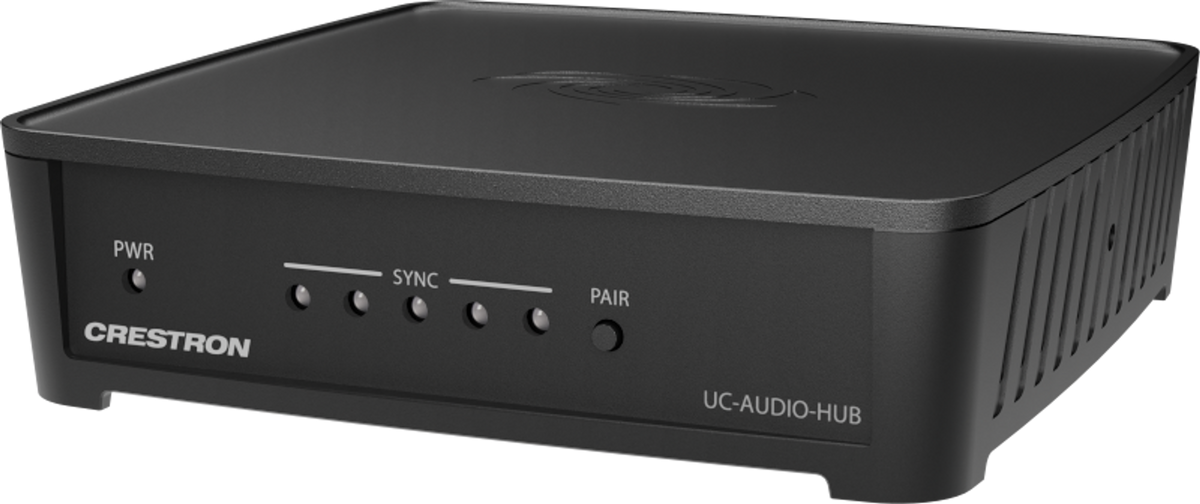

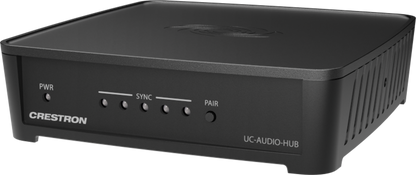

The hub wirelessly connects with and distributes audio to up to four paired pods, enabling the pods to be placed anywhere within a room. This allows the hub and the pods to be deployed in large conference rooms and multi-purpose meeting spaces. Audio level consistency is realized as volume levels are synchronized across all the pods.
Outstanding Adaptability
The pod is scalable across a variety of room types, including unconventionally shaped ones and those with challenging designs. In an open architecture design or where walls and ceilings cannot be opened to wires, the pod provides an audio solution ensuring that neither room aesthetics nor optimal audio are compromised. The pod, when connected with the hub, can easily be moved if furniture changes, and additional pods can be added if the room expands. Pods can be deployed in spaces with video conferencing hosted by personal devices to enable productive hybrid meetings with high-quality audio.
Robust Security
The pod delivers audio over long distances, making it optimal for larger spaces. The DECT technology ensures that only paired pods transmit audio from the intended hub. The pod provides safe and secure audio transmission leveraging DECT technology. DECT uses multiple levels of security and does not interfere with other wireless technologies, such as Wi-Fi® and Bluetooth®.
Easy Device Management
The configuration and connection status of the system can be monitored through a simple web user interface with no prior setup. Deploying the pods and the hub across multiple room types, firmware updates, monitoring, and management can be controlled using the XiO Cloud® service.
Features
Key Features
- A wireless audio conference solution including a Crestron Flex Pod and Hub
- Wireless connectivity enables placement of the pod anywhere on a conference table
- Convenient in-call volume and mic mute controls
- Speaker volume indicator and LED indicator ring display the operational status
- Optional tabletop mounting accessory and Kensington® lock support
- Built-in AEC and noise reduction affords exceptional full-duplex audio performance with highly intelligible, echo-free two-way voice quality
- Up to four pods connect wirelessly to the hub which sends and receives audio to a UC Engine through a USB-C® connection
- DECT™ technology ensures minimal interference and robust security
Specifications
| UC-AUDIO-POD | |
| Driver | One full range 2 in. speaker |
| Frequency Response | 100 Hz to 7 kHz |
| Effective Output Level | 74 dB SPL at 1 m |
| Microphones | 360° quad mic array Pickup Range: 7.5 ft (approx. 2.3 m) |
| Audio (DSP) | Acoustic echo cancellation, automatic gain control, dynamic noise suppression, and speaker volume control Full-duplex IEEE 1329 Type 1 compliant |
| Wireless Communication | Frequency bands: DR1: 1920 – 1930 MHz 5 channels (For US and Canada only) DR2: 1880 – 1900 MHz 10 channels (For Europe, Australia, New Zealand, Israel, Saudi Arabia, Kuwait, Qatar, United Arab Emirates, Yemen, Oman, Hong Kong, Singapore and Iraq) DR3: 1894 – 1906 MHz 6 channels (For Japan) DR4: 1790 – 1800 MHz 3 channels (For Korea) DR5: 1880 – 1895 MHz 8 channels (For Taiwan) Range up to 50 ft (approx. 15 m) indoors |
| Indicators | Green LED indicates microphone is unmuted Red LED indicates microphone is muted White LED indicates the speaker volume level |
| Buttons | Speaker volume up/down: Capacitive, backlit Mic mute: Capacitive, backlit Pair: Push button Reset: Recessed push button |
| USB-C | 5VDC, 3A via external 100-240VAC power pack (included with the pod) |
| Security Port | Kensington Security Slot™ port |
| Environmental | Temperature: 41° to 104° F (5° to 40° C) Humidity: 10% to 95% RH (non‑condensing) Heat dissipation: 12 BTU/hr |
| Enclosure | Lightly textured black/white finish, plastic housing, perforated stainless steel grilles, and die-cast aluminum bottom cover |
| Mounting | Tabletop mounting only |
| Dimensions | Height: 3.0 in. (76 mm) Width: 4.40 in. (112 mm) Depth: 4.40 in. (112 mm) |
| Weight | 1.6 lb (726 g) |
| UC-AUDIO-HUB | |
| Wireless Communication | Frequency bands: DR1: 1920 – 1930 MHz 5 channels (For US and Canada only) DR2: 1880 – 1900 MHz 10 channels (For Europe, Australia, New Zealand, Israel, Saudi Arabia, Kuwait, Qatar, United Arab Emirates, Yemen, Oman, Hong Kong, Singapore and Iraq) DR3: 1894 – 1906 MHz 6 channels (For Japan) DR4: 1790 – 1800 MHz 3 channels (For Korea) DR5: 1880 – 1895 MHz 8 channels (For Taiwan) Range up to 50 ft (approx. 15 m) indoors |
| Indicators | Power: Green/Amber LED indicates the power is on Sync: Five SYNC LEDs indicate pairing and connection with each pod1 |
| Buttons | Pair: Tactile push button Reset: Recessed push button |
| USB-C | USB-C (PC) Connection for Audio and HID data |
| 24VDC, 0.75A | 24VDC, 0.75A via external 100-240VAC power pack (included with the hub) |
| LAN Power over Ethernet | 1000 Mbps Ethernet, PoE PD 4W, Class 0 |
| External Antenna | Input Impedance: 50 Ω; Connector Type: SMA-RP |
| Environmental | Temperature: 41° to 104° F (5° to 40° C) Humidity: 10% to 95% RH (non‑condensing) Heat dissipation: 12.3 BTU/hr |
| Enclosure | Lightly textured black finish, plastic housing |
| Mounting | Freestanding, stackable, surface mount and wall/ceiling mount option with bracket (black plastic) |
| Dimensions | Height: 1.35 in. (34 mm), 1.77 in. (45 mm) with bracket Width: 5.04 in. (128 mm), 5.36 in. (137 mm) with bracket Depth: 5.04 in. (128 mm) |
| Weight | 8.9 oz (253 g) without bracket |
