A wireless transceiver and auto mixer that connects with up to four paired Crestron Flex UC-AUDIO-PODs through the Digital Enhanced Cordless Telecommunications (DECT™) technology.
Overview

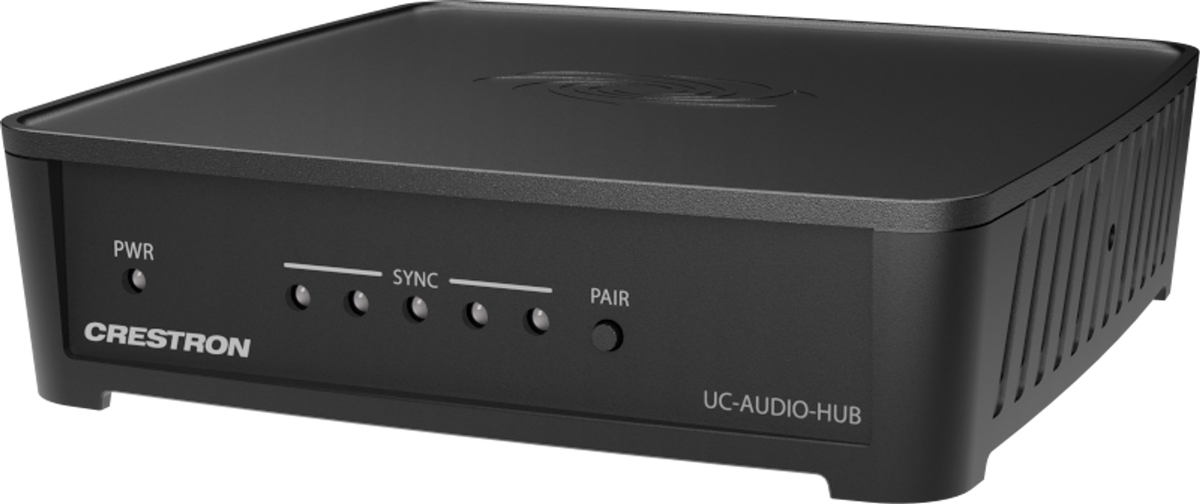

The Crestron Flex UC-AUDIO-HUB is a wireless transceiver and auto mixer that connects with up to four paired Crestron Flex UC-AUDIO-POD devices through the Digital Enhanced Cordless Telecommunications (DECT™) technology. The hub receives audio from the pods' microphones, auto-mixes the audio, and transfers it to a UC Engine through a USB-C® connection. The hub also distributes audio to all paired pods after receiving the audio from the UC Engine.
Wireless Connectivity
The hub wirelessly connects with and distributes audio to up to four paired pods, enabling the pods to be placed anywhere within a room. This allows the hub and the pods to be deployed in large conference rooms and multi-purpose meeting spaces. Audio level consistency is realized as volume levels are synchronized across all the pods.
Robust Security
The hub provides safe and secure audio transmission to and from the pods by leveraging DECT technology. DECT uses multiple levels of security and does not interfere with other wireless technologies, such as Wi-Fi® and Bluetooth®.
Easy Device Management
The configuration and connection status of the hub can be monitored through a simple web user interface with no prior setup. Firmware updates, monitoring, and management can be controlled using the XiO Cloud® service.
Features
Key Features
- A wireless transceiver and auto mixer for Crestron Flex Pods
- Pairs with up to four pods via DECT™ technology
- DECT technology ensures minimal interference and robust security
- Connects to a UC Engine through a USB-C® cable, transferring auto-mixed audio to the UC application
Specifications
| Wireless Communication | |
| Frequency | Frequency bands: DR1: 1920 – 1930 MHz 5 channels (For US and Canada only) DR2: 1880 – 1900 MHz 10 channels (For Europe, Australia, New Zealand, Israel, Saudi Arabia, Kuwait, Qatar, United Arab Emirates, Yemen, Oman, Hong Kong, Singapore and Iraq) DR3: 1894 – 1906 MHz 6 channels (For Japan) DR4: 1790 – 1800 MHz 3 channels (For Korea) DR5: 1880 – 1895 MHz 8 channels (For Taiwan) Range up to 50 ft (approx. 15 m) indoors |

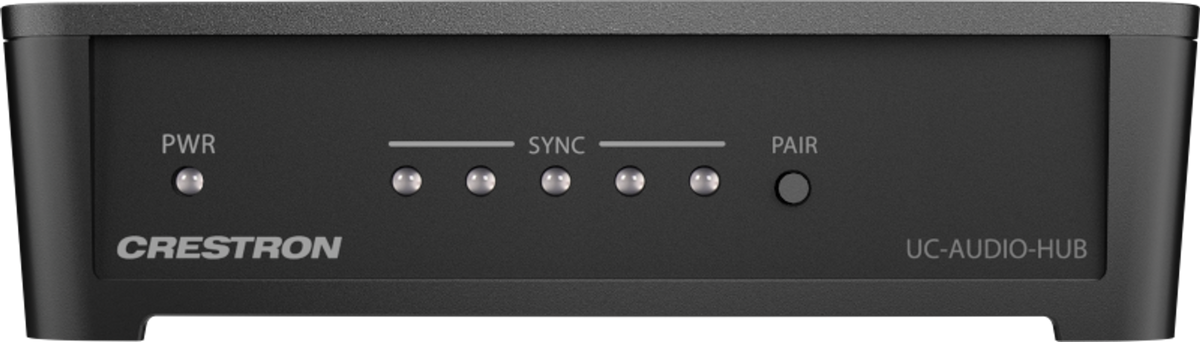

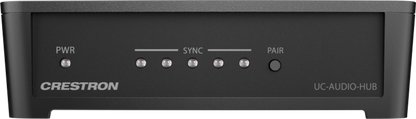

| Indicators | |
| Power | Green LED indicates the hub is ready to use Amber LED indicates power is on |
| Sync | Five SYNC LEDs indicate pairing and connection with each pod1 |
| Buttons | |
| Pair | Tactile push button |
| Reset | Recessed push button |

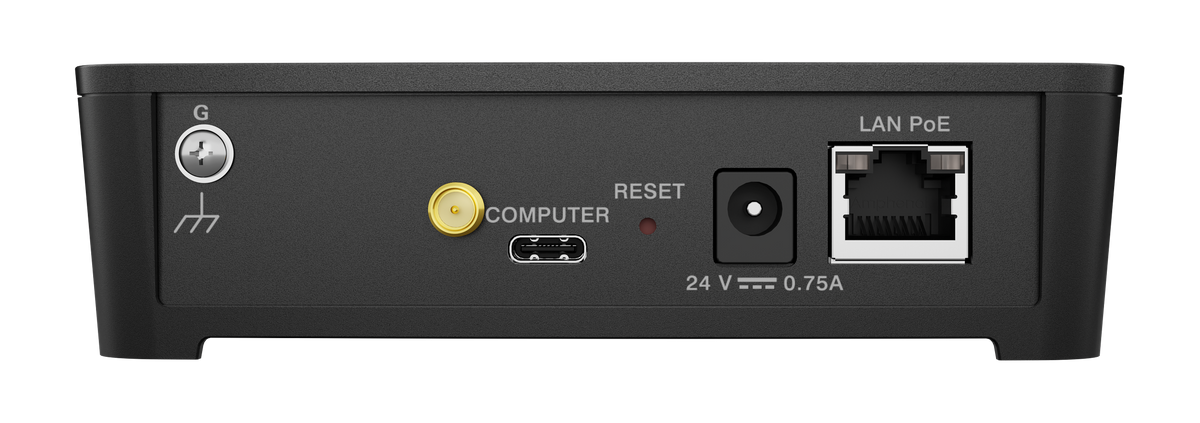

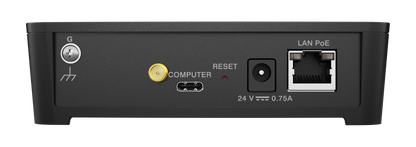

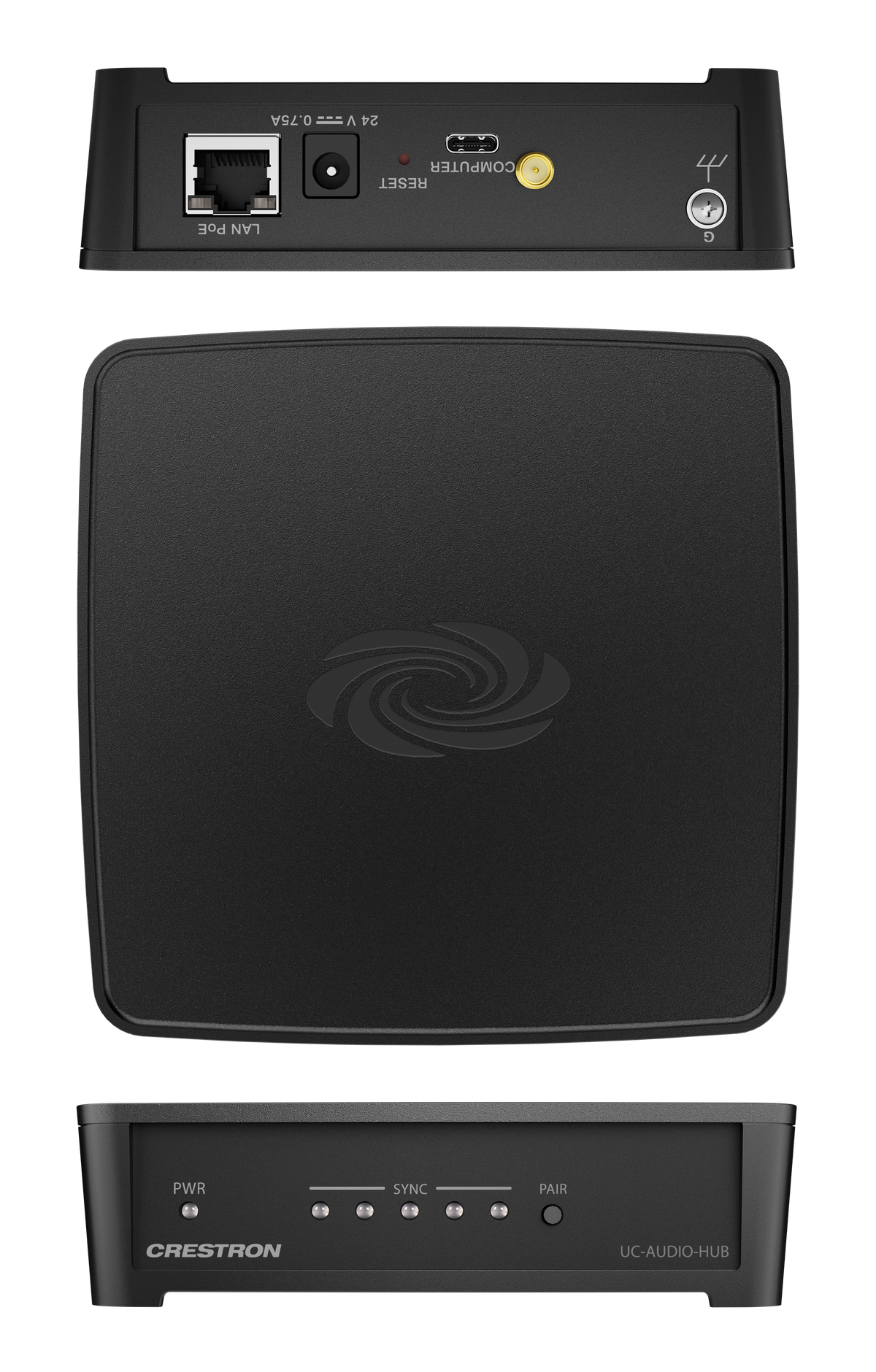

| Connectors | |
| USB-C | USB-C (PC) Connection for Audio and HID data |
| 24VDC, 0.75A | 24VDC, 0.75A via external 100-240VAC power pack, (included with the hub) |
| LAN Power over Ethernet | 1000 Mbps Ethernet, PoE PD 4W, Class 0 |
| External Antenna | Input Impedance: 50 Ω Connector Type: SMA-RP |
| Environmental | |
| Temperature | 41° to 104° F (5° to 40° C) |
| Humidity | 10% to 95% RH (non‑condensing) |
| Heat Dissipation | 12.3 BTU/hr |
| Construction | |
| Enclosure | Lightly textured black finish, plastic housing |
| Mounting | Freestanding, stackable, surface mount and wall/ceiling mount option with bracket (black plastic) |
| Dimensions | |
| Height | 1.35 in. (34 mm), 1.77 in. (45 mm) with bracket |
| Width | 5.04 in. (128 mm), 5.36 in. (137 mm) with bracket |
| Depth | 5.04 in. (128 mm) |
| Weight | |
| 8.9 oz (253 g) without bracket | |
