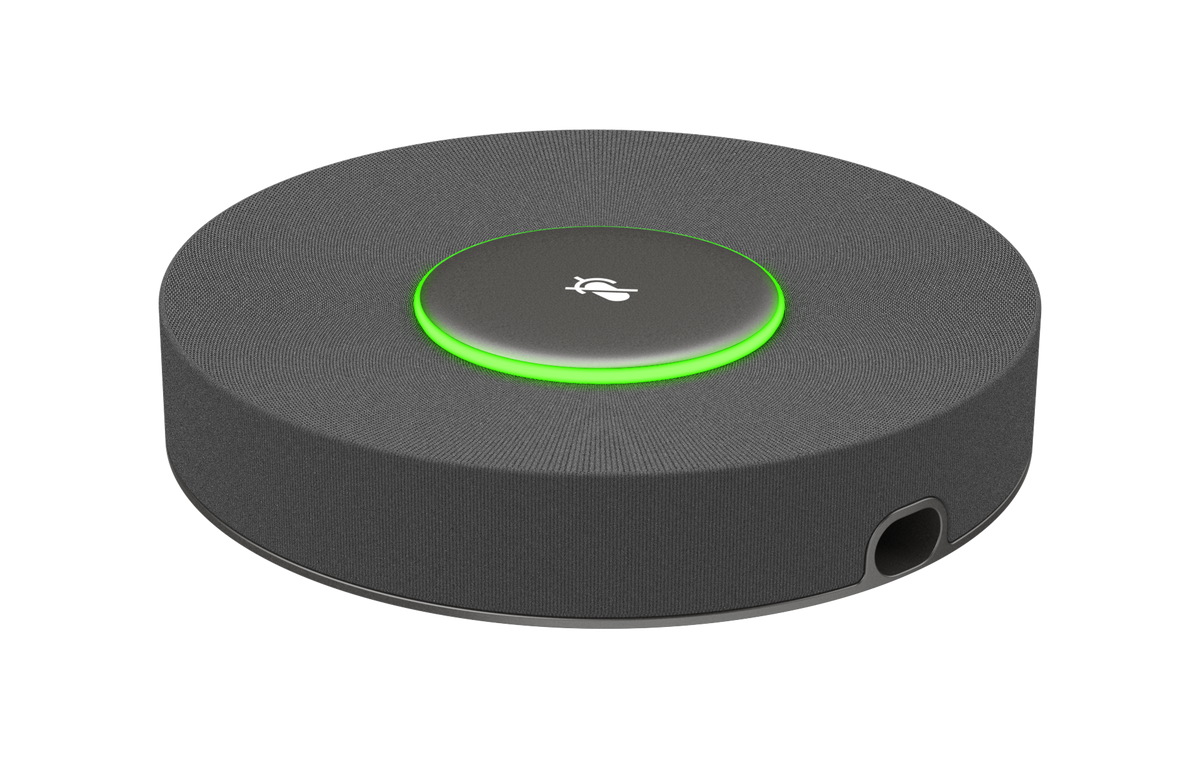

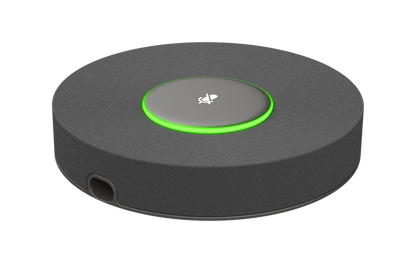

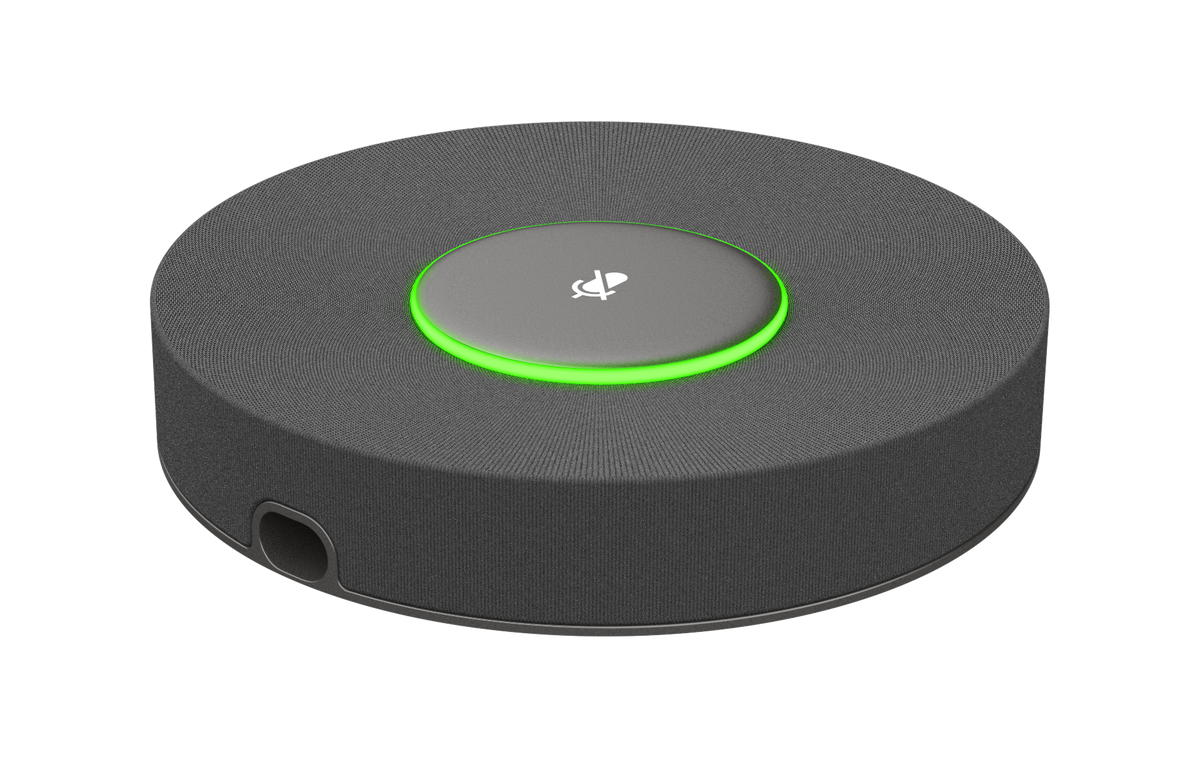

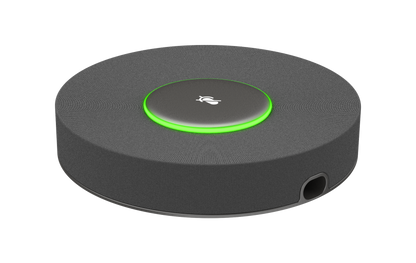

The UCA‑B70‑MIC is an extension microphone pod for use with a UC-SB2-CAM-A Series Crestron Videobar 70. The extension microphone pod extends the audio range of the Crestron Videobar 70 by 7.5 ft (2.3 m) and can be situated into different areas within the room.
Overview
The Crestron UCA‑B70‑MIC is an extension microphone pod for use with the UC-SB2-CAM-A Series Crestron Videobar 70. The extension microphone pod extends the audio range of the Crestron Videobar 70 by 7.5 ft (2.3 m) and can be situated within different areas in the room.
Press the mute button on the extension microphone pod to mute or unmute the Videobar 70 and microphone pods simultaneously. The LED on the top of the extension microphone pod changes from red (muted) to green (unmuted) to display the mute status.
Pair the UCA‑B70‑MIC Primary Extension Microphone Pod with the UCA‑B70‑MIC‑AUX Companion Extension Microphone Pod to extend the audio range further. The UCA‑B70‑MIC contains a dedicated port for a daisy-chain connection to the UCA‑B70‑MIC‑AUX Companion Extension Microphone Pod, offering flexibility when placing them in the meeting space.
Features
Key Features
- Extends the audio pickup range for the UC‑SB2‑CAM‑A Series Videobar 70
- Button to mute or unmute Videobar 70 and microphone pods
- LED indicator displays mute status
- 7.5 ft (2.3 m) audio coverage area
- Directly connects to the UC‑SB2‑CAM‑A Series Videobar 70 via the included 33 ft (10 m) signal cable
- Daisy-chain connects to the UCA‑B70‑MIC‑AUX Companion Extension Microphone Pod
- No configuration or programming required
Specifications
| Communications | |
| A2B bus protocol, child, synchronous data | |
| Audio | |
| Microphone | 360° 8x Mic Array |
| Pickup Range | 7.5 ft (2.3 m) |
| Buttons | |
| Mic Mute | Physical button on top, push to mute/unmute device |
| Reset | Recessed push button on bottom |
| Indicators | |
| Mic | Red LED indicates microphone is muted; Green LED indicates microphone is unmuted; Flashing Green LED indicates primary mic pod is booting |
| Connectors | |
| In (To BAR) | USB-C® A2B communication and power; Proprietary Connection not USB or USB-C Compliant |
| Out (To POD) | USB-C A2B communication and power; Proprietary Connection not USB or USB-C Compliant |
| Power | |
| Powered via USB-C connection to UC-SB2-CAM-A Series Crestron Videobar 70 | |
| Environmental | |
| Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 9 BTU/Hr |
| Contruction | |
| Enclosure | Black Fabric Cover, metal housing, perforated for mic array, rubber bottom pad |
| Mounting | Tabletop mounting only |
| Dimensions | |
| Height | 0.93 in. (24 mm) |
| Width | 4.76 in. (121 mm) |
| Depth | 4.76 in. (121 mm) |
| Weight | |
| 0.67 lb (0.3 kg) | |
| Compliance | |
|
Regulatory Model: M202430001 FCC Part 15 Class B, IC Class B, CE |
|
