Product Information
Allows the Crestron Flex Tabletop Small Room Conference System to be permanently mounted to a tabletop. Provides up to 170° swivel range.
Overview

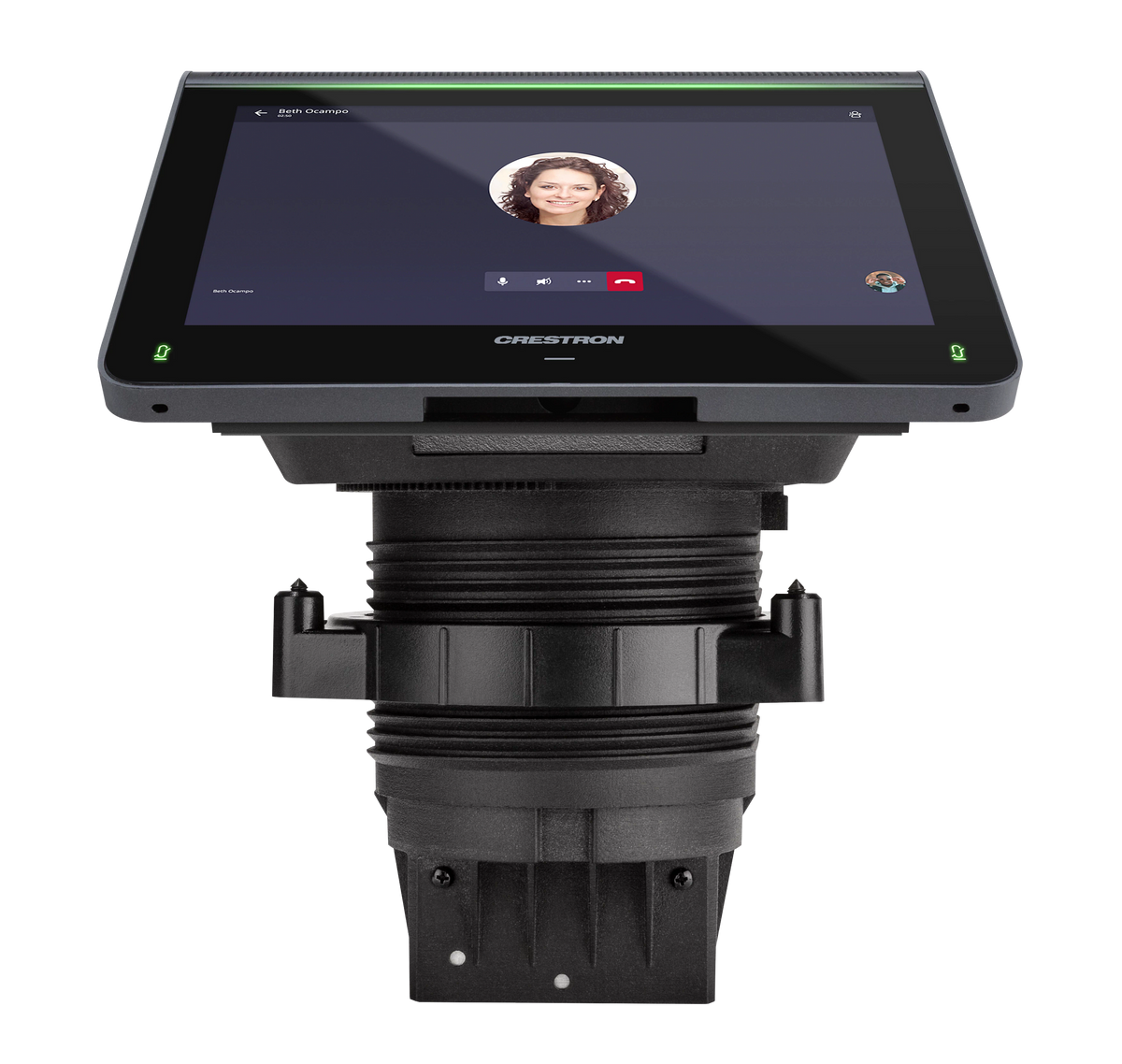

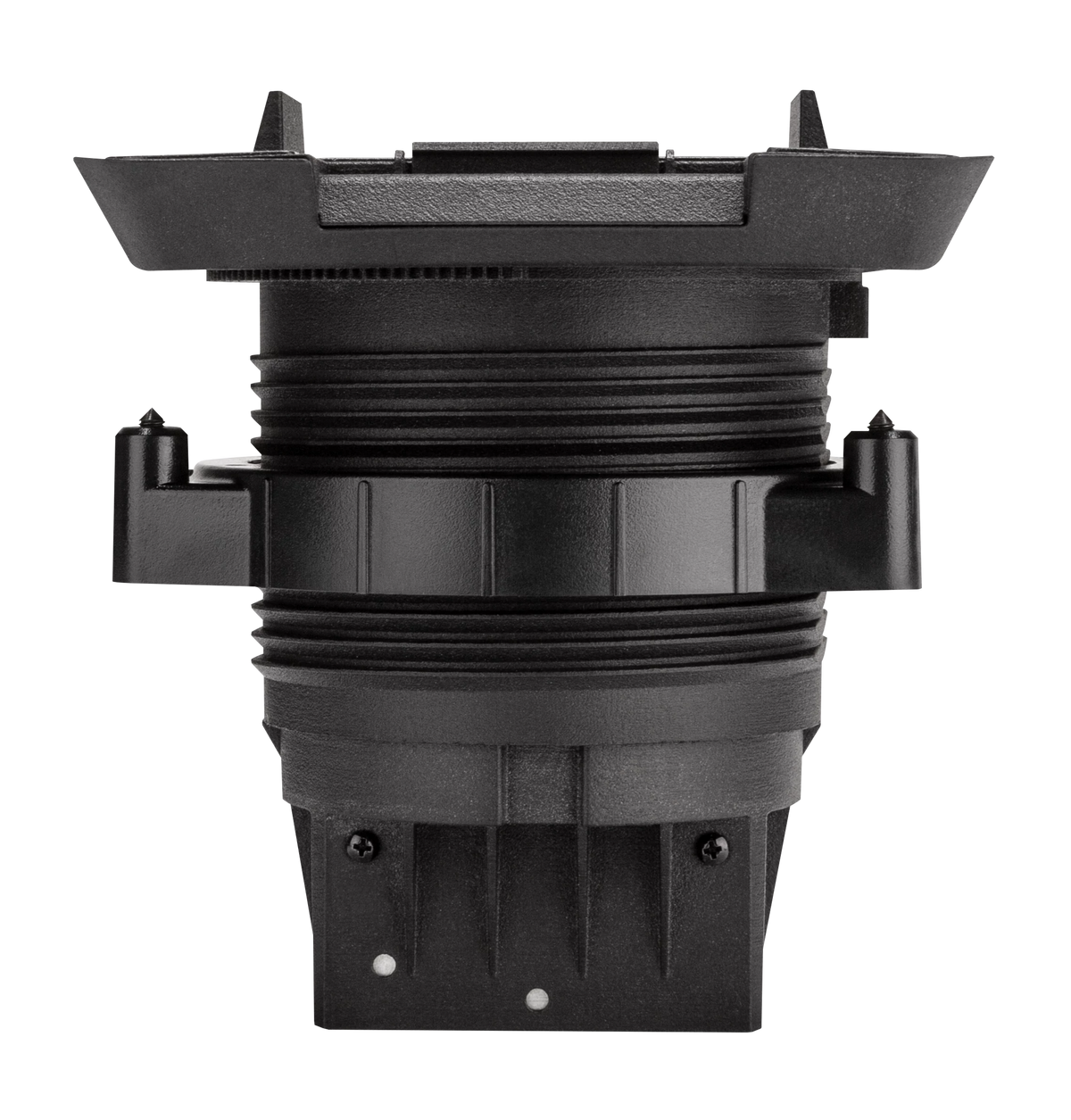

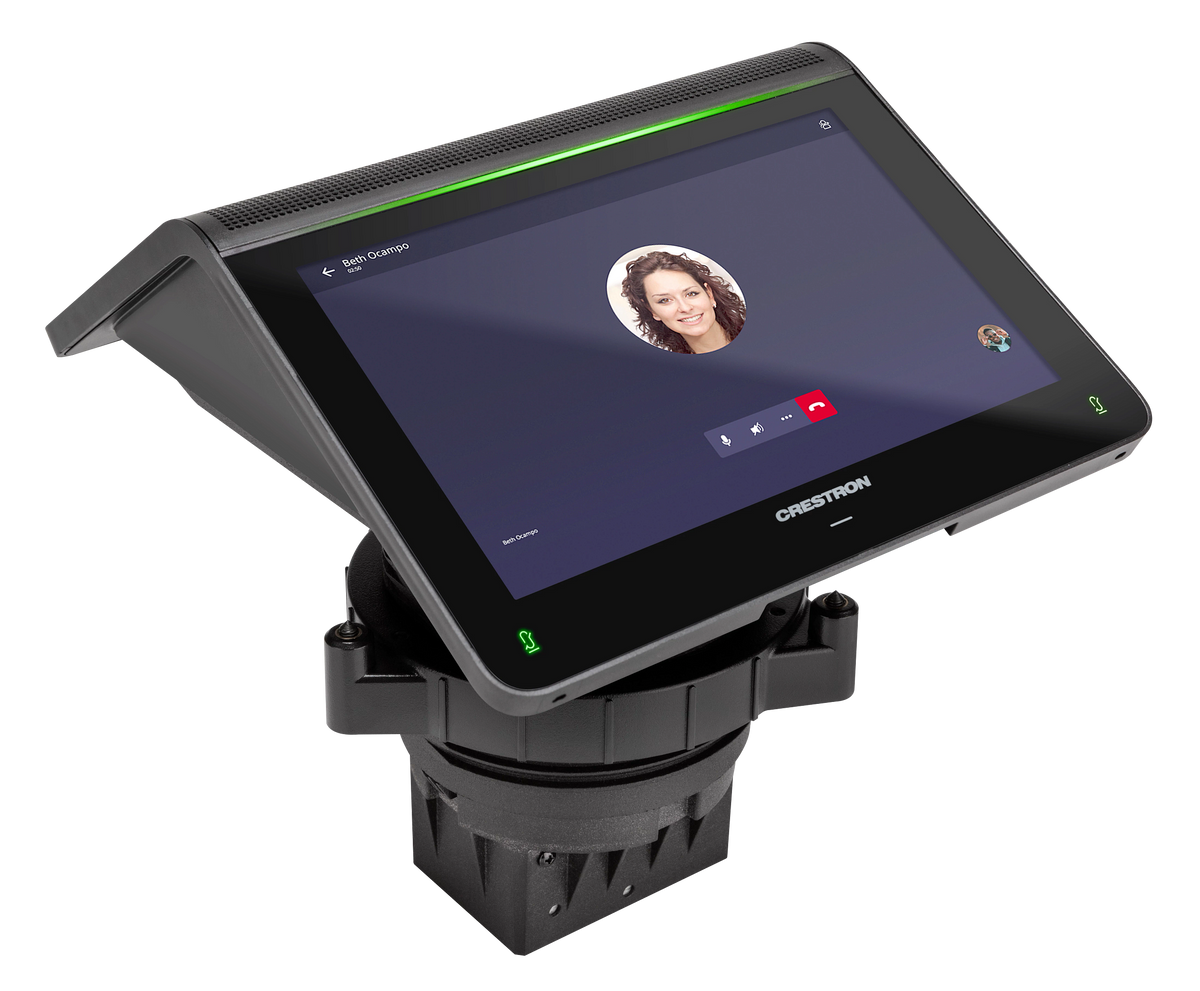

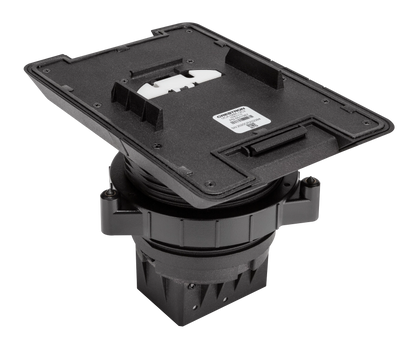

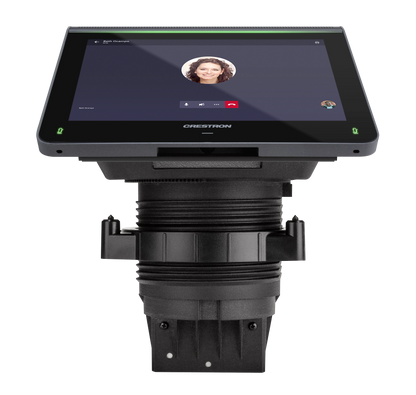

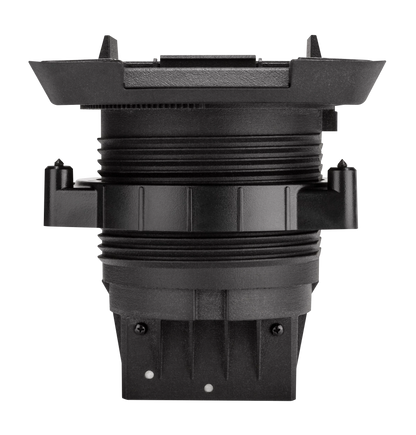

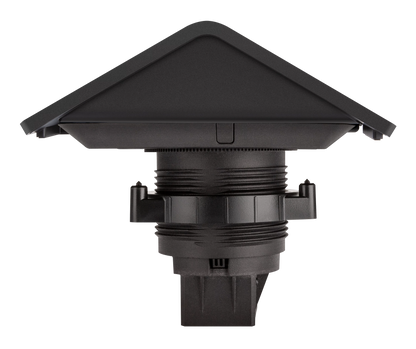

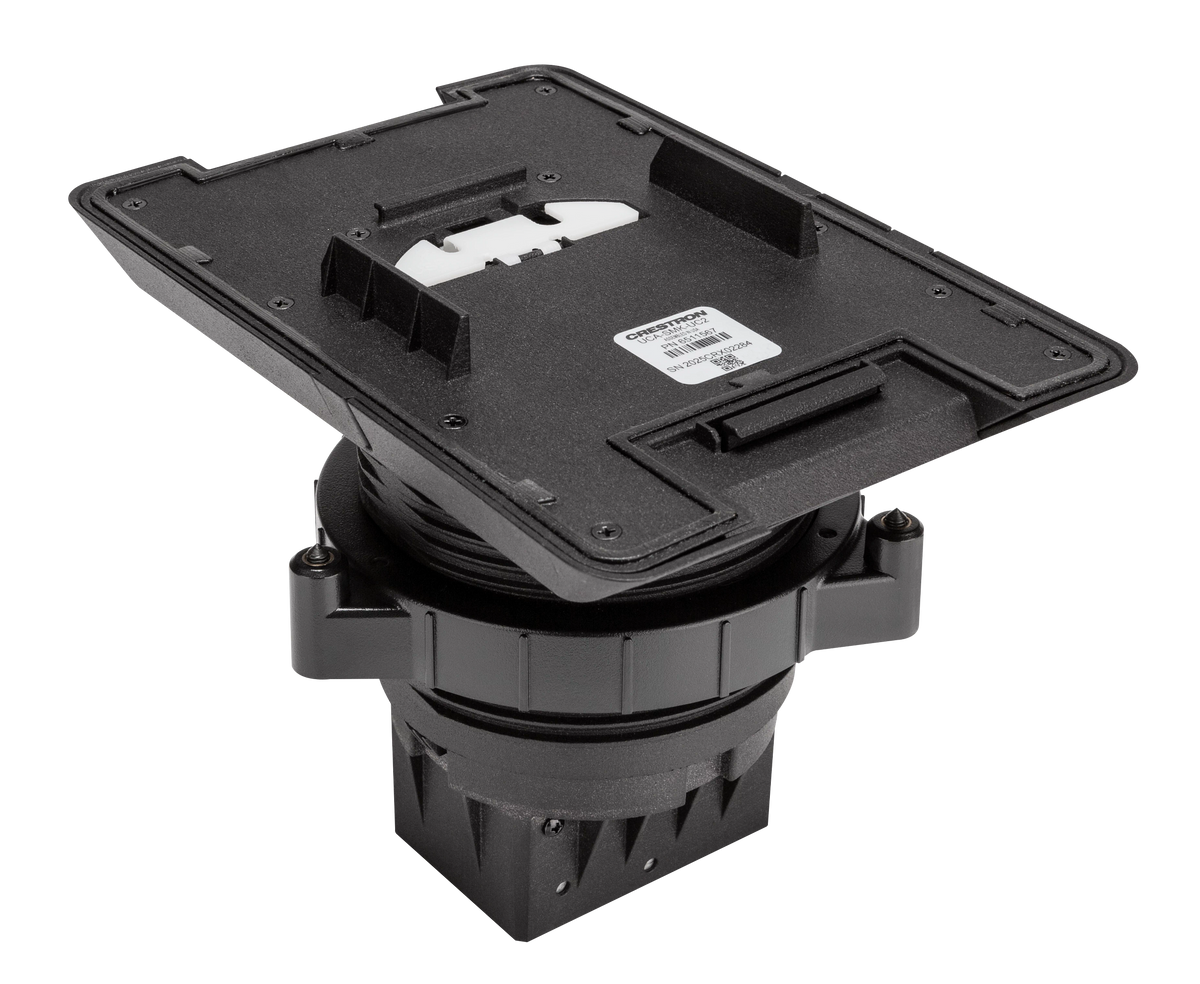

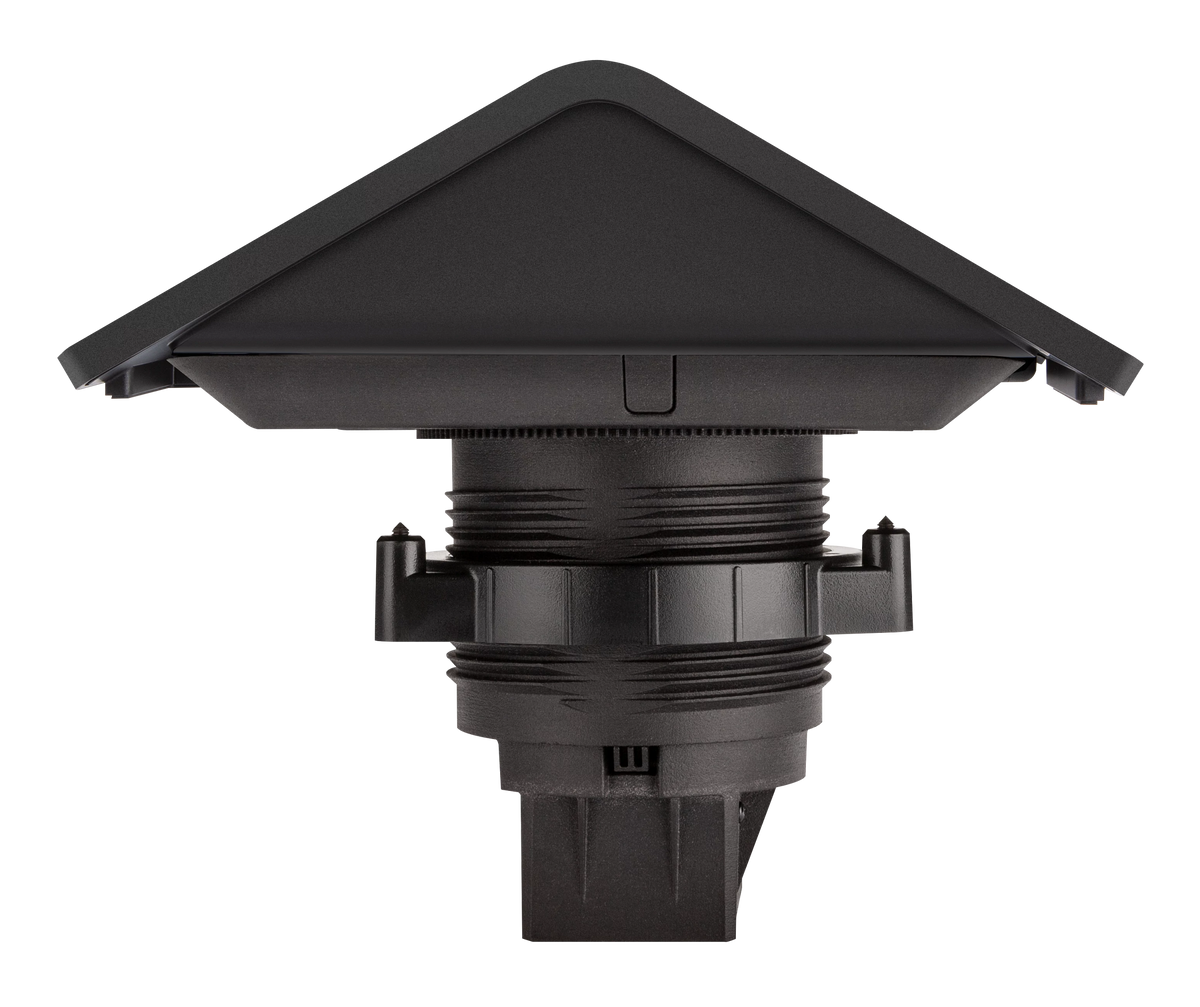

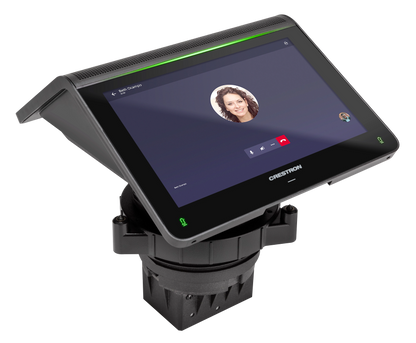

The UCA‑SMK‑UC2 is a low-profile swivel mount accessory for the Crestron Flex Tabletop Small Room Conference Systems (UC‑MM30‑T, UC‑MM30‑TA, and UC‑MM30‑Z series). It provides a means for permanently mounting the device to a tabletop surface while retaining the ability to rotate it up to 170° for optimal positioning.
The swivel mount may be installed on any flat, level surface with a thickness of 1/2 in. (13 mm) minimum to 1-1/4 in. (32 mm) maximum. Wiring is routed through the center of the swivel mount, passing beneath the mounting surface for a completely hidden appearance.
Features
Specifications
| Swivel Range | |
| 170° total; - 85° and +85° |
|
| Construction | |
| Material | Black polycarbonate-ABS |
| Mounting | Tabletop mount, fastened by a locking nut; Surface thickness: 1/2 in. (13 mm) minimum to 1-1/4 in. (32 mm) maximum; 4 in. (102 mm) diameter mounting hole cutout (template included) |
| Dimensions | |
| Height |
Without the UC‑2 mounted: 6.04 in. (153 mm) Above the table: 1.20 in. (30 mm) Below the table: 4.07 in. (103 mm) With the UC‑2 mounted: 8.16 in. (207 mm) Above the table: 3.34 in.(85 mm) Below the table: 4.07 in. (103 mm) |
| Width |
Without the UC‑2 mounted: Above the table: 5.39 in. (137 mm) Below the table: 5.18 in. (131 mm) with the locking ring With the UC‑2 mounted: Above the table: 7.17 in. (182 mm) Below the table: 5.18 in. (131 mm) with the locking ring |
| Depth |
Without the UC‑2 mounted: Above the table: 7.91 in. (201 mm) Below the table: 5.18 in. (131 mm) with the locking ring With the UC‑2 mounted: Above the table: 9.61 in. (244 mm) Below the table: 5.18 in. (131 mm) with the locking ring |
