Permanently mounts the Crestron Flex Advanced Tabletop Small Room Conference System to a tabletop. Provides up to 170° swivel range and cable retraction for the installed USB A to Micro USB-B, HDMI®, and USB‑C® cables.
Overview

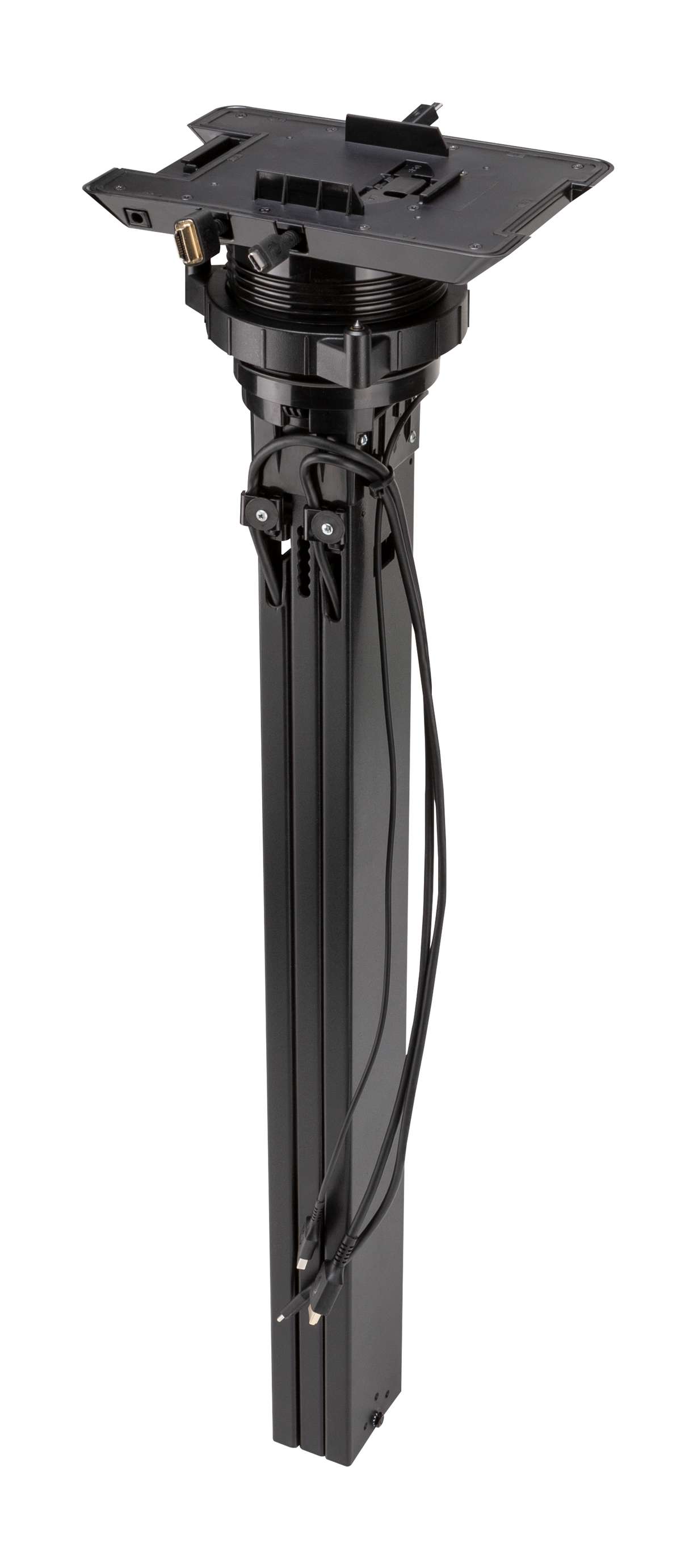

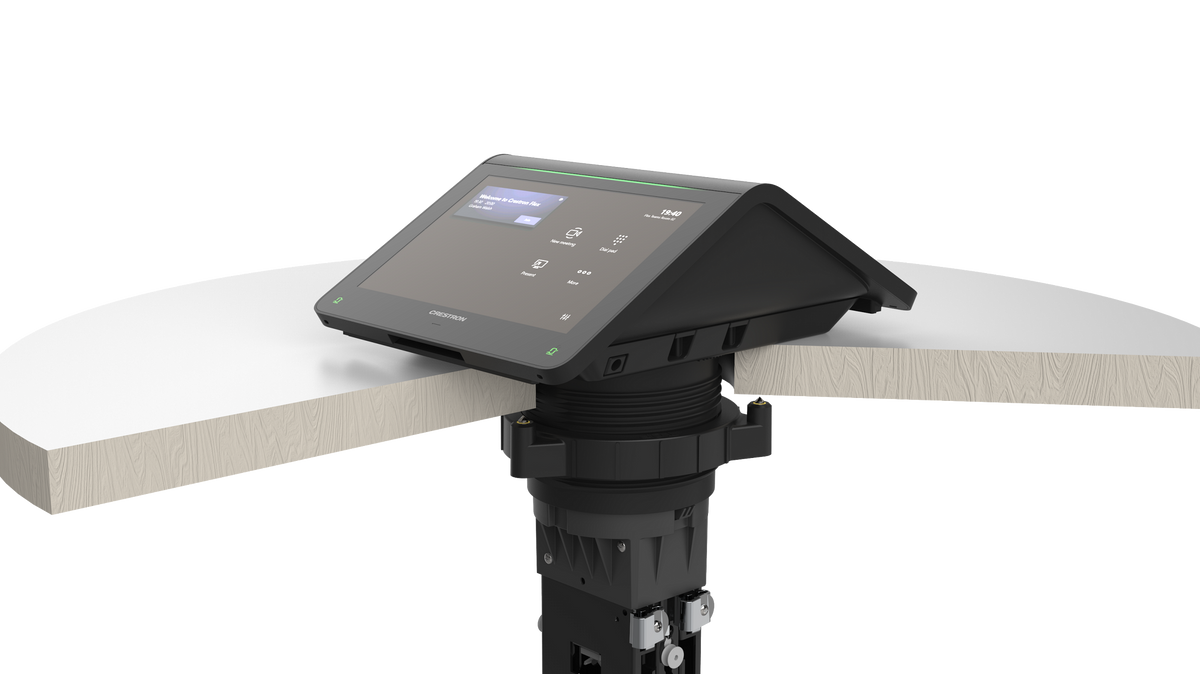

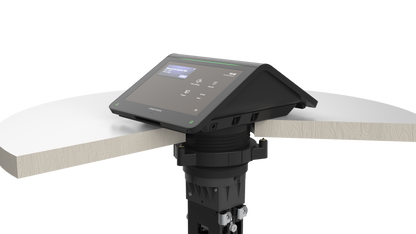

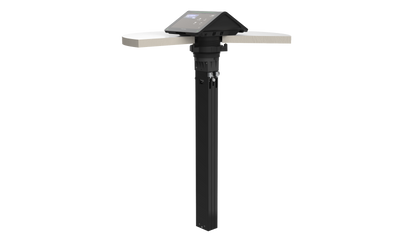

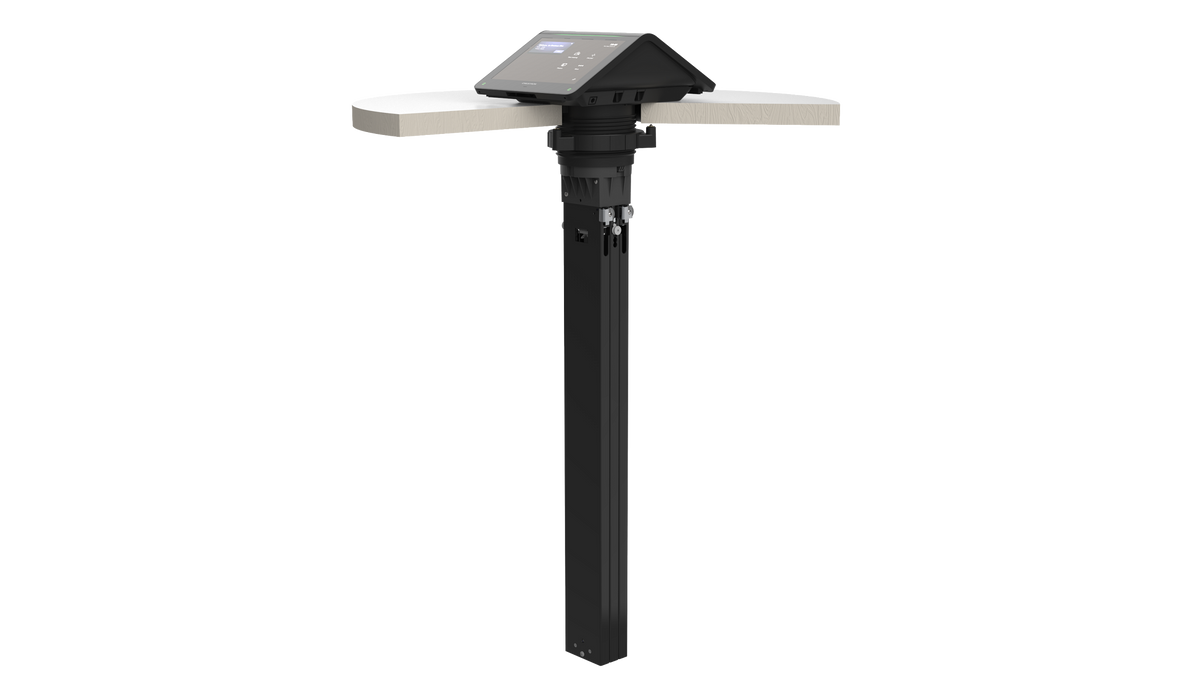

The Crestron® UCA‑SMKR‑UC2‑3 is a low-profile swivel mount cable retractor for Crestron Flex Advanced Tabletop Small Room Conference Systems (UC‑MMX30 series). It provides a means for permanently mounting the tabletop conference device to a table. The UCA‑SMKR‑UC2‑3 rotates up to 170° and retracts the installed cables for easy cleanup.
The installed cables support Bring Your Own Device (BYOD) connectivity above the table and UC‑PR (included with the UC‑MMX30 series) connections below the table.
When pulled out to their full extended length, the USB‑A to Micro USB-B, HDMI®, and USB‑C® cables lay on top of the table without retracting back below. To retract an extended cable, gently tug and release it.
The swivel mount cable retractor may be installed on any flat, level surface with a thickness of .75 in. (19 mm) minimum to 1.5 in. (38 mm) maximum.
Features
Key Features
- USB‑A to Micro USB-B, HDMI®, and USB‑C® cables to support BYOD and UC‑PR (not included) connections
- Cables pull out up to 3 ft and retract beneath the table
- 170° swivel range
- Mounts the tabletop conference device to the table
Specifications
| Swivel Range | |
| 170° total; - 85° and +85° |
|
| Cables | |
| Pullout length | Up to 3 ft above the table |
| Cable types | USB 2.0: USB-A male (for above the table connections) to Micro USB-B male (for below the table connections) HDMI 2.0: HDMI male for connections above and below the table USB 3.2: USB-C male for connections above and below the table |
| Construction | |
| Material | Black polycarbonate-ABS and metal |
| Mounting | Tabletop mount, fastened by a locking nut; Surface thickness: 0.75 in. (19 mm) minimum to 1.5 in. (38 mm) maximum; 4 in. (102 mm) diameter mounting hole cutout (template included) |
| Dimensions | |
| NOTE: The dimensions vary depending on the thickness of the table. | |
| Height |
Without the tabletop conference device mounted: 29.39 in. (747 mm) Above the table: 1.22 in. (31 mm) Below the table: 27.42 in. (696 mm) With the tabletop conference device mounted: 31.51 in. (800 mm) Above the table: 3.34 in.(85 mm) Below the table: 27.42 in. (696 mm) |
| Width |
Without the tabletop conference device mounted: Above the table: 5.38 in. (137 mm) Below the table: 5.18 in. (131 mm) with the locking ring With the tabletop conference device mounted: Above the table: 7.17 in. (182 mm) Below the table: 5.18 in. (131 mm) with the locking ring |
| Depth |
Without the tabletop conference device mounted: Above the table: 7.91 in. (201 mm) Below the table: 5.18 in. (131 mm) with the locking ring With the tabletop conference device mounted: Above the table: 9.61 in. (244 mm) Below the table: 5.18 in. (131 mm) with the locking ring |
