Includes the woofer, back box, spacers, and grille components of the ULTIMATE IC3-SA-WOOFER/TWEETER-W-T-KIT, made available for purchase to install during new construction. Tweeter module sold separately as ULTIMATE IC3-AW-SA-TWEETER-EACH and is required for a complete ULTIMATE IC3-AW installation.
Overview
The Crestron Ultimate in-ceiling woofer made by Origin Acoustics delivers the pinnacle of performance for demanding residential installations. Weatherized construction allows for use in a shower, sauna, locker room, yacht, and marine applications.
The ULTIMATE‑IC3‑AW‑SA‑BOX‑WOOFER‑W‑T‑EACH includes mounting hardware, trim-ring kit, grilles and installation hardware.
The ULTIMATE‑IC3‑AW‑SA‑BOX‑WOOFER‑W‑T‑EACH is part of the ULTIMATE IC3‑SA‑WOOFER/TWEETER‑W‑T‑KIT that includes ULTIMATE IC3‑AW‑SA‑TWEETER‑EACH as well.
In the pre-construction phase, just the ULTIMATE‑IC3‑AW‑SA‑BOX‑WOOFER‑W‑T‑EACH can be installed, and once construction is finished, the ULTIMATE IC3‑AW‑SA‑TWEETER‑EACH can be installed to complete the speaker setup.

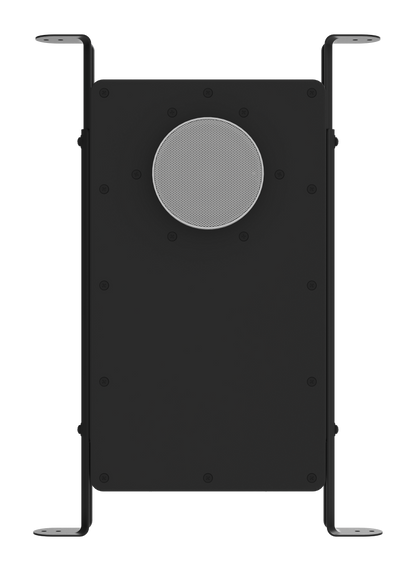

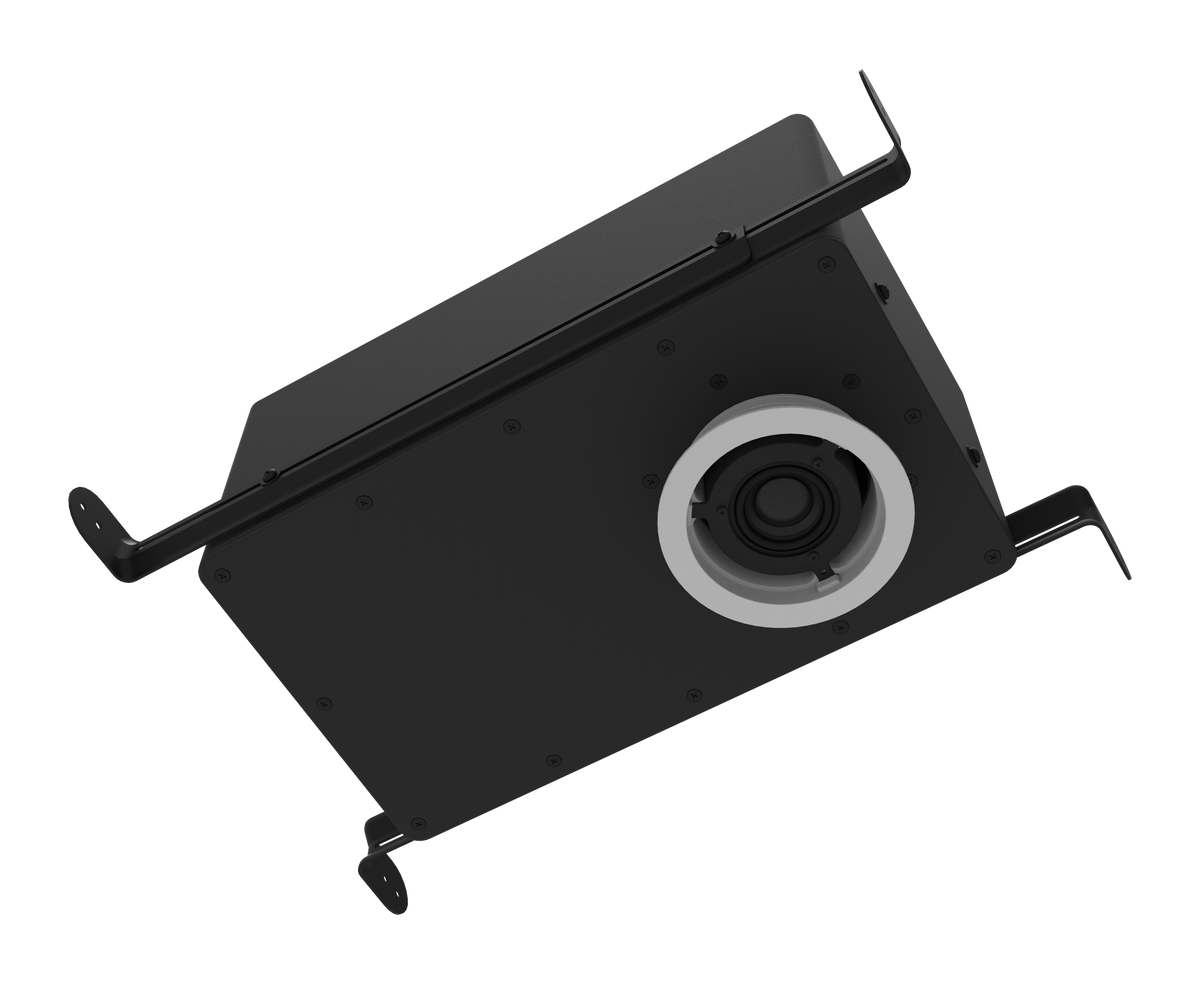

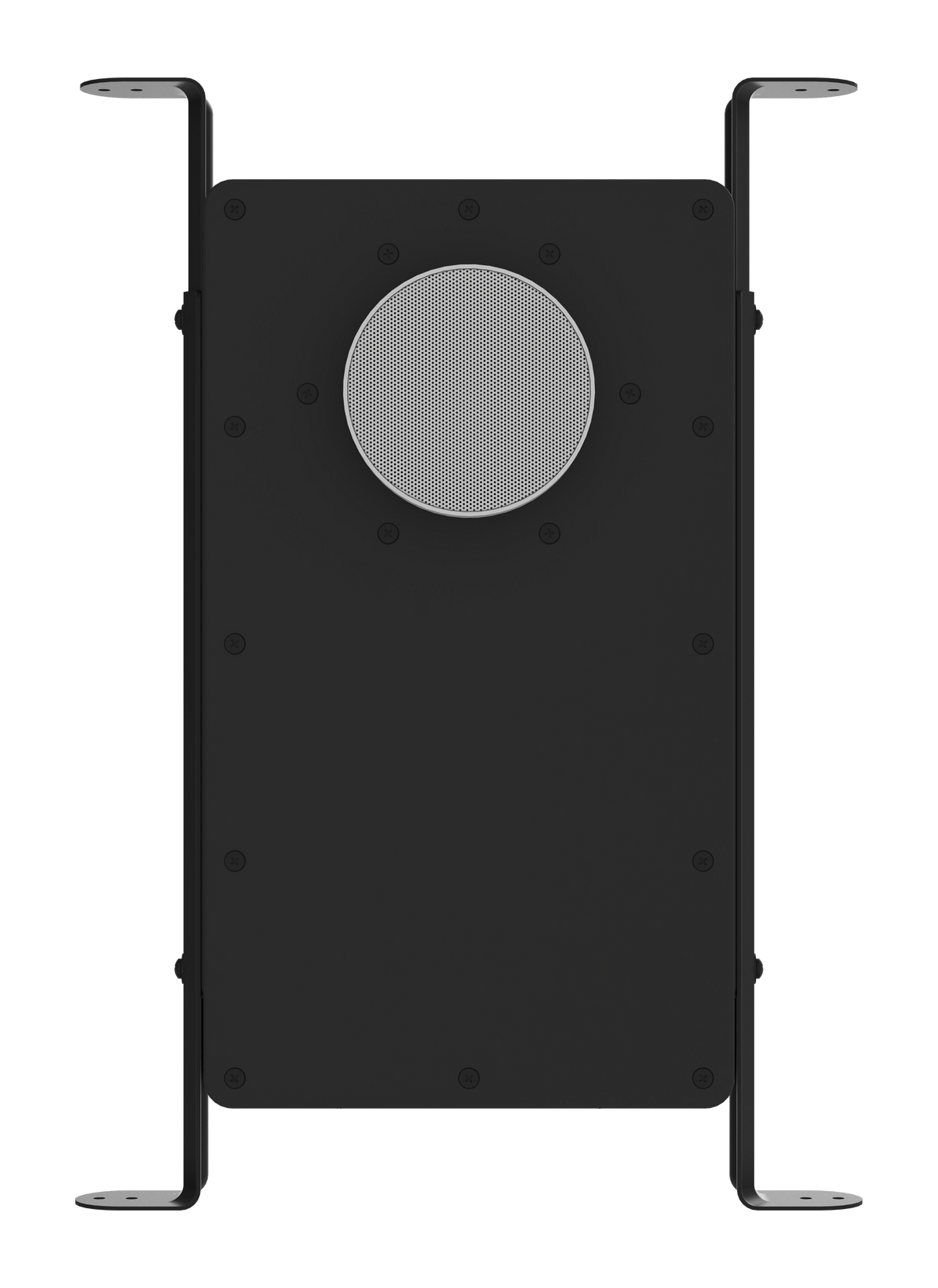

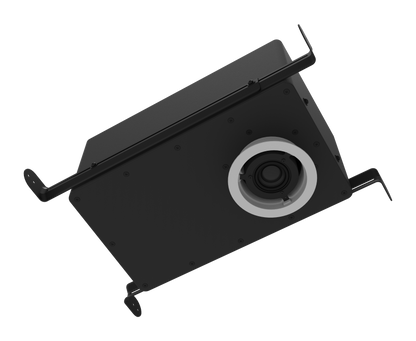

The installation process is simplified with built-in rails that secure the woofer enclosure directly to the ceiling joists, ensuring a level and secure fit.
Features
Key Features
- 6 in. (152 mm) carbon fiber woofer
- IP66 rated for particle and water protection
- 44 Hz to 20 kHz (±3 dB) frequency response
- 8 Ohms nominal impedance

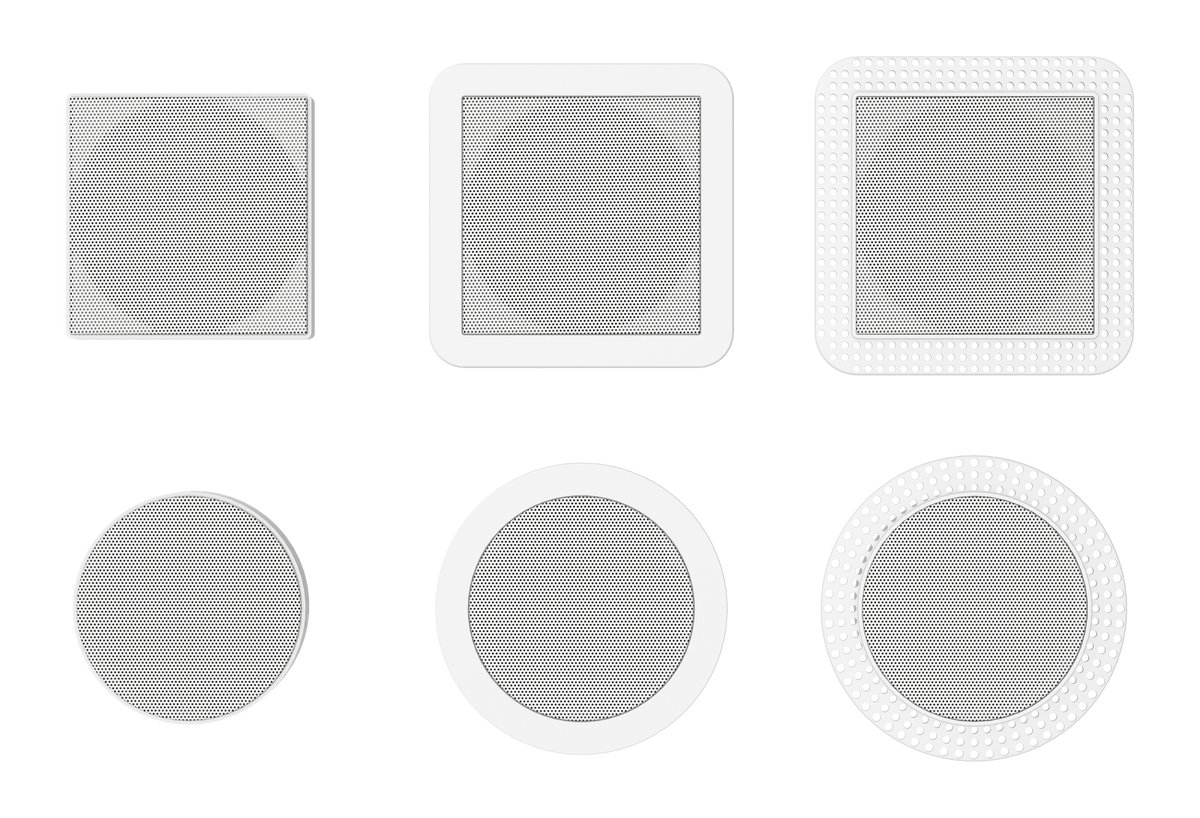

- Various square and round trim rings and grilles
Specifications
| ULTIMATE IC3-AW-SA-BOX-WOOFER-W-T-EACH | |
| Woofer | 6 in. (162 mm) carbon fiber |
| Crossover | Custom 2-way passive |
| Crossover Point | 200 Hz |
| Impedance | 8 Ohms nominal |
| Frequency Response | 44 Hz to 20 kHz (±3 dB) |
| Coverage | 100° conical |
| Sensitivity | 82 dB @ 1 W/1 M |

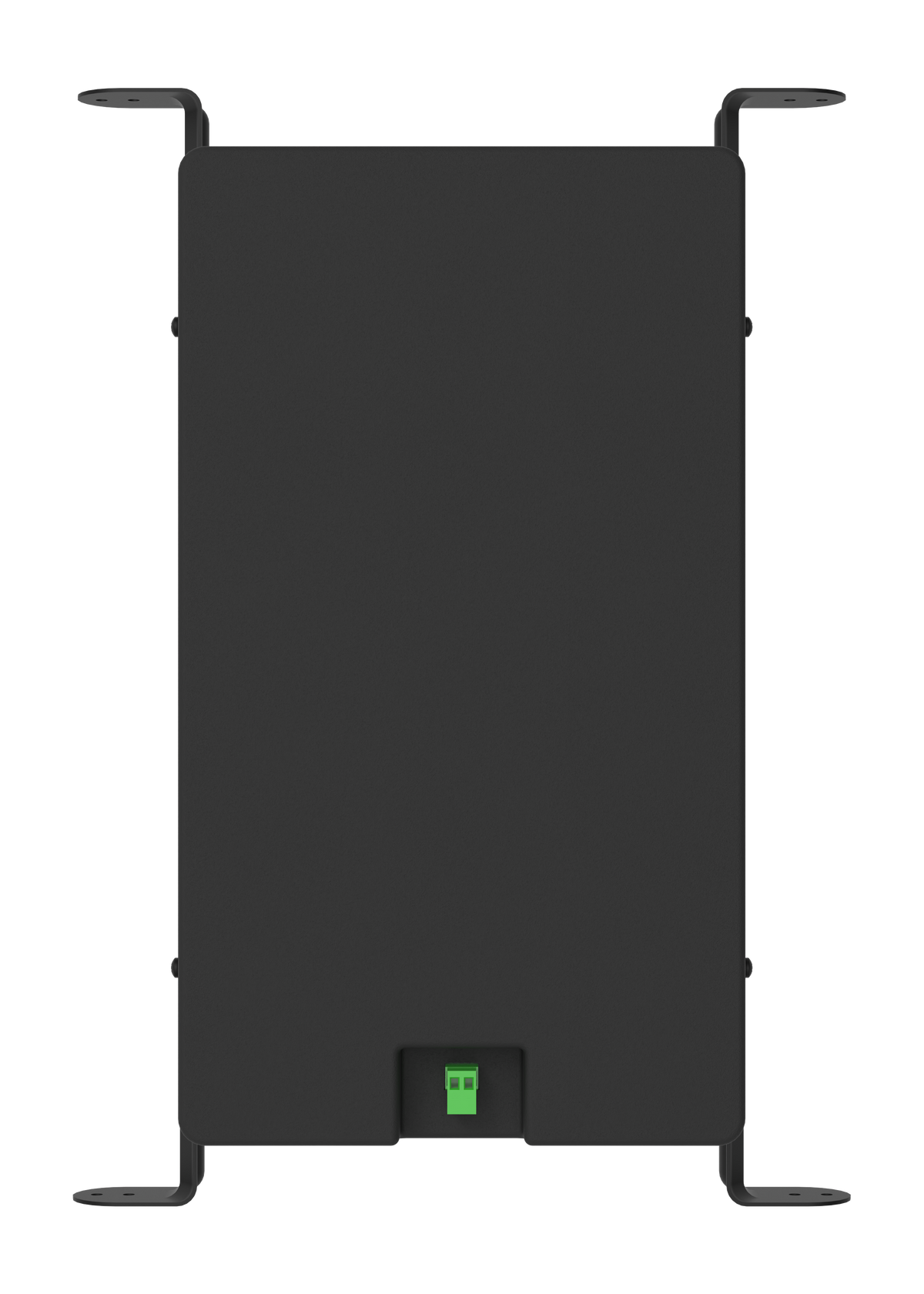

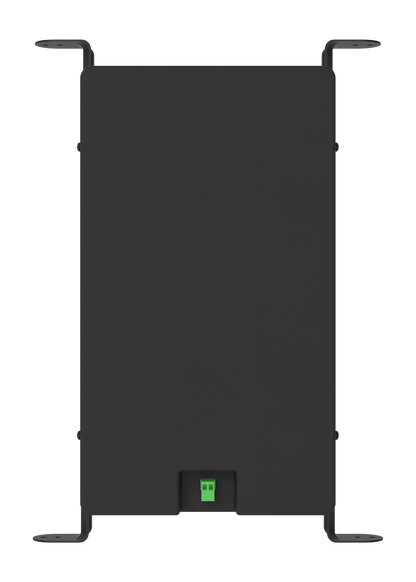

| Input | 2-pin pluggable screw terminals |
| Max Wire Size | 12 AWG (4 mm2) |
| Enclosure Material | Cast Aluminum |
| Mounting | Overlapping formed steel straps Adjustable from 14.25 in. (362 mm) to 24 in. (610 mm). |
| Splash Resistance | IP66 rated for water |
| Height | 14 in. (356 mm) |
| Width | 8 in. (203 mm) |
| Depth | 6.67 in. (169 mm) |
| Weight | 11.5 lb (5.21 kg) |
| Square Trim Rings Dimension | |
| Flush | Diameter: 3.94 in. (100 mm) |
| Invisible | External Diameter: 5.12 in. (130 mm) Internal Diameter: 3.94 in. (100 mm) |
| Flanged | External Diameter: 4.88 in. (124 mm) Internal Diameter: 3.94 in. (100 mm) |
| Round Trim Rings Dimension | |
| Flush | Diameter: 3.74 in. (95 mm) |
| Invisible | External Diameter: 4.92 in. (125 mm) Internal Diameter: 3.74 in. (95 mm) |
| Flanged | External Diameter: 4.69 in. (119 mm) Internal Diameter: 3.74 in. (95 mm) |
| Environmental | |
| Temperature | 4° to 176°F (-15.5° to 80°C) |
| Humidity | 10% to 95% RH (non‑condensing) |
| Ingress Protection | IP66 rated for particles and water |
| Compliance | |
|
Regulatory Model: CE, Intertek® Listed for US & Canada, FCC Part 15 Class B digital device |
|
